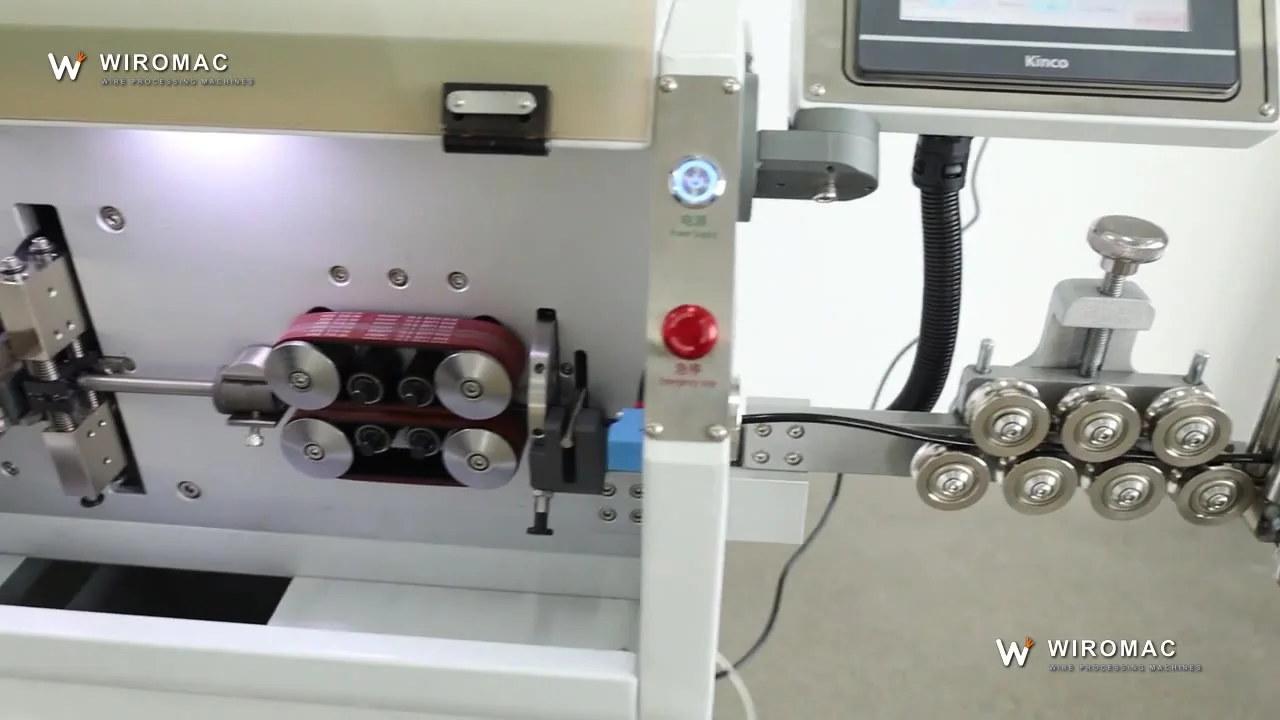

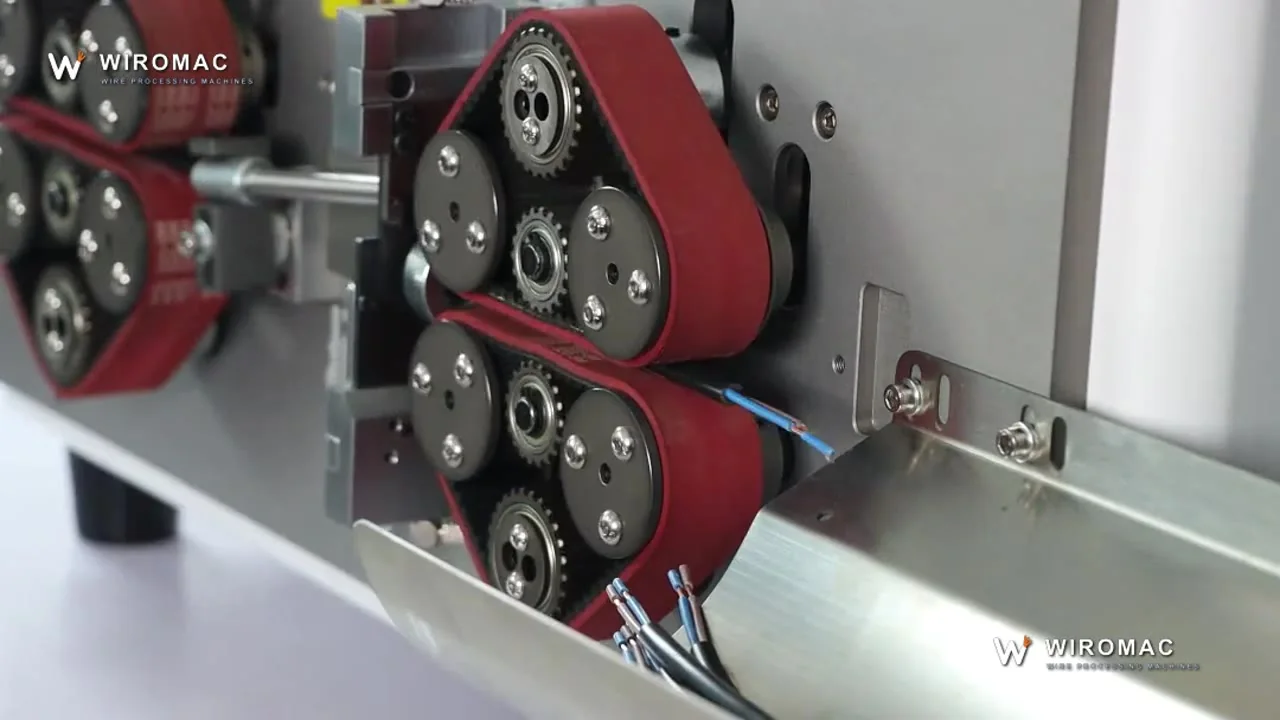

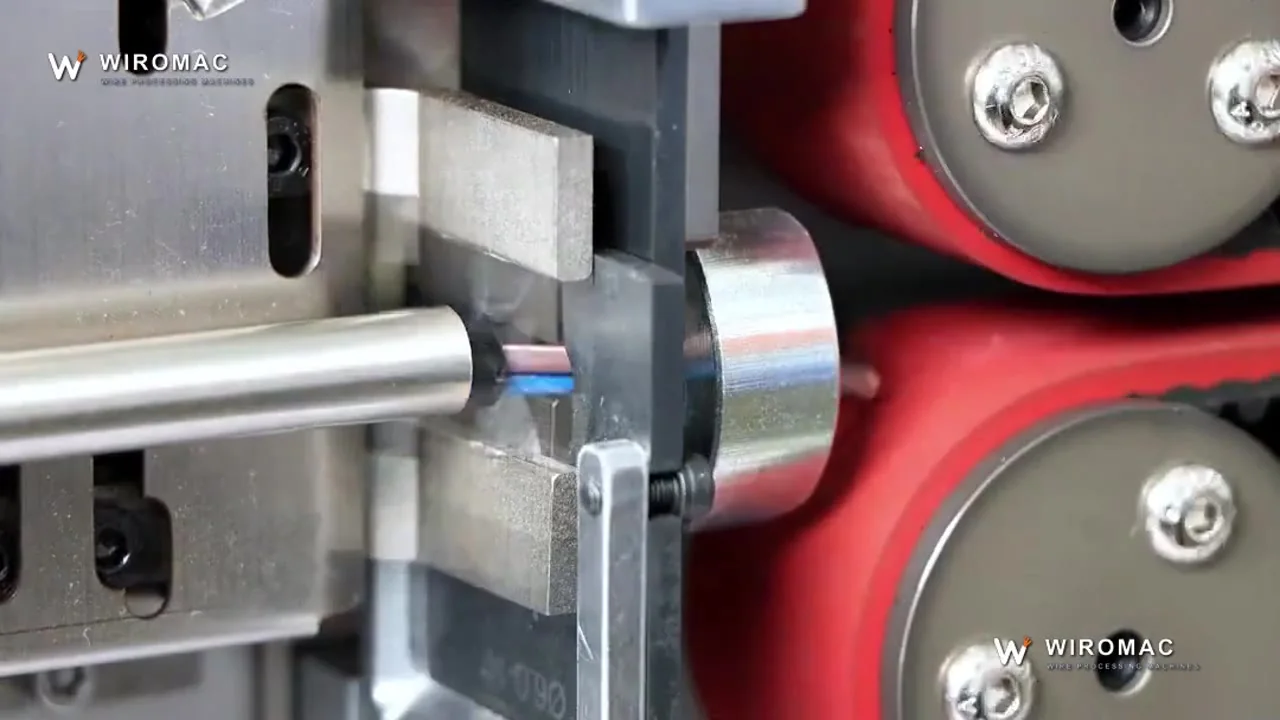

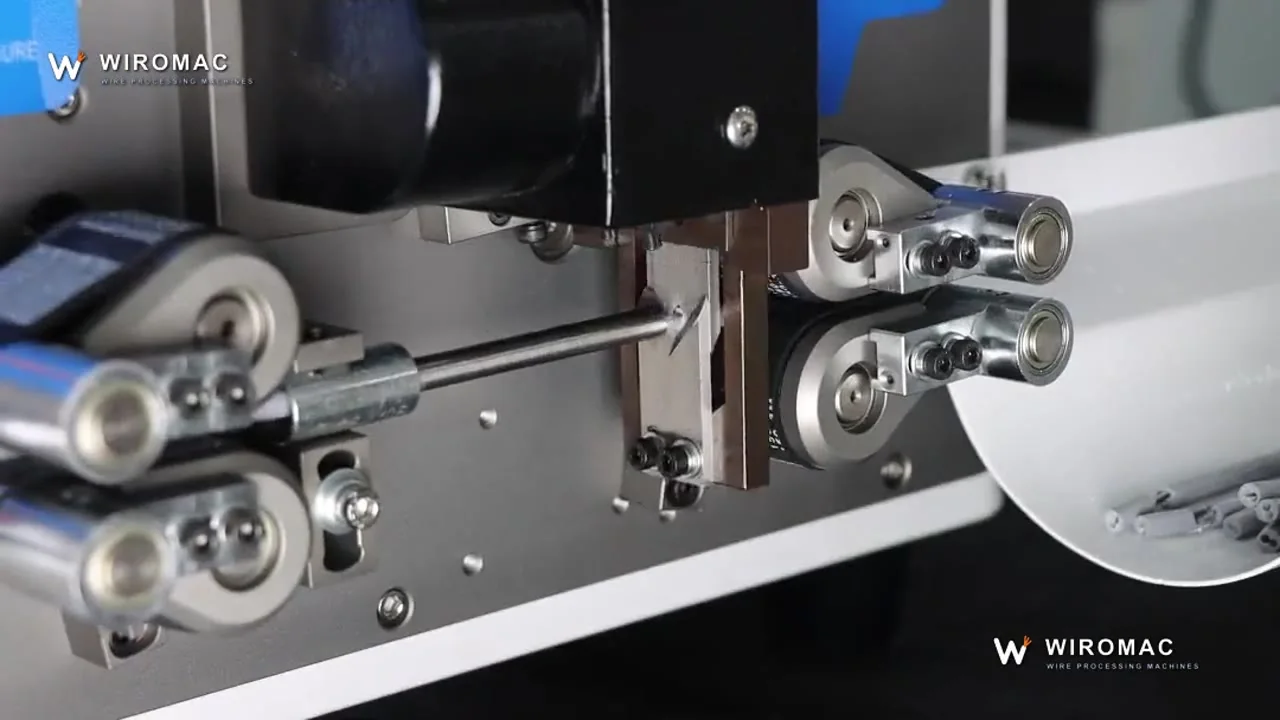

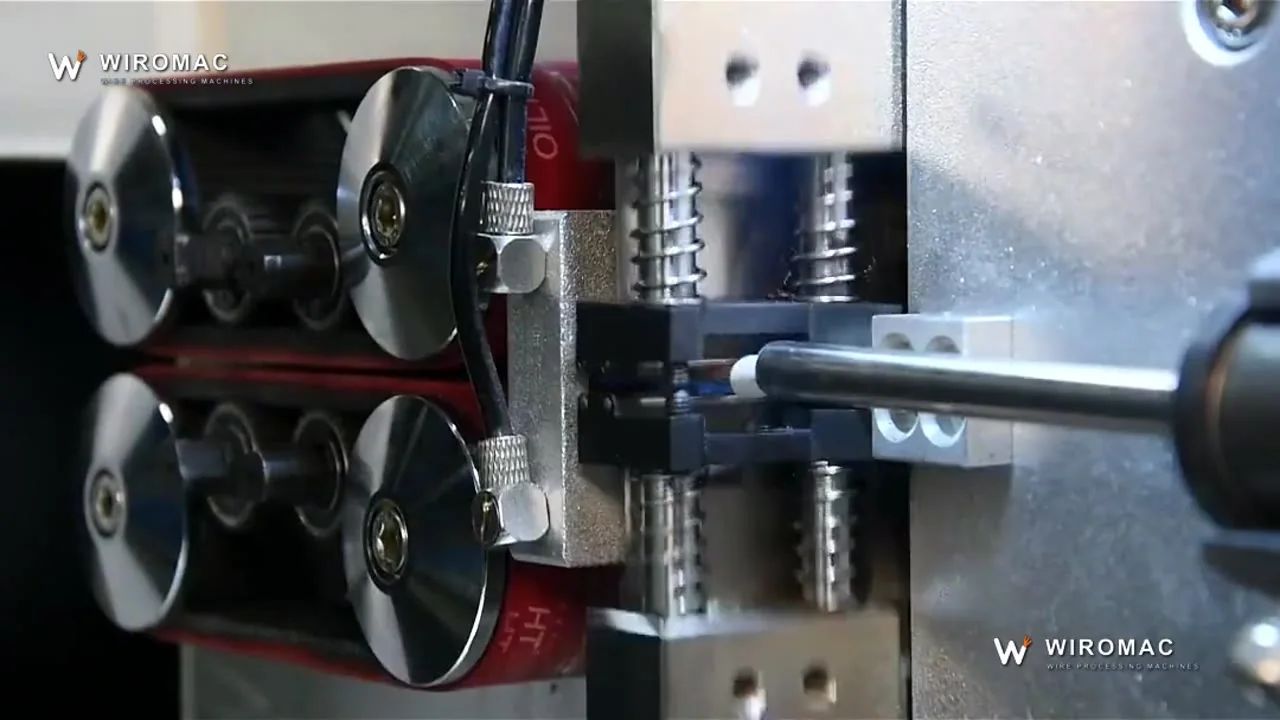

Black sheathed cable feeds between the red belts; close-ups show jacket removal and the exposed blue and brown cores.
WM-168HT · specs & price →Machine process videos
Search by process, material or model and compare the machine head at work.
Videos: 259
Videos
No matching videos
Try another process, material or model, or browse all videos.
Does this head match your job? Send 2–3 metres of your wire (or a bag of your terminals) and we run it on this class of machine on video before you order.
Send my sample →Process questions & selection notes
Open a question for the process explanation and sample requirements.
Wire preparation
How are conductor ends formed before their next assembly step?
The finished conductor profile can be the selection requirement even when there is no separate terminal to crimp onto the lead. These two films show paired end-working tools and the resulting metallic profiles. We use the wire construction, end drawing and required downstream connection to confirm the process and acceptance checks.
Process details →How are short wire pieces loaded into a benchtop twisting spindle?
The operator loads the wires into the front clamp, runs the spindle and removes the piece. This close-up also shows the wire pieces on the bench and preparation for the next cycle. It demonstrates handling at the spindle, not a measured output rate.
Process details →How are twisted cable cores prepared before connector assembly?
The cable arrives with its outer jacket already removed. The operator presents the exposed cores to the untwisting pads and then shows the straightened ends. This demonstration shows core preparation, not jacket stripping or crimping.

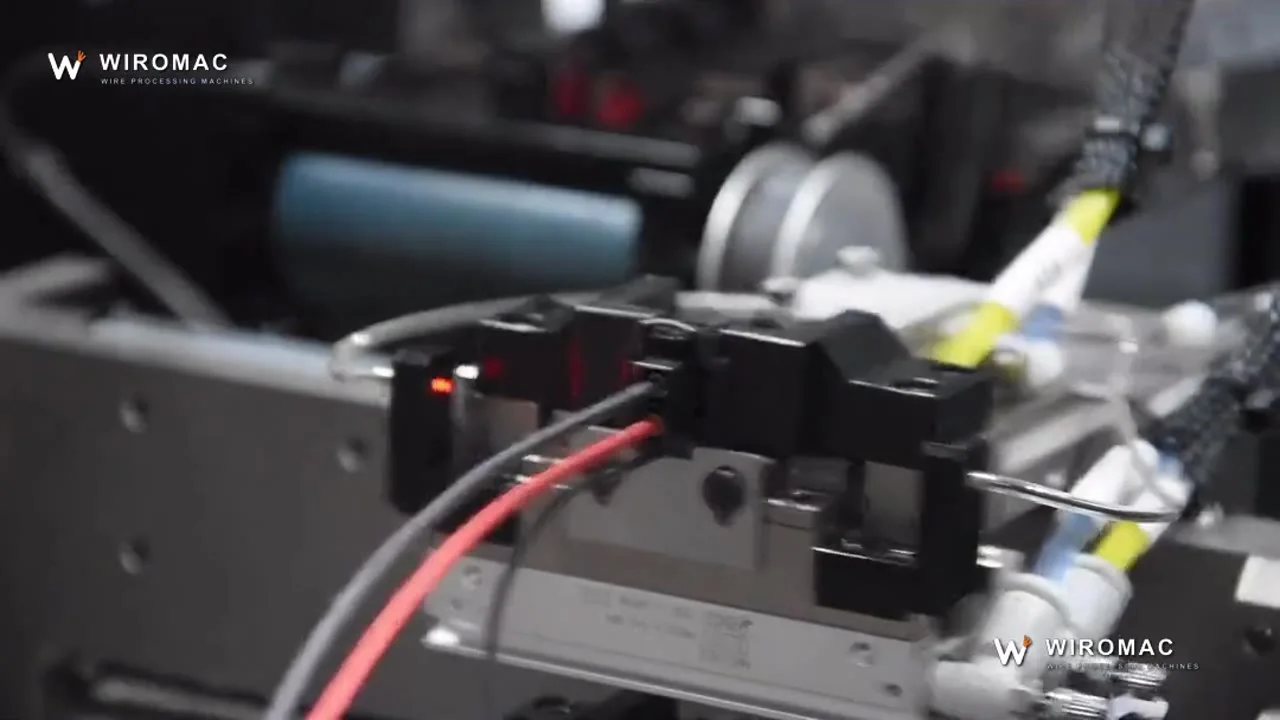

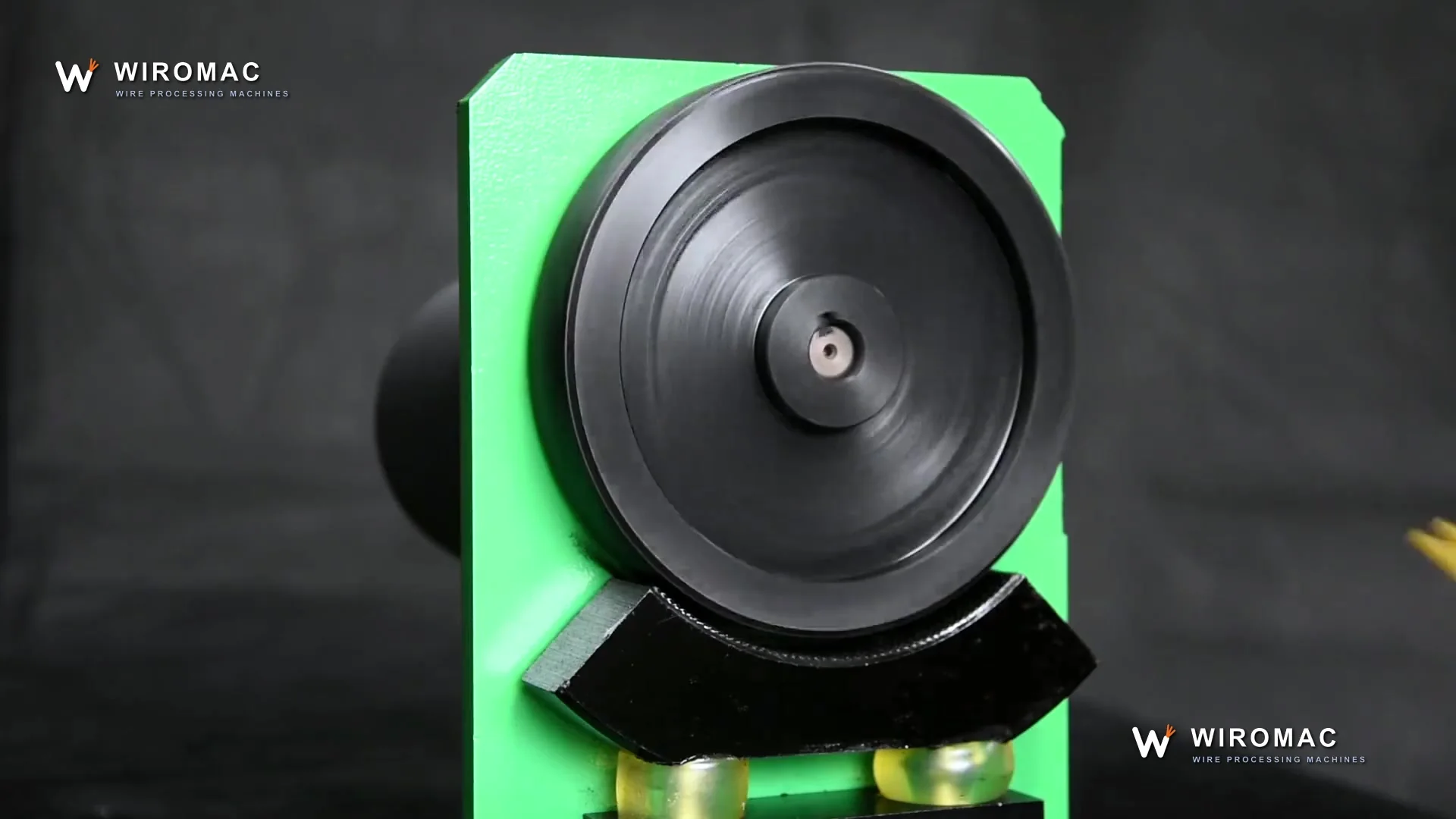

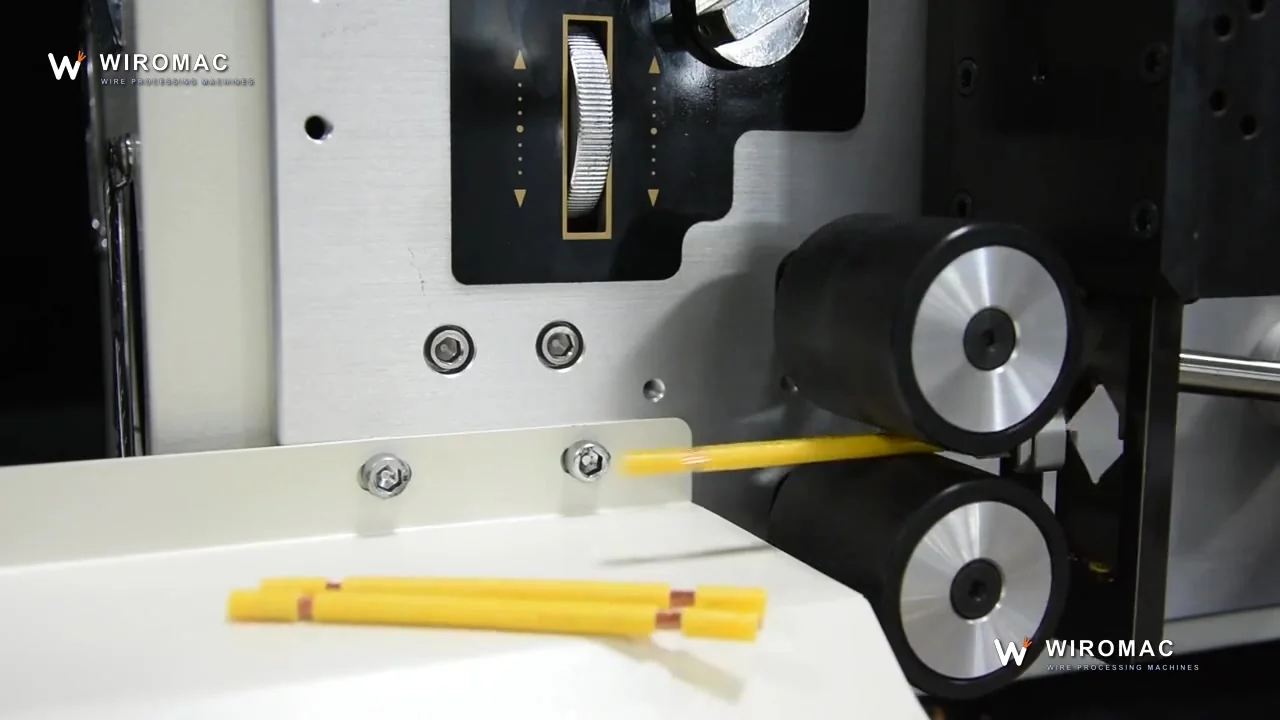

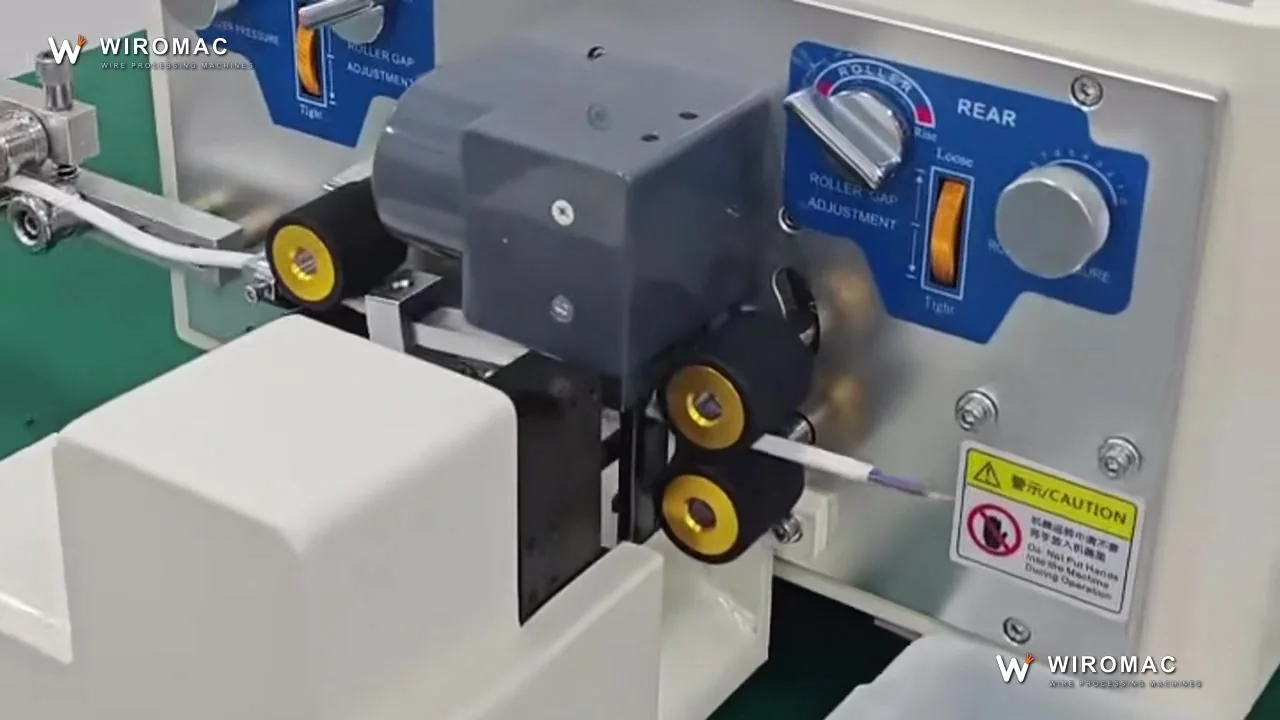

Process details →How do you finish half-stripped wire ends without finger-twisting each one?

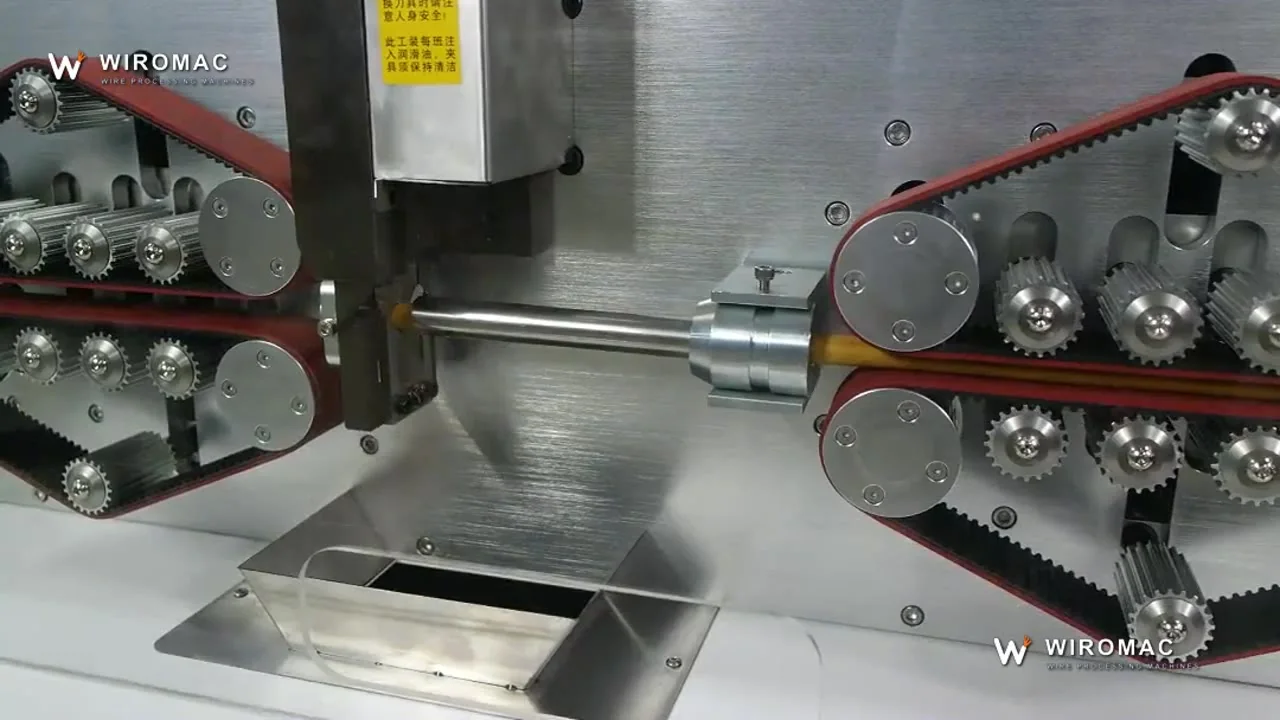

The initial insulation cut is made before this station. The operator presents the prepared ends to the driven wheel and then shows the exposed, twisted conductor ends. We test your wire and required end length so you can check sleeve removal and strand condition before ordering.

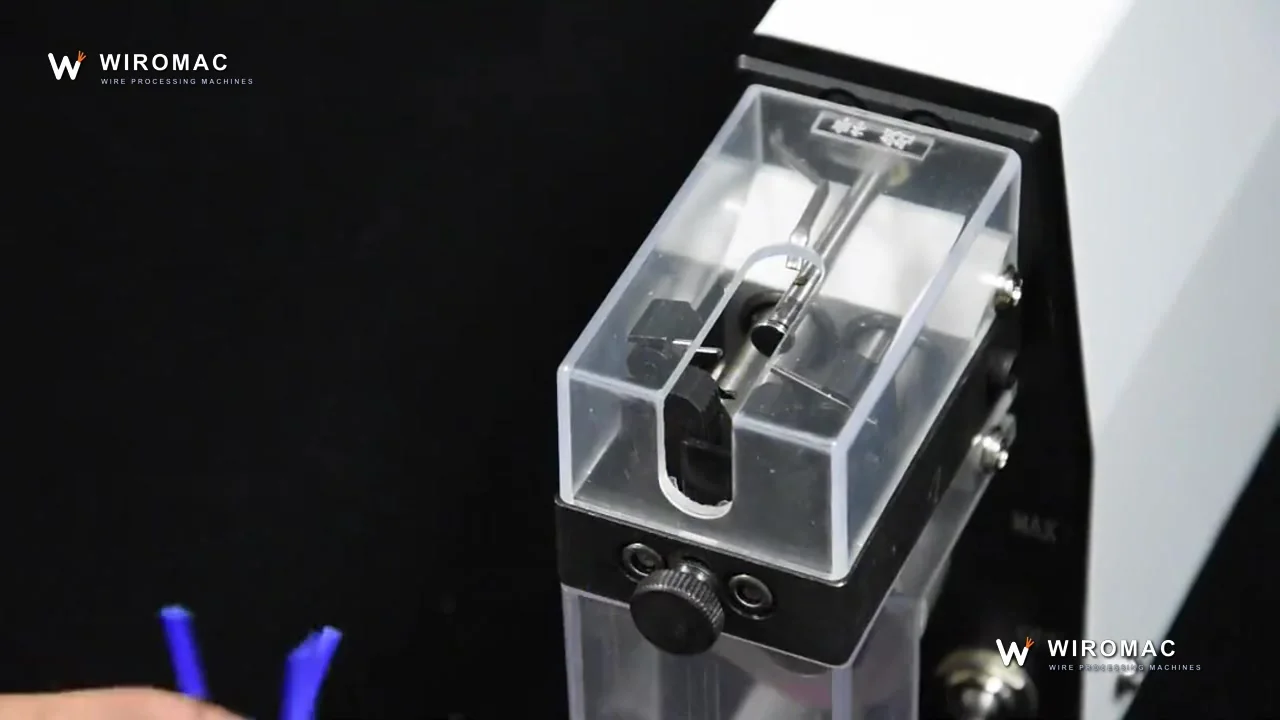

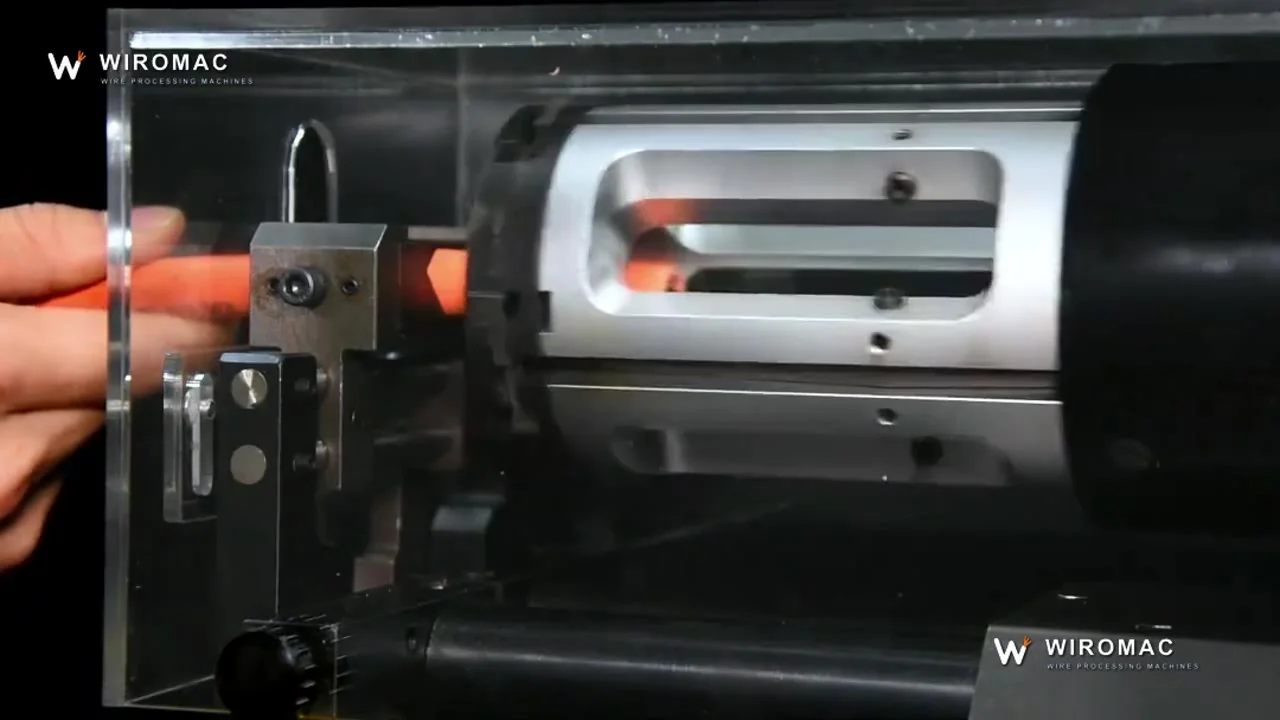

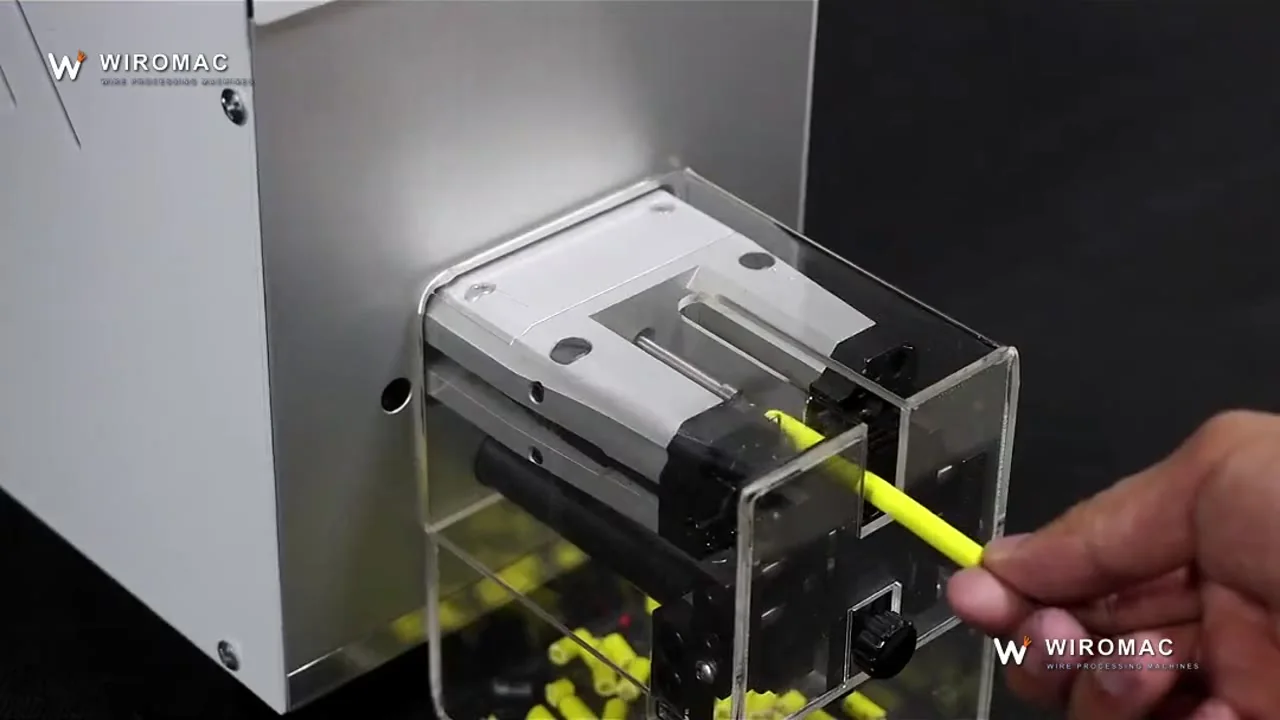

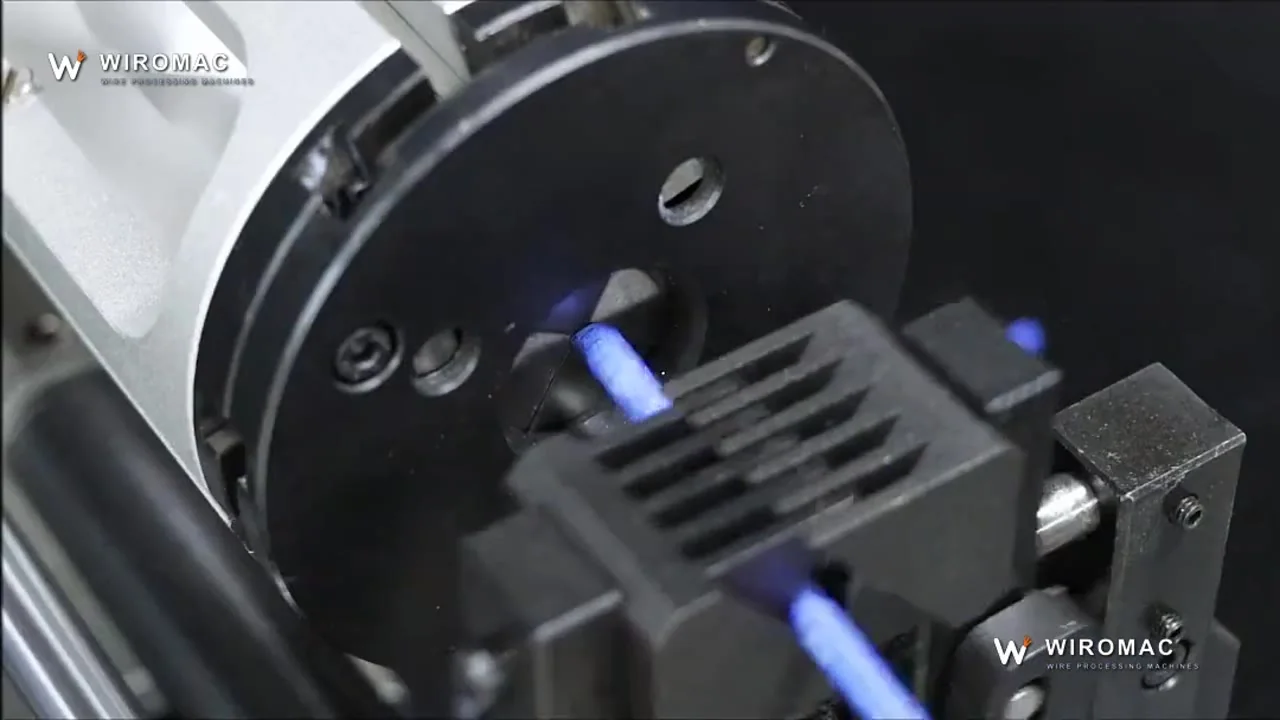

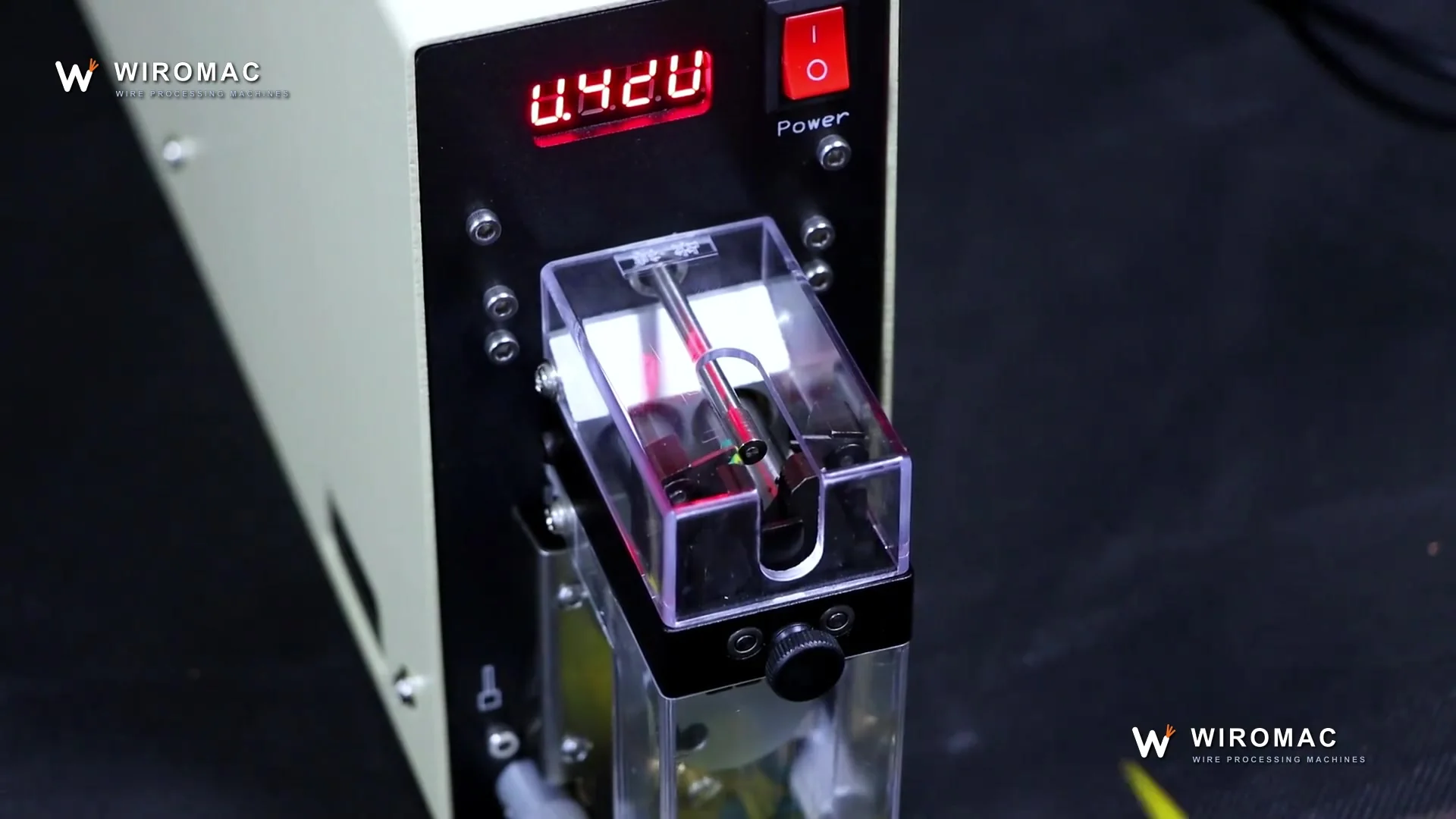

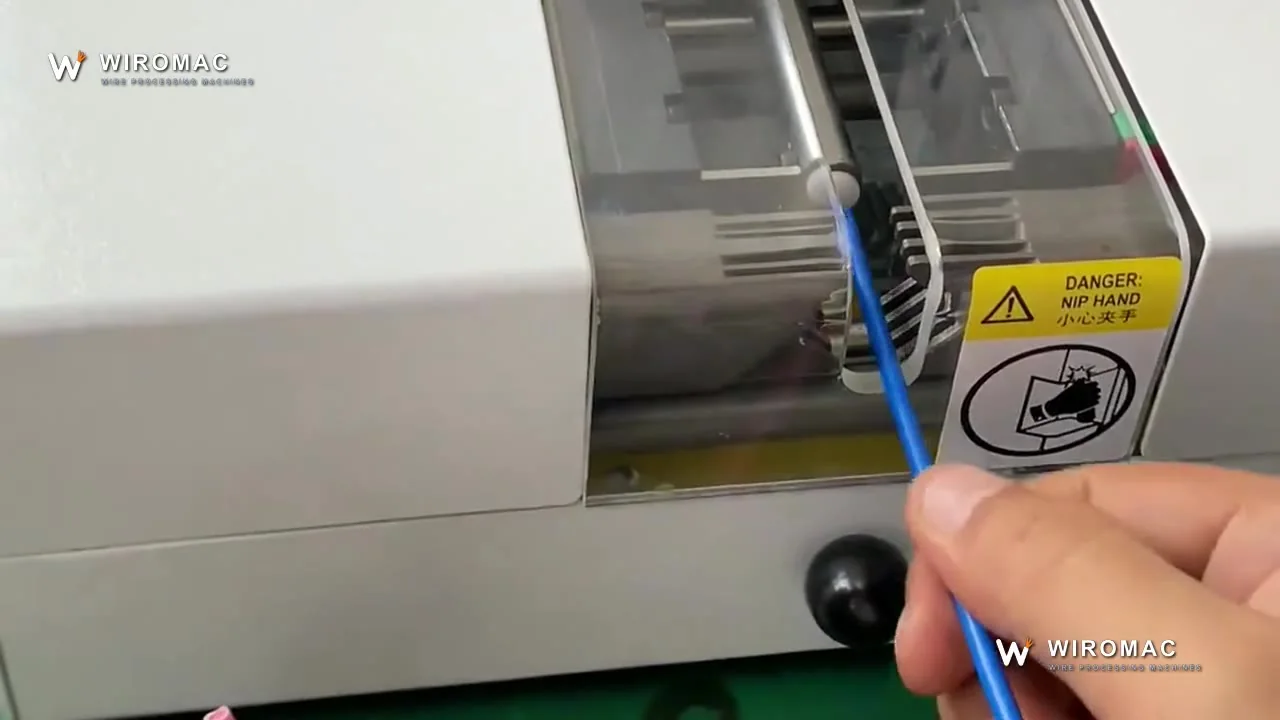

Process details →Will it nick the strands?

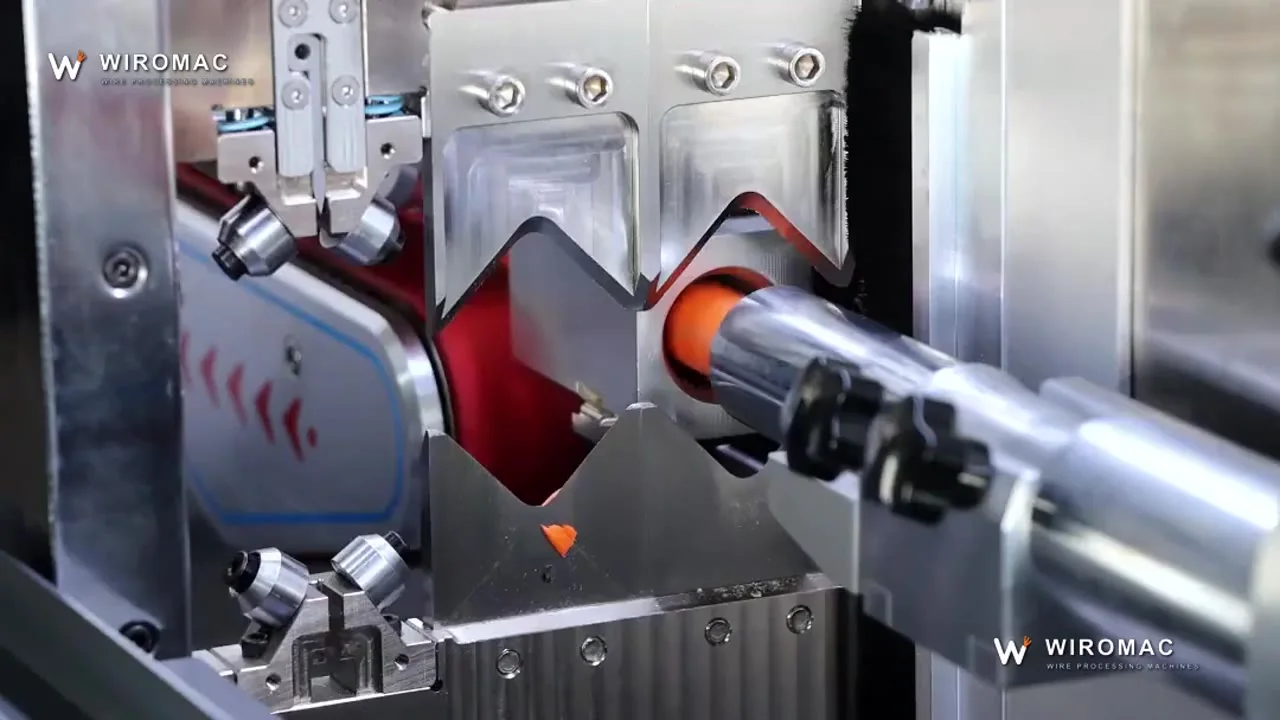

A two-sided V-blade has to guess one depth across a round jacket, so on thick, soft or high-temperature insulation it either leaves a skin or takes copper. The heads below either orbit the cable and score the jacket as a ring, or set cutter diameter as a number instead of a stepped guess, and feed on belts rather than knurled rollers. Watch the strand bundle at the moment the slug comes off — that is the only frame that matters.

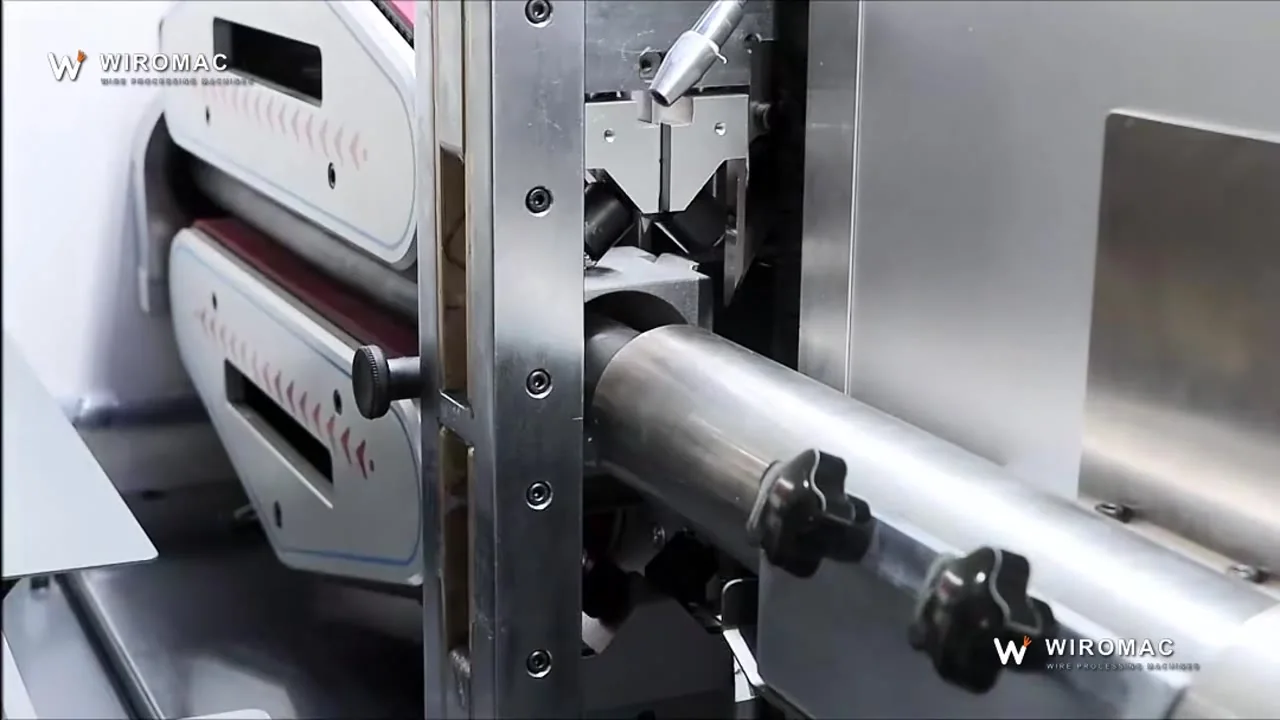

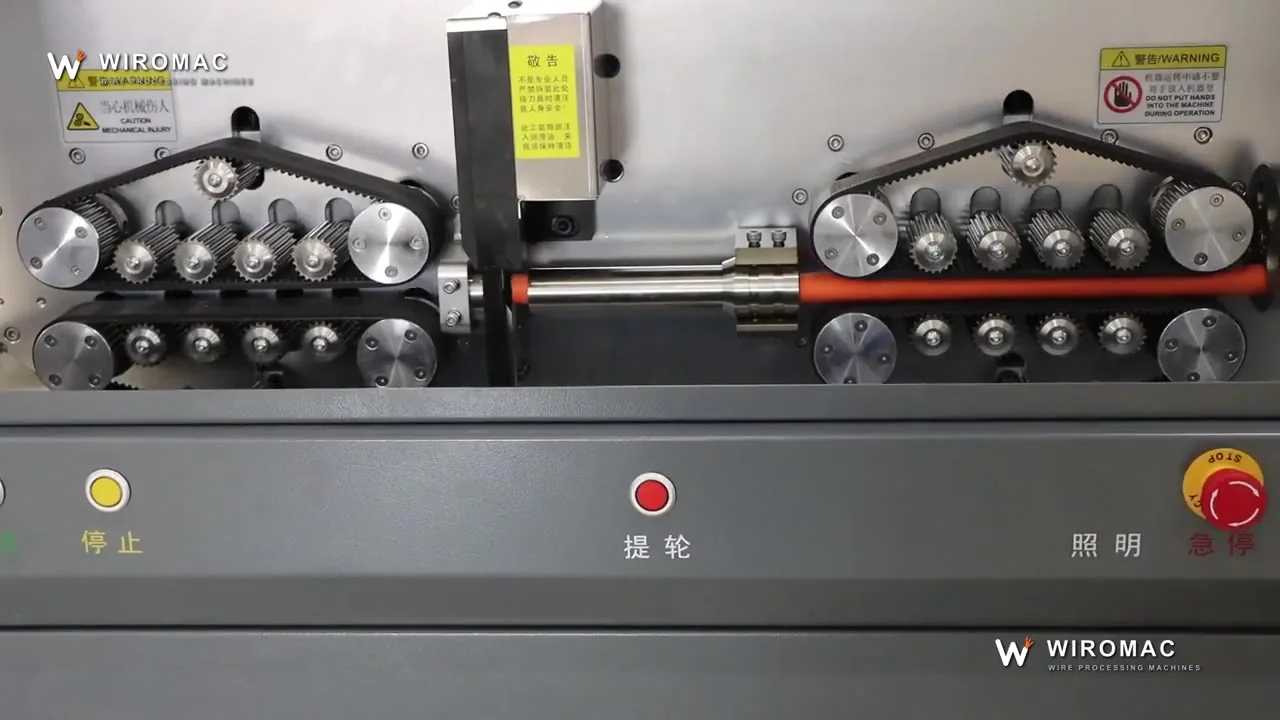

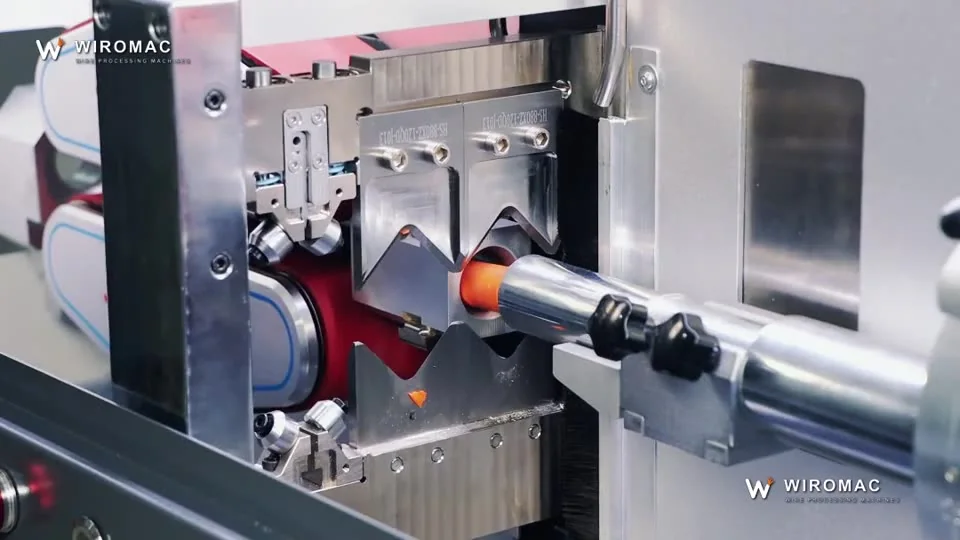

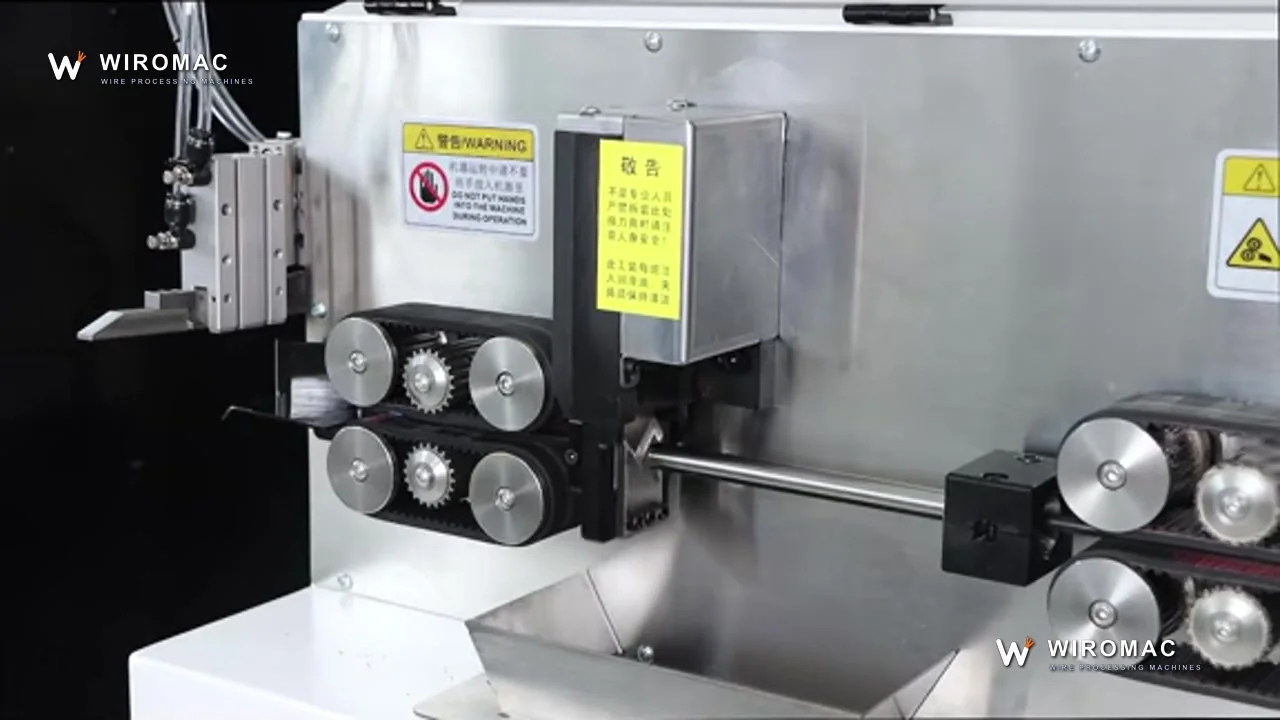

Process details →Charging-gun and battery cable: can a machine do the end without heat?

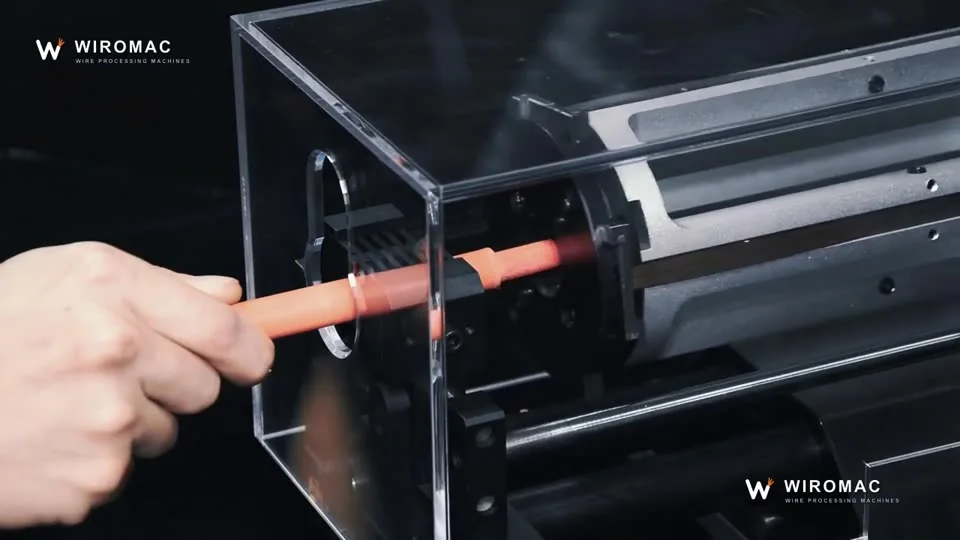

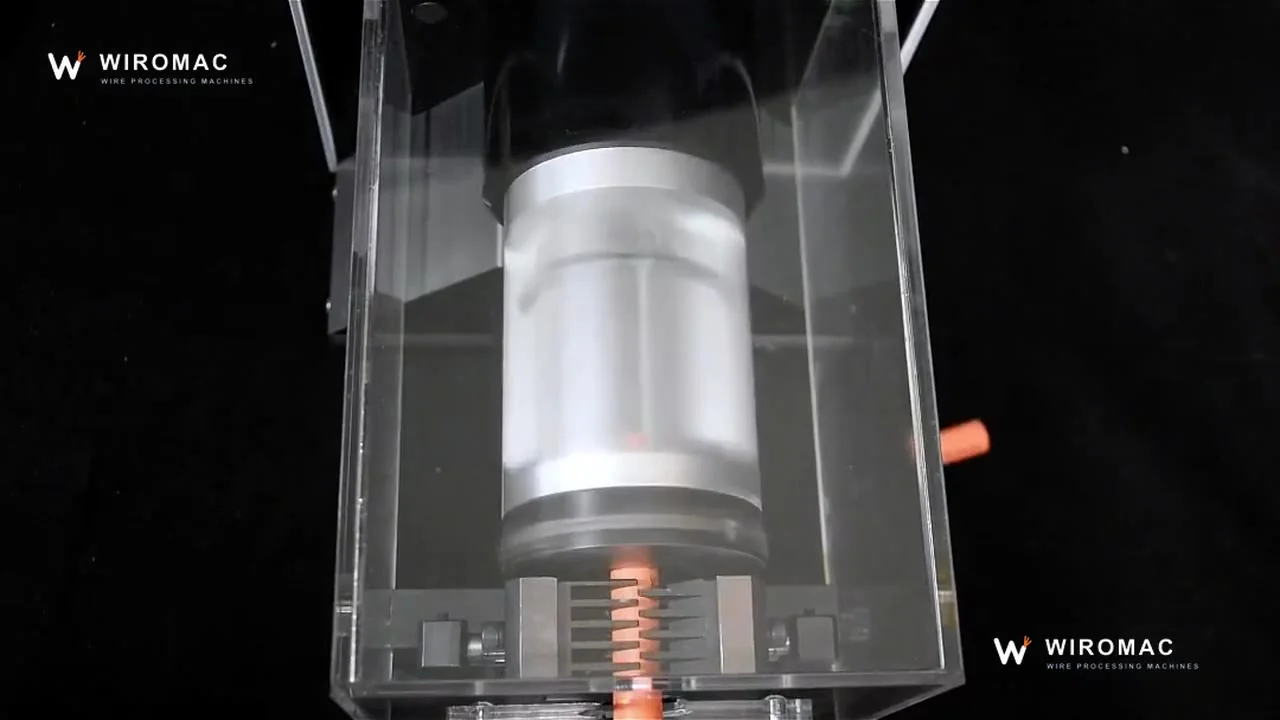

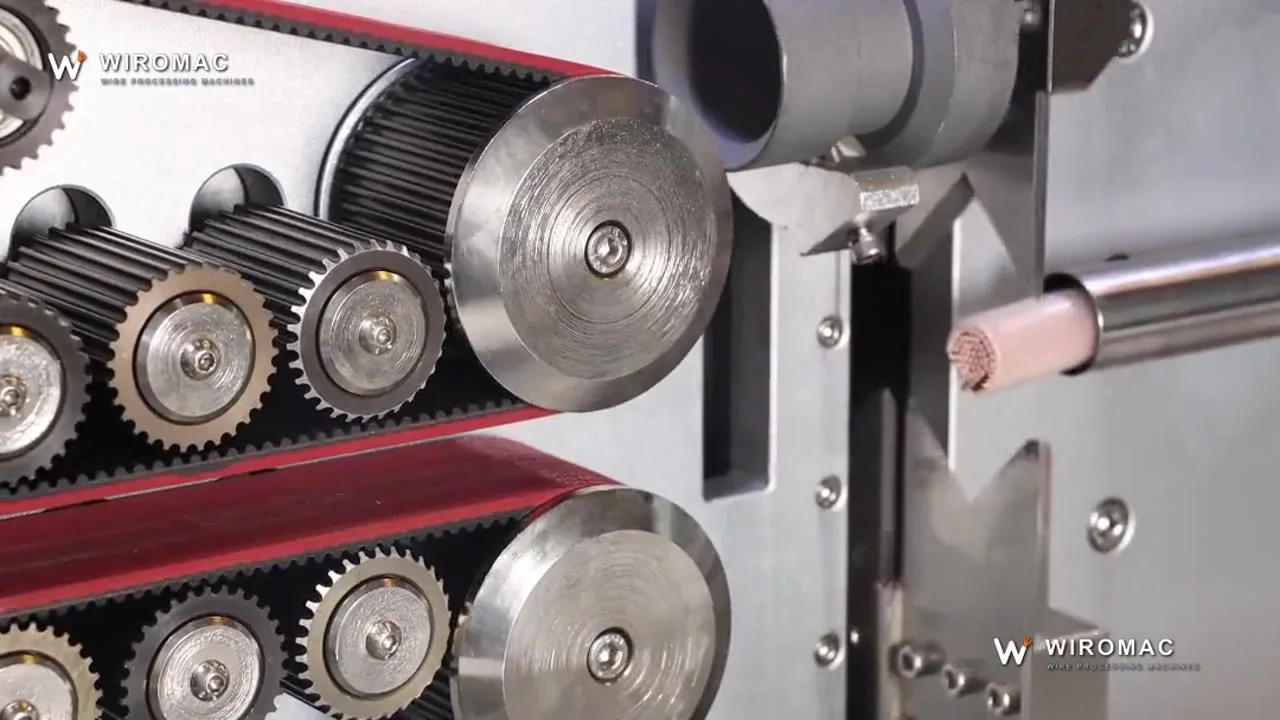

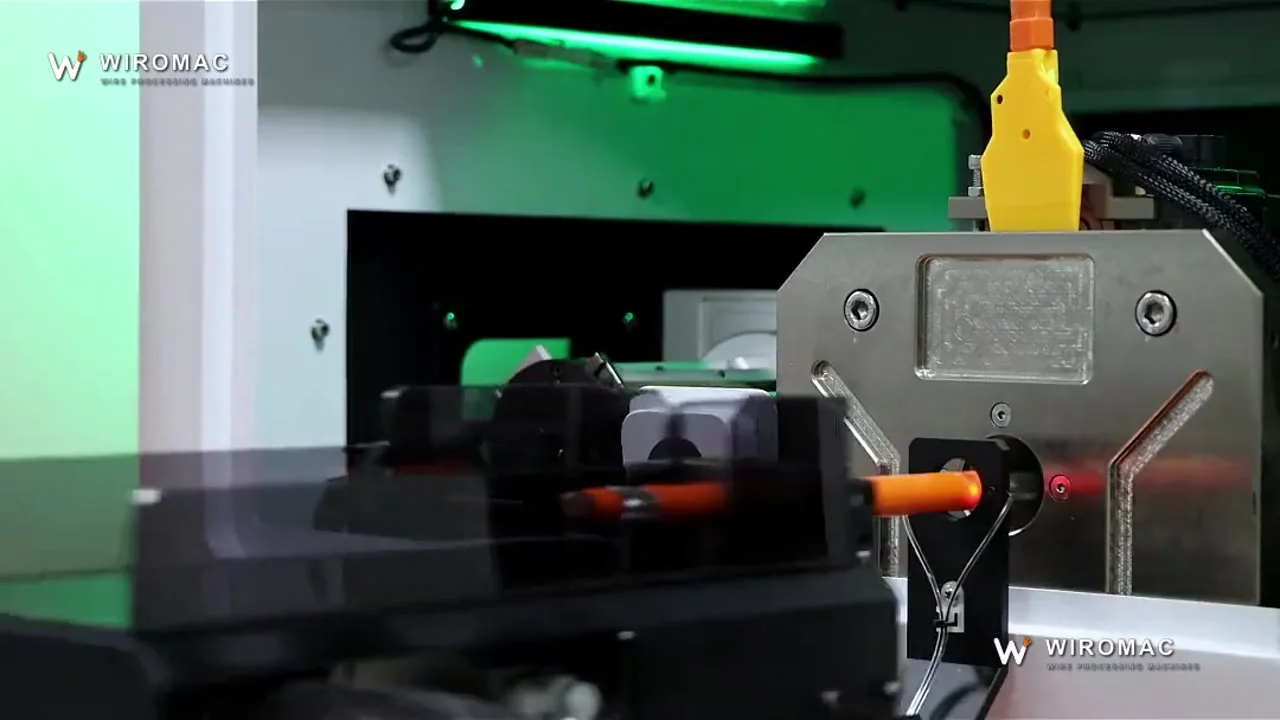

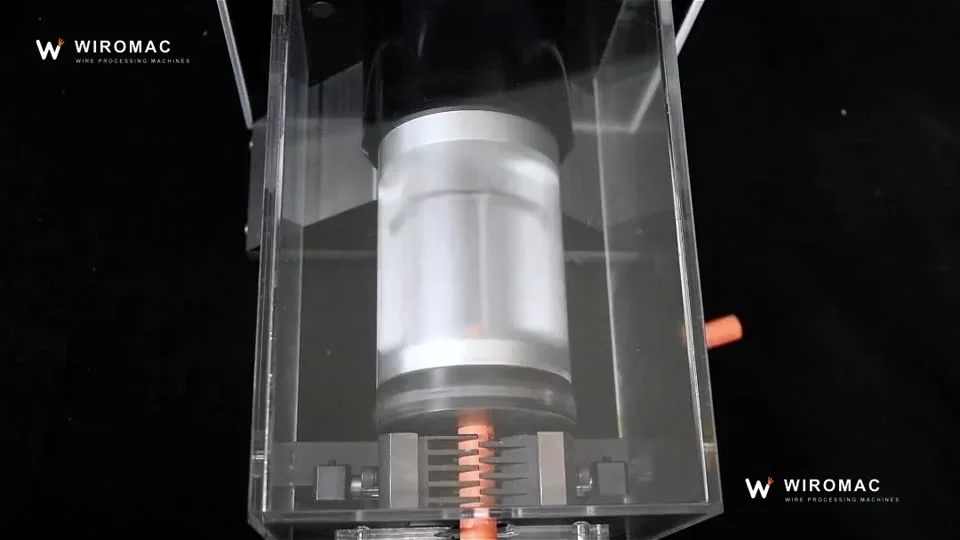

Thermal stripping does not nick, but it leaves a film on the conductor and fumes on the bench. Mechanical heads for Ø10–40 mm cable and shielded braid use a rotary score or a belt-fed blade so the jacket, shield and inner layers come off dry. These clips show the end of the cable, which is where the lug or the shield fold-back has to be clean.

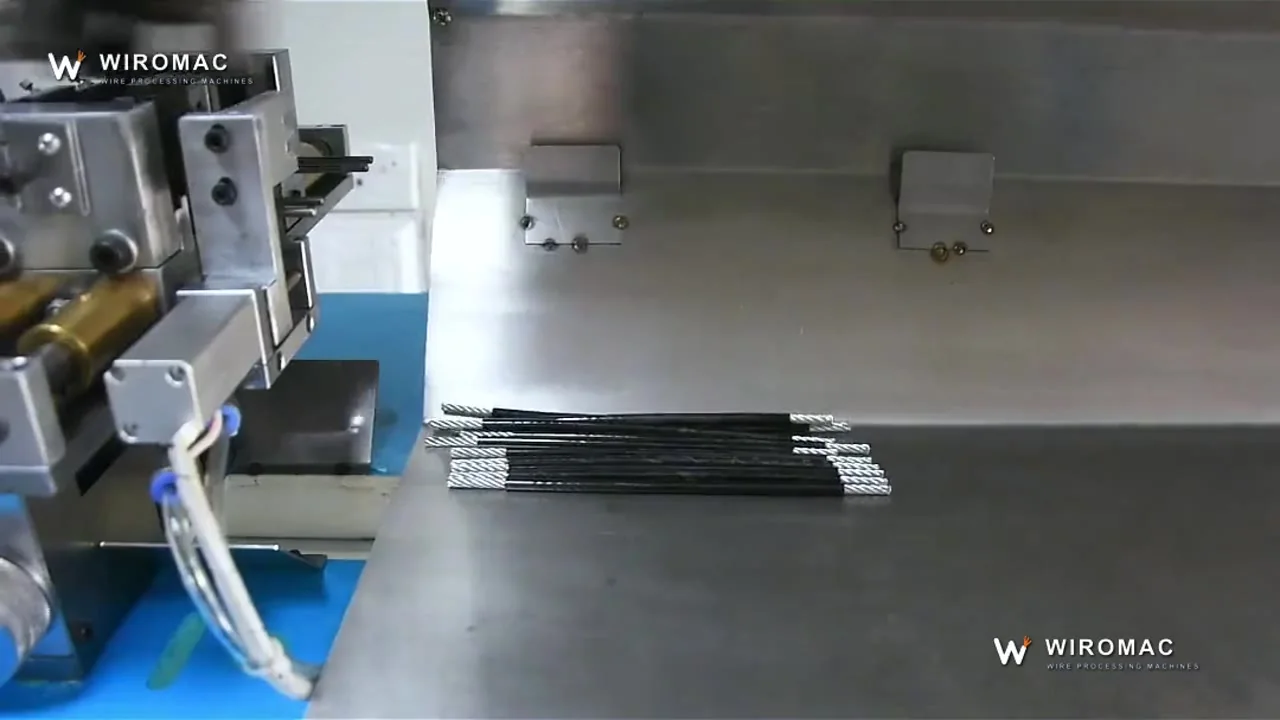

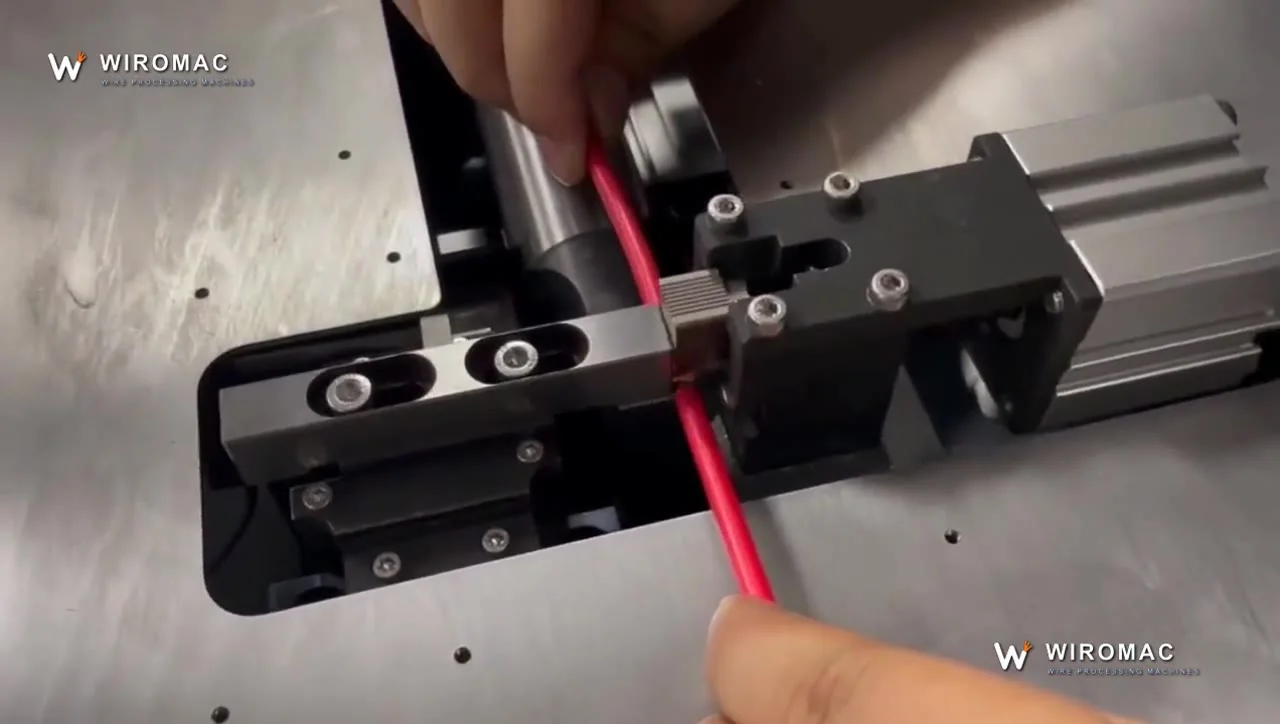

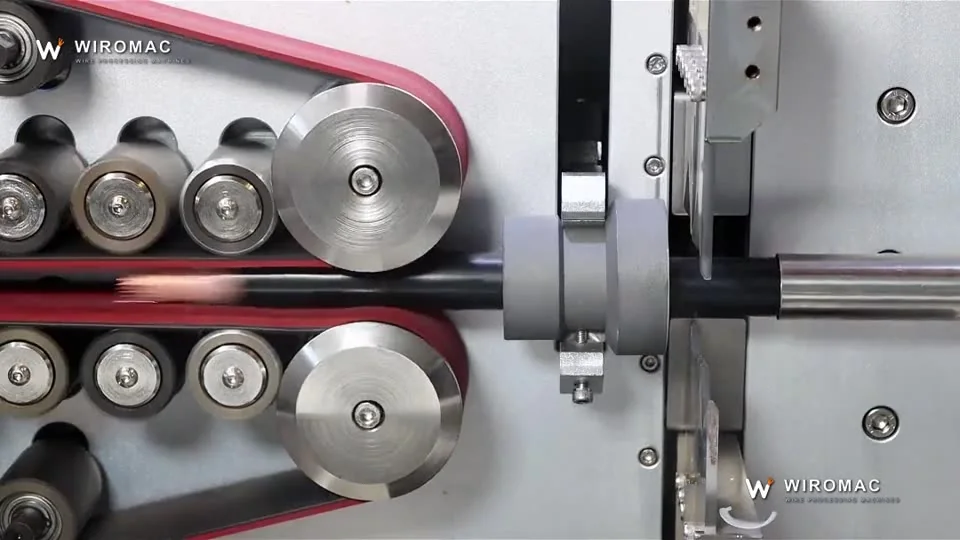

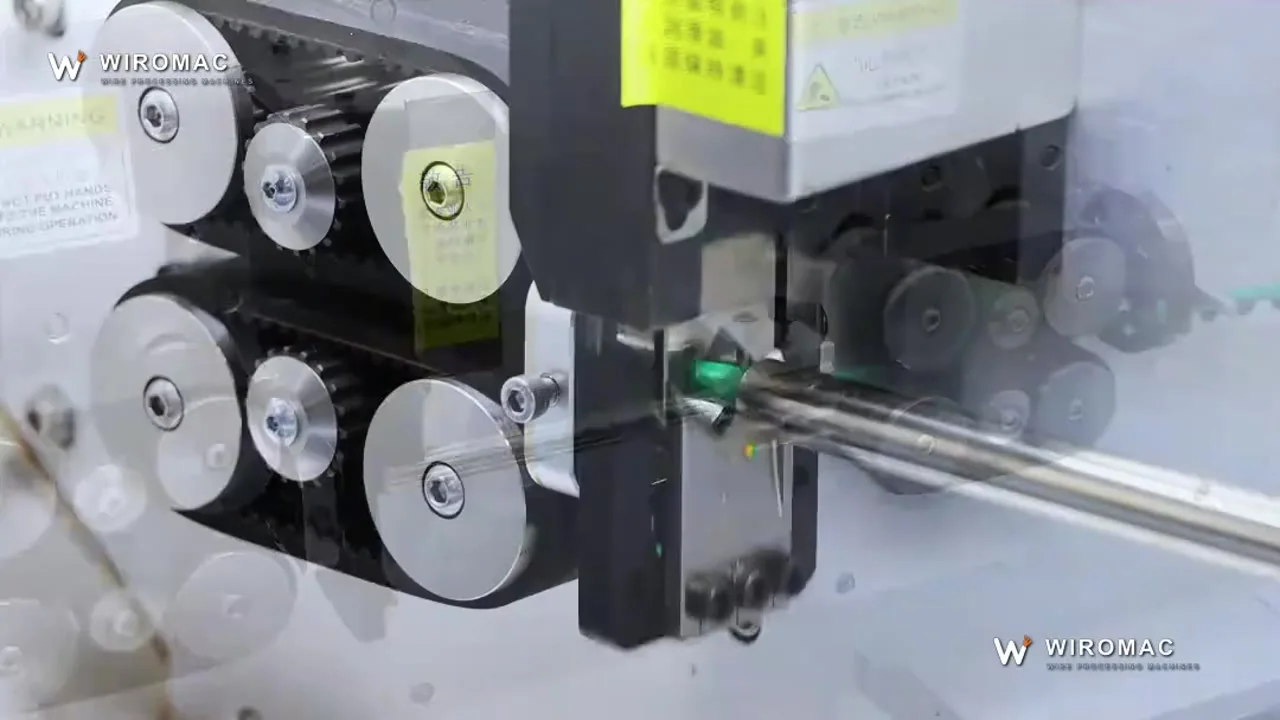

Process details →How short can it strip — and does the length repeat?

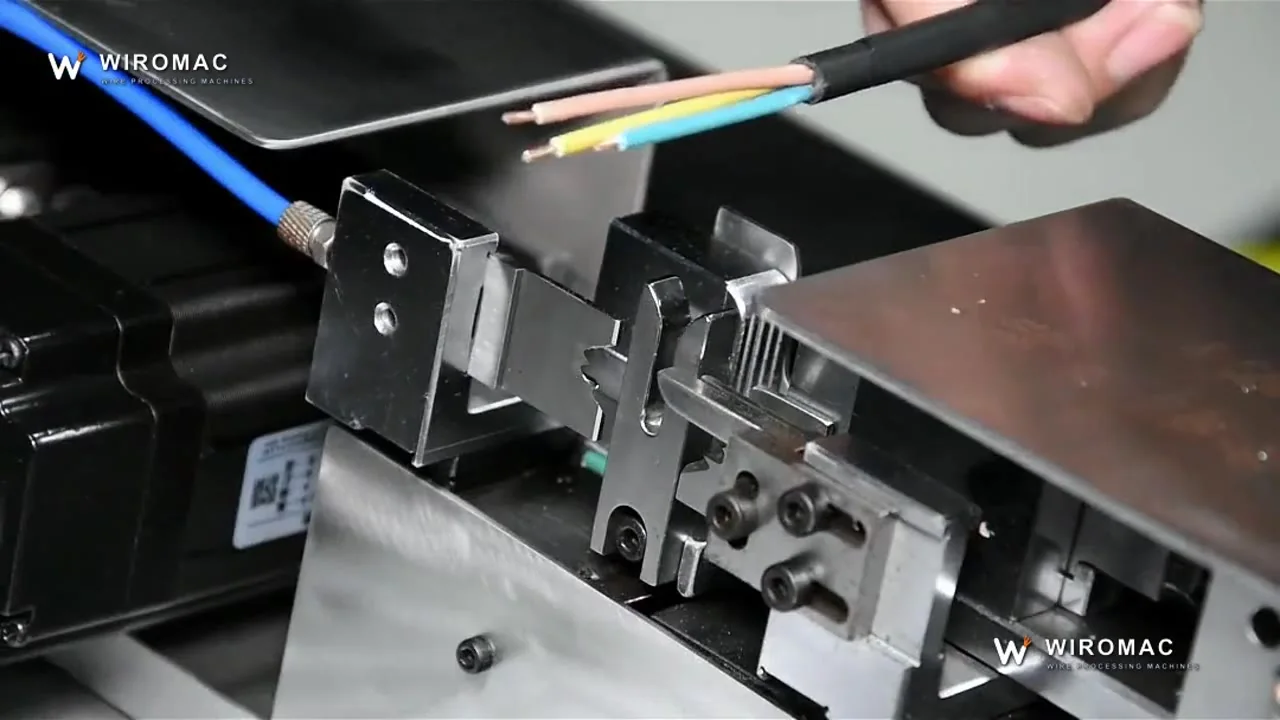

These clips show end stripping, mid-span windows and staggered core lengths on different machines. The required strip length, cable construction and tolerance determine which head and setup fit. Send the end drawing and actual cable; we run your sample on video and agree the measurement method for checking stripped lengths across a trial batch.
Process details →Crimping & assembly

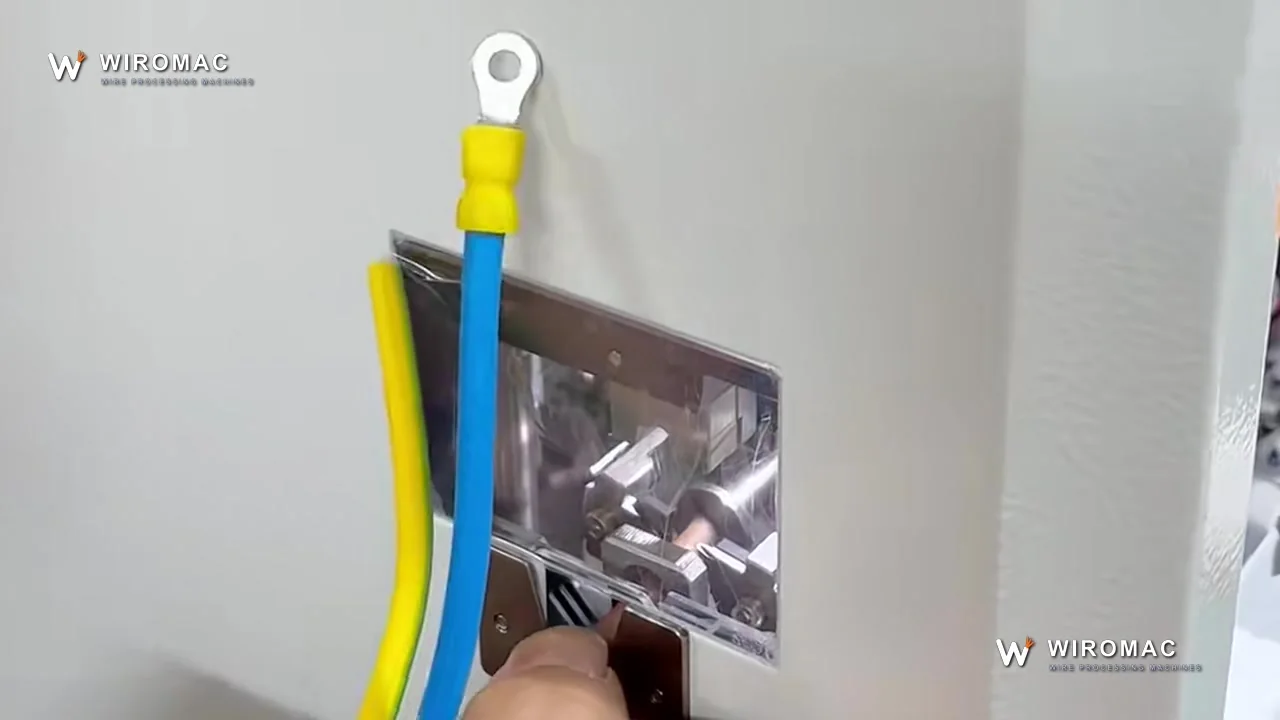

Can a line crimp the wire and fit insulating terminal covers?
A terminal cover adds a separate feeding and fitting operation to wire termination. These films show different covered ends, component bowls, transfer paths and finished leads. We select the cover feed and terminal tooling together from your actual parts, including the opening, fitting depth and connection clearance.

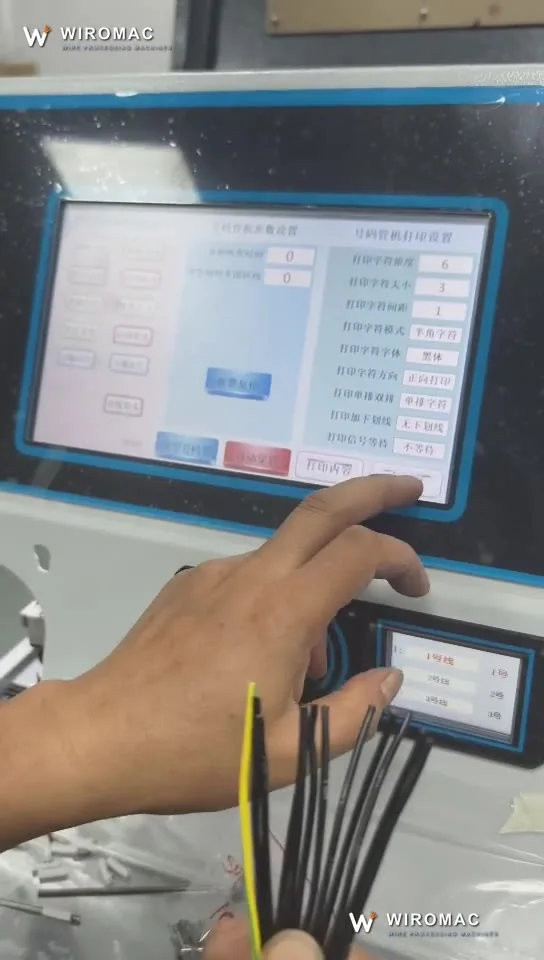

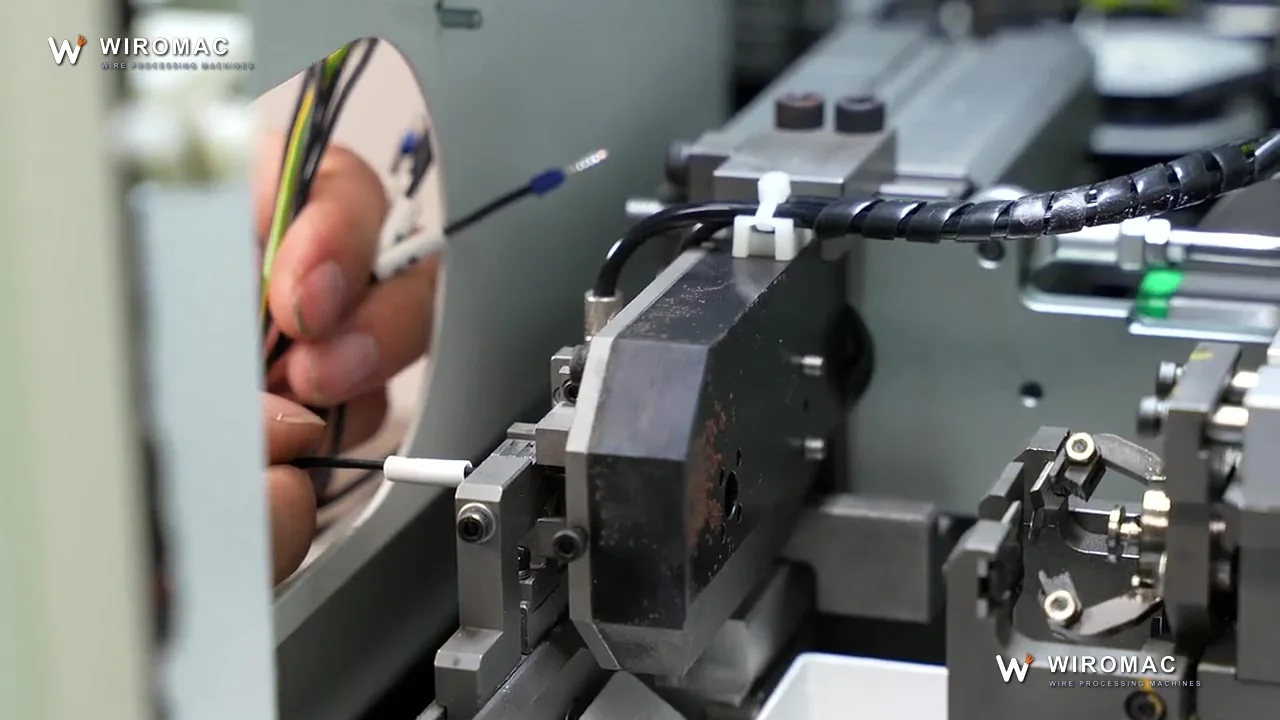

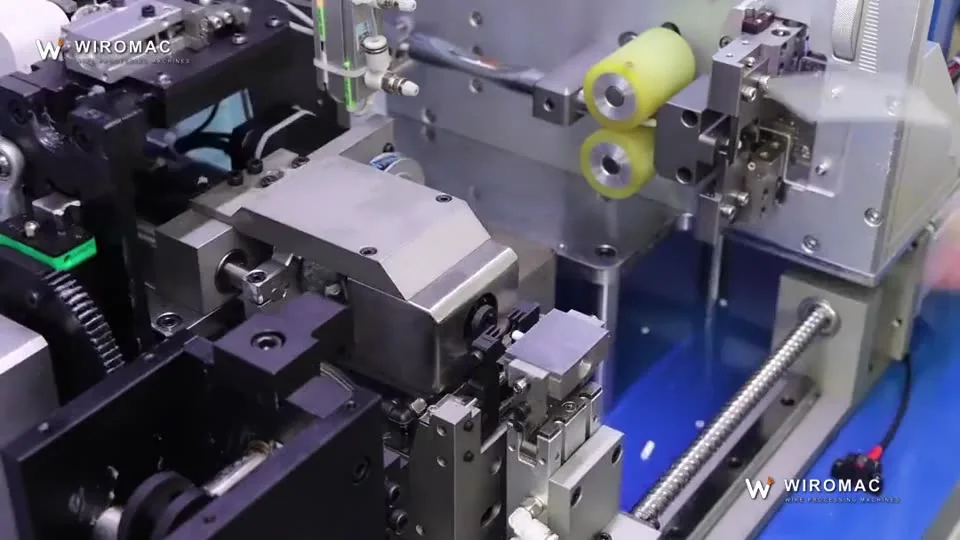

Process details →How are numbered wire sleeves combined with terminal crimping?

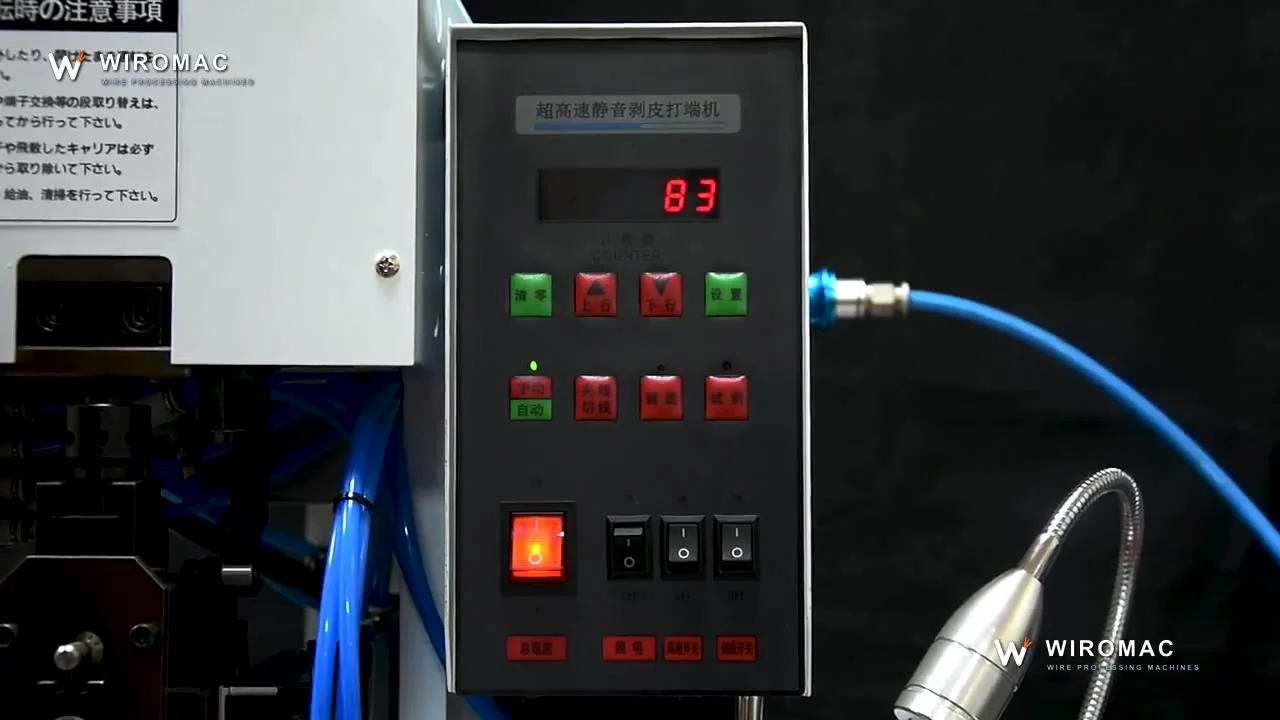

Wire marker sleeves identify a lead separately from its electrical contact. These examples combine marked sleeves with end processing, including ring and fork terminals and additional end components. Send the numbering schedule, both end drawings and the required sleeve positions so we can check identification and assembly in the same sample run.

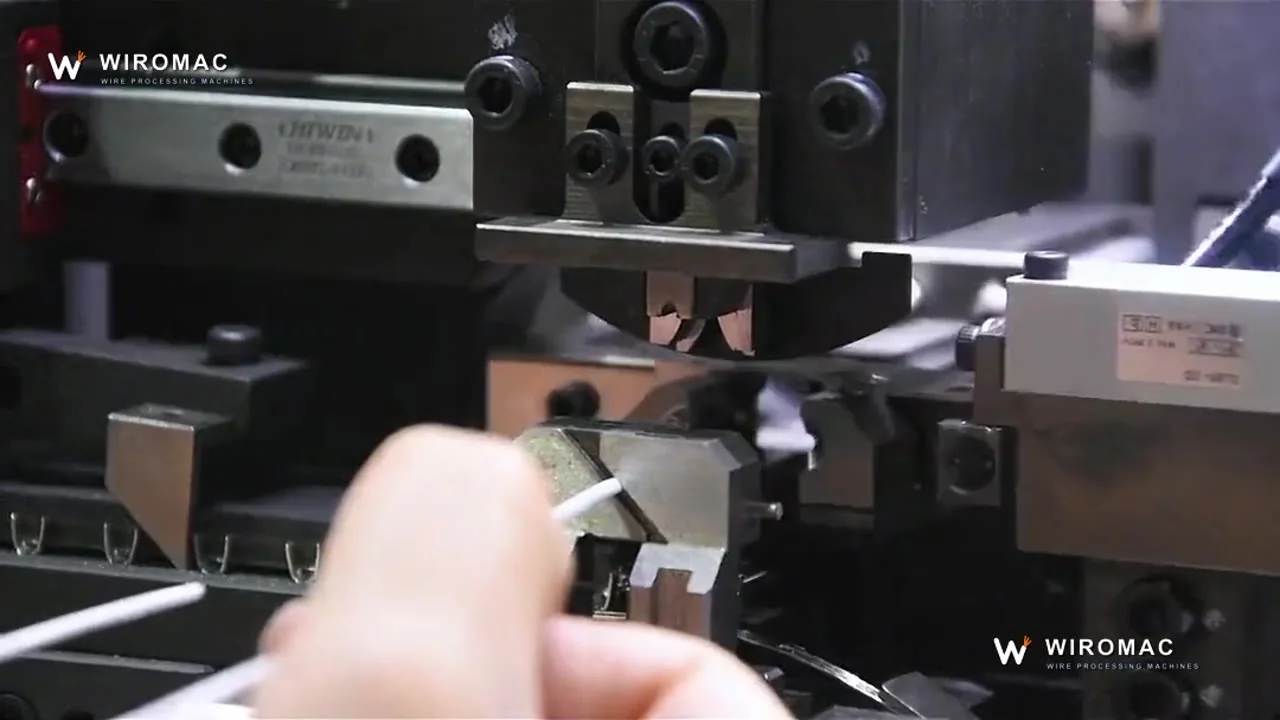

Process details →Wire seals and end components: what has to fit before crimping?

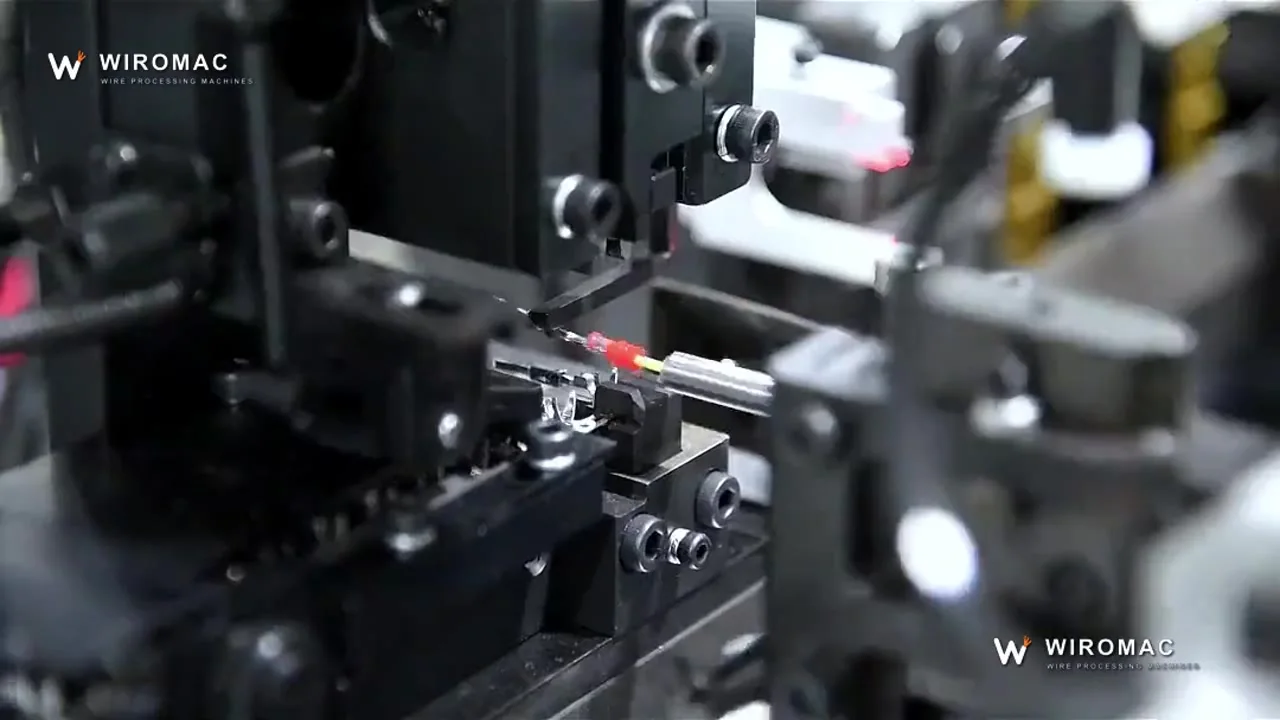

A wire end may need a seal or another fitted component in addition to its contact. These close-ups compare ribbed end components, feeding, transfer and terminal-working stations. Send the exact part numbers, wire insulation diameter and required positions so we can match the complete assembly; an ingress rating is assessed from the completed connector assembly.

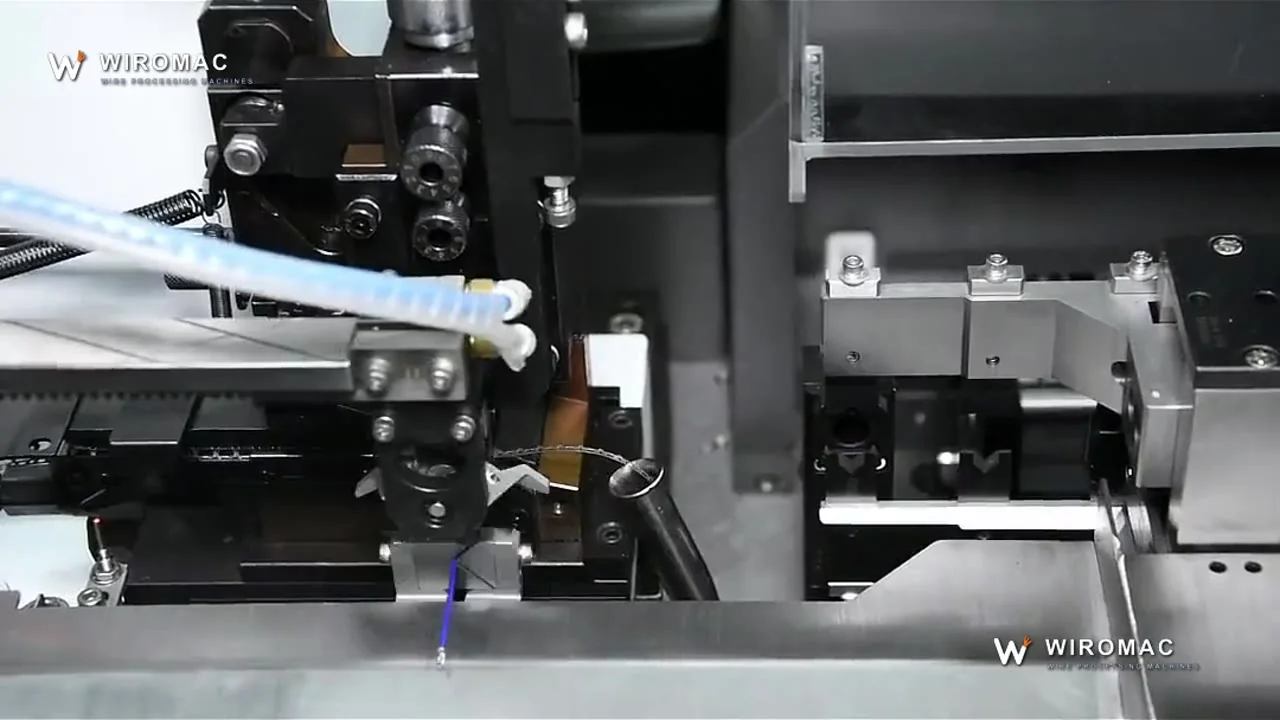

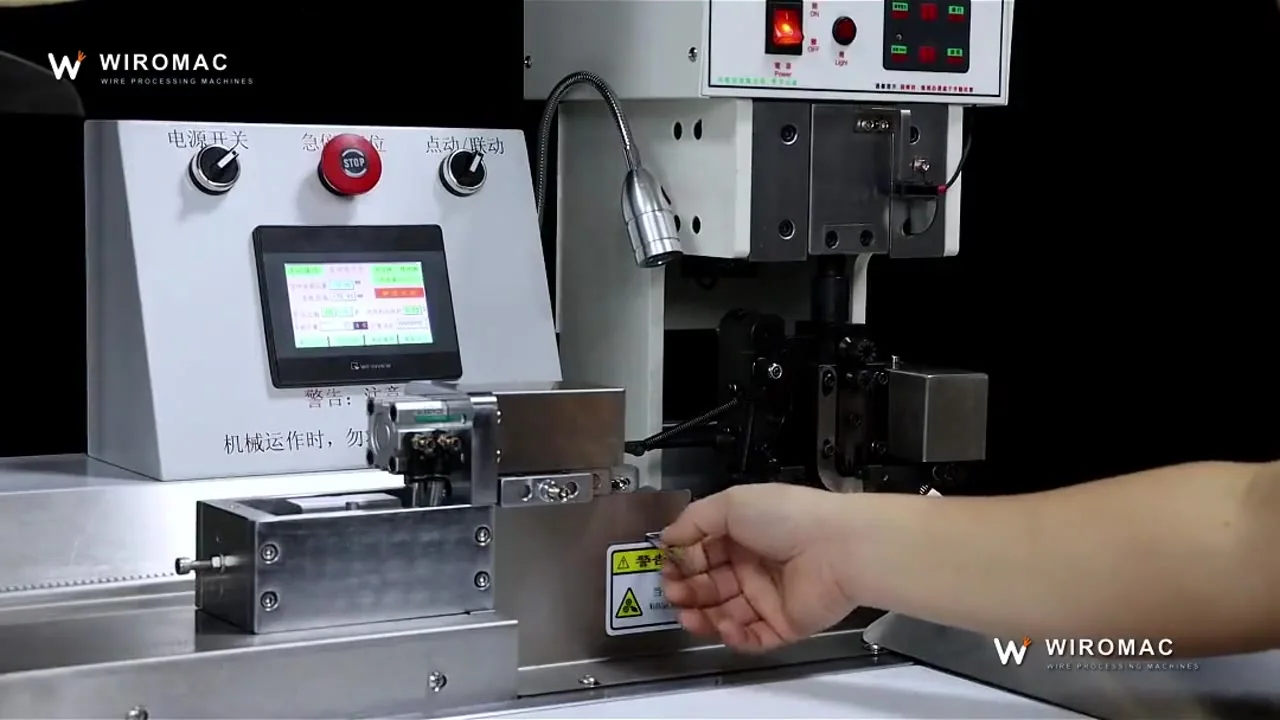

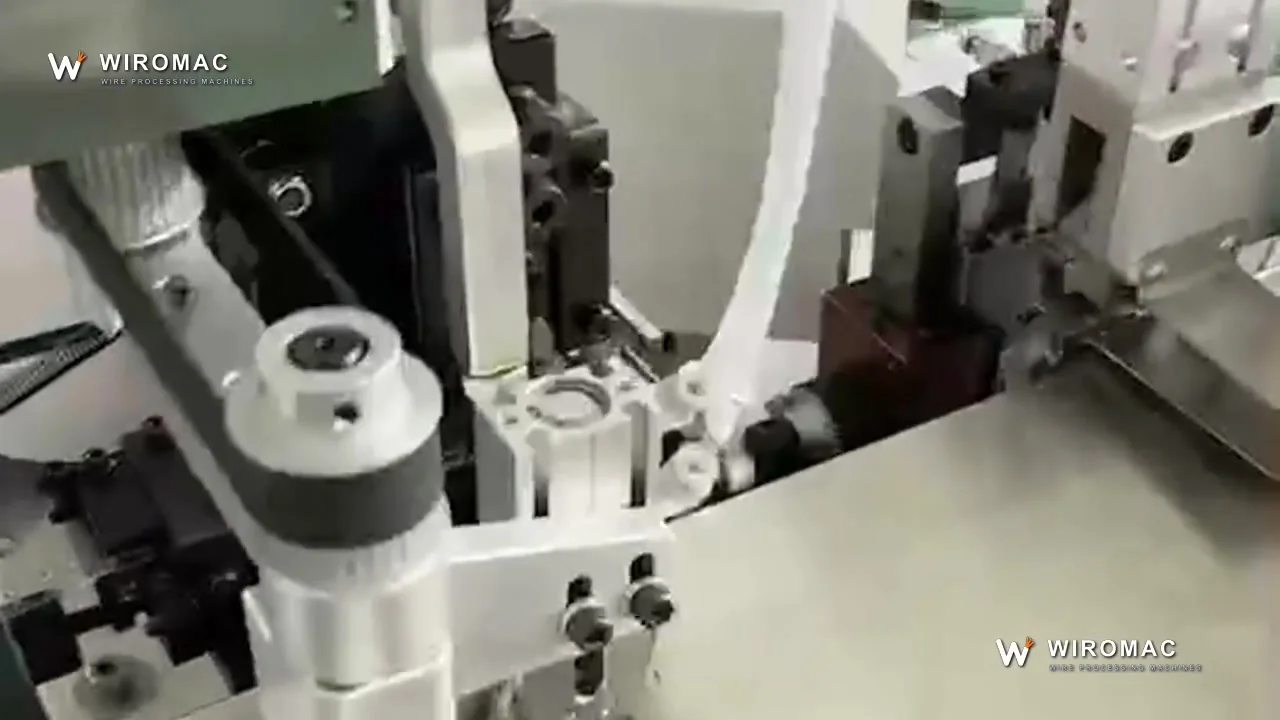

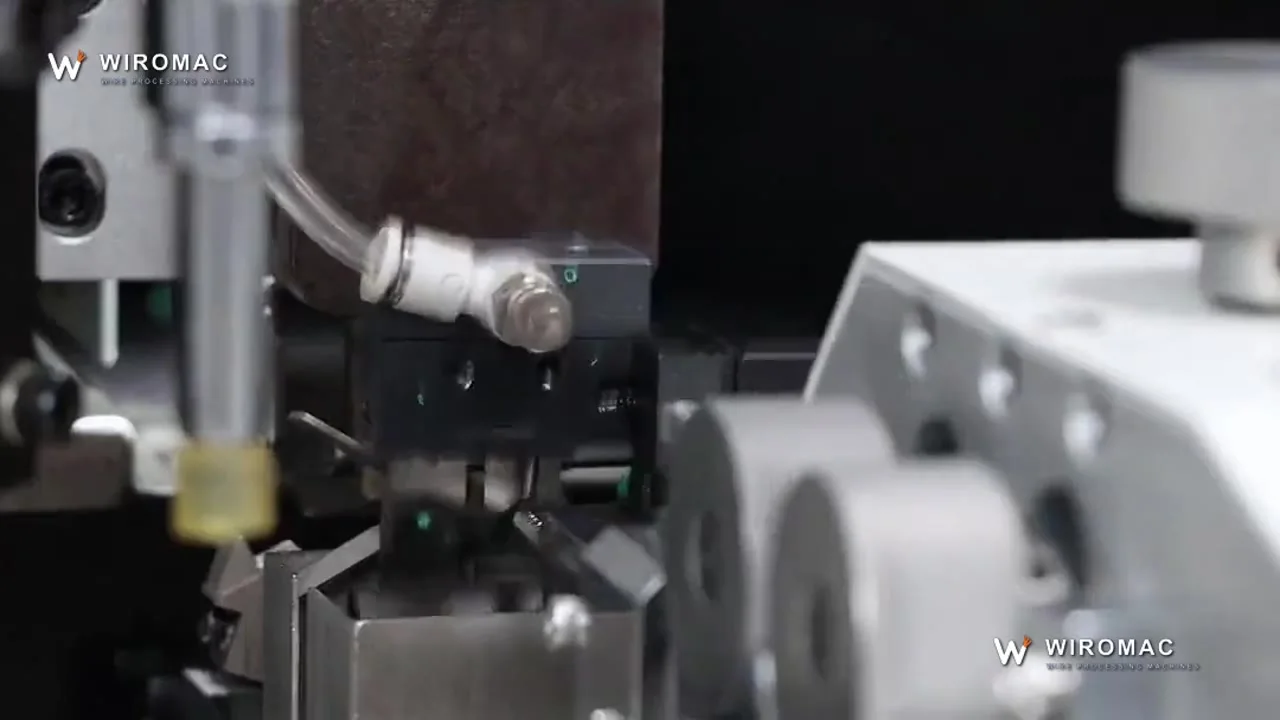

Process details →What changes when both wire ends need different processing?
Double-end termination means processing both ends of a lead, with separate end definitions when the contacts or components differ. These films compare fine leads, long flexible wires, component feeding, camera fixtures and collection. Select the line from the full end-A/end-B drawing and required inspection points, rather than a press force or a generic automatic-machine label alone.
Process details →How are connector gland nuts tightened at a two-station bench?
The operator presents connector assemblies to the two front stations and removes them after the nuts are tightened. This close-up shows the tightening and manual removal sequence. Send us your connectors and nuts so we can film a trial with your parts.

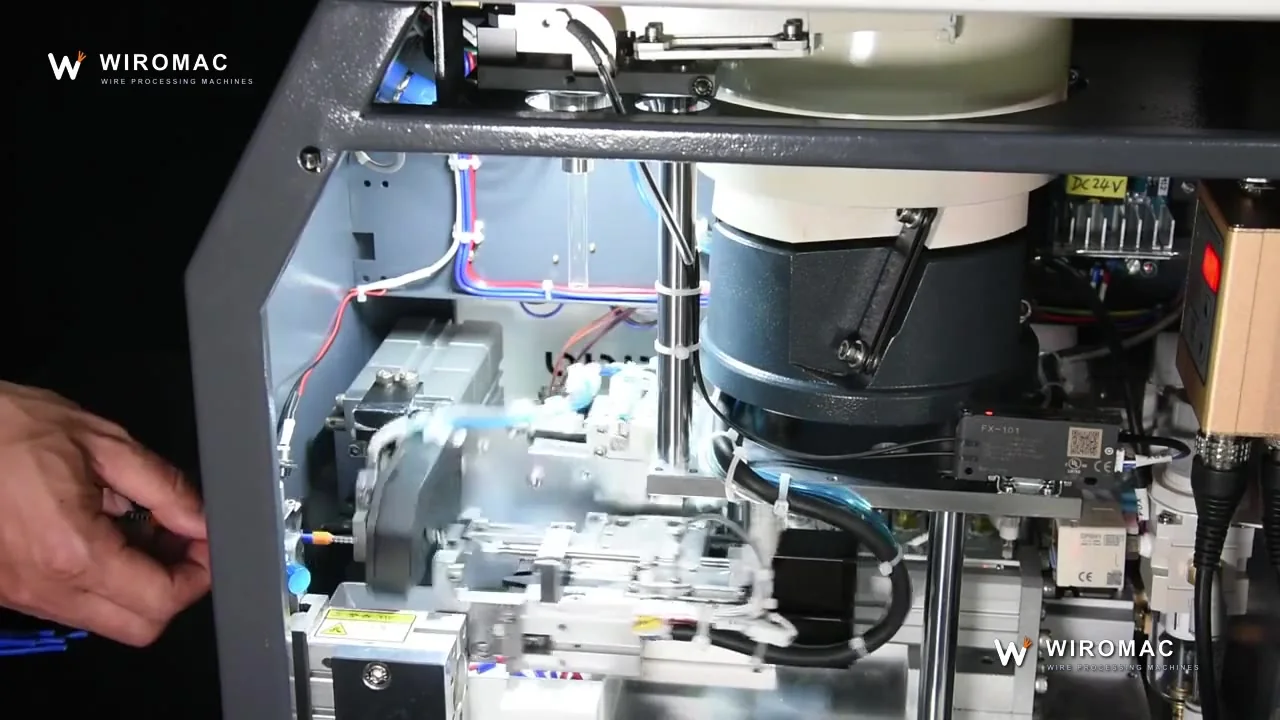

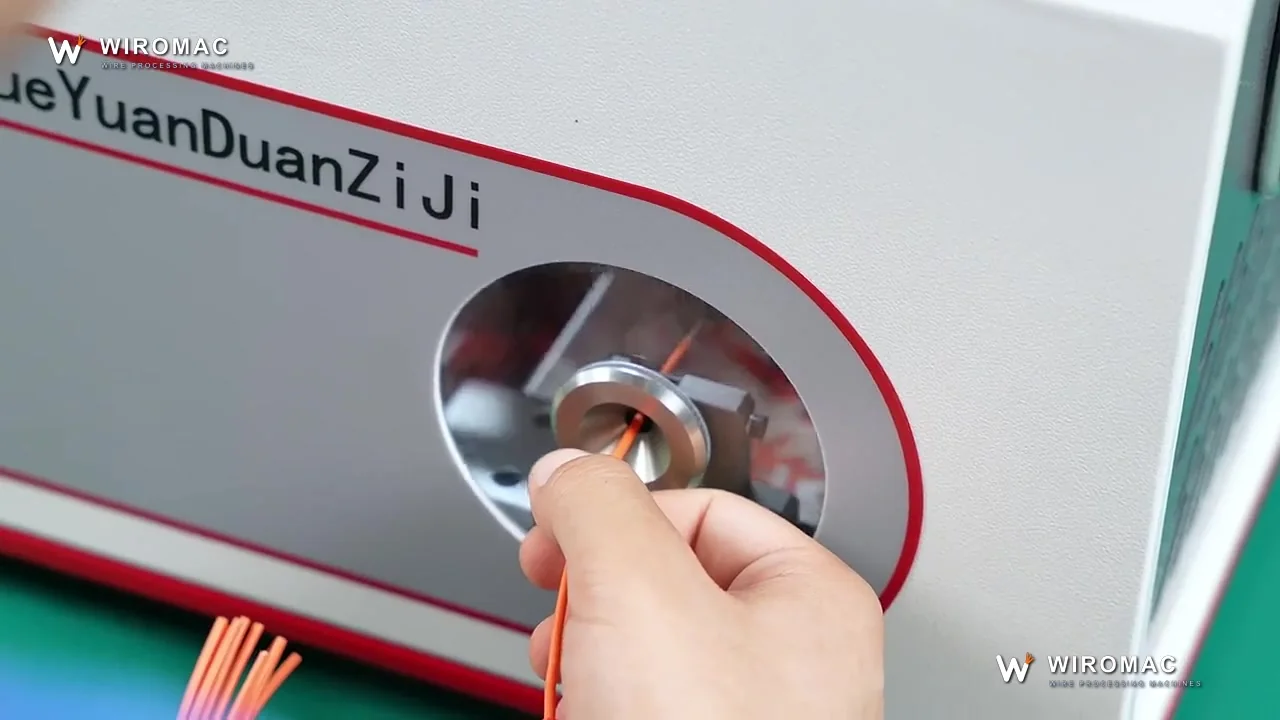

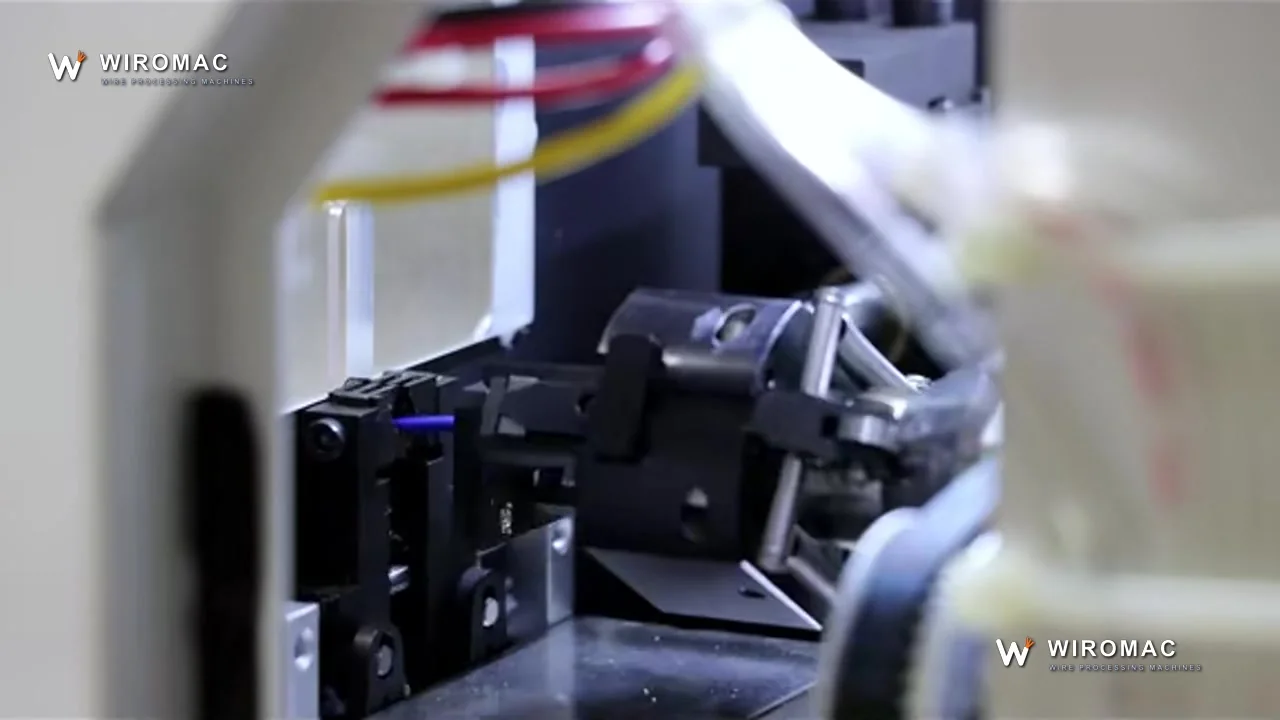

Process details →Ferrules: a strip length you can see, and a crimp that fits the terminal block
For a ferrule connection, check the specified strip length, strand capture, insulation position and finished fit in the terminal block. The wire, ferrule and connection requirements decide the crimp profile. These clips show different feeding and termination steps; some machines combine stripping and crimping, while others receive prepared wire ends. We confirm the required steps and tooling with your samples.

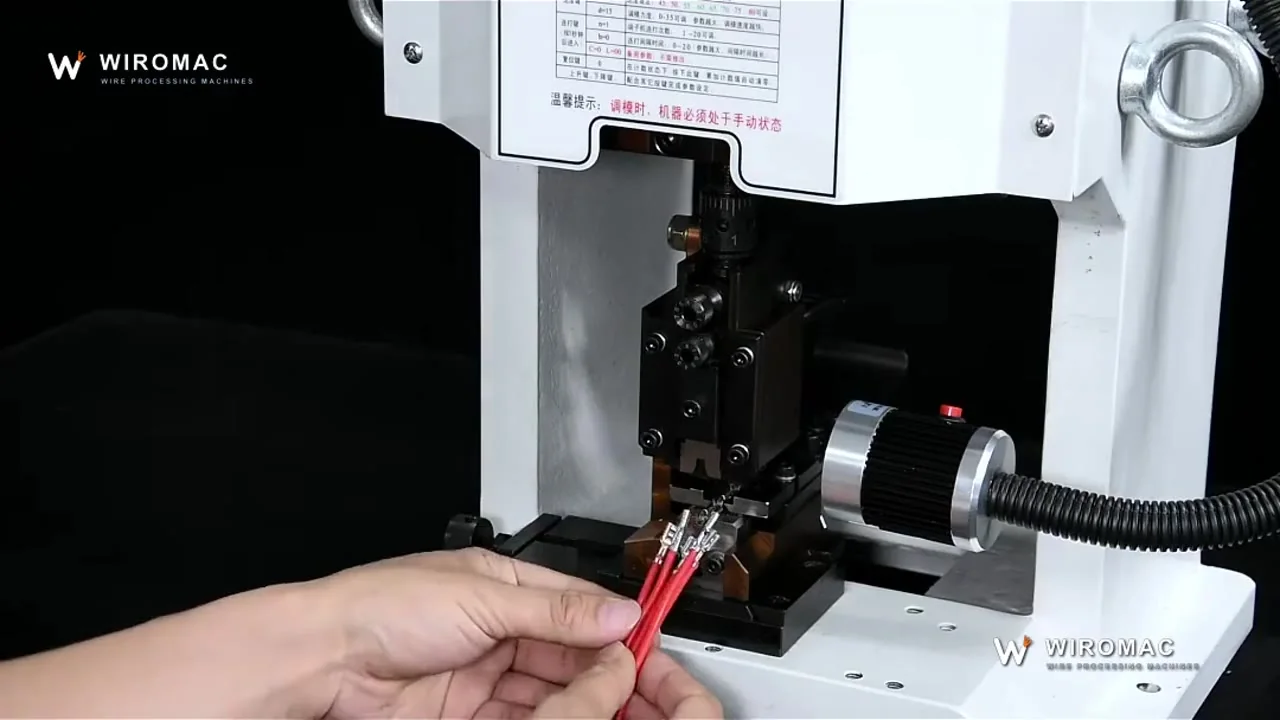

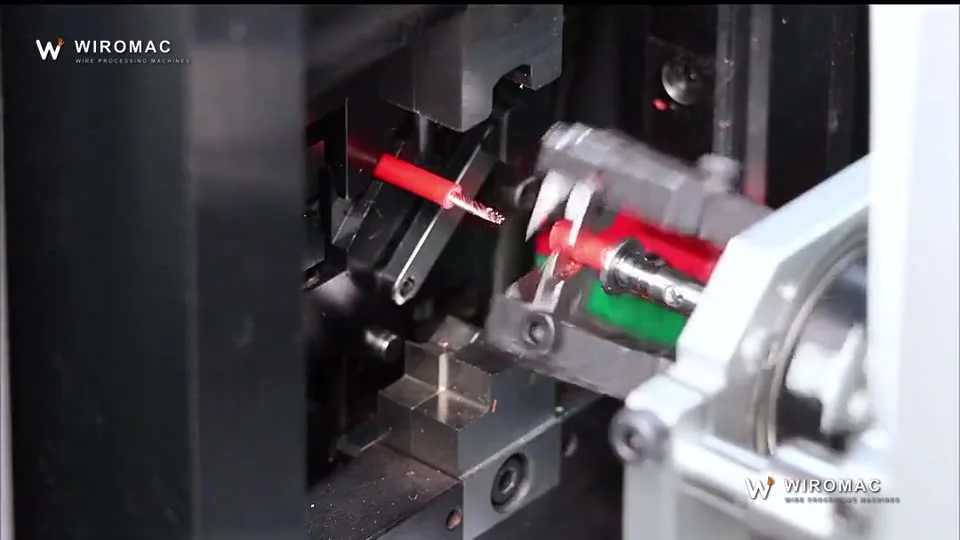

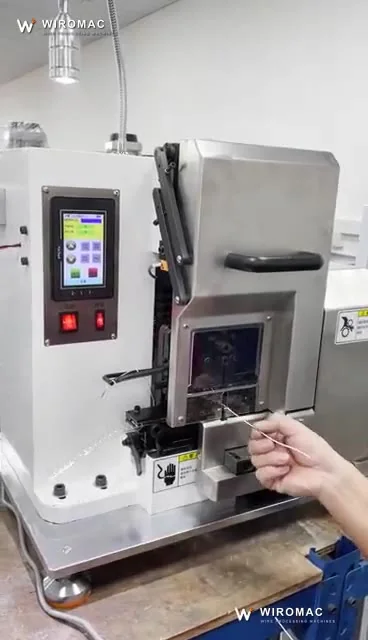

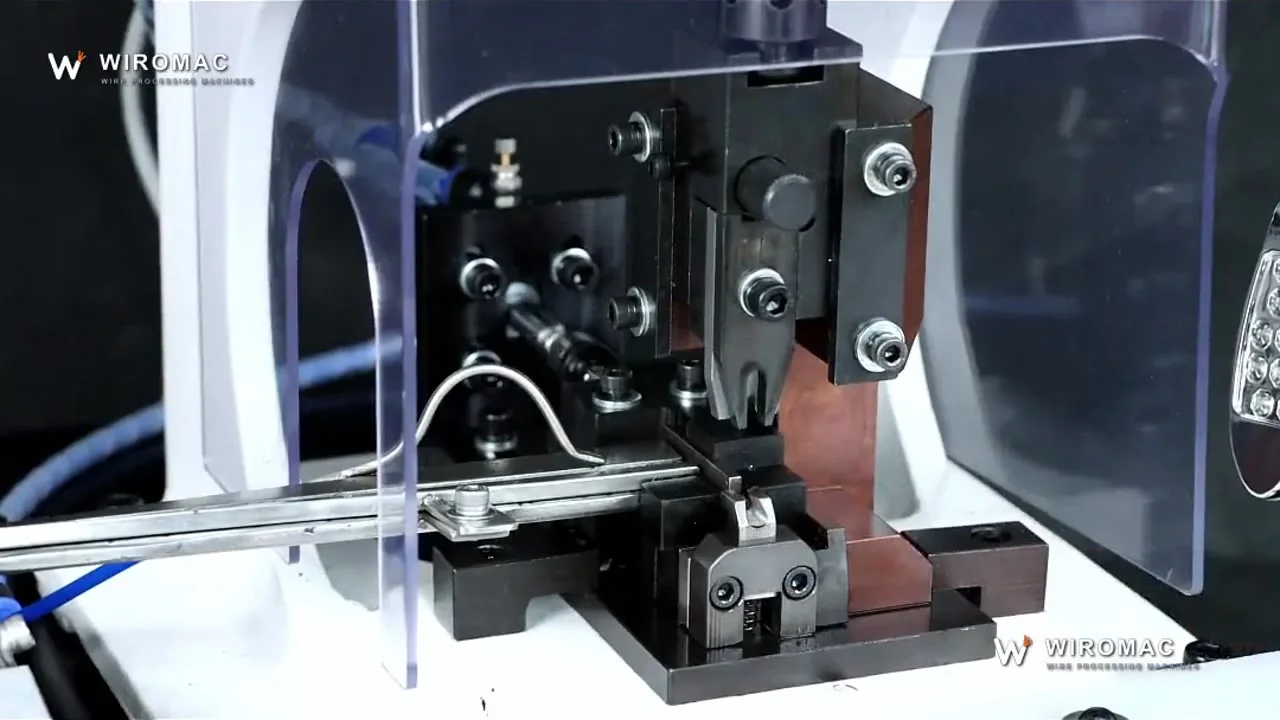

Process details →Will the die match my terminal?
Two bags marked with the same AWG are not the same die. Insulation crimp height, tab shape and barrel geometry are decided by the applicator, not by the press force. Before we quote we fit the cassette to your terminal and your wire, crimp samples, and send the photos. These clips show what a matched die looks like at the moment of the stroke.

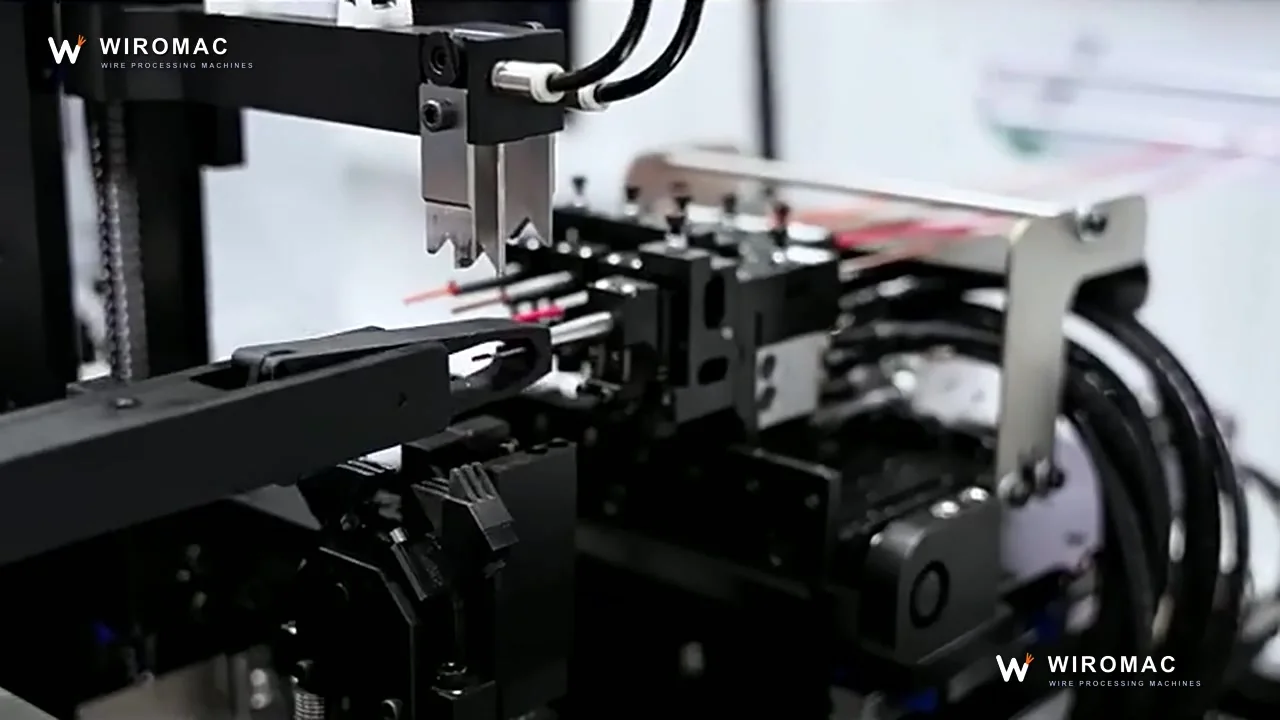

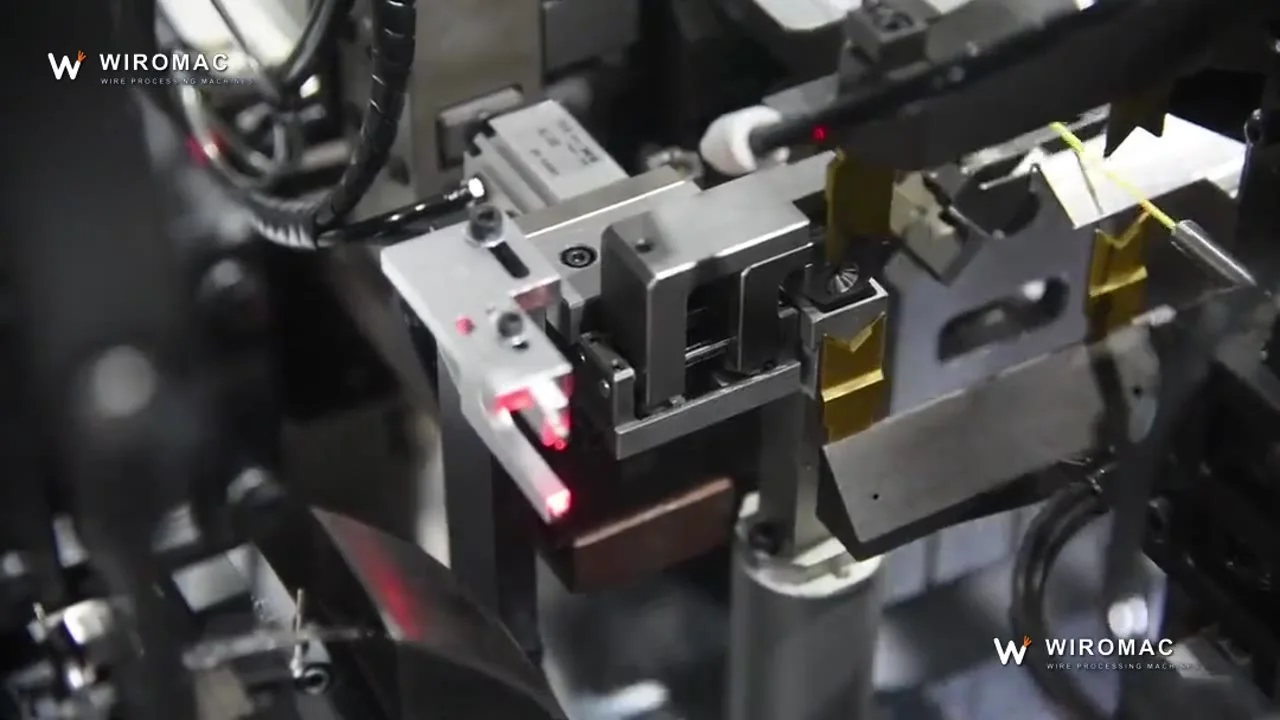

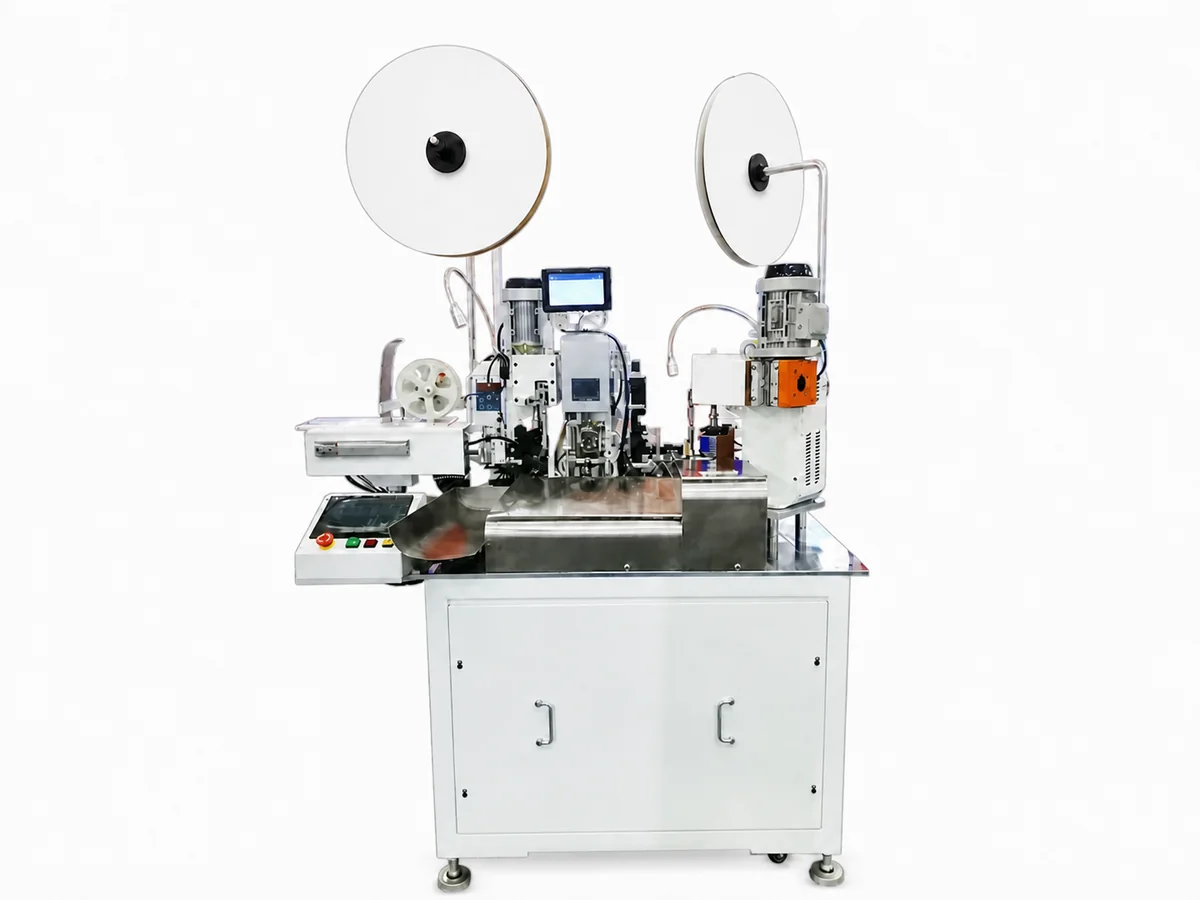

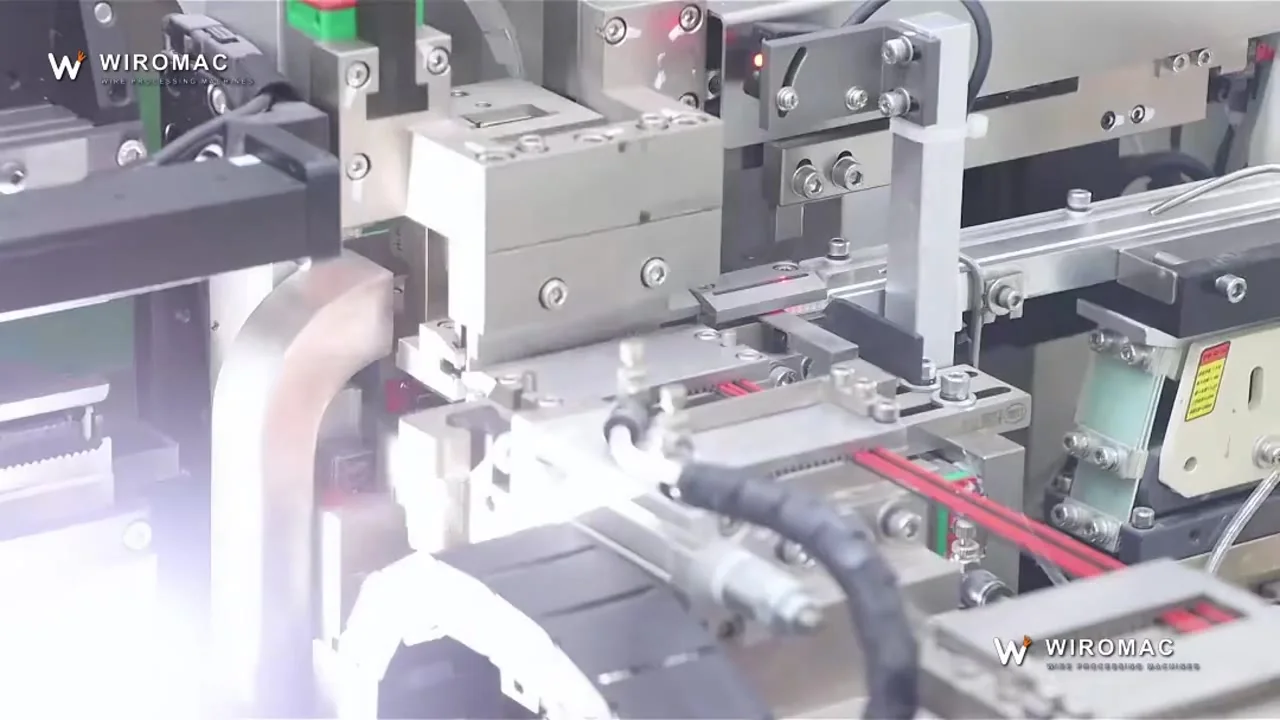

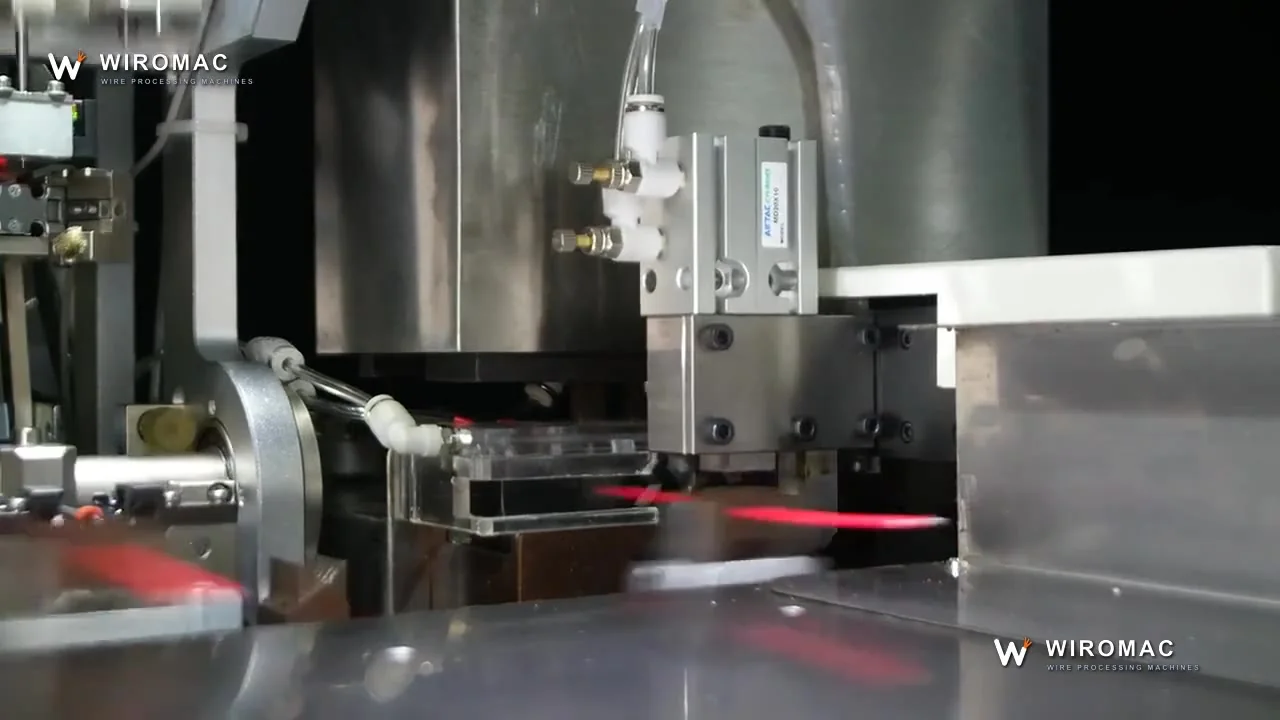

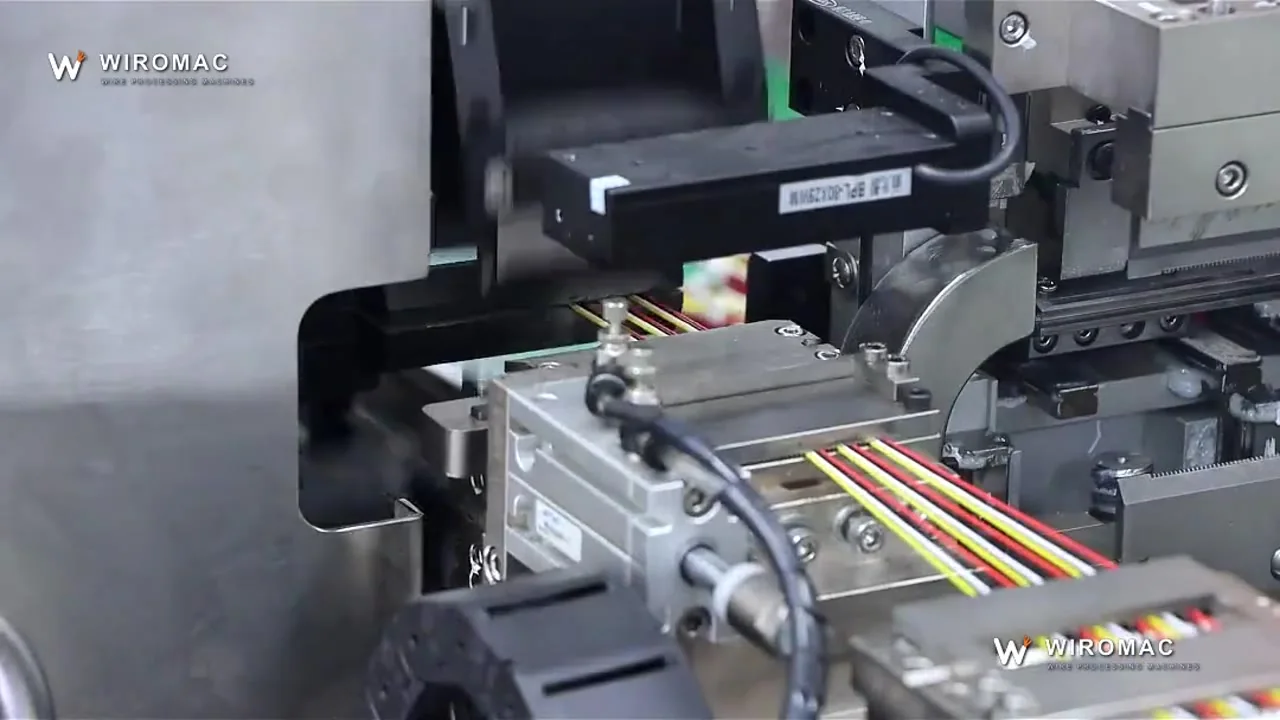

Process details →Waterproof seals and connector housings: can the machine do the whole end?
A seal that is not fully seated, or a terminal that stops short of the housing lock, fails at the customer, not on the bench. These heads insert the seal, crimp the terminal and push the terminal into the housing with a seating check — so a harness end leaves the machine finished, not staged for a hand operation.
Process details →How are O-rings fitted at a dual-station bench?
The operator presents parts to the two front fixtures and removes them after fitting. This close-up shows the loading and unloading sequence. Send us your parts and O-rings so we can demonstrate the fit on your samples.
Process details →Tube & material cutting

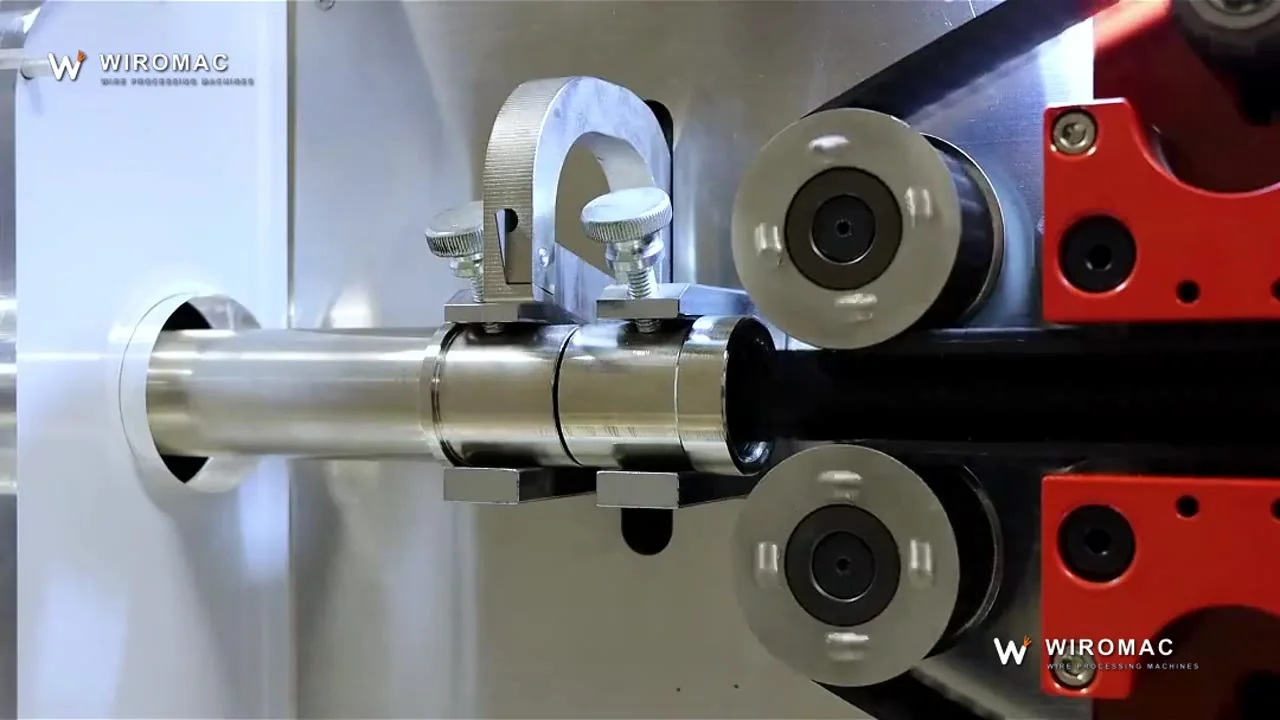

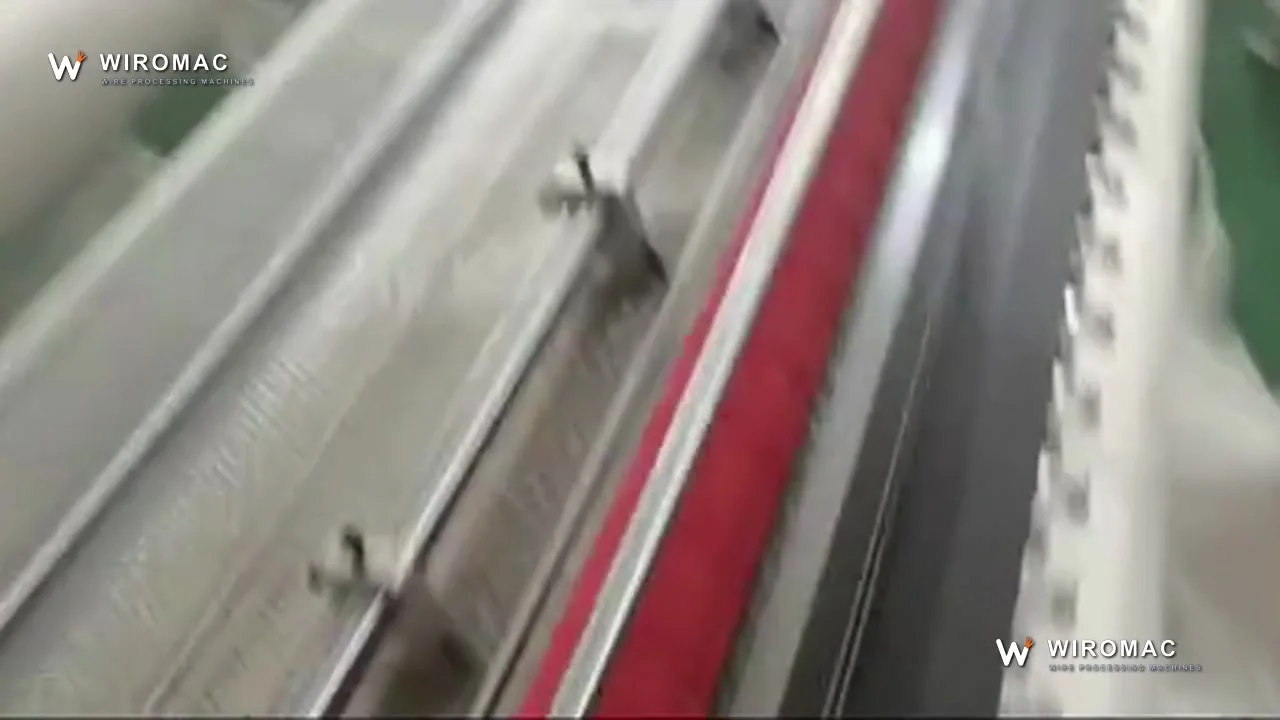

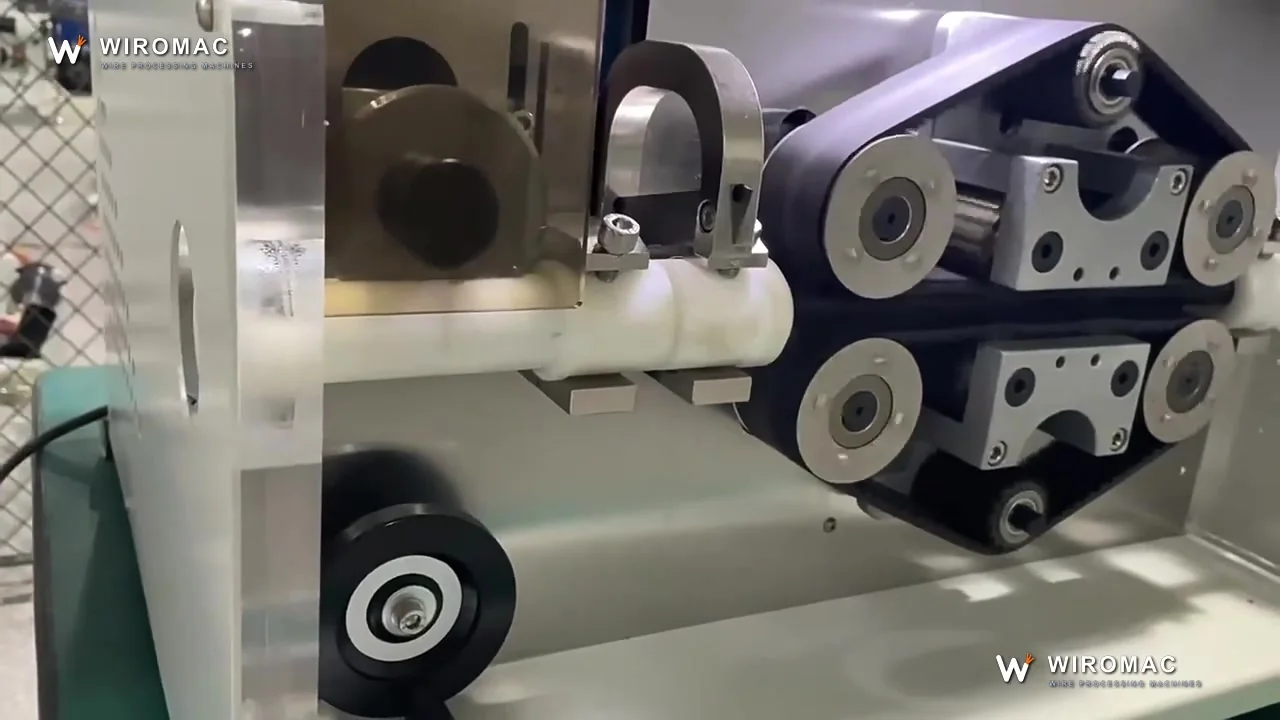

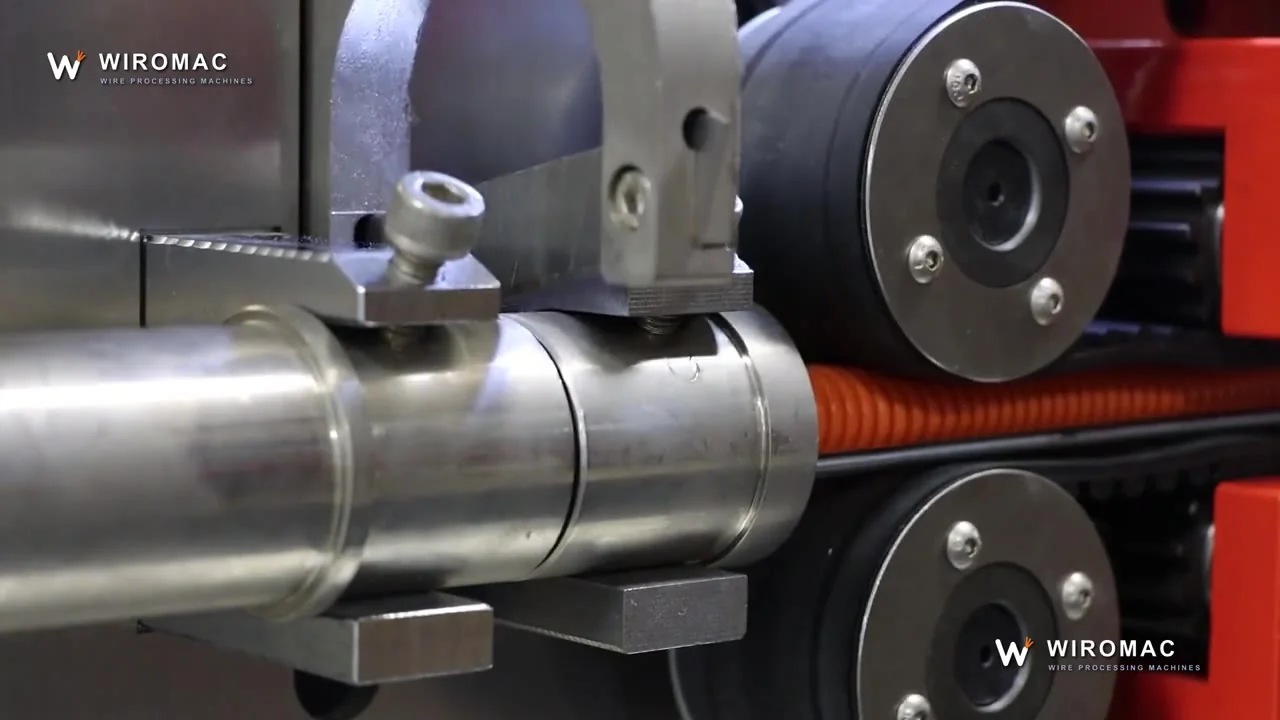

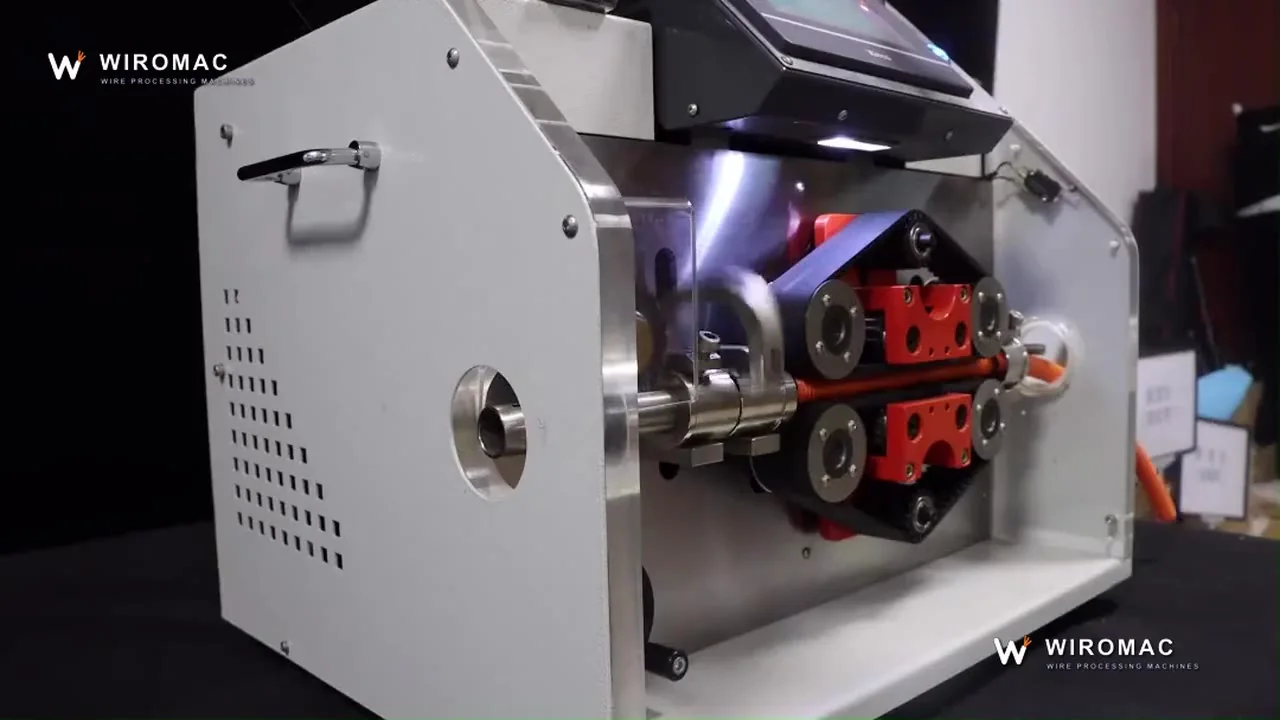

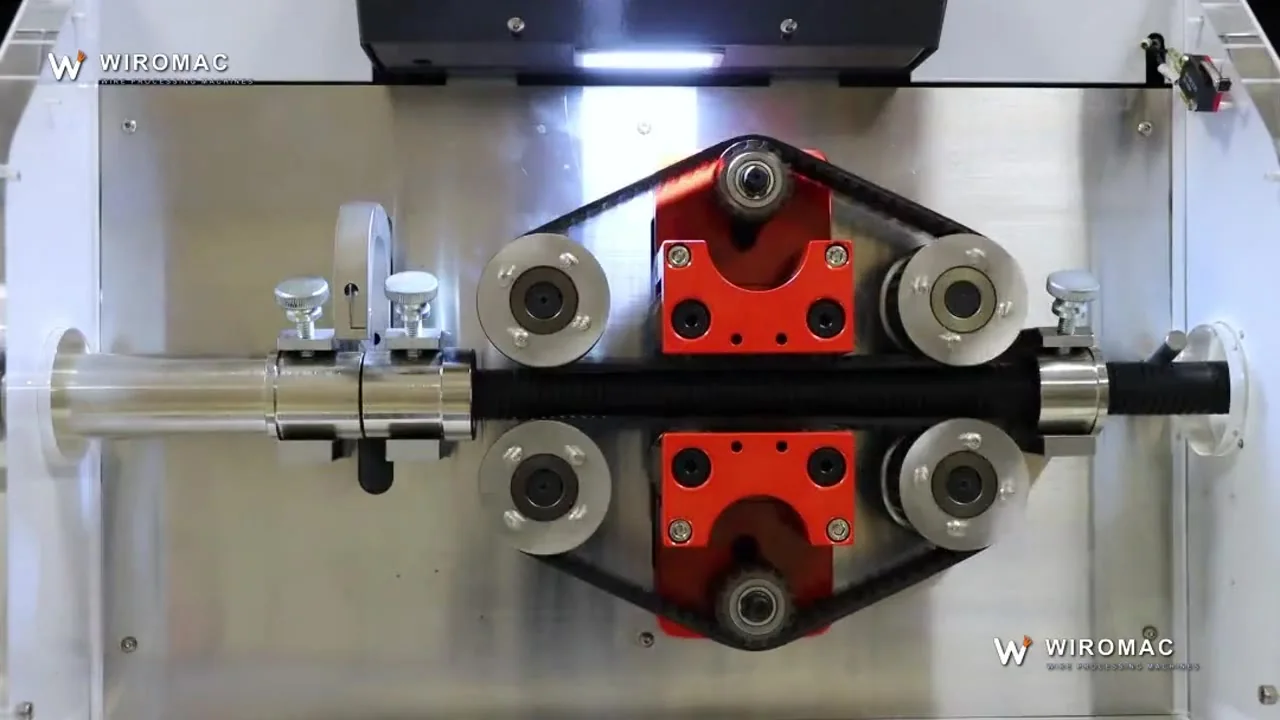

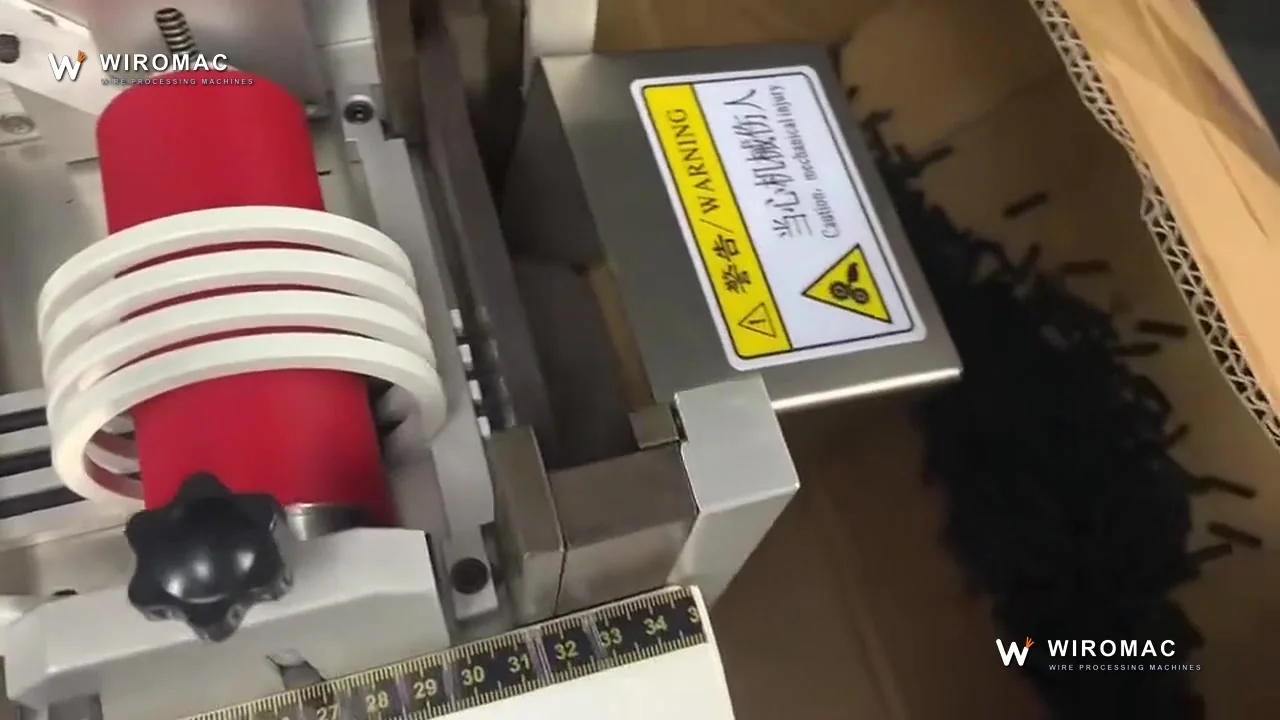

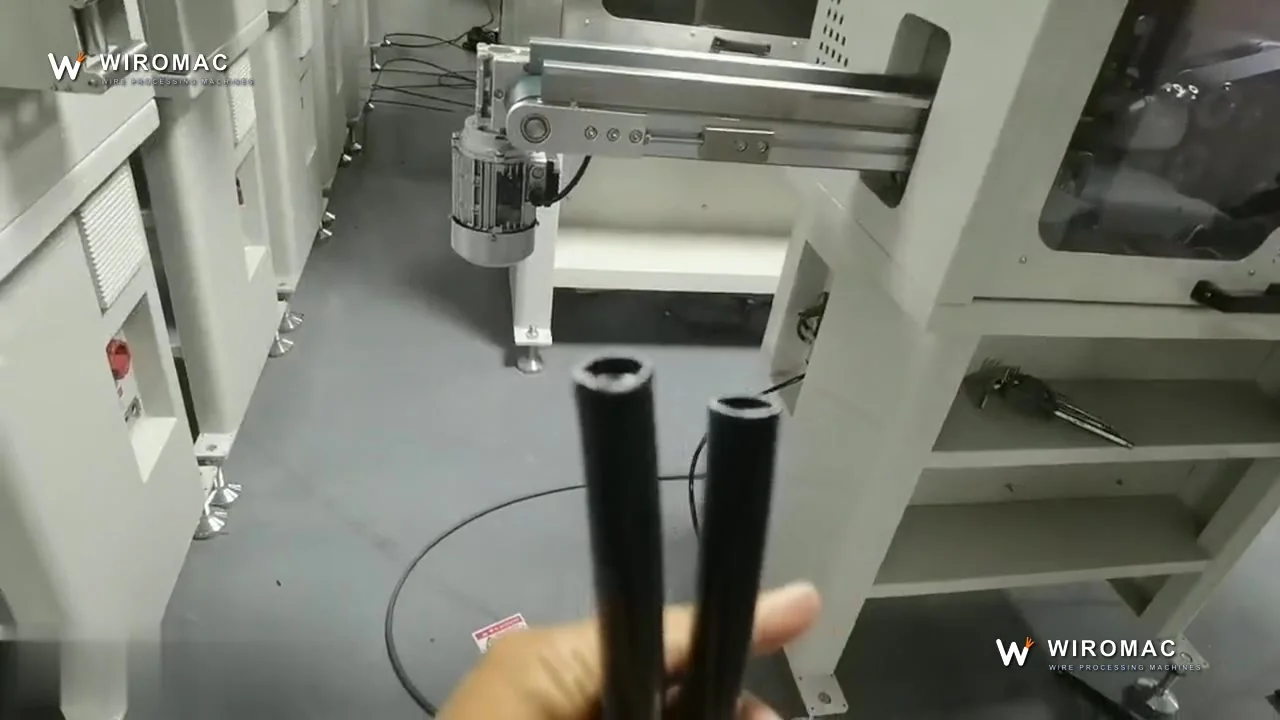

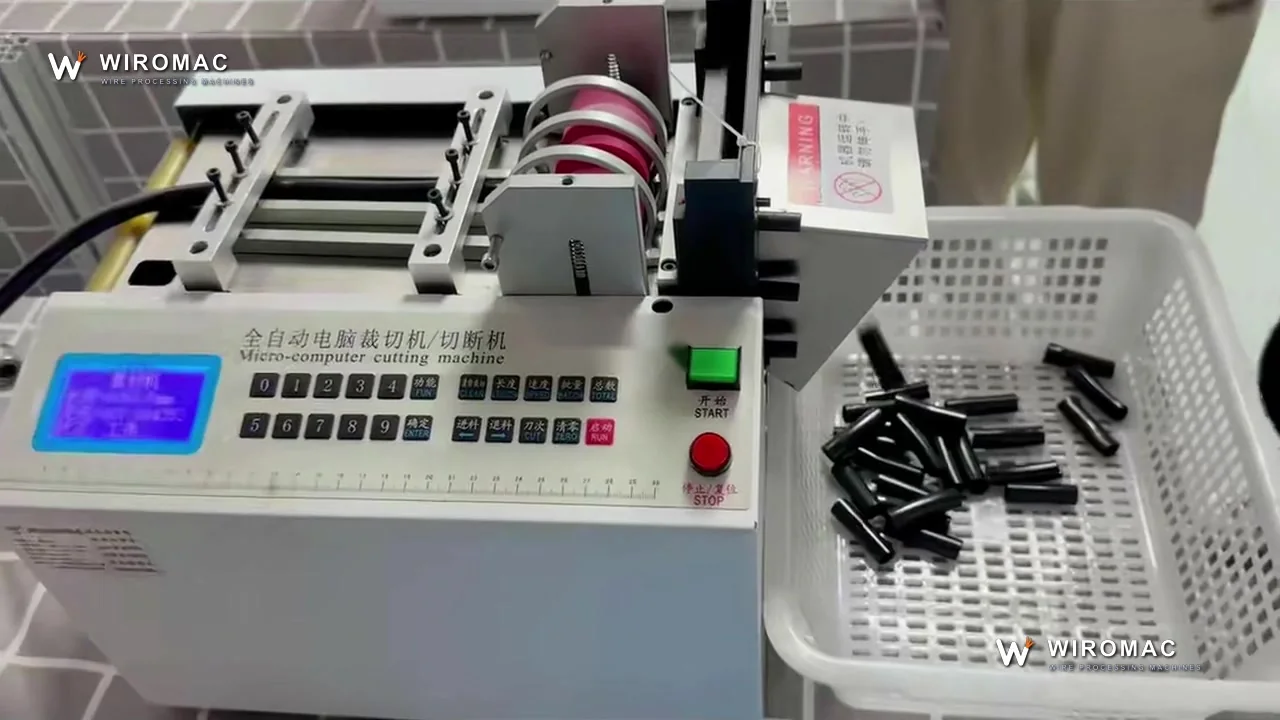

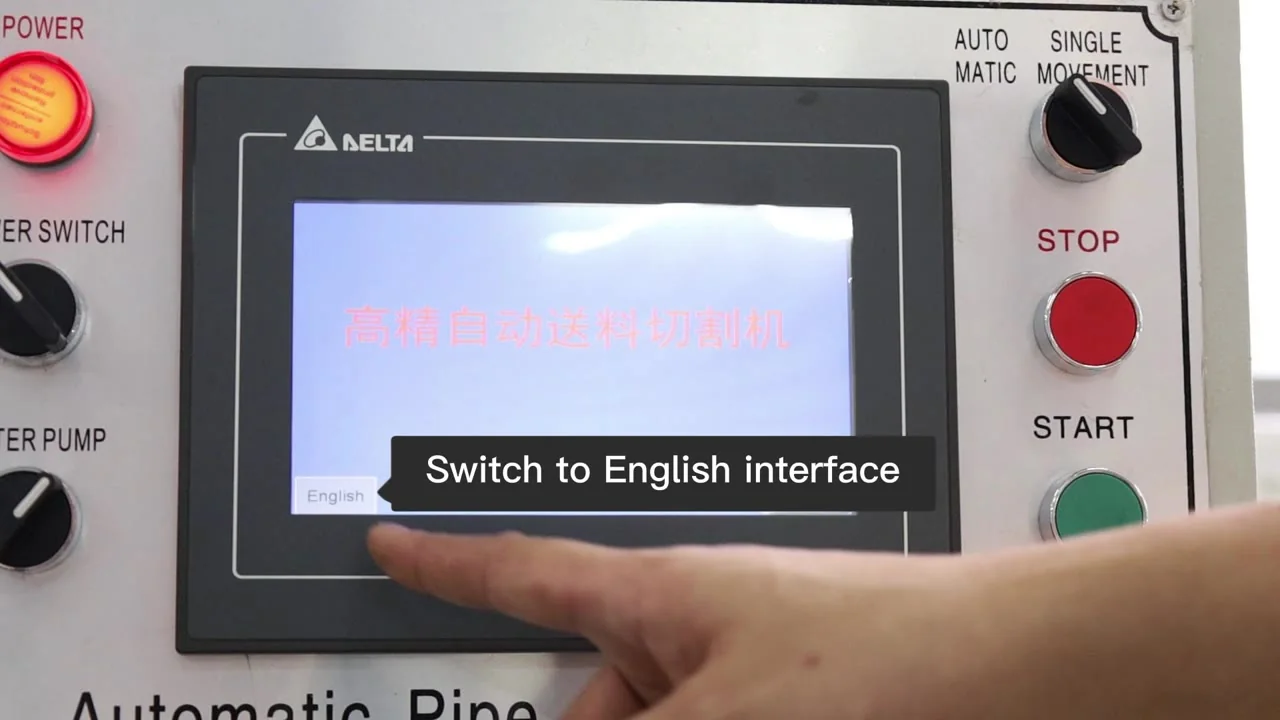

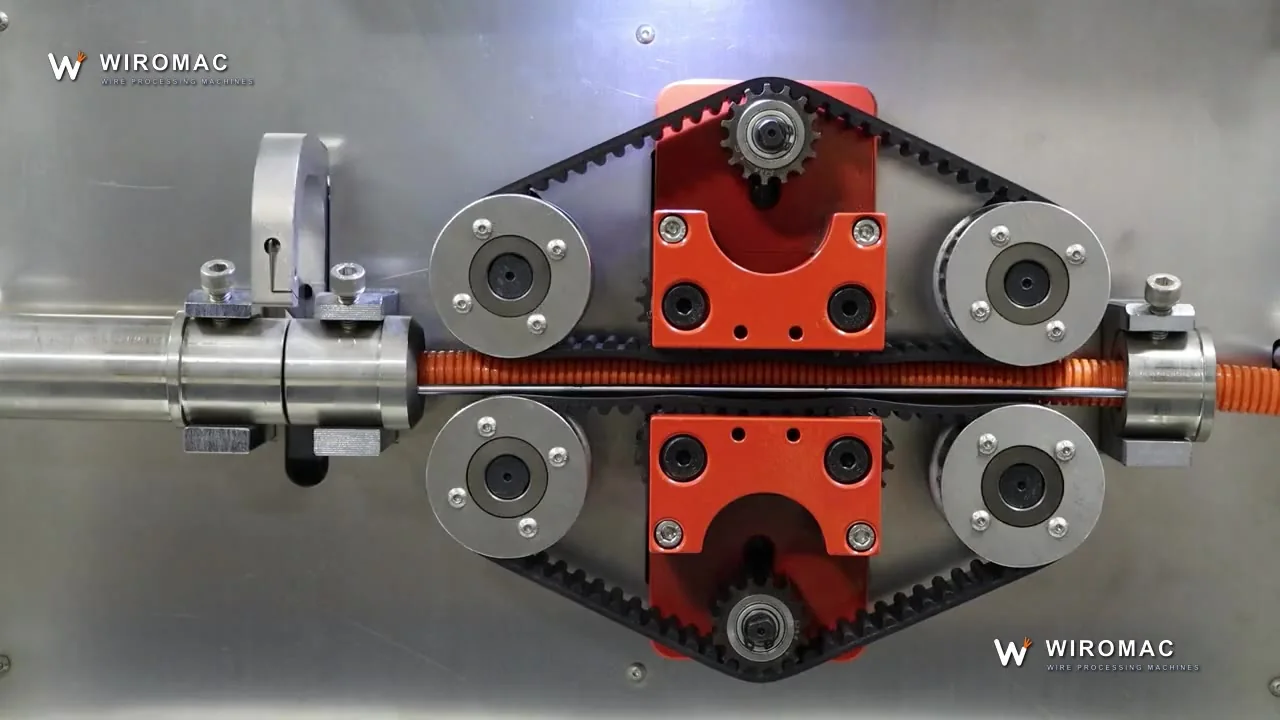

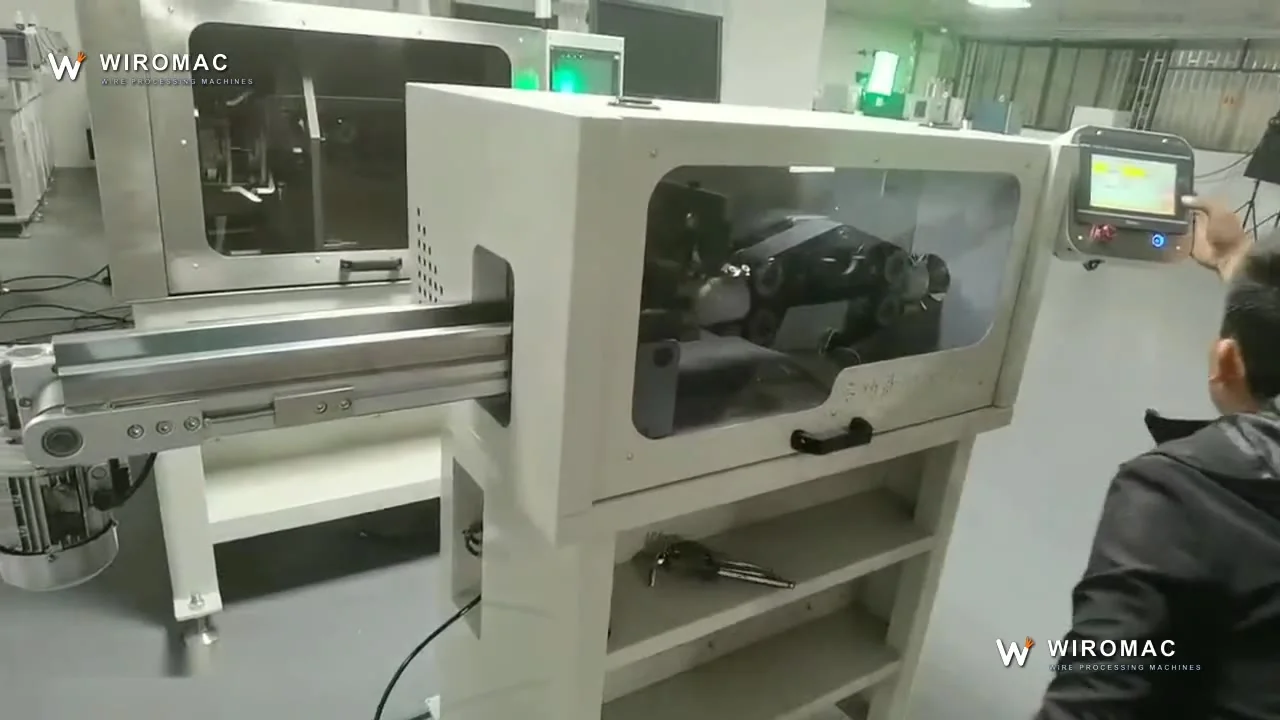

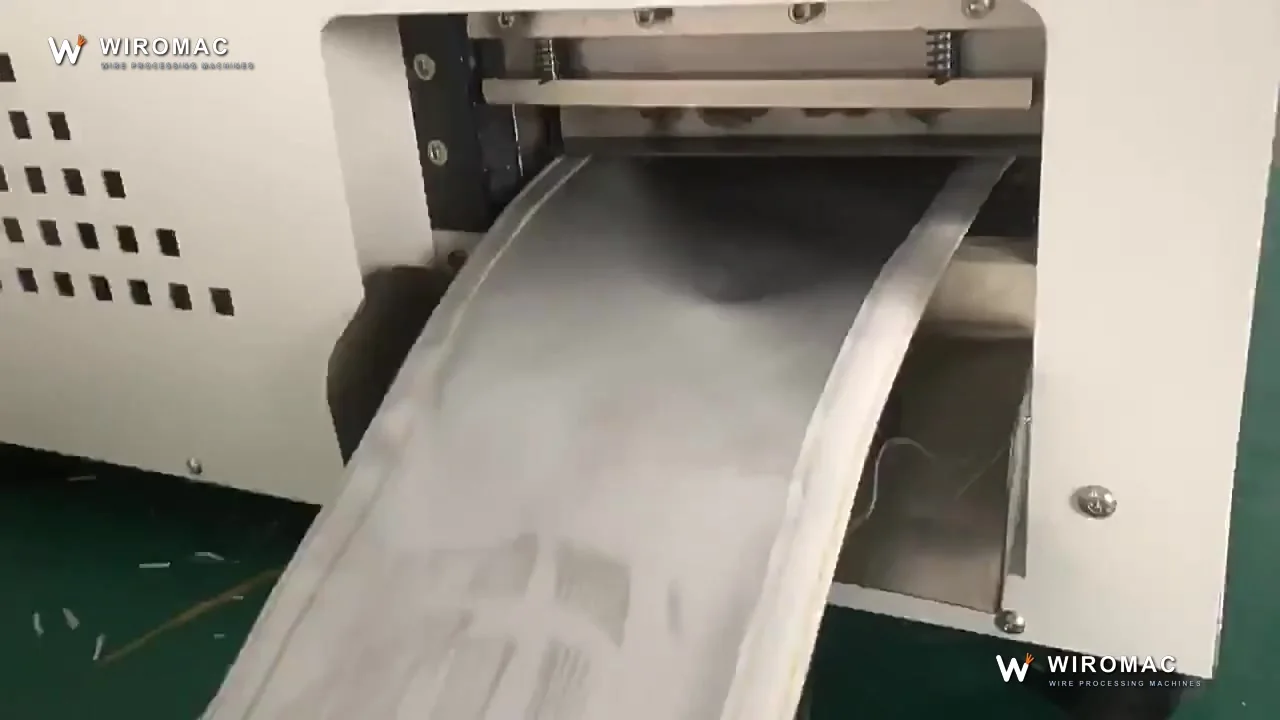

Cutting tube, conduit and webbing by the thousand

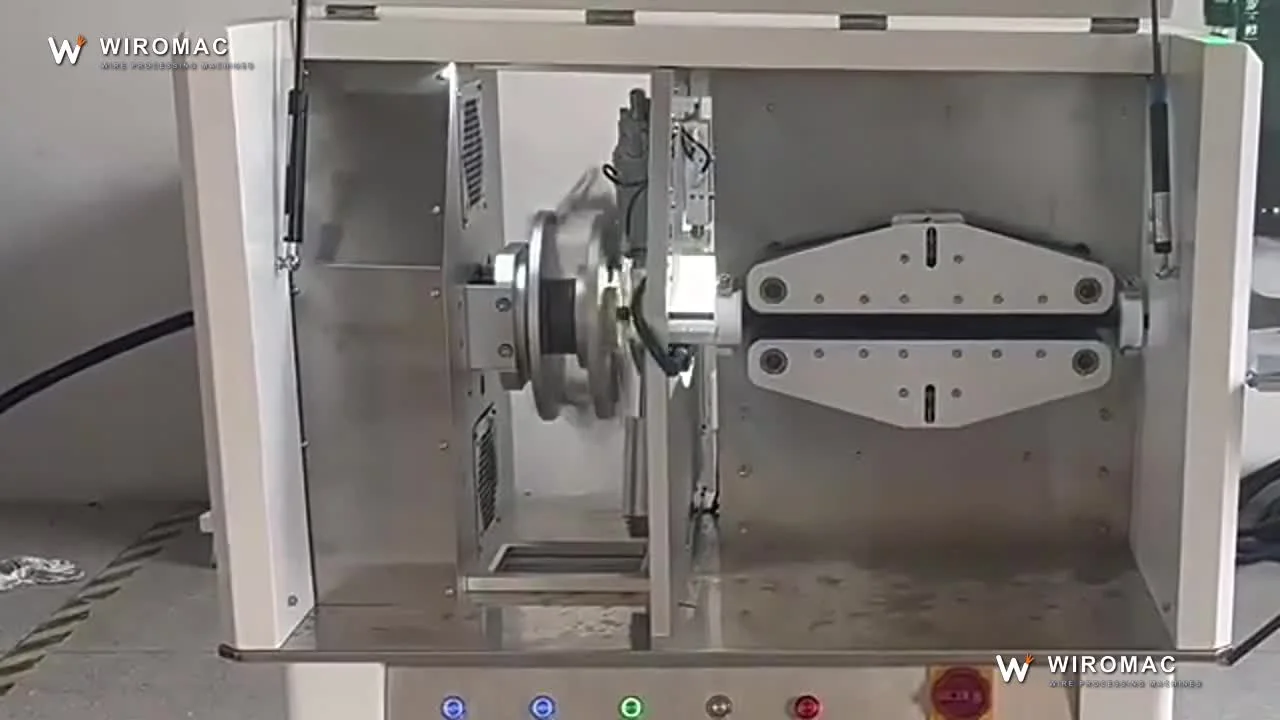

For a few hundred pieces a paper cutter and a stop is honestly enough. A machine pays back when the count is thousands a week, the length must repeat, or the material — corrugated conduit, spring hose, braided sleeve — will not hold still under a hand knife. These clips show the feed and the cut on materials a hand cutter struggles with.
Process details →Wrapping & heat-shrink
How is PTFE tape applied to threaded pipe fittings?
The operator loads each fitting into the front opening and removes it after wrapping. This demonstration shows repeated wrapping cycles and close-up views of the taped threads. Send your fittings and tape so we can film the result on your parts before ordering.

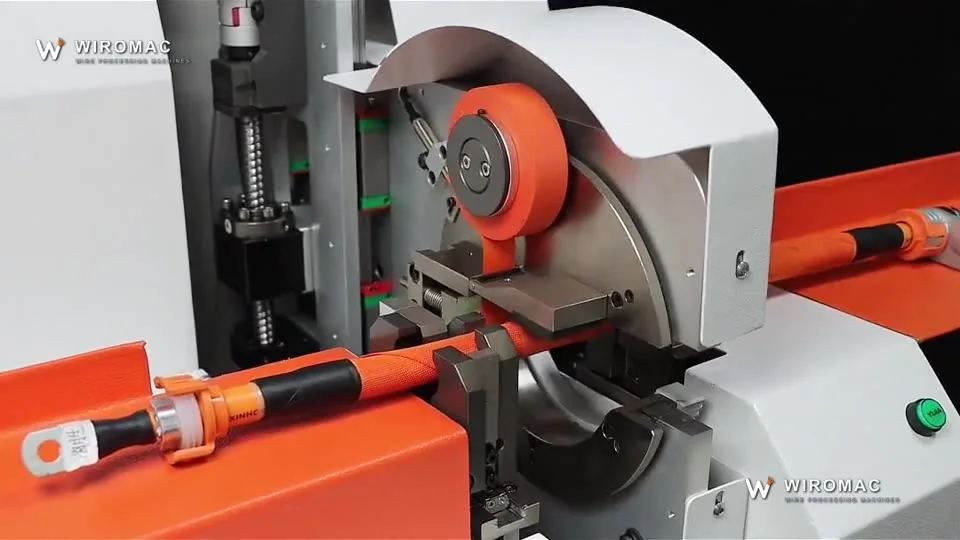

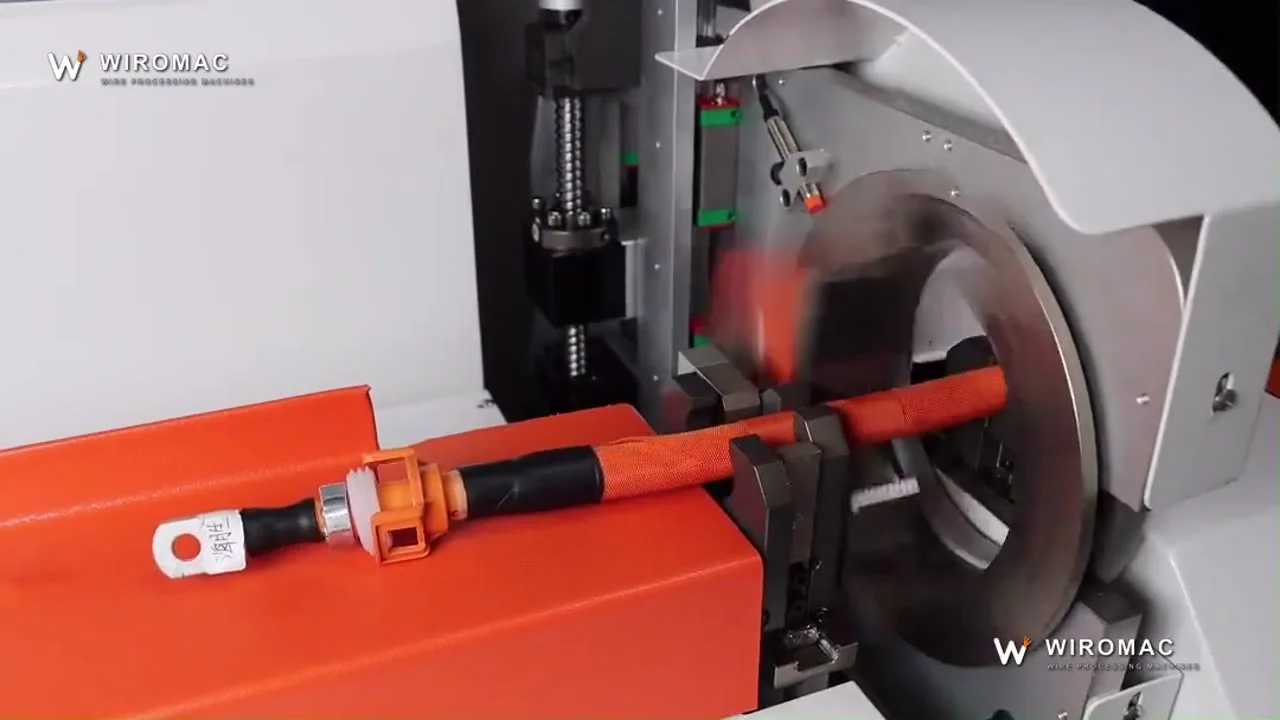

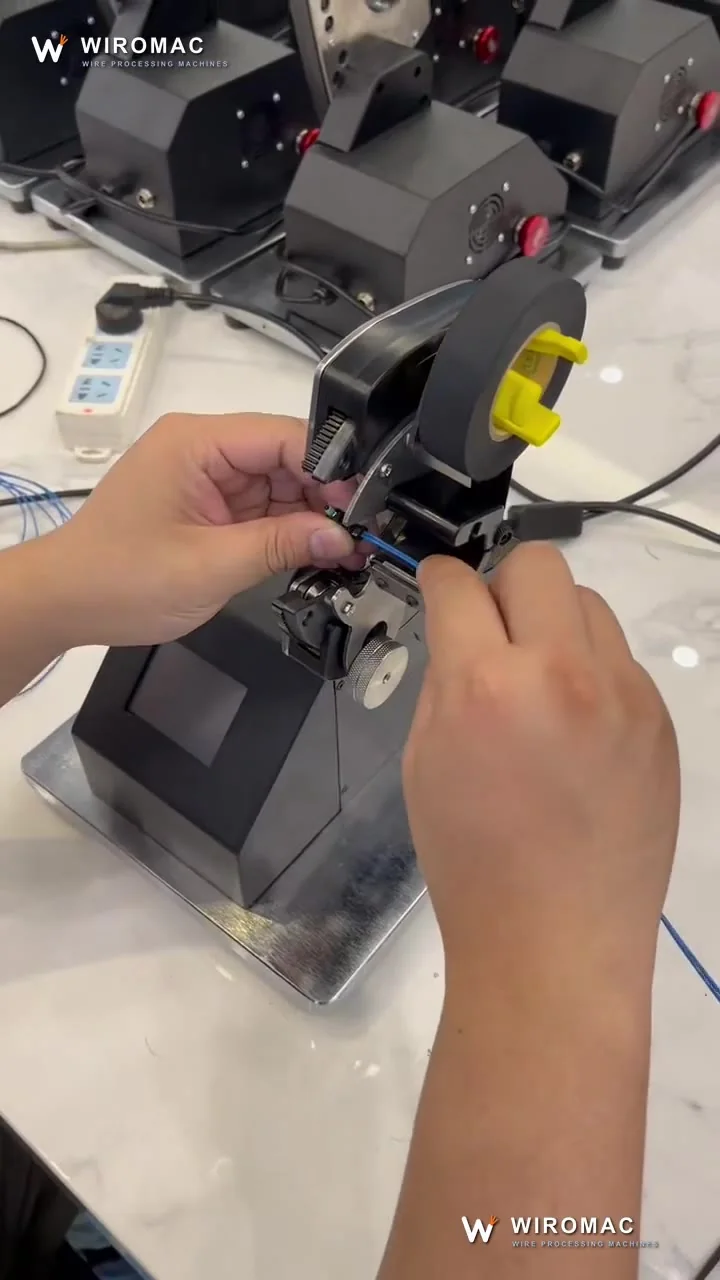

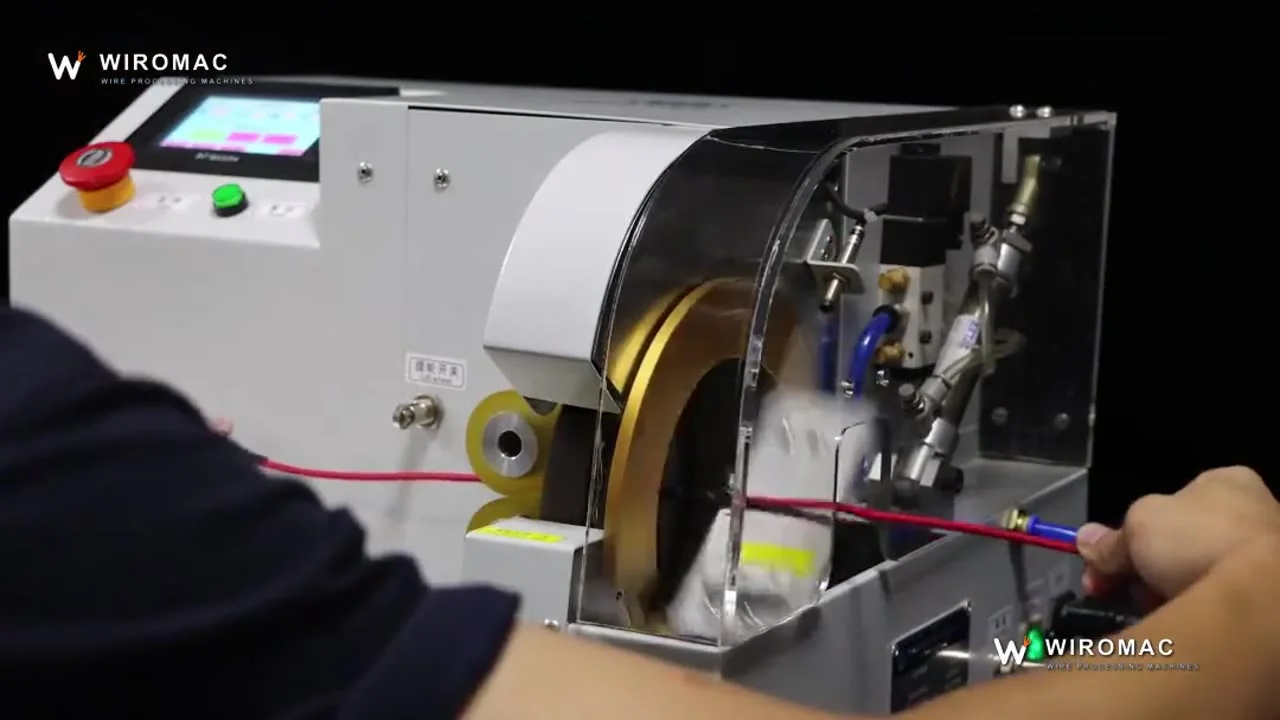

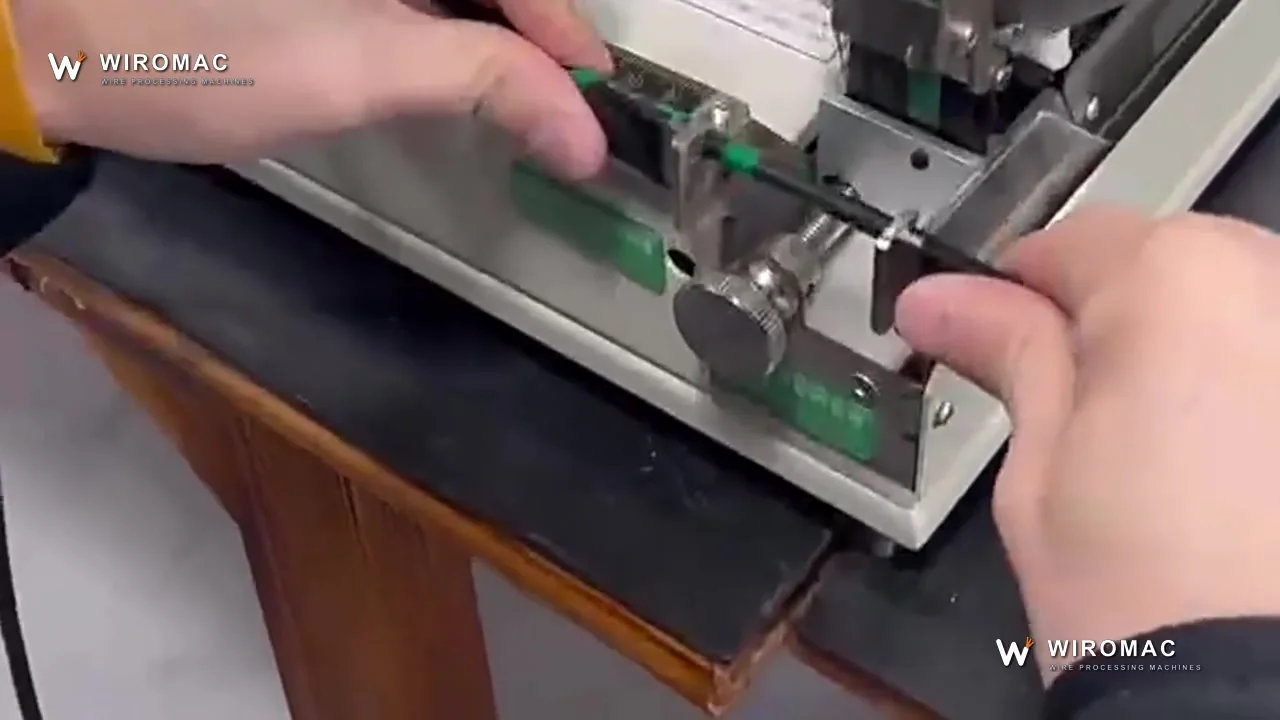

Process details →Taping: can a machine wrap a single wire, or only a bundle?
Most taping heads are designed for bundles of Φ3 mm and up; a single thin wire can drop into the tape slot instead of riding on it. Watch the start of the wrap, the half-lap, and the cut — those three seconds are what a hand cannot repeat all shift.

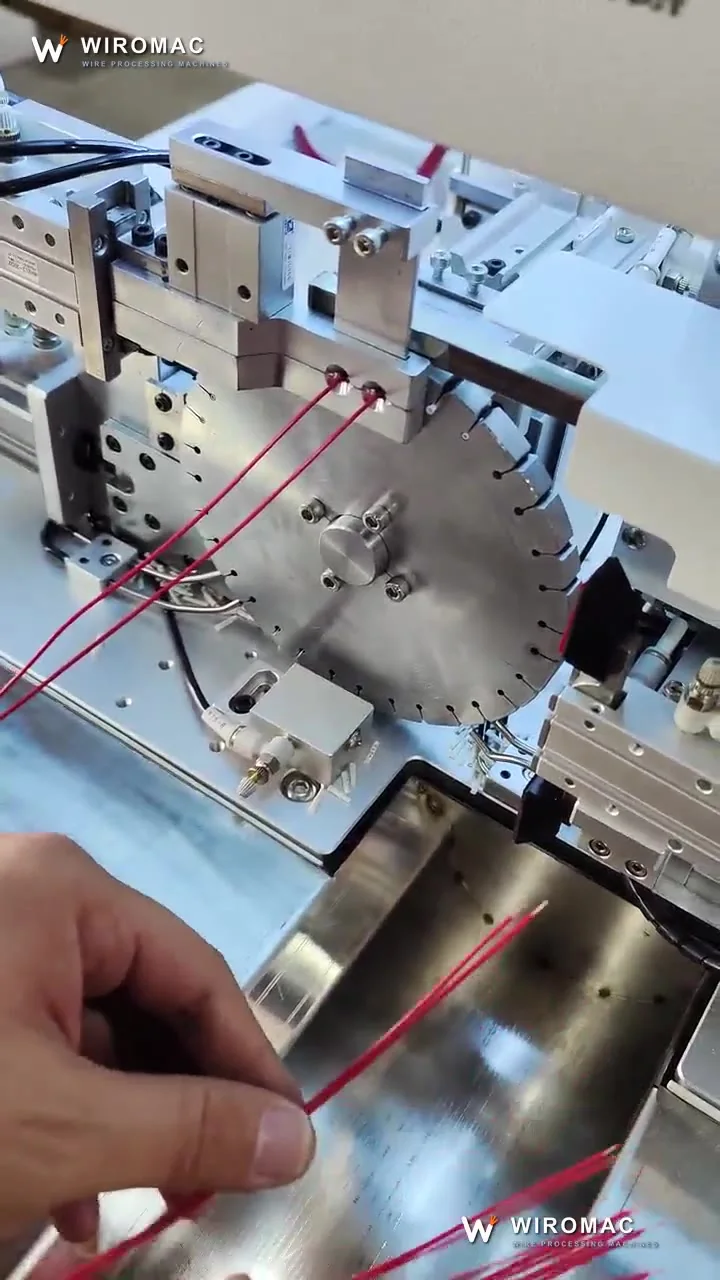

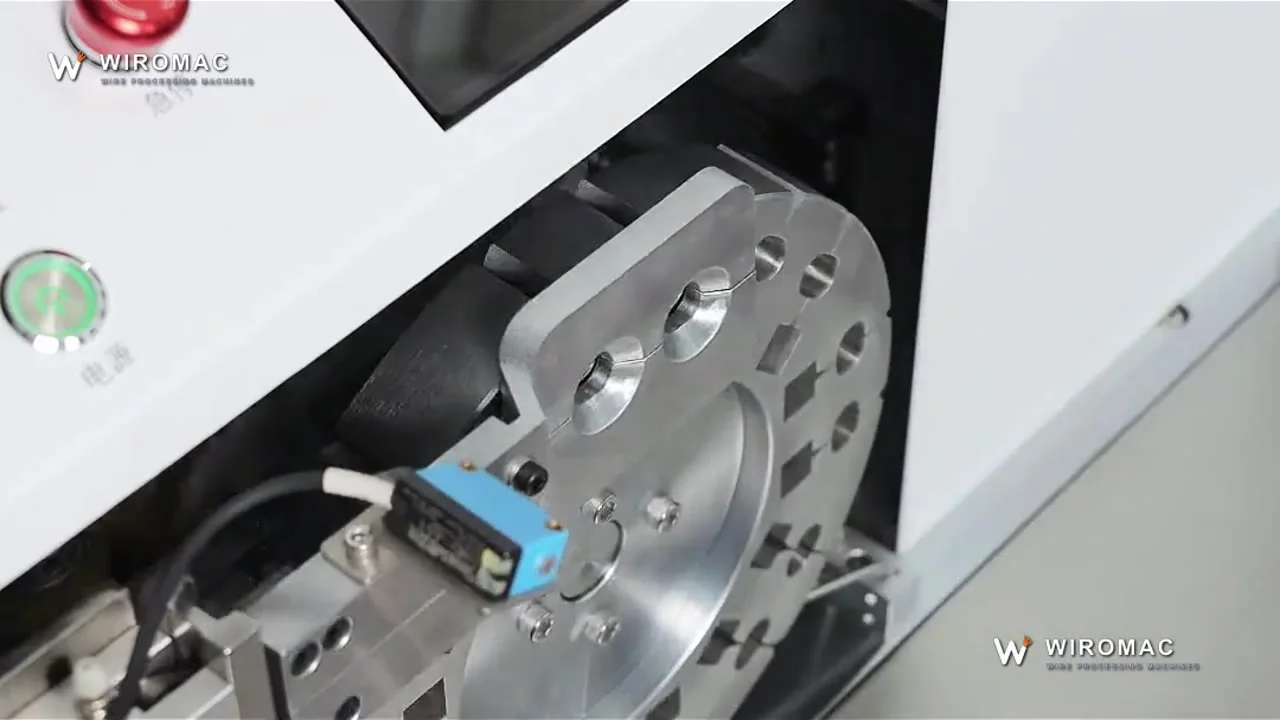

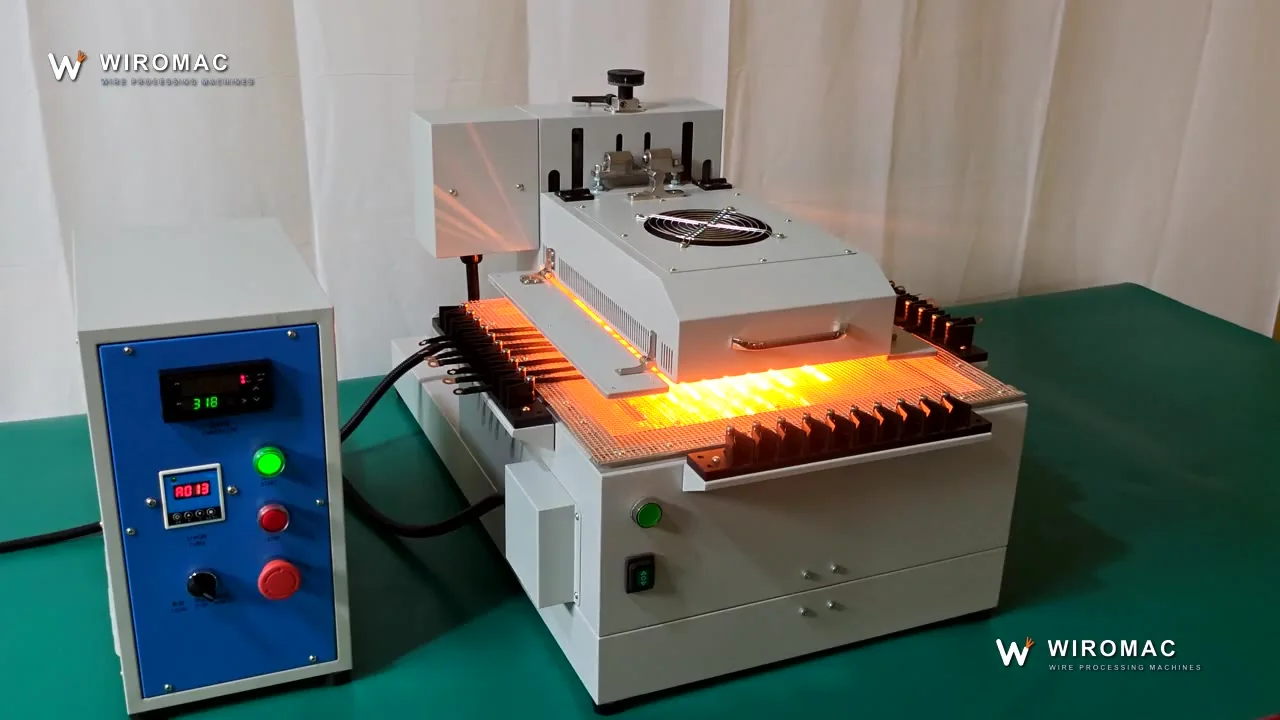

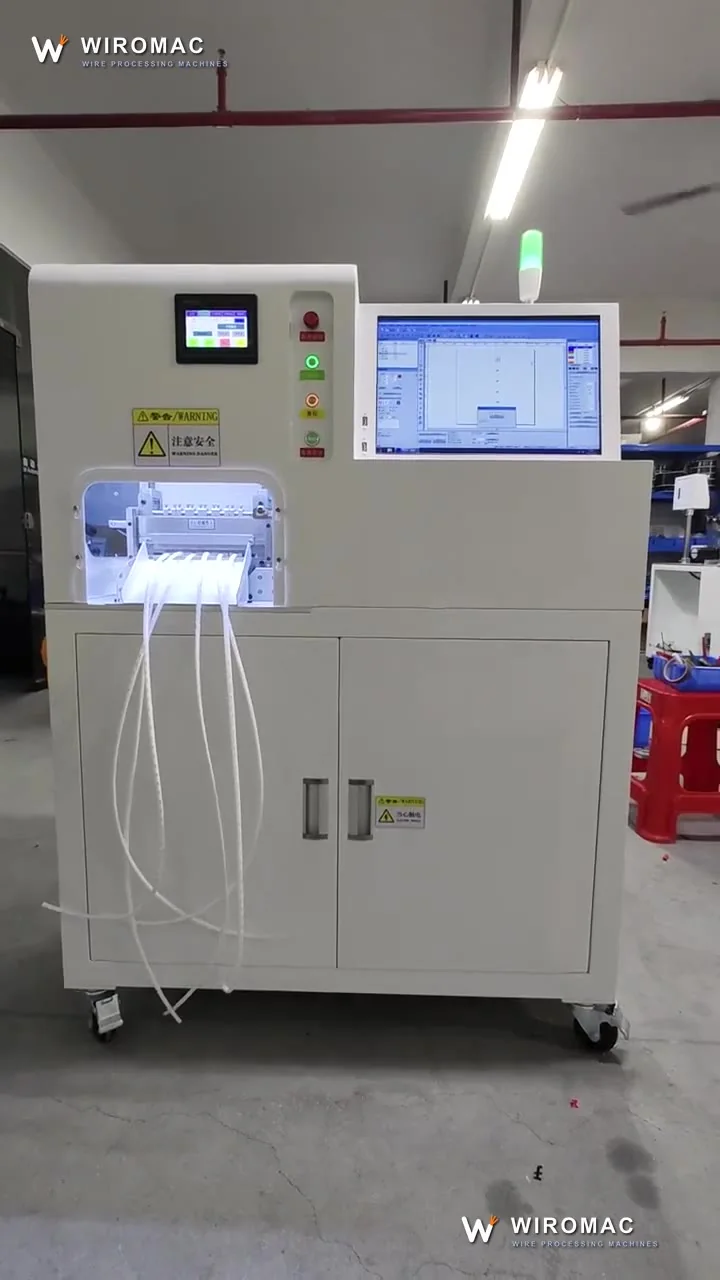

Process details →Heat-shrink and marking without a gun in one hand

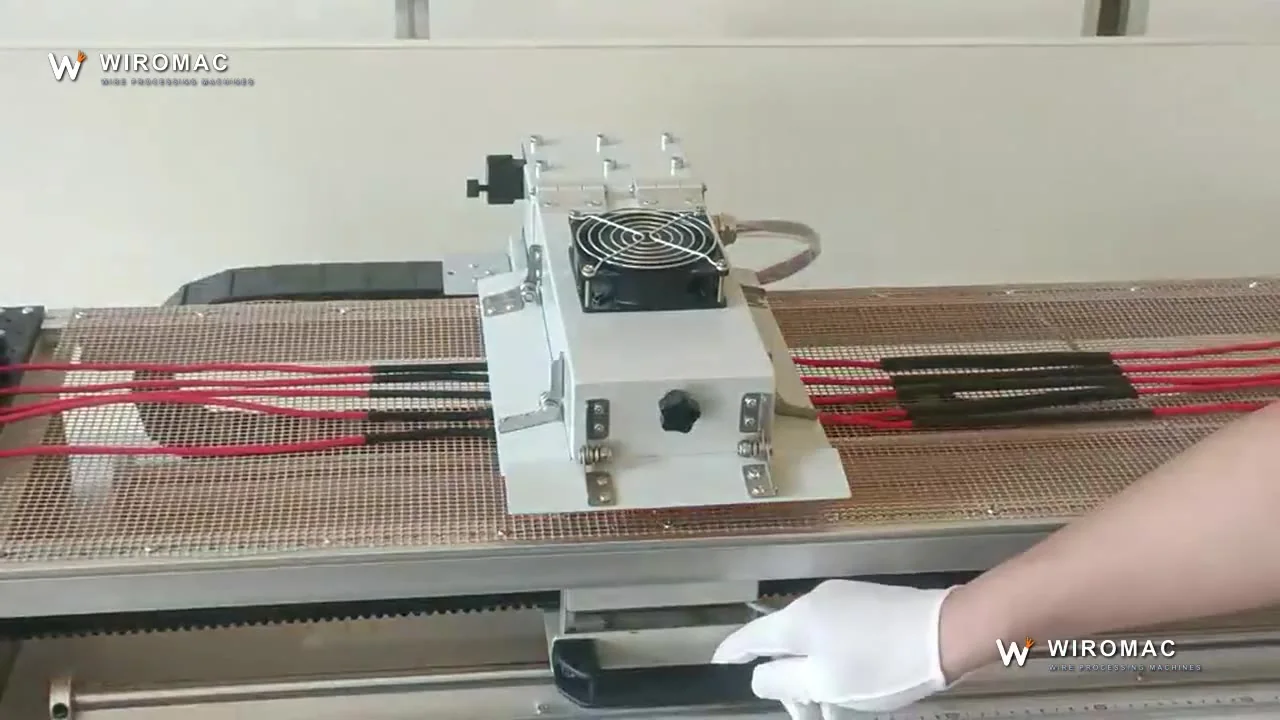

Batch heat-shrink and identification are where a harness bench loses time to a gun and a hand printer. These heads mark the tube, slide it on and shrink it in one cycle, or shrink a whole batch under a lid or through a tunnel.
Process details →How is corrugated protective tubing fitted around a wire harness?
The insertion clamp and feed belts guide the tubing around the wire bundle. The black-tube setup shown here finishes with a close-up of the tubing and the exposed wire ends. Send us your tube and harness to check the guide setup on your parts.
Process details →Winding & feeding
How does a pneumatic hook help wind wire through a closed ring core?
The core rests between support rollers while the operator presents the wire to a reciprocating hook. The close-up shows repeated winding passes, manual wire handling and the finished toroidal coil. Send your core, wire and required turns so we can film a trial with your actual parts.
Process details →How is wire wound around a closed magnetic ring core?
The storage ring passes through the core opening while the core turns between the support rollers. This close-up shows successive winding passes, manual wire handling and the finished coil being removed. Send your core and wire so we can film a trial on your parts before ordering.

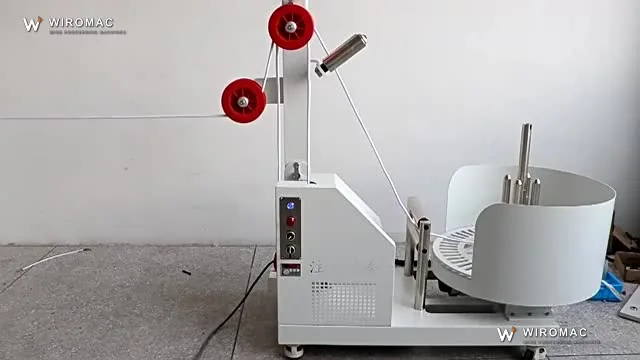

Process details →Will the incoming coil feed without dragging or overrunning?
A pay-off must match the coil geometry and the downstream start-stop cycle. Watch how material travels from the basket through the guides, then test the stop response and supply rate with your actual coil and processing machine.
Process details →Will the cable form an even coil and release cleanly?
Watch the guide lay the cable across the reel, then the flange open for coil removal. The finished coil is shown by hand so you can inspect the winding. We test your cable and coil dimensions before ordering; tying is a separate step on this winding-only machine.
Process details →How is a straight cable wound into a spiral?
The operator guides the cable by hand as the mandrel rotates. The spiral lengthens along the mandrel with each turn.

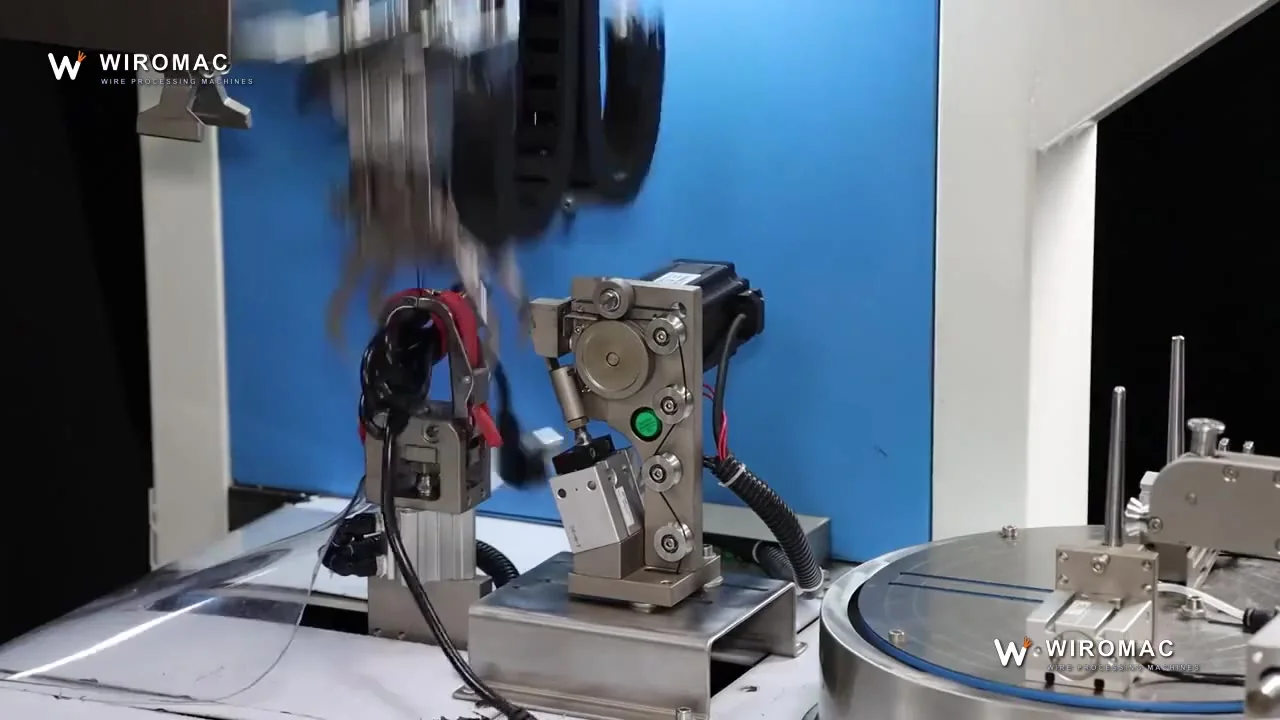

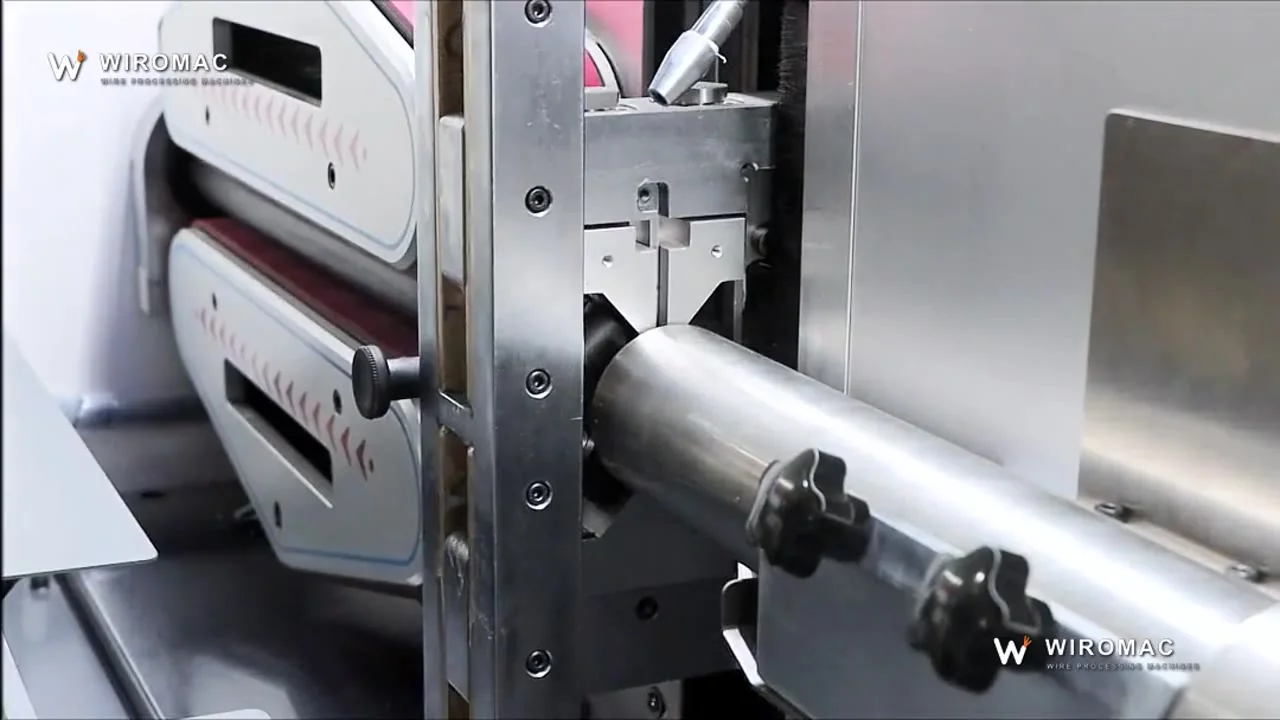

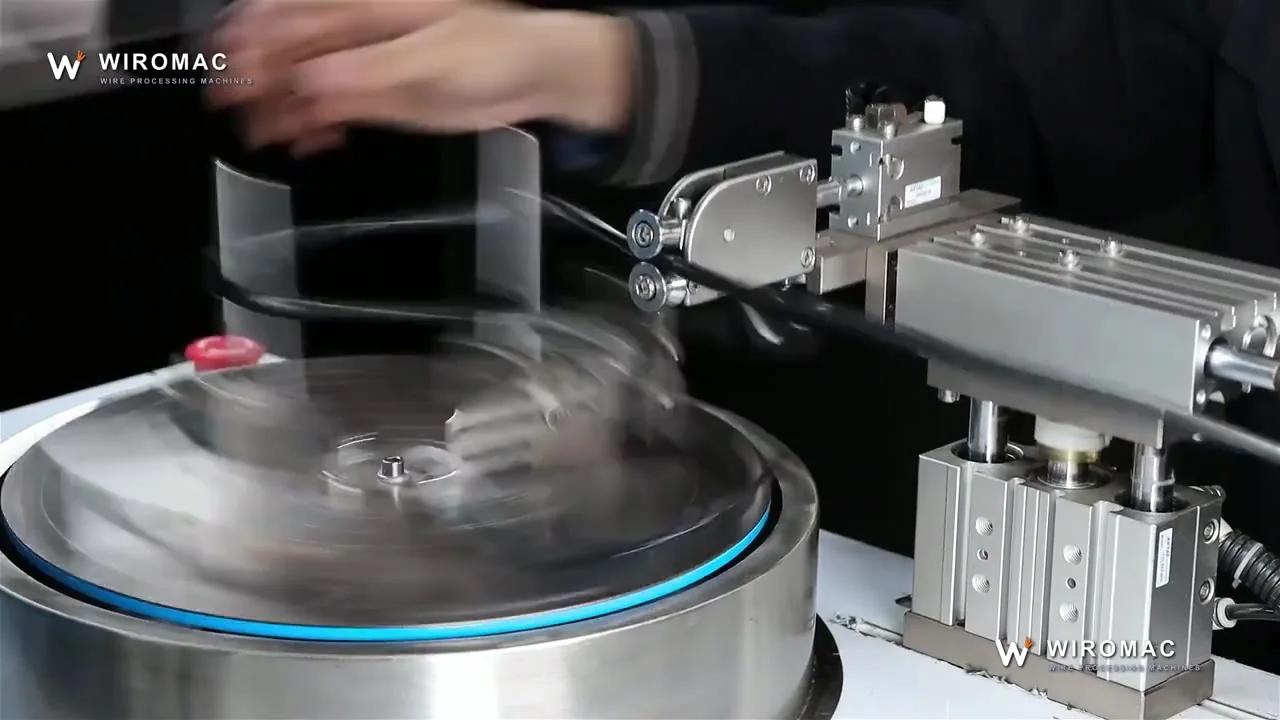

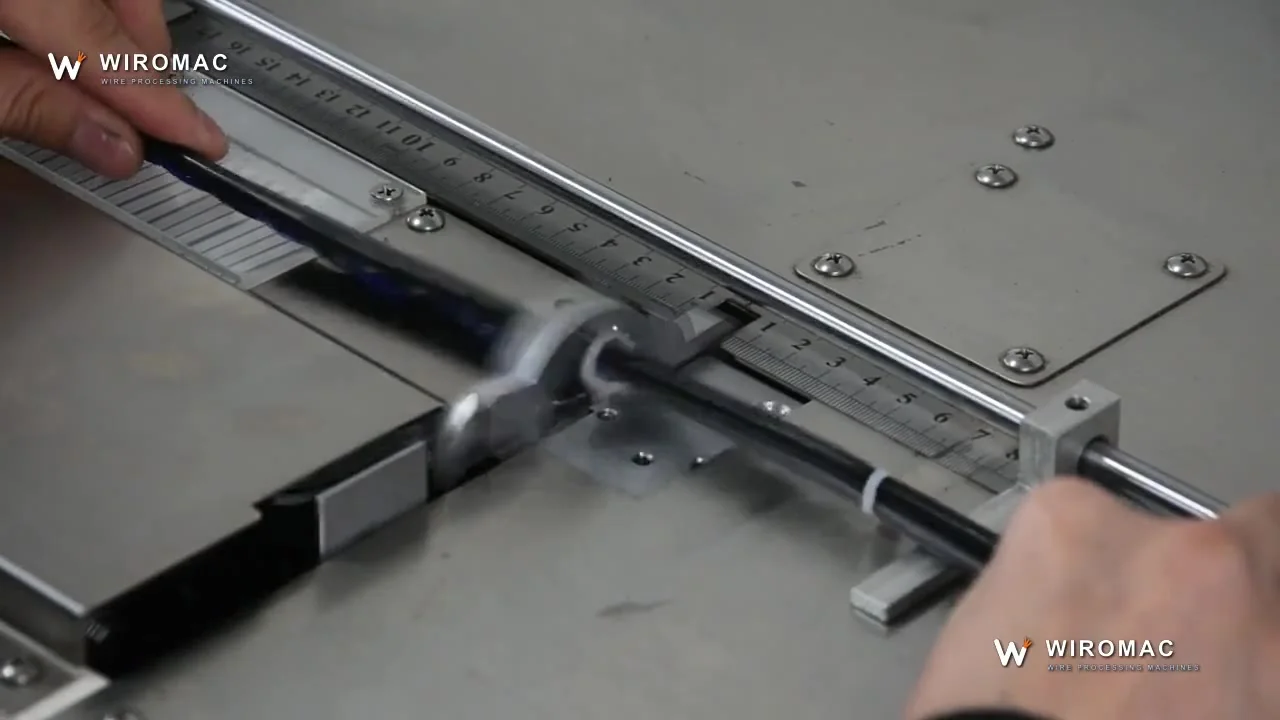

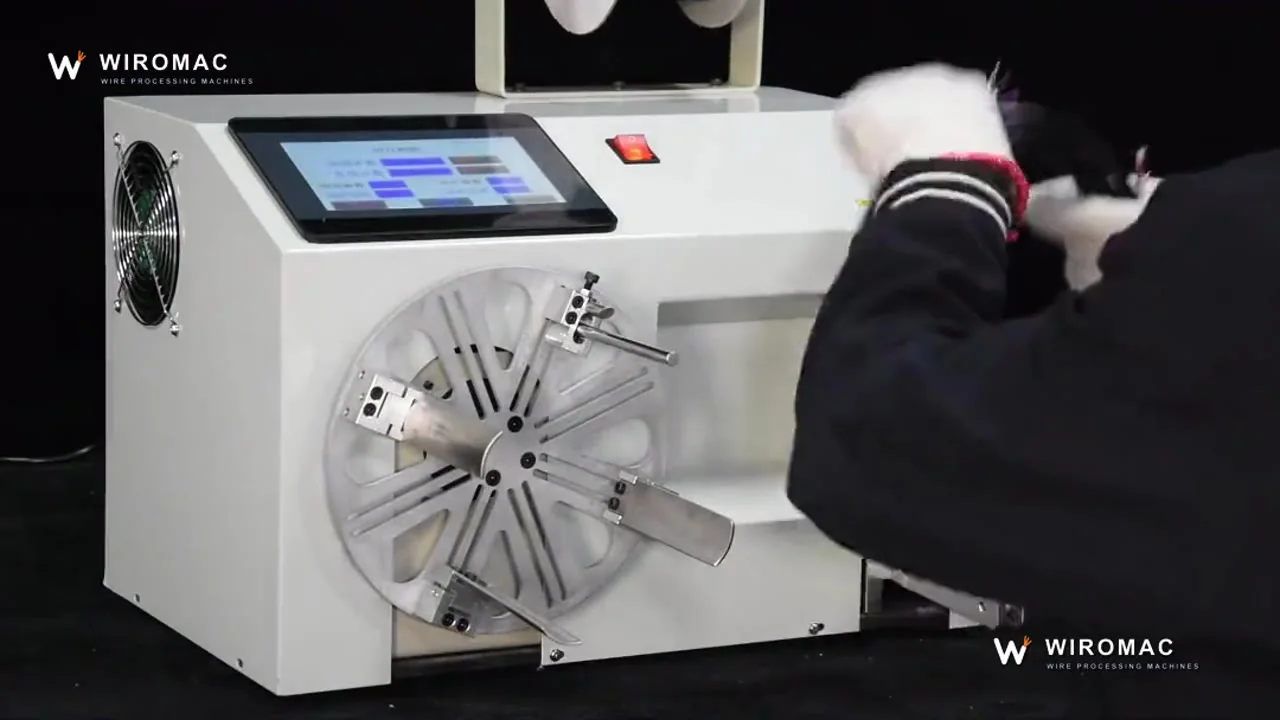

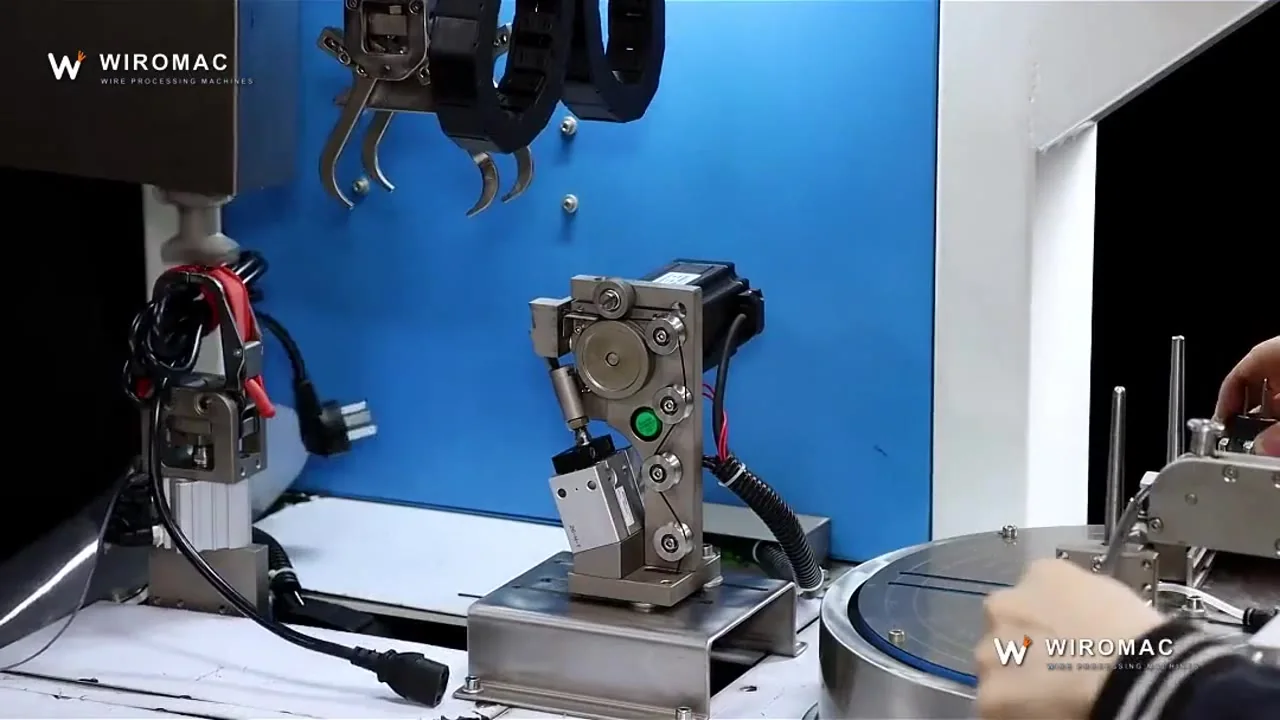

Process details →Coils and ties that pack themselves
Hand-coiling a power cord or a length of cable is the last manual step in many lines. These heads wind a figure-8 or a round coil to a set diameter and close it with a twist tie or a nylon tie, so the piece leaves the machine ready for the carton.
Process details →How is a finished cable coil wrapped in film?
The film carriage passes through the coil opening while the supported coil turns, laying film around the coil. This close-up shows the wrapping action and the film-covered coil when the ring stops. Send us your coil dimensions and a sample so we can demonstrate the wrap on your product.
Process details →How are tape bands placed around a wound coil?
The operator turns the coil by hand and presents each section to the taping head. This demonstration shows white tape bands applied at several positions, followed by a view of two finished coils of different sizes.
Process details →Soldering & welding

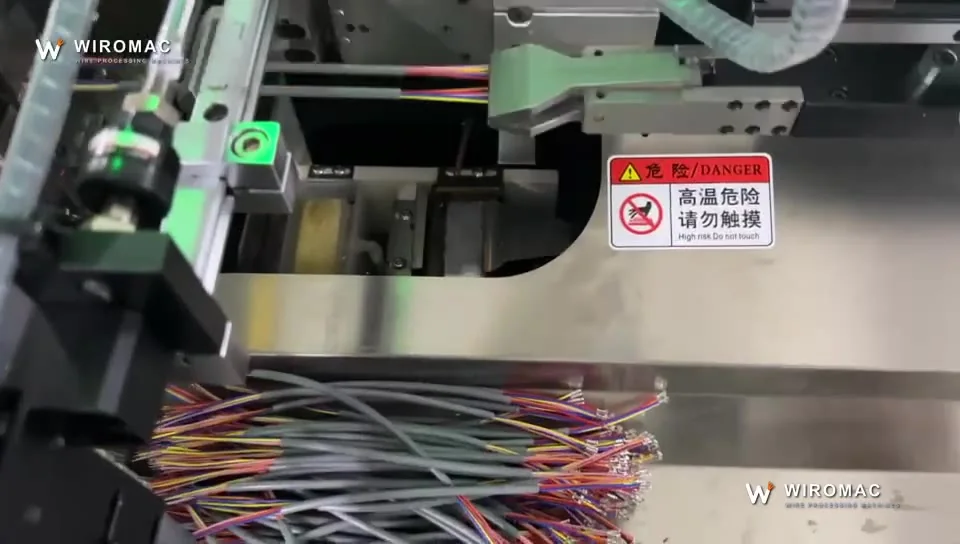

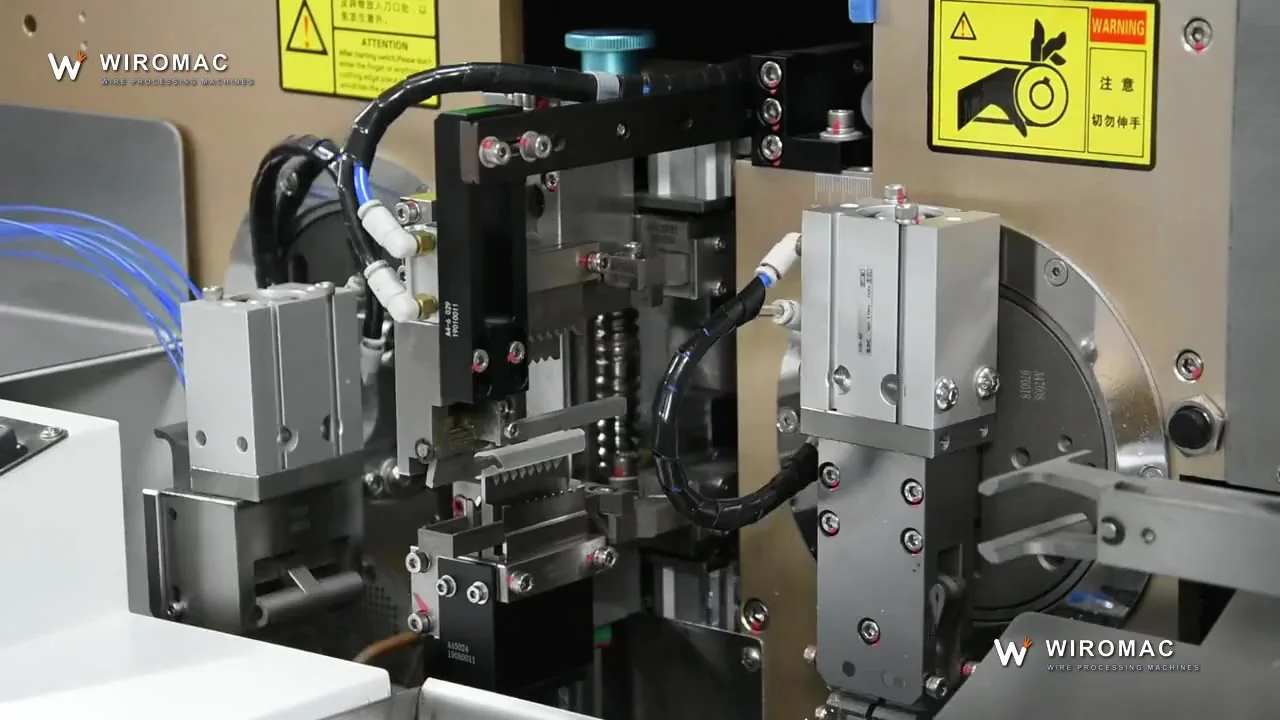

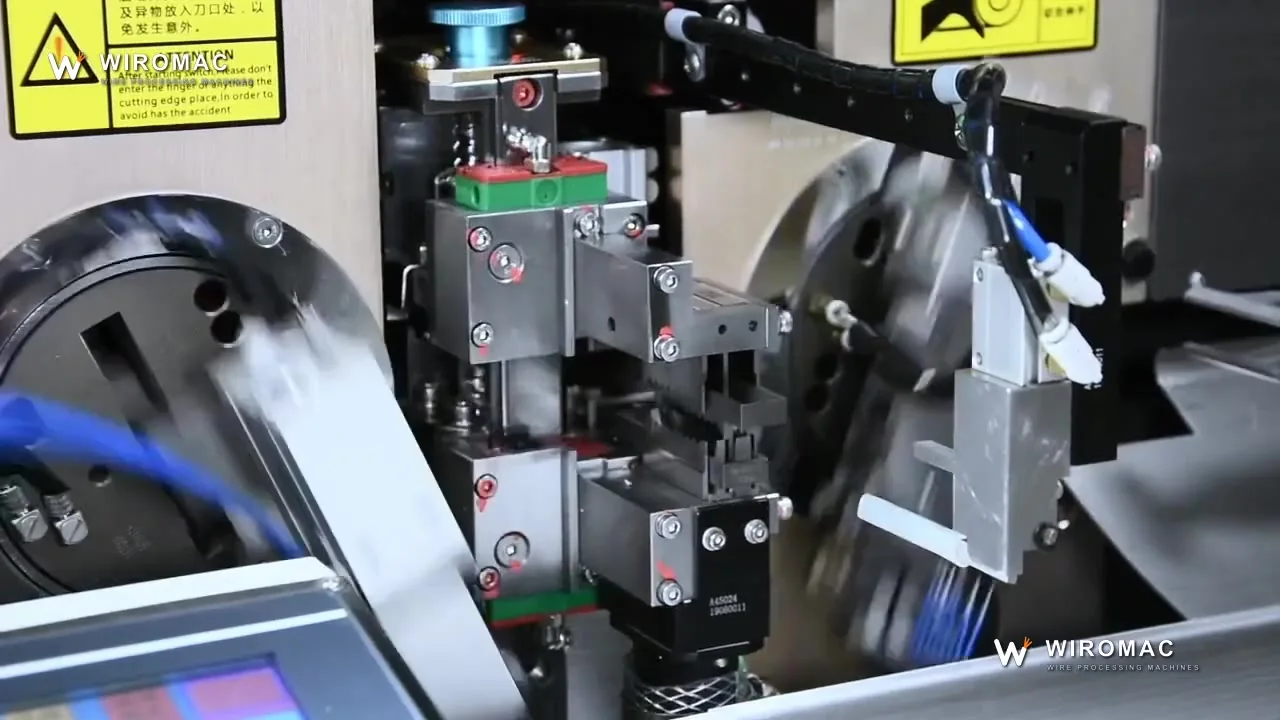

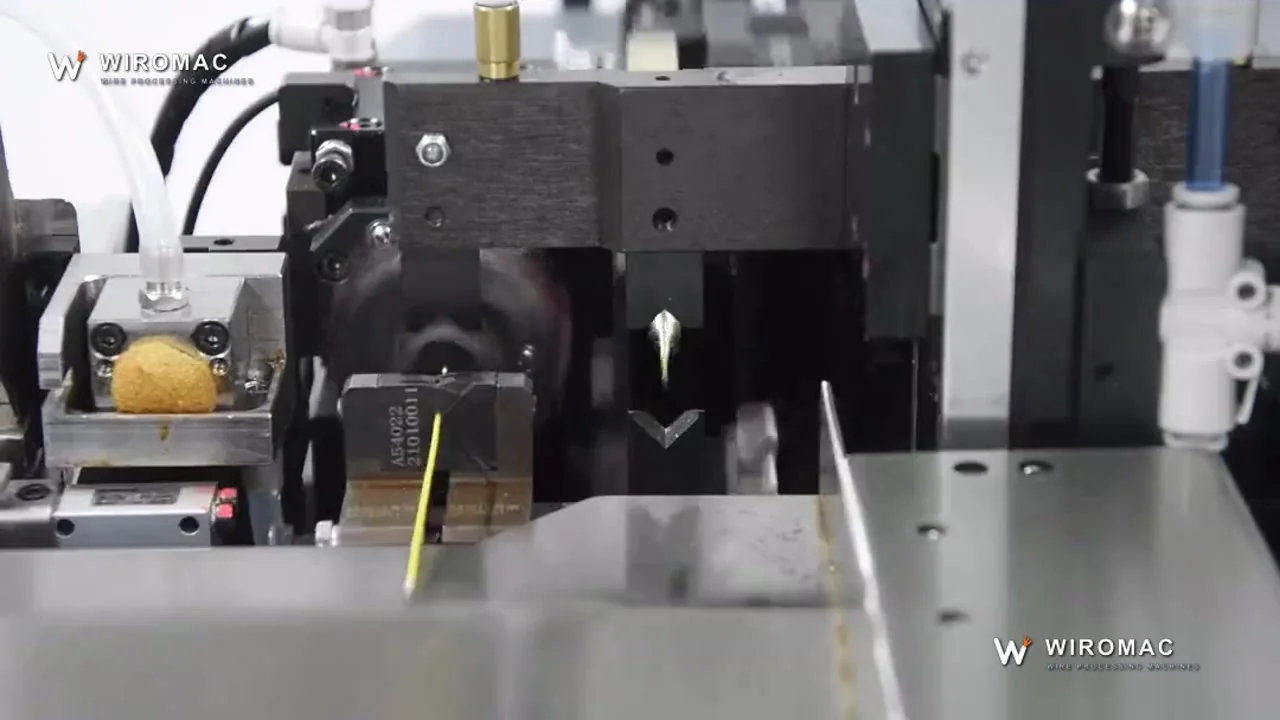

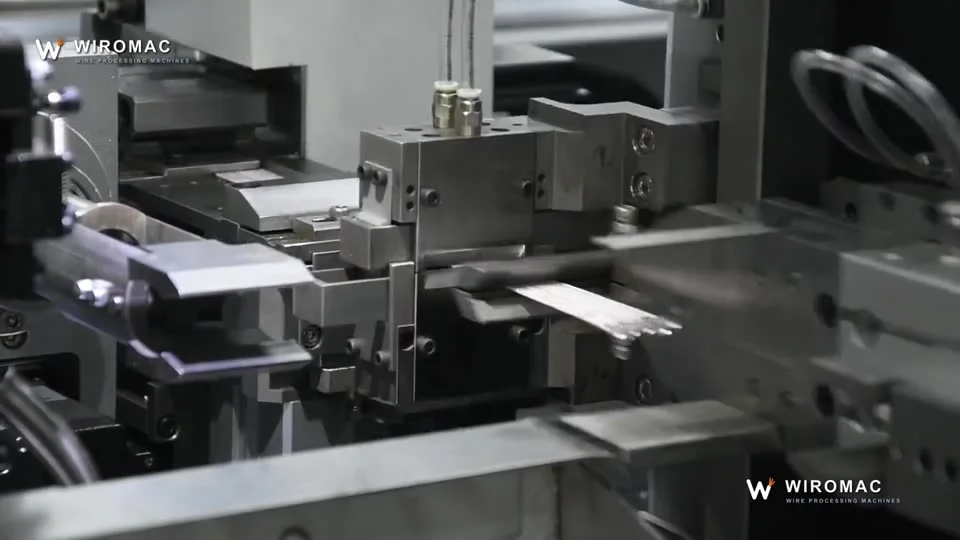

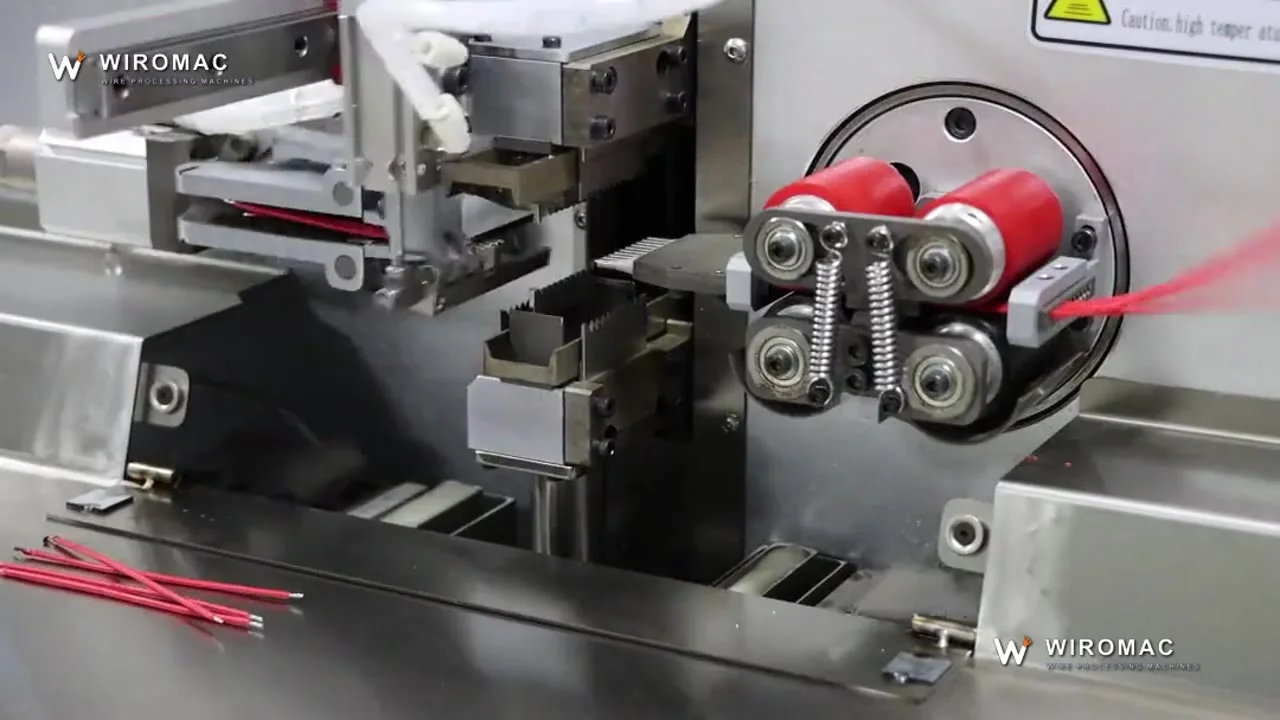

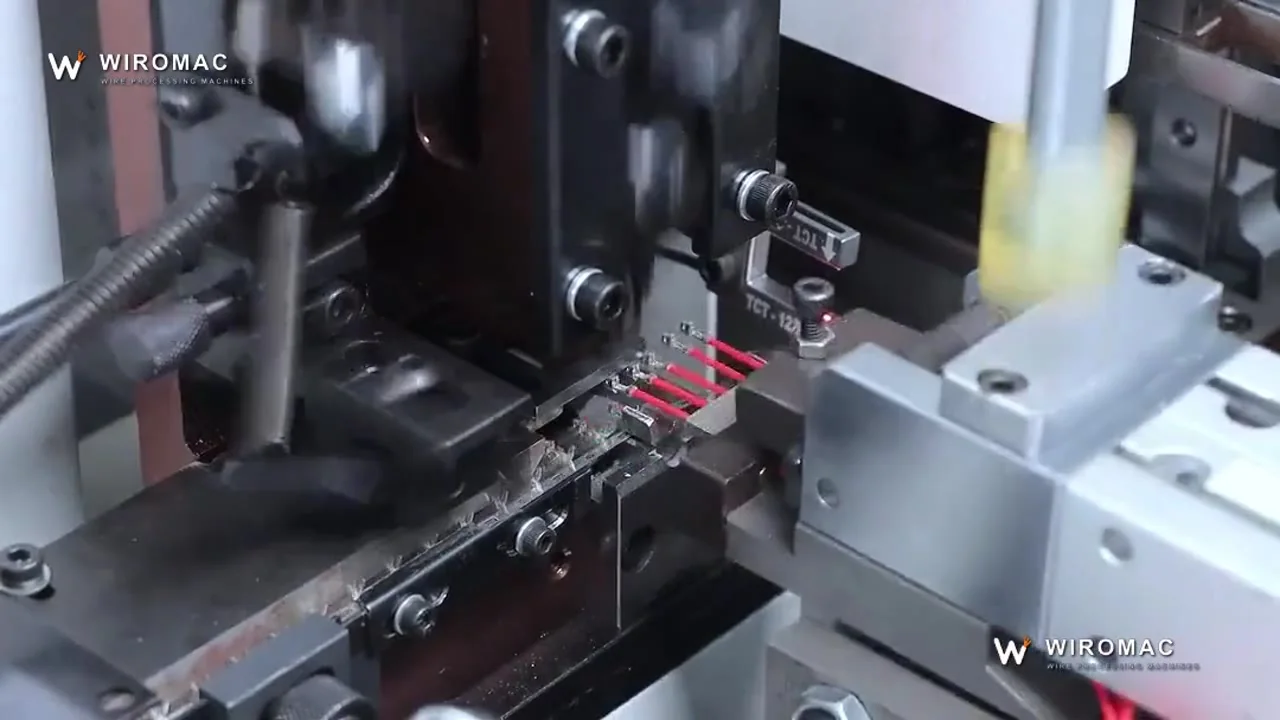

Is tinning the slowest step on your bench?

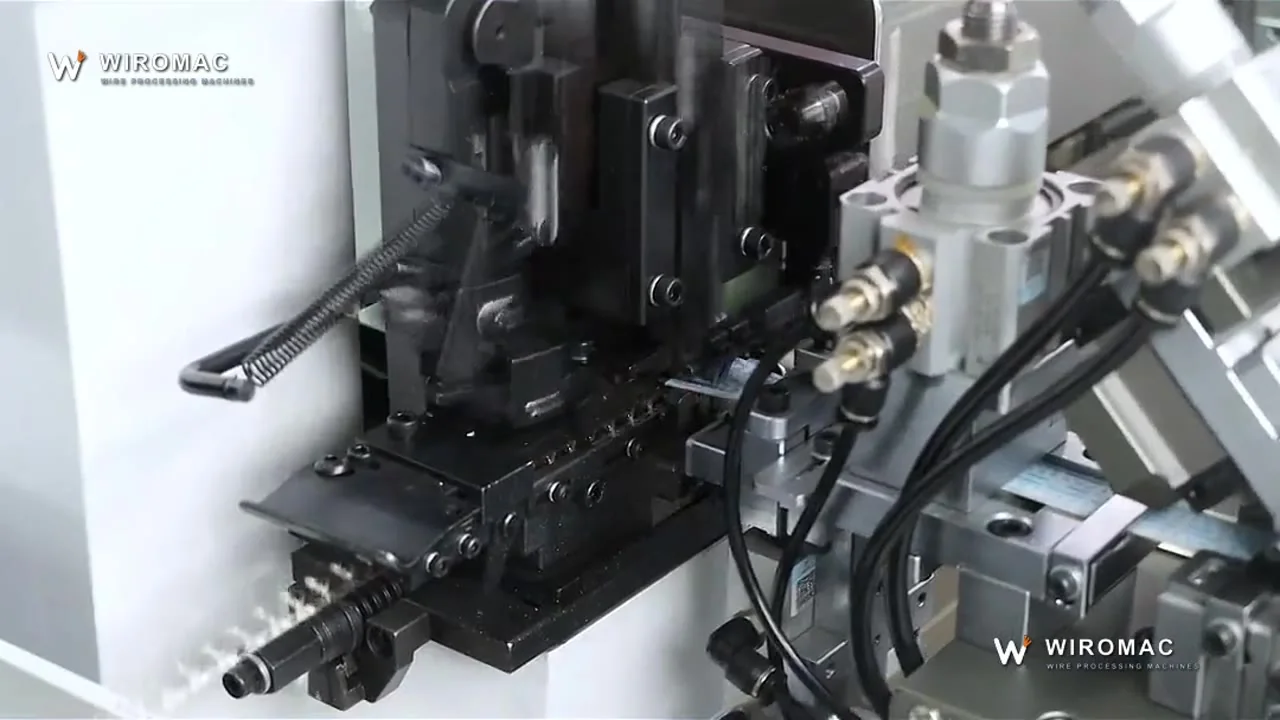

A solder pot is already automation; the next step is a station that strips, twists and tins the end — or crimps one end and tins the other — in the same cycle. Watch the twist before the dip: a tight twist is what keeps the tinned end from splaying at the screw terminal.
Process details →How are wires soldered to small components and connector pins?
The operator positions prepared wires and parts in a fixture while the soldering tip works at the joint. These close-ups show component leads, a USB board and a circular connector. The automatic XT60 machine transfers finished connector leads to the outfeed conveyor. Send us your wire and mating part; we set up the fixture and film your sample joints before you order.

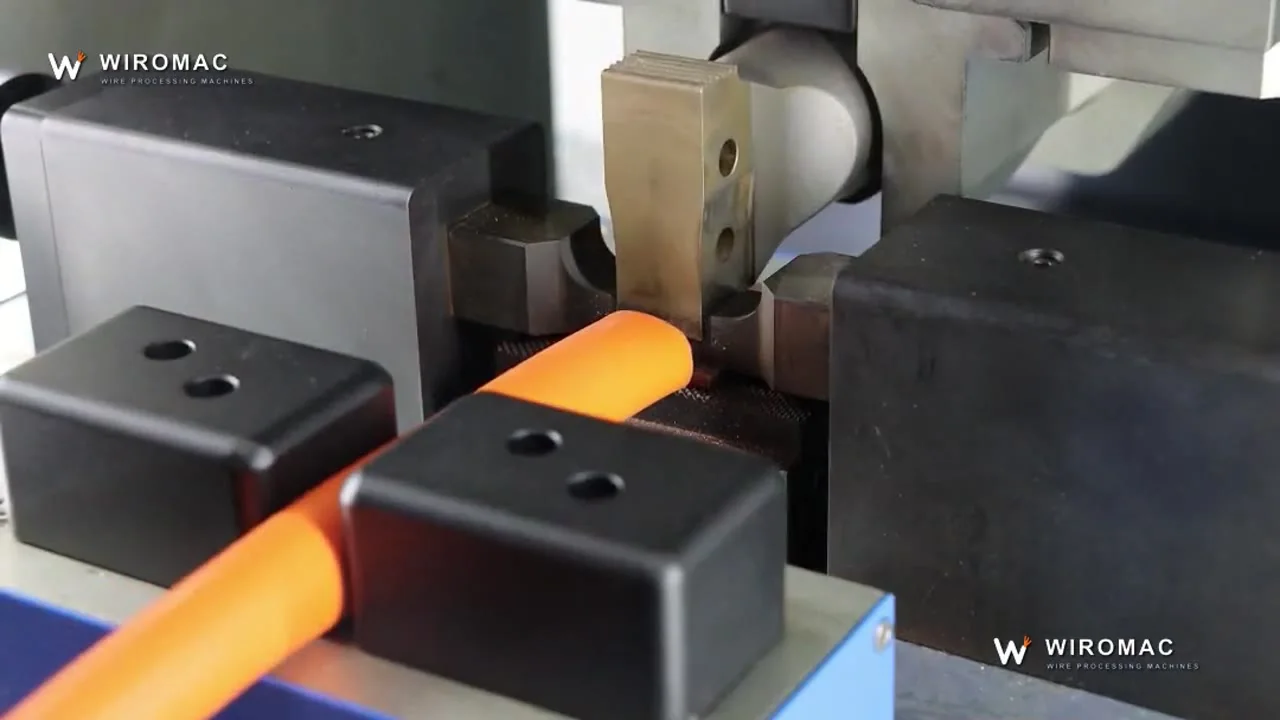

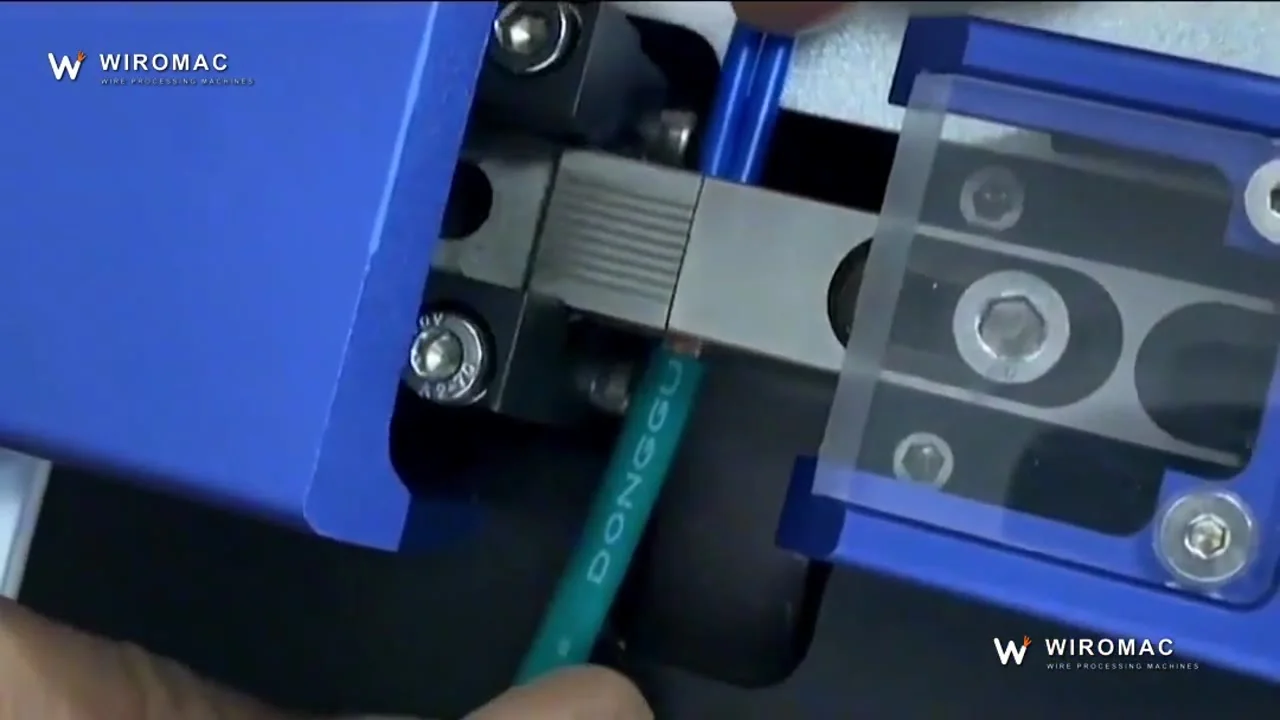

Process details →Ultrasonic splice or crimp?

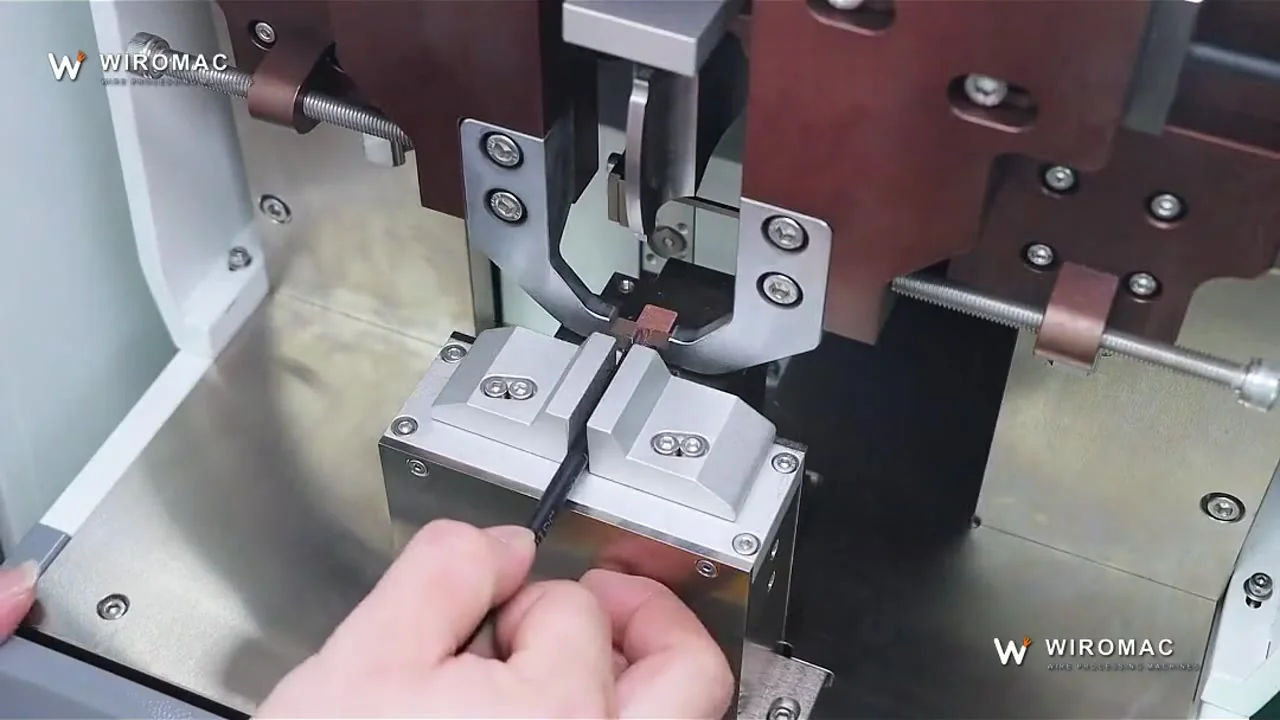

An ultrasonic weld fuses the copper strands to each other with no terminal and no solder, which is why it is used on battery and motor leads where a crimp would add a joint. These clips show the horn closing on the bundle and the finished splice.
Process details →Marking & testing

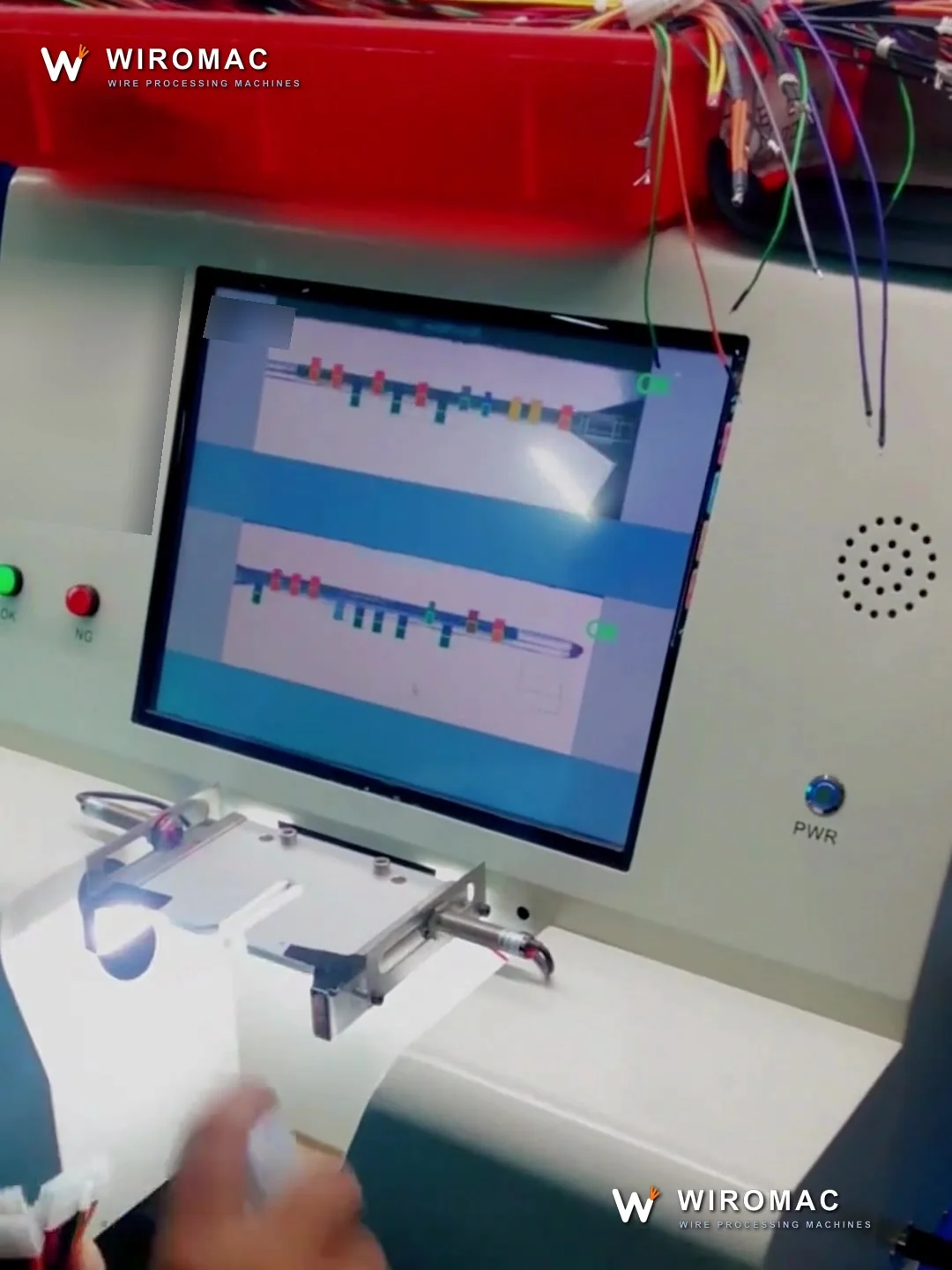

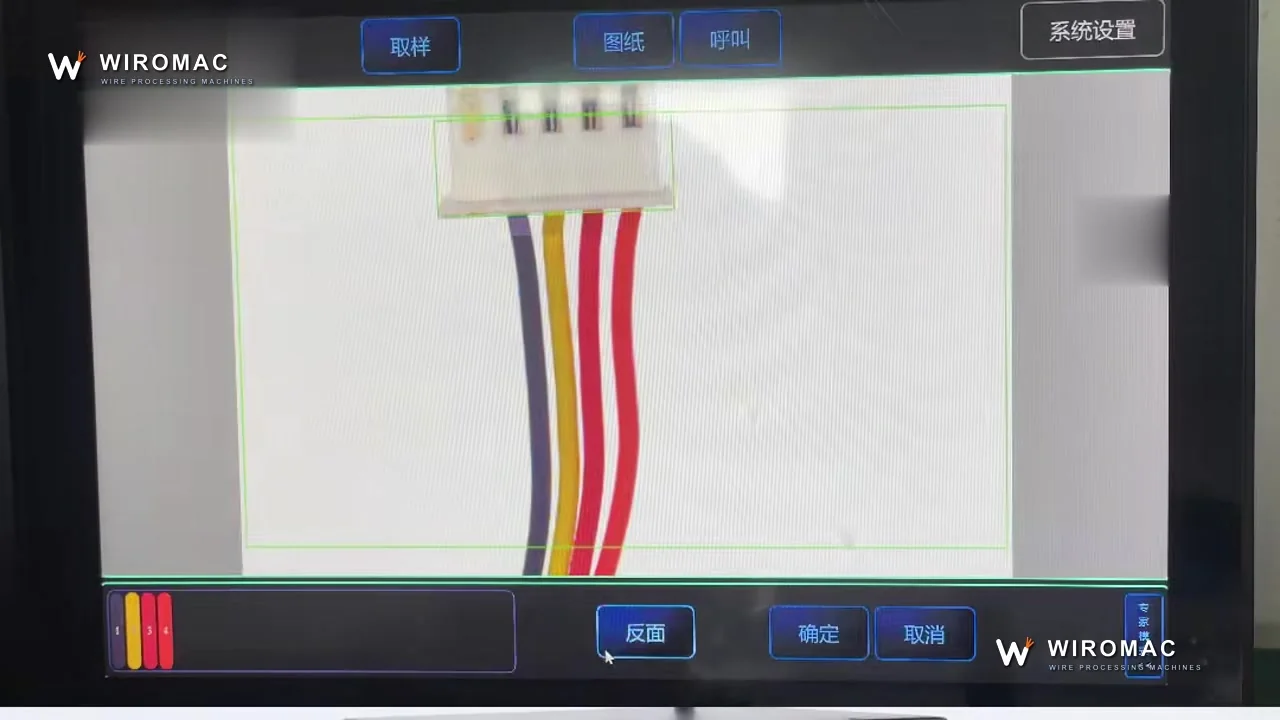

How can operators check the wire color order in a connector?
A visual sequence check compares the visible wire positions with a reference. These clips show sample presentation and on-screen wire views. Send your connector and wire samples so we can demonstrate the inspection on your actual assembly.

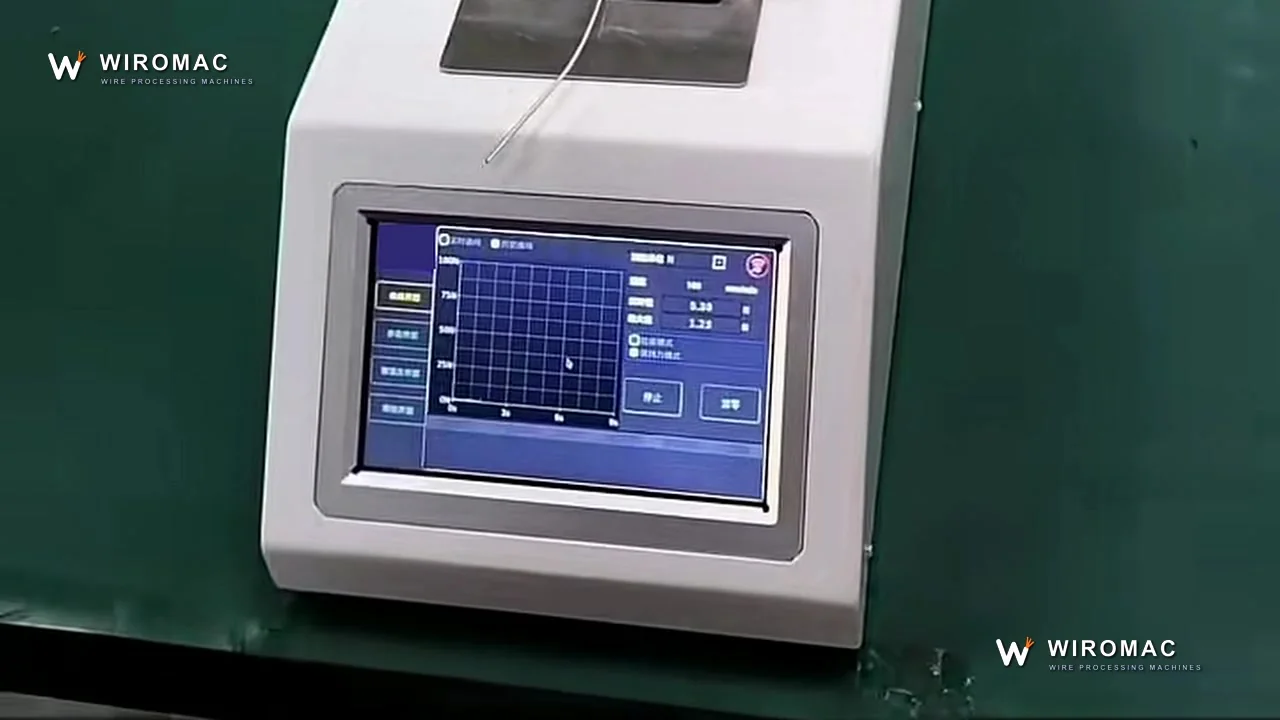

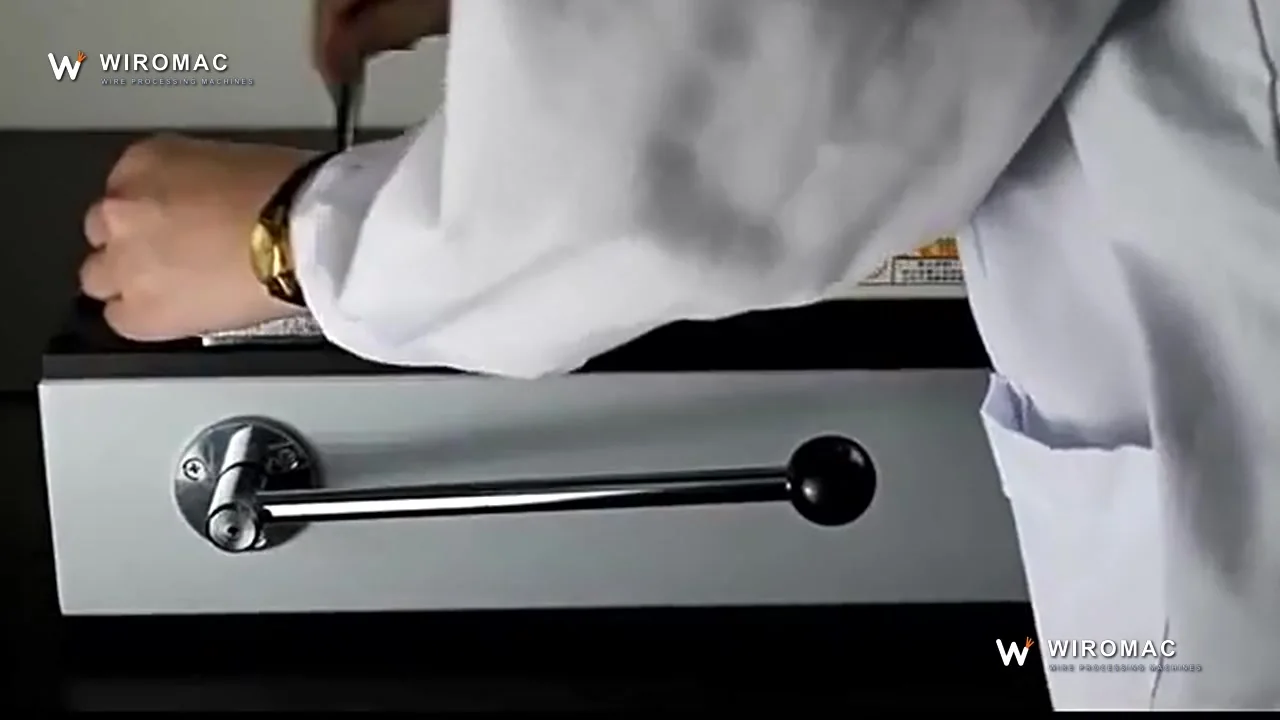

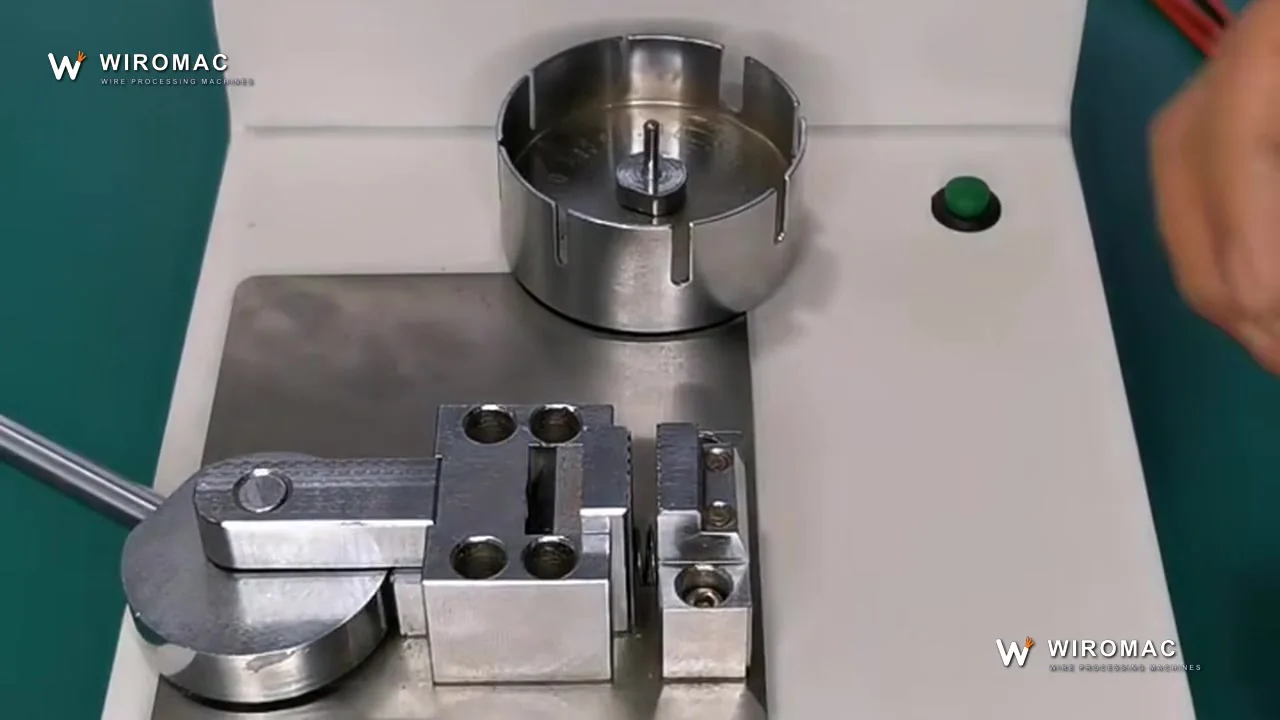

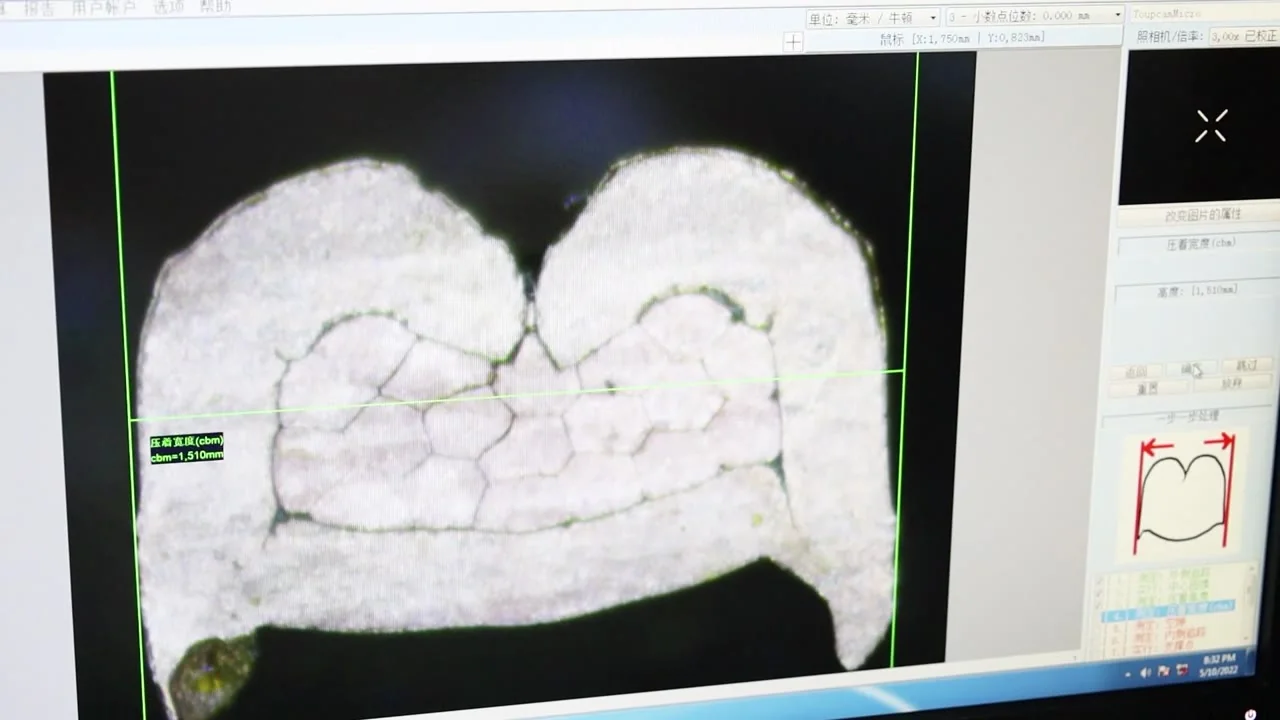

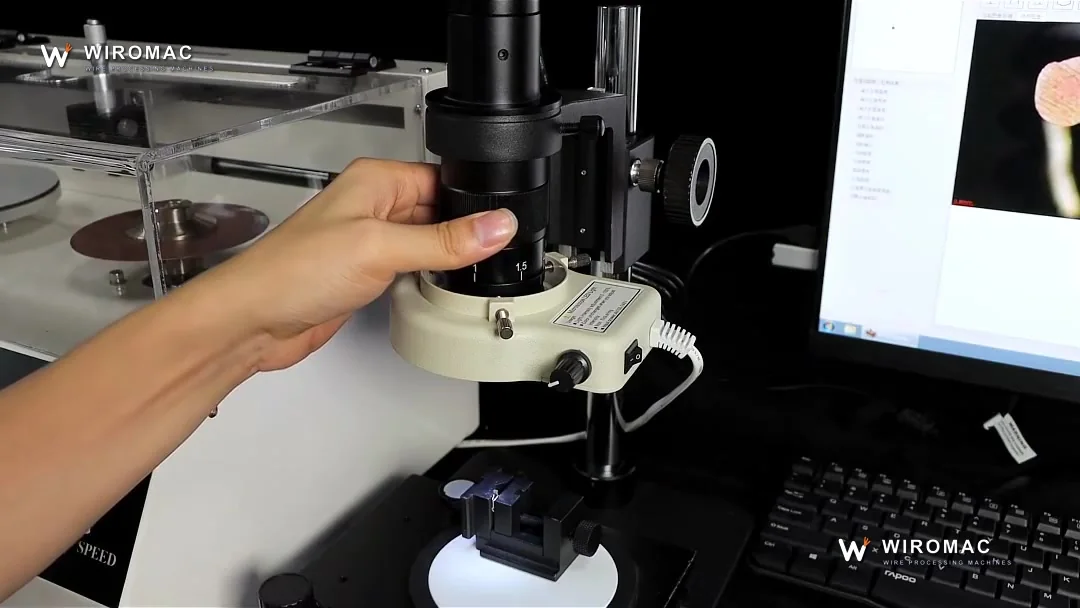

Process details →Prove the crimp: cross-section and pull
A crimp is judged by two numbers: the pull force it holds and the compression you see in a polished cross-section. These clips show the section being cut, ground and measured — the record your customer asks for after a die change.

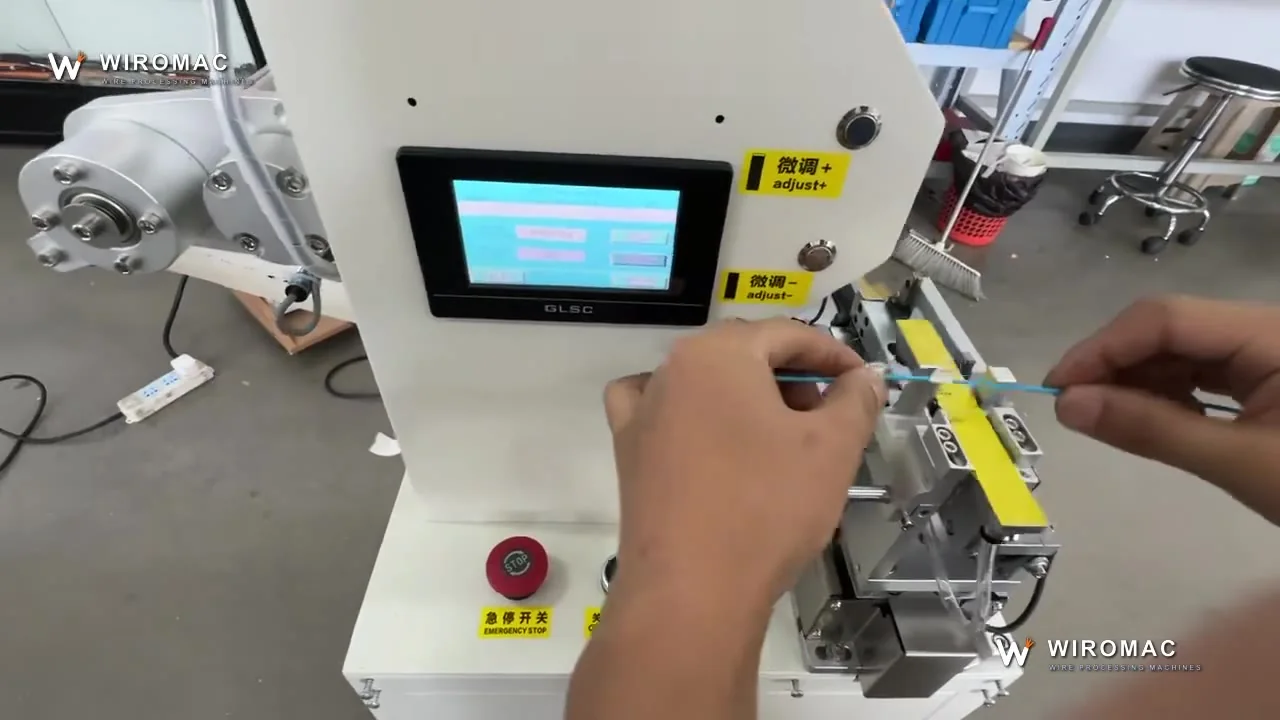

Process details →Will the flag sit on the cable, or will I still fold it by hand?
A wrap-around label lies flush; a flag has to fold so both adhesive faces meet and the tab stands off the jacket. These clips show the operator presenting the wire and the folding head closing the flag — that is the step a hand cannot repeat all shift.
Process details →How does a label wrap around the cable?
The operator positions the cable at the wrapping head and moves it between applications. These demonstrations show the wrapping action and the finished result on black cable. They show label application, not the printing step.
Process details →What does hot-stamped wire identification look like?
The operator places a black wire at the foil-marking station and holds up the finished wire. The close-up shows white characters directly on the insulation, without an adhesive label.
Process details →Busbar processing

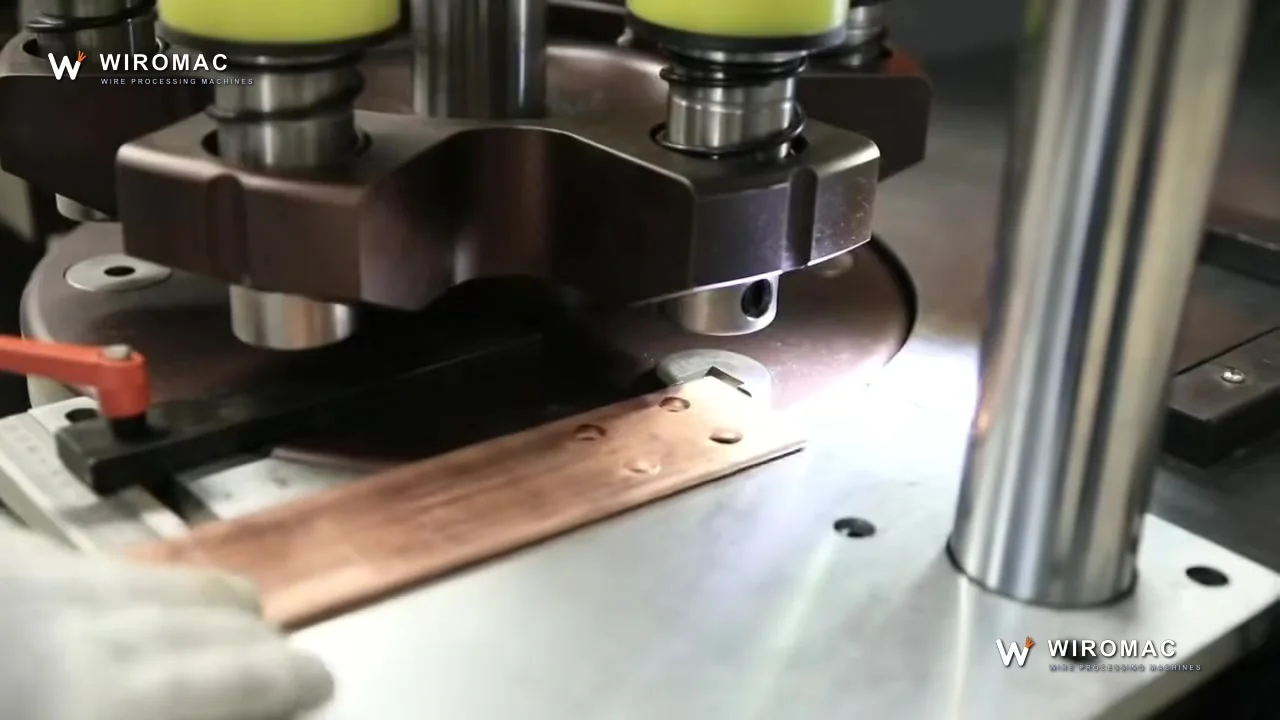

How are copper busbar holes and bends made?
The operator positions the copper at separate workstations for punching and bending. These family demonstrations also show end-corner rounding with matched tooling and the resulting parts. We select the capacity configuration and tools against your drawing, then record your material trial before you order.

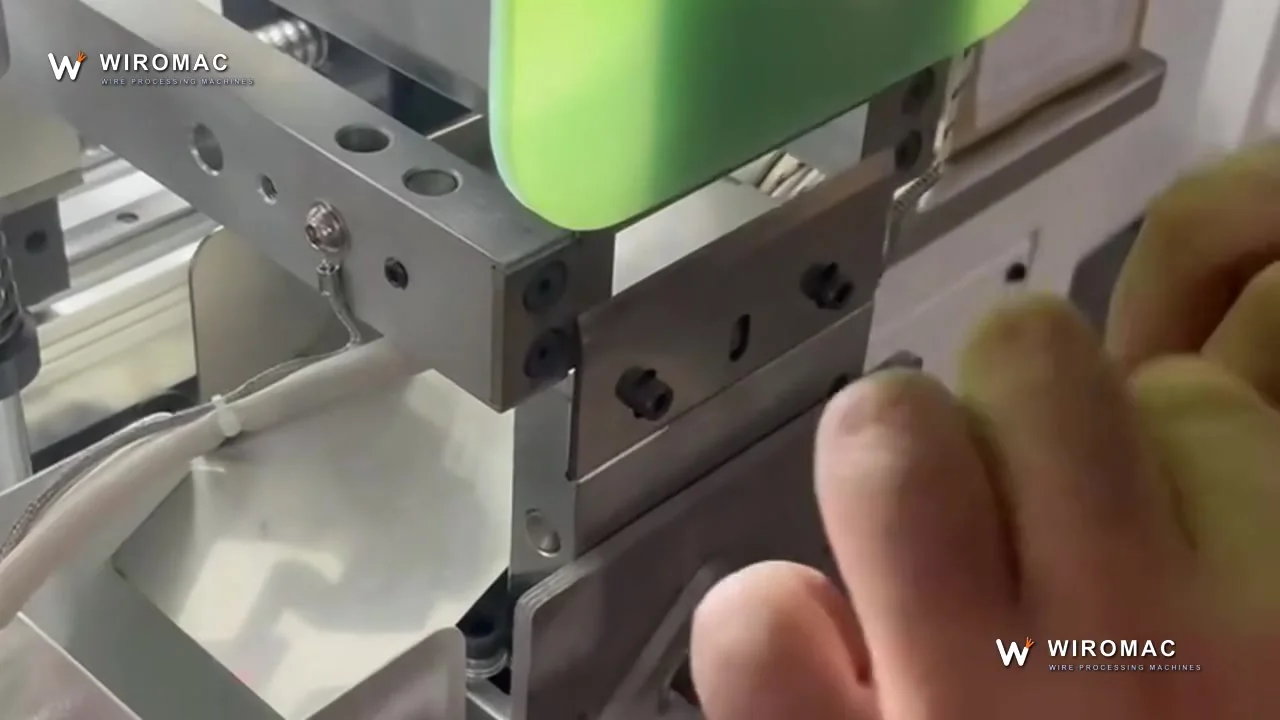

Process details →Can you remove the sleeve from a shaped copper busbar?
Busbar width, thickness, sleeve material and bend position determine how the part is held and stripped. This demonstration shows hand loading and sleeve removal on shaped copper connections. We use your drawing and samples to set the process and check the exposed copper and sleeve edge before you order.
Process details →
