Wire cutting and stripping machines across the full size ladder: precision strippers from 0.03 mm², benchtop cut-and-strip workhorses at 3,000–8,000 pcs/h, large-cable machines to 300 mm², four-layer programmable stripping for shielded and EV cable, multi-core sheathed cable lines that open the jacket and every core, and double- and four-wire machines that multiply throughput per cycle. The grid below lists them all with size and automation filters; the guide underneath shows how to choose a machine for your wire. Send 2–3 meters of your wire and we run it on video before you order.
These machines include this operation as part of a wider process. Open the product page to check the complete working range and configuration.
Cable stripping with shield fold-back
Model WM-199
Rotary cutting and multi-layer stripping
Model WM-184X

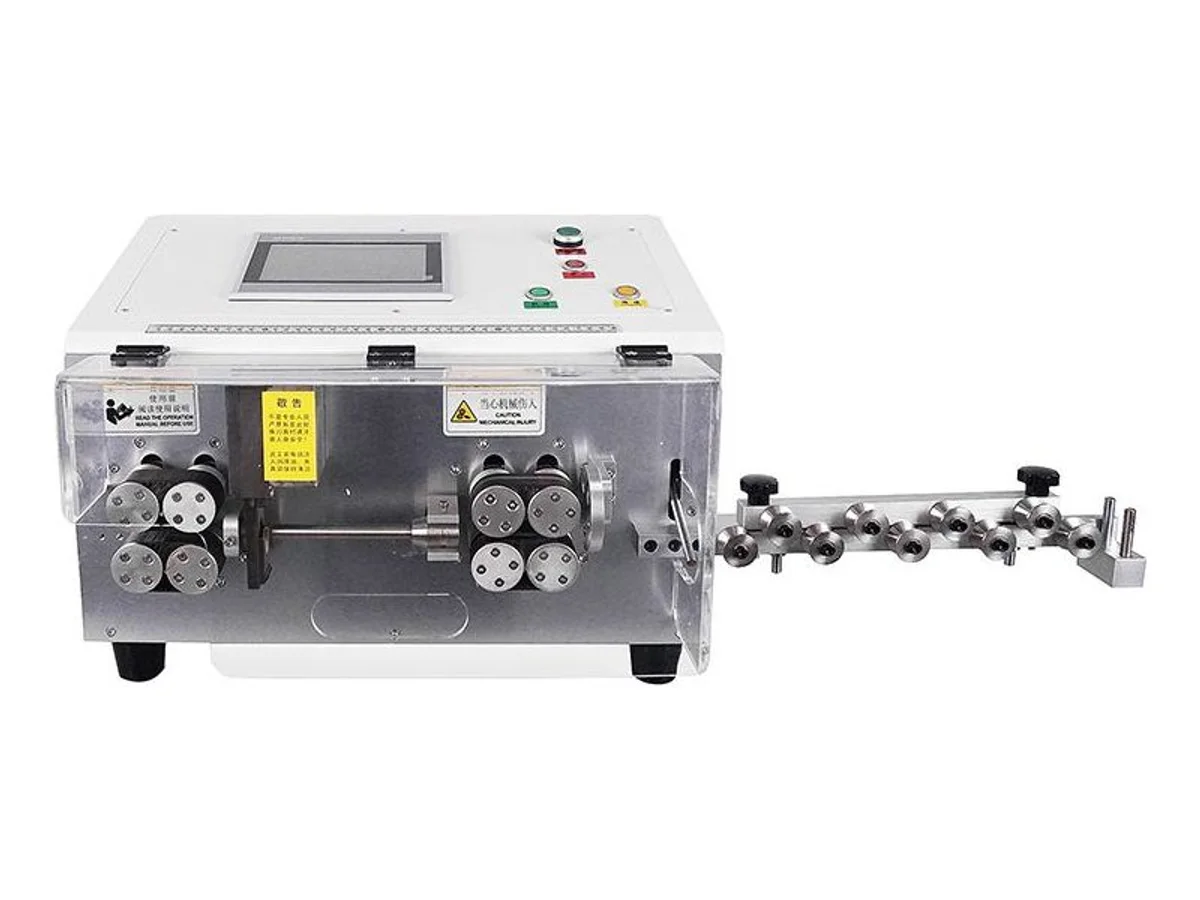

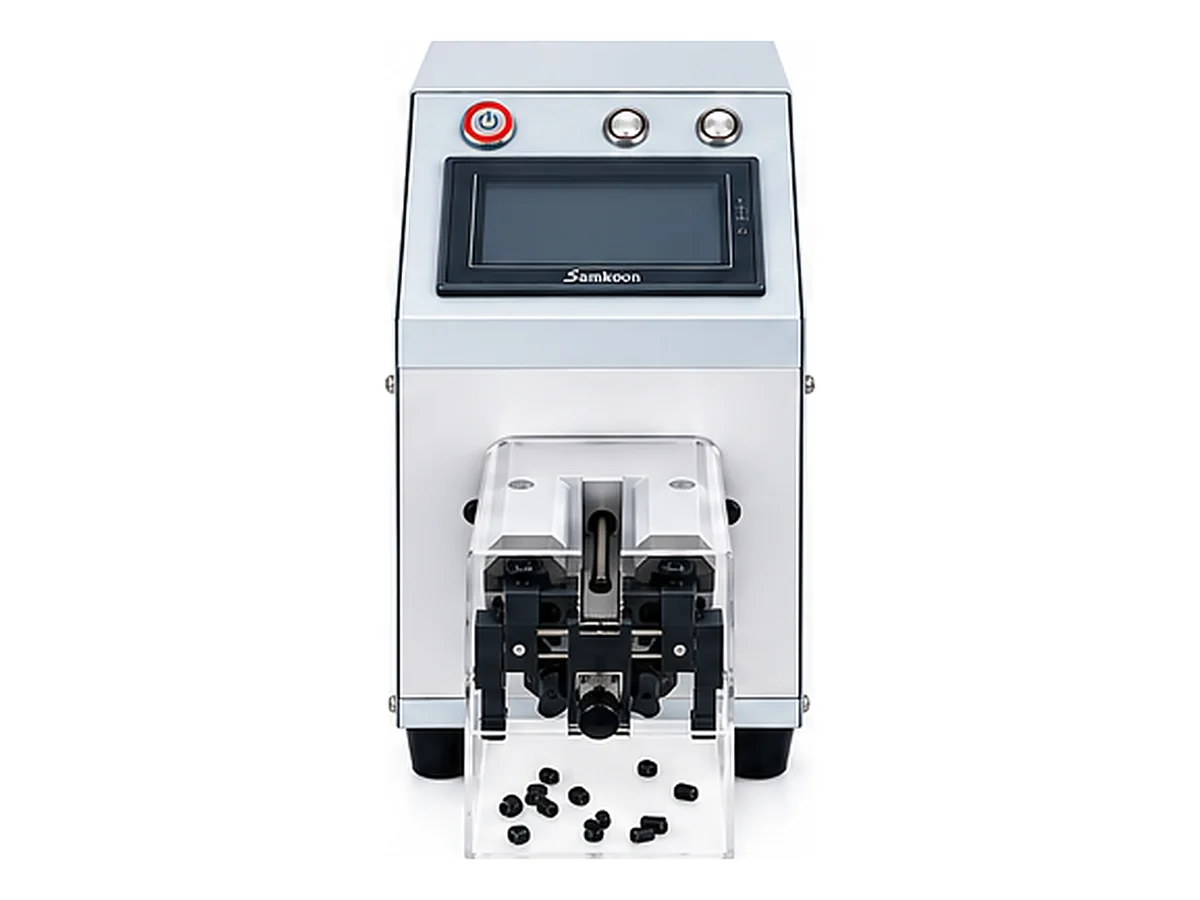

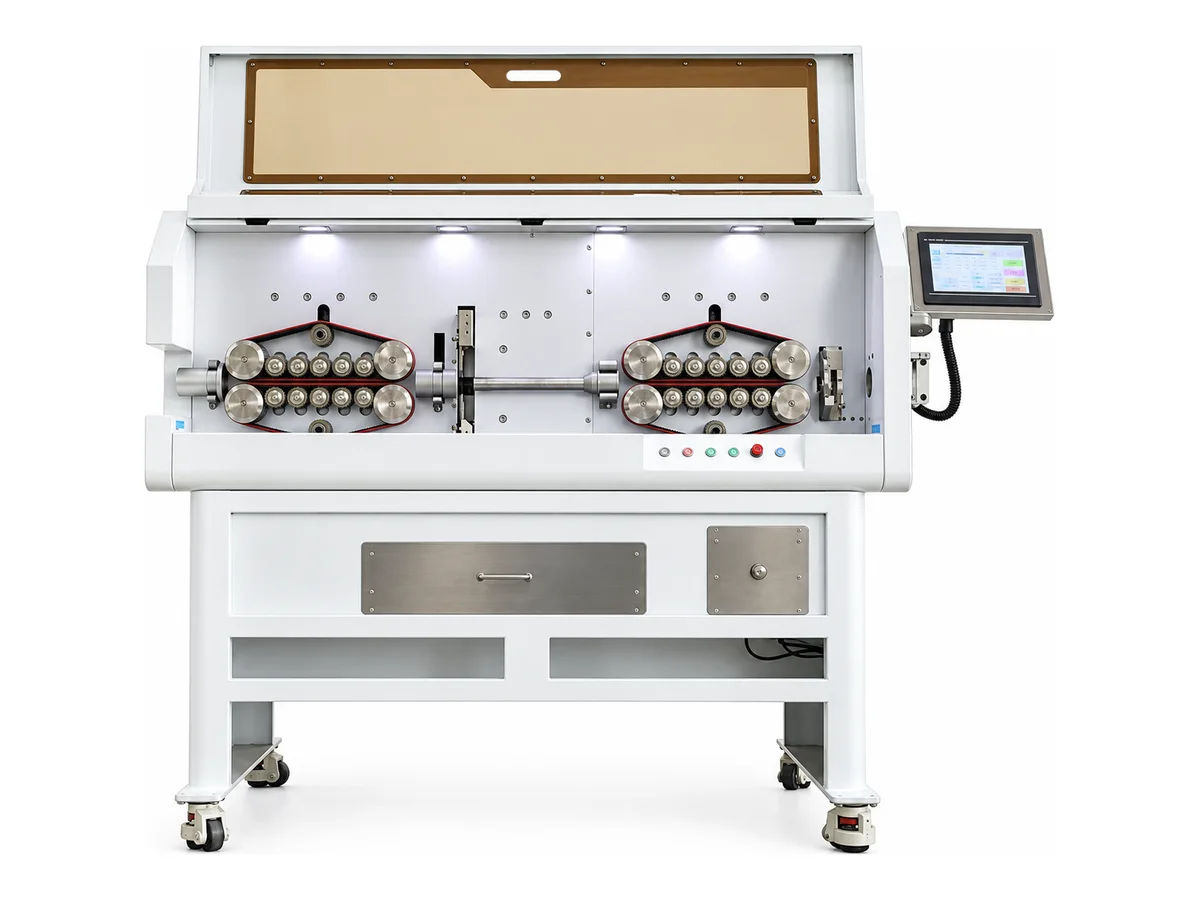

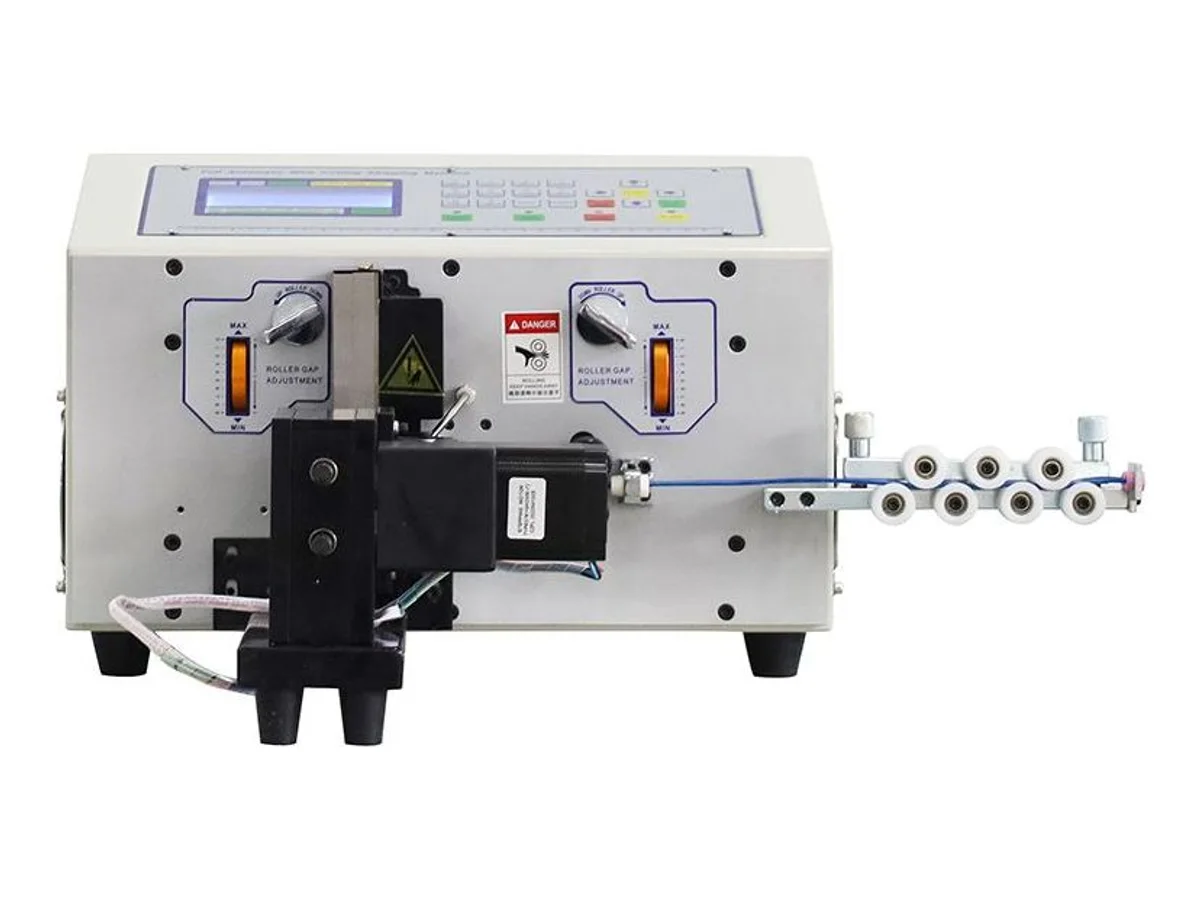

Wire size eliminates most of this category before any other question. Fine wire (from 0.03 mm²): dedicated strippers like the WM-1215C (0.03–2.08 mm², about 0.3 s per strip) and the WM-1219 (0.04–20 mm², inductive). The benchtop heart of most harness shops is the 0.1–10 mm² class: the WM-167 cuts and strips at 3,000–8,000 pcs/h from a bench, and the WM-187 adds strand twisting in the same cycle. Mid-range to 35 mm²: the WM-174Z (1–30 mm², 32-station tray) and the WM-178 (1.5–35 mm² benchtop). Large cable: the WM-197 holds 5,000–6,000 pcs/h on 6–70 mm²; the WM-1450 reaches 150 mm²; the WM-175 tops the ladder at 30–300 mm² — and its honest 100–700 pcs/h shows the physics: jacket volume, not machine quality, sets large-cable speed. Throughput multipliers run wires in parallel instead of faster: the WM-188 feeds two wires for 4,000–10,000 pcs/h, the WM-1231 runs four, the WM-194 drives 0.3–25 mm² wire on eight wheels at 4,000–5,000 pcs/h.

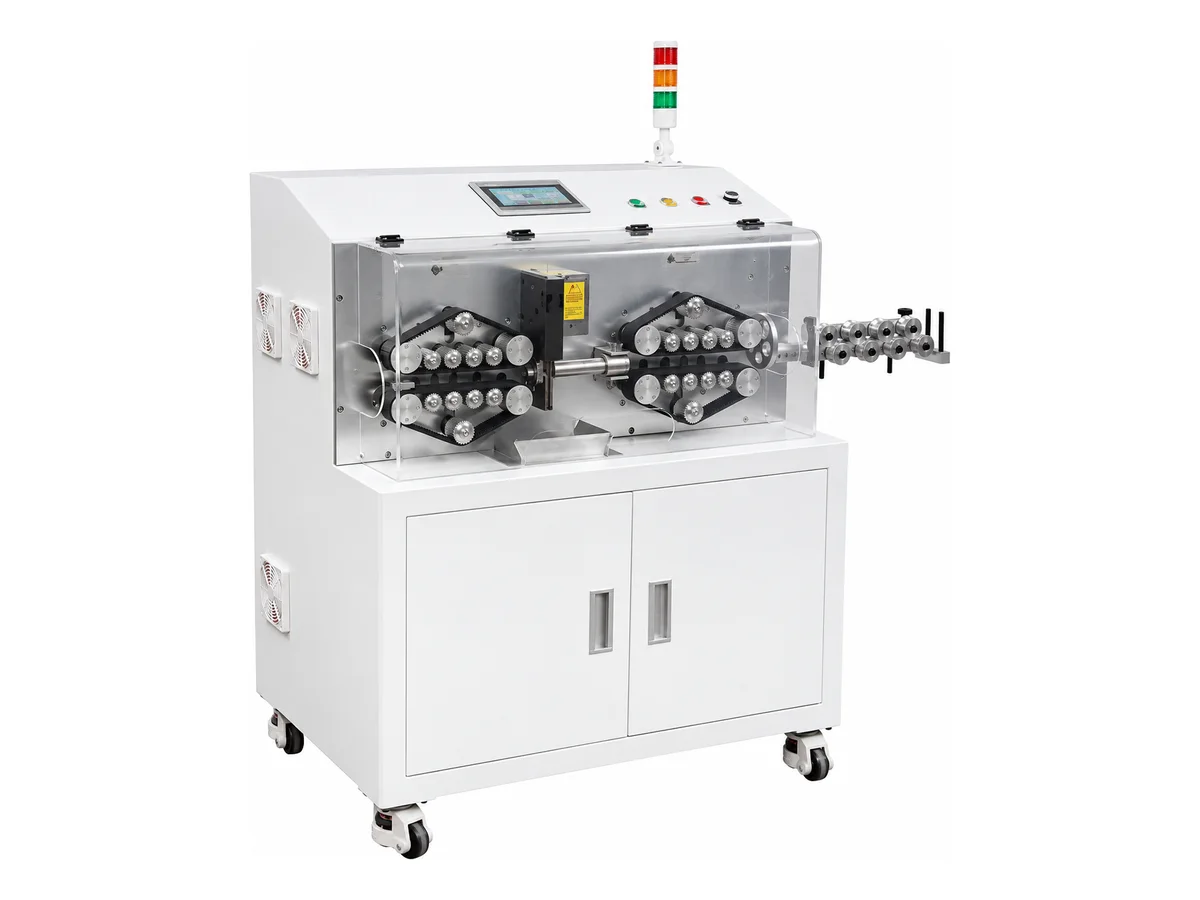

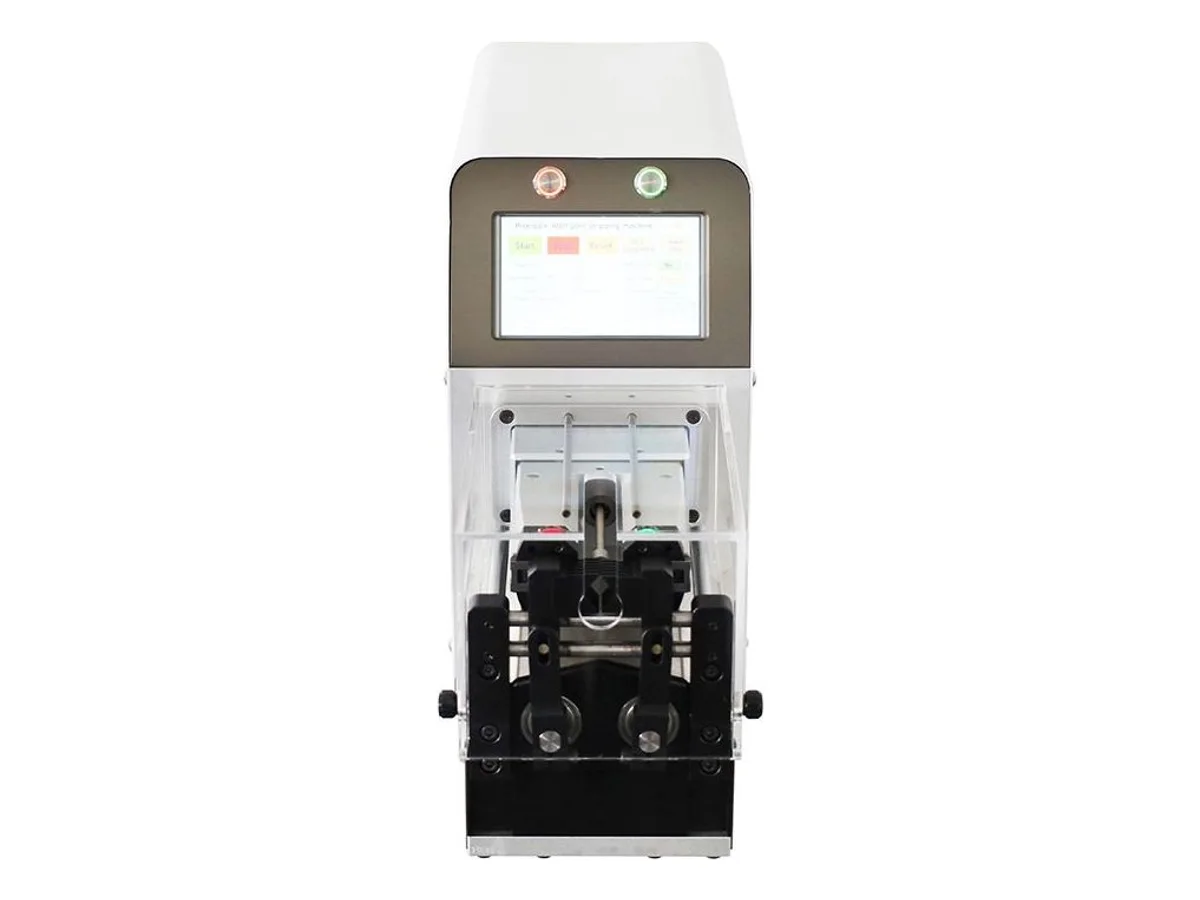

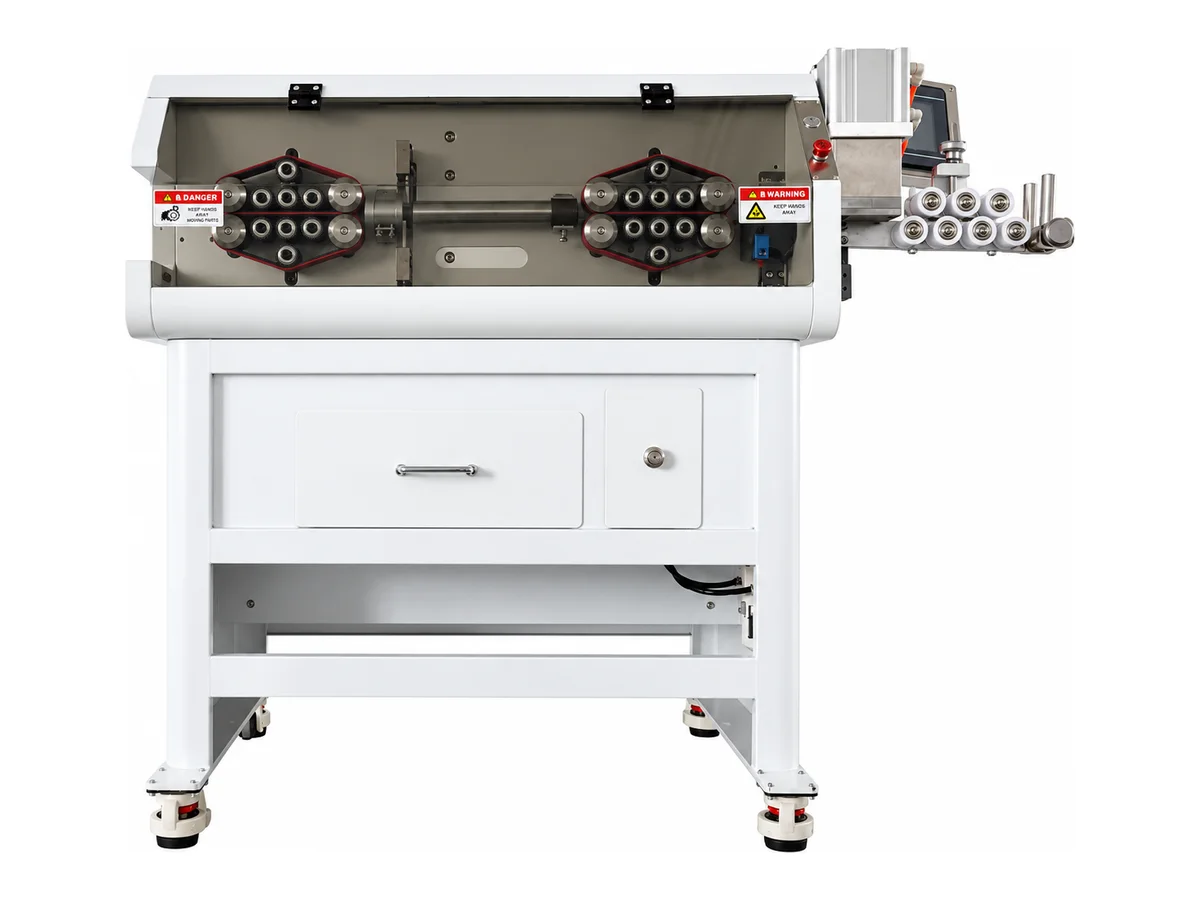

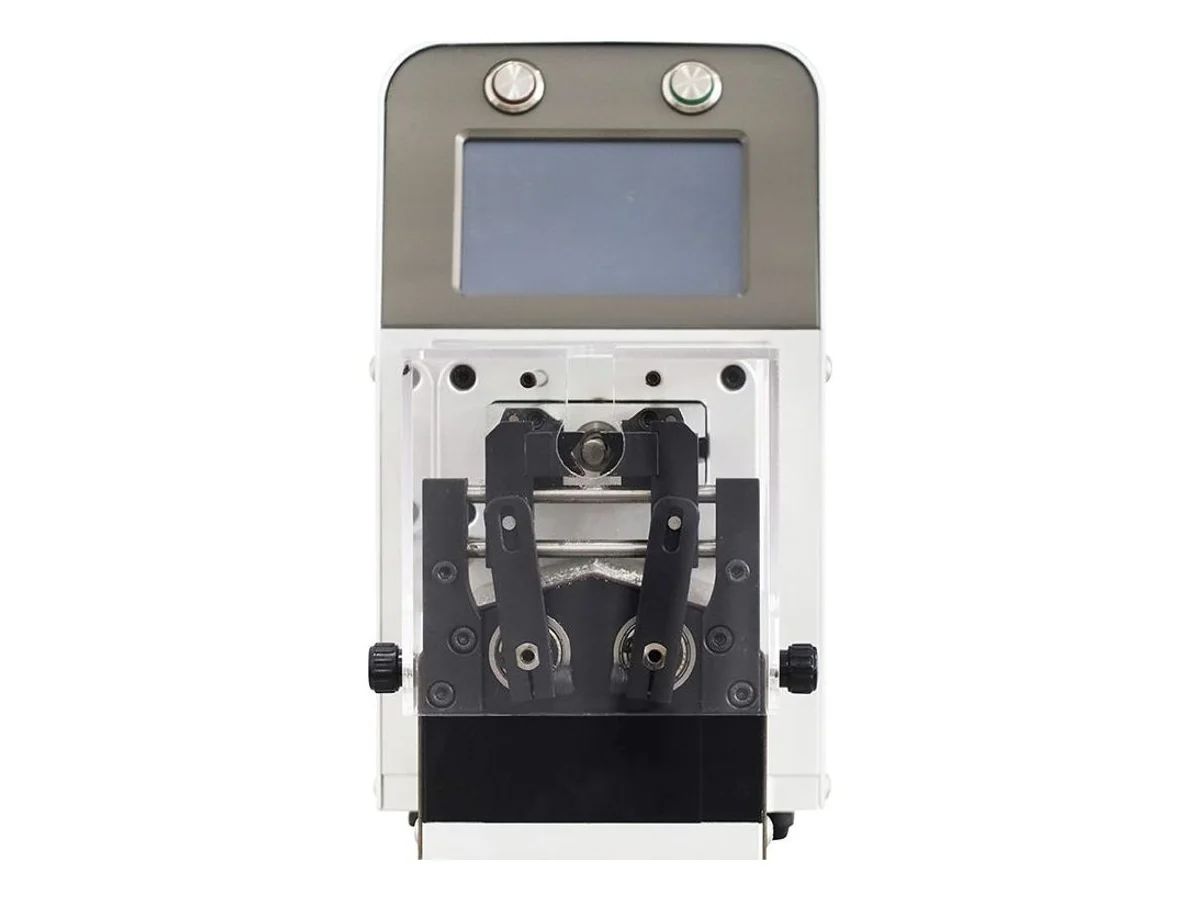

Multi-layer cable needs each layer stripped at its own depth and length: the WM-1545 programs four layers on Ø0.5–7 mm cable, the WM-1225 does the same to Ø10 mm, the WM-172 opens three layers on 6–150 mm², and the WM-199 is the EV specialist — strips high-voltage cable of 2.5–150 mm² and folds the shield back in the same cycle. Sheathed multi-core is its own family: the WM-168HT opens the jacket and strips 2–8 cores on Φ3–10 mm cable at 1,100 pcs/h, and the WM-198 strips each core to a different length for staggered terminations. Flat and ribbon: the WM-1220 handles 2–12P ribbon at 3,000–8,000 pcs/h and the WM-161PX slits and strips flat cable of 10–120 mm². Then the specialists that answer one question each: enameled wire (paint stripped mechanically, Φ0.7–3.0 mm), flexible busbar peeling (1×10 to 8×80 mm), mid-span stripping for daisy chains, shield layer cutting and braid brush and fold-back for shielded ends, and network cable untwisting for Cat-5/6 and HDMI. If your cable is coaxial, that ladder lives in its own category.
| Machine | Segment | Wire range | Output | Pick it for |
|---|---|---|---|---|
| WM-1215C | Fine-wire stripping | 0.03–2.08 mm² | ≈0.3 s/strip | Pneumatic precision on the smallest wire |
| WM-1219 | Fine-to-mid stripping | 0.04–20 mm² (AWG 30–4) | 1,800–2,000 pcs/h | One stripper across a wide span |
| WM-167 | Benchtop cut & strip | 0.1–10 mm² | 3,000–8,000 pcs/h | The workhorse class most shops start with |
| WM-187 | Cut, strip & twist | 0.1–4.5 mm² | 4,000–10,000 pcs/h | Twisted ends straight off the machine |

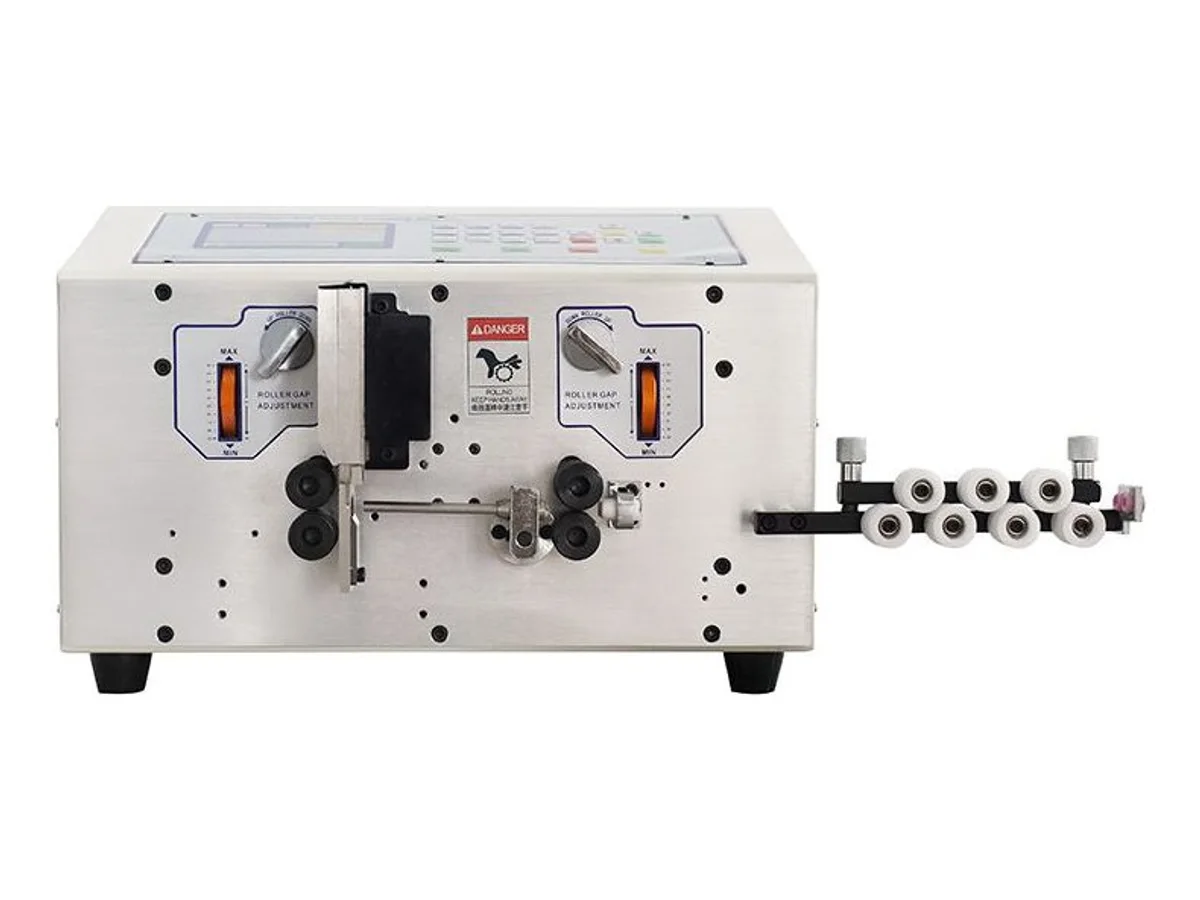

| WM-188 | Double-wire cut & strip | 0.1–4.5 mm² × 2 | 4,000–10,000 pcs/h | Two wires per cycle |

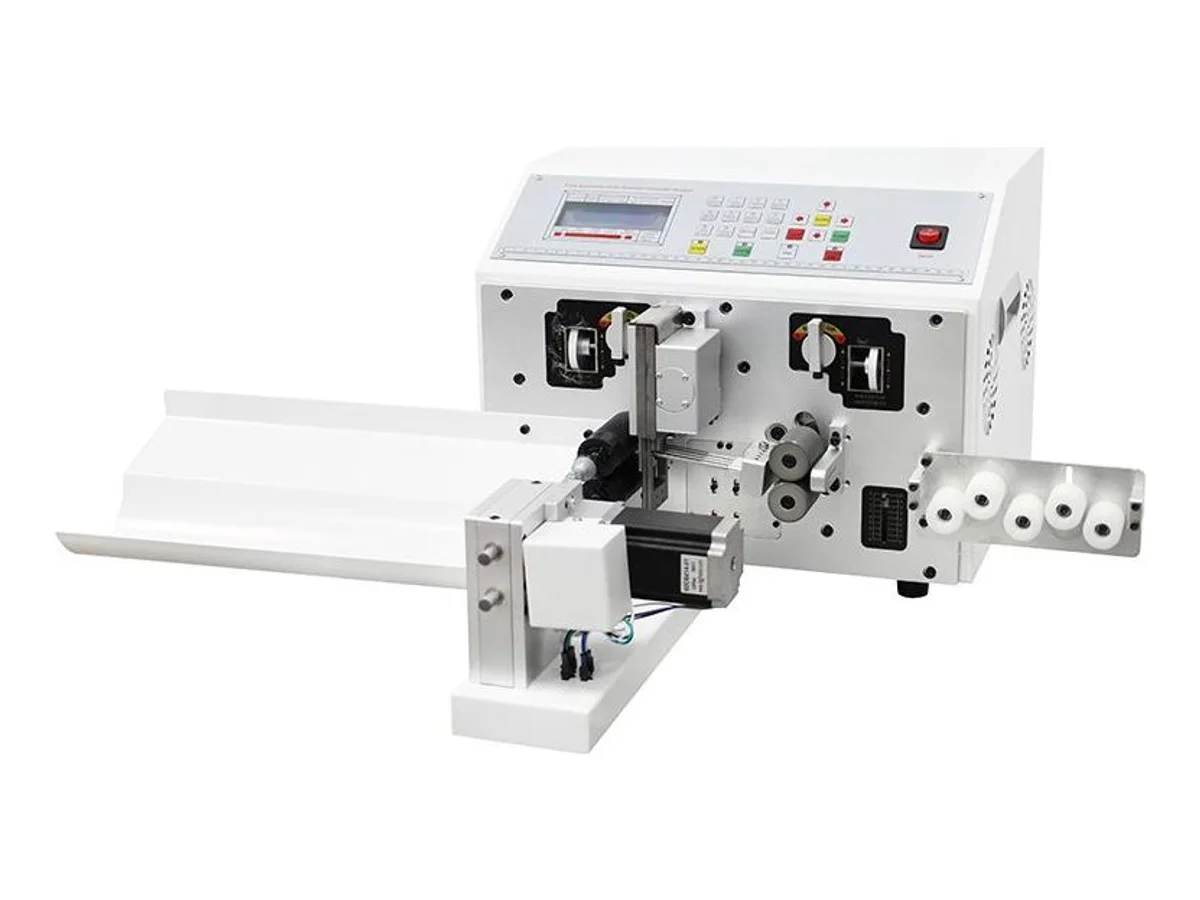

| WM-1231 | Four-wire cut & strip | 0.1–2.5 mm² × 4 | 5,000–6,000 pcs | Four wires per cycle |
| WM-194 | 8-wheel drive | 0.3–25 mm² | 4,000–5,000 pcs/h | Grip for slippery jackets, mid sizes |
| WM-174Z | Mid-range + tray | 1–30 mm² | 2,000 pcs/h | 32-station collection tray |
| WM-197 | Large cable, high speed | 6–70 mm² | 5,000–6,000 pcs/h | The fast end of big wire |

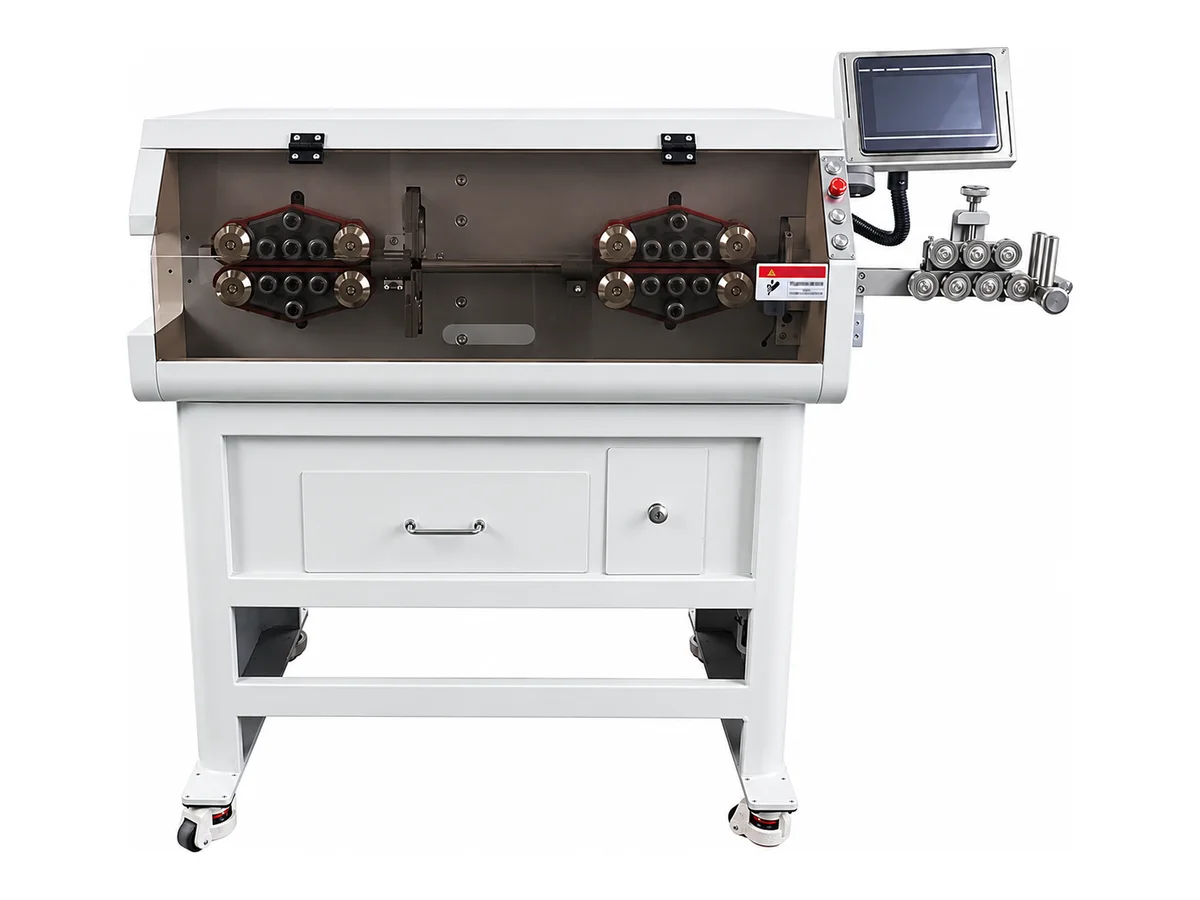

| WM-1450 | Thick cable | 10–150 mm² | 1,800 pcs/h | Battery and welding cable class |
| WM-175 | The top of the ladder | 30–300 mm² | 100–700 pcs/h | 300 mm² — nothing here goes bigger |
| WM-1545 | 4-layer precision | Ø0.5–7 mm, 4 layers | 1,150 pcs/h | Each layer at its own depth |
| WM-172 | 3-layer large cable | 6–150 mm² | 1,500–2,000 pcs/h | Jacket, shield and core on big cable |
| WM-168HT | Sheathed multi-core | Φ3–10 mm, 2–8 cores | 1,100 pcs/h | Jacket plus every core in one machine |
| WM-198 | Multi-core, staggered | Cores 0.5–3.0 mm² | 1,000–1,200 pcs/h | Different strip length per core |
| WM-1220 | Flat ribbon cable | 2–12P | 3,000–5,000 pcs/h | Ribbon cut and stripped |
| WM-184 | Enameled wire | Φ0.7–3.0 mm | 2,400 pcs/h | Paint stripped, no chemicals |
The benchtop 0.1–10 mm² class — on this site, the WM-167 at 3,000–8,000 pcs/h — covers the hookup-wire sizes that dominate most harness work. Add the twisting variant (WM-187) if your wire goes on to tinning or crimping, or the double-wire WM-188 if volume is the constraint. Move up the ladder only when a real cable in your book exceeds 10 mm².
Physics, not build quality. A 300 mm² jacket has hundreds of times the cross-section of a 1 mm² wire's insulation; the blade travel, gripping force and feed mass all scale with it. That is why the WM-197 holds 5,000–6,000 pcs/h at 6–70 mm² while the WM-175 publishes an honest 100–700 pcs/h at 30–300 mm². Any large-cable machine promising benchtop speeds deserves suspicion.
It strips each concentric layer at its own diameter and length in one clamping — jacket at one depth, shield at another, core insulation at a third. The WM-1545 and WM-1225 program four layers; the WM-172 opens three on large cable; and the WM-199 adds the EV-specific step of folding the shield braid back over the jacket for termination.

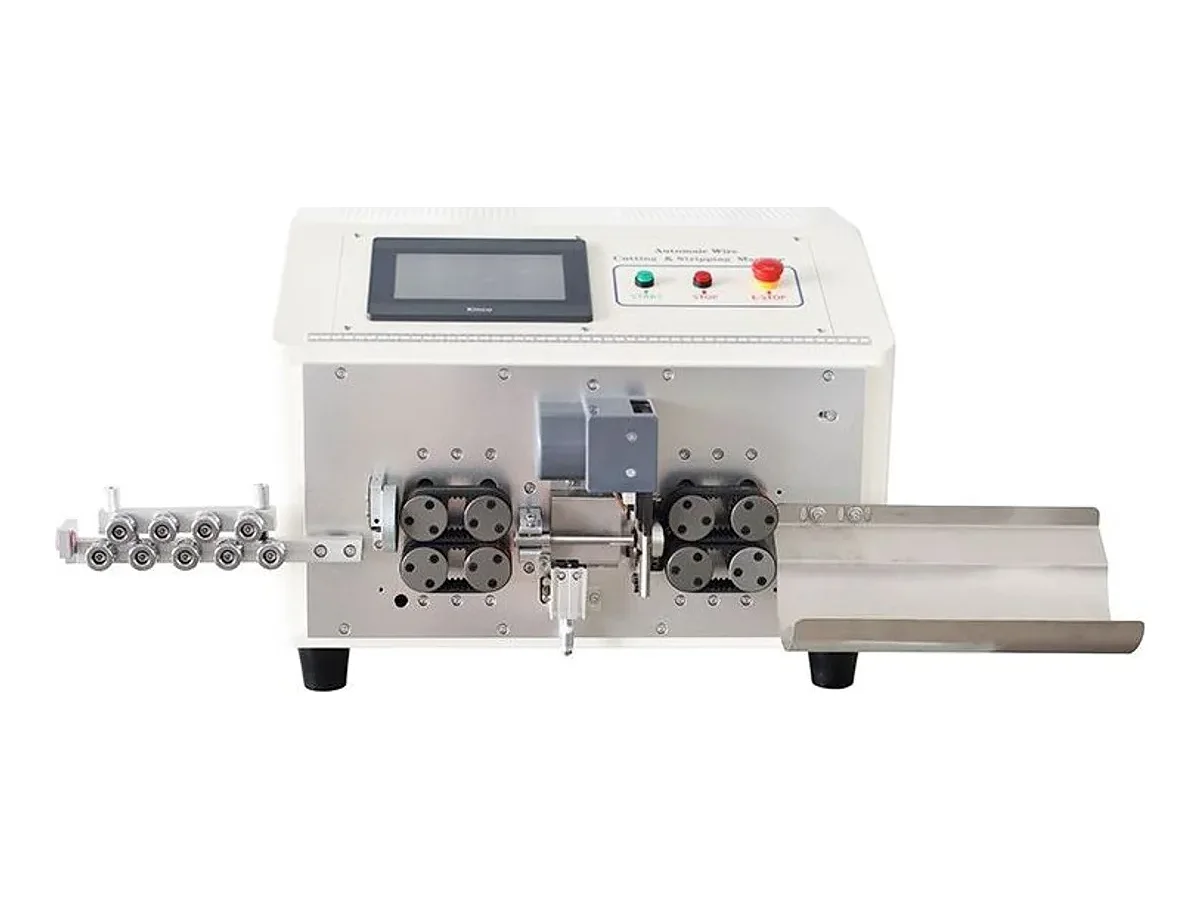

Yes — the sheathed multi-core family. The WM-168HT takes Φ3–10 mm cable with 2–8 cores at 1,100 pcs/h: jacket opened, every core stripped, one pass. The WM-198 strips each core to a different length for staggered terminations, and the WM-1223 and WM-1306 extend the family across other size ranges.
Wire or cable specification (mm² or AWG, plus outer diameter for sheathed and multi-layer cable), core count and layer build if any, cut length range, strip lengths per end, and target pieces per hour. Then courier 2–3 meters of the actual wire — insulation grip varies by brand, so we cut and strip yours on video before you order.
