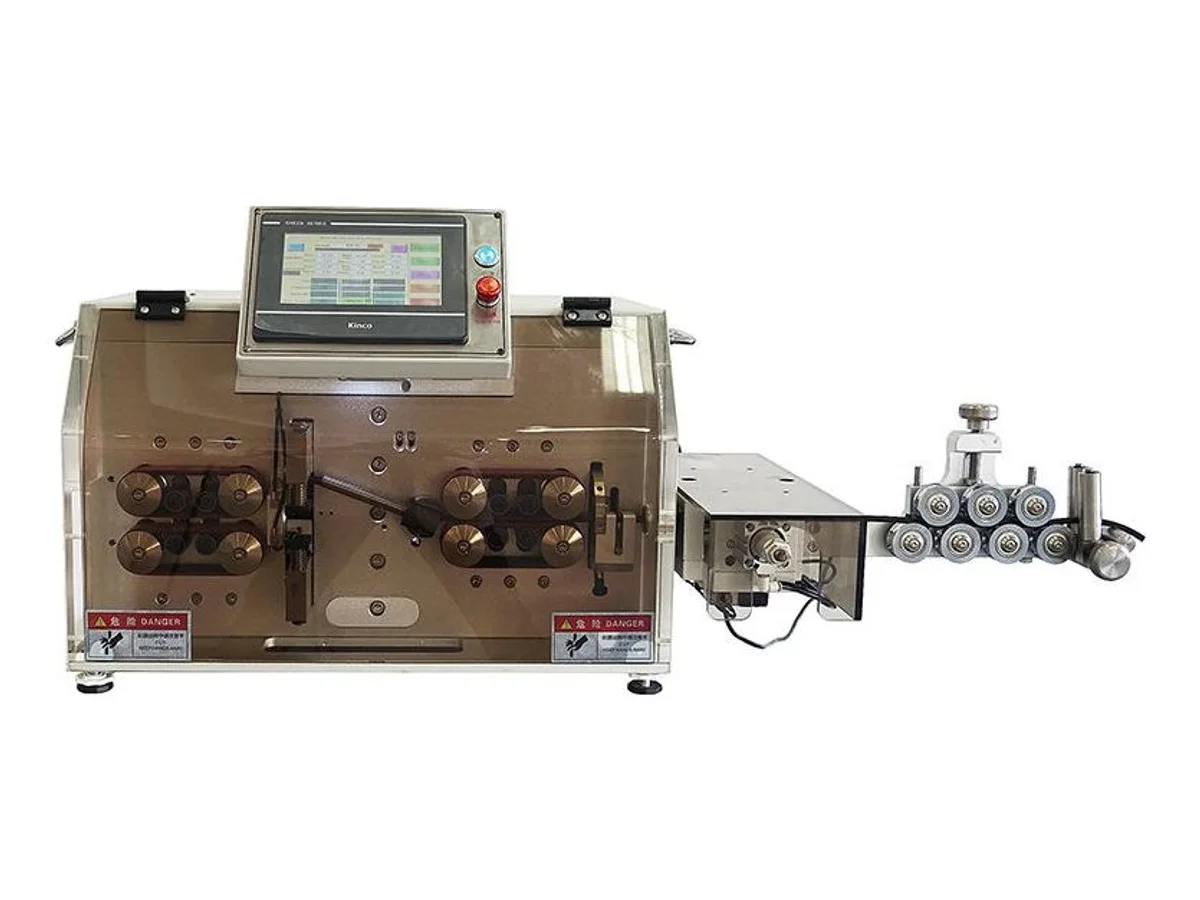

Automatic Wire Cut and Strip Machine with 32-Segment Middle Stripping WM-174Z

Name: Automatic Wire Cut and Strip Machine with 32-Segment Middle Stripping WM-174Z
Brand: Wiromac
SKU: WM-174Z

CE Certified HS Code 8463.90 1–30 mm² 2,000 pcs/h

The WM-174Z cuts and strips wire from 1 to 30 mm² and, unlike an end-strip-only machine, opens insulation windows anywhere along the piece — up to 32 middle-strip segments at any position and length, or an unlimited number when evenly spaced. Heads full-strip to 190 mm or half-strip to 9,999 mm; tails full-strip to 80 mm with the same 9,999 mm half-strip reach. Sixteen belt-drive wheels feed wire up to Φ16 without embossing, holding cut lengths from 1 to 99,999.99 mm within 0.002 × L at up to 2,000 pieces per hour, programmed on a 7-inch touchscreen.

Specifications

Function	Wire cutting, end stripping and multi-section middle stripping
Applicable wire sizes	1 – 30 mm²
Cutting length	1 – 99,999.99 mm
Cutting tolerance	Within 0.002 × L (L = cutting length)
Stripping length	Head full strip 1 – 190 mm, half strip 1 – 9,999 mm; tail full strip 1 – 80 mm, half strip 1 – 9,999 mm
Middle stripping	Up to 32 segments at any interval and any length; unlimited segments at equal interval and length
Max. diameter of guiding pipe	Φ16
Productivity	2,000 pcs/hour (depending on wire length and size)
Drive mode	16-wheel drive (silent hybrid stepping motor, servo tool post)
Wire feeding method	Belt feeding — no embossing, no scratches on the cable
Blade material	High-quality imported high-speed steel
Display	7-inch true color touchscreen
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Middle stripping puts bare-copper windows exactly where solder taps, ground bonds or piercing terminals land — up to 32 individually placed segments per wire
Half-stripping to 9,999 mm leaves the insulation slug on the strands, so ends arrive at the crimp station untwisted, unfrayed and ready to pull clean
16-wheel belt feeding spreads clamping force along the wire, so soft jackets from 1 to 30 mm² show no embossing or scratch marks
Servo tool post lands high-speed-steel blades within 0.002 × L across everything from short jumpers to 99-meter runs, at up to 2,000 pieces per hour

What it processes

Grounding jumpers and tap wires with mid-span bonding windows
Lighting strings and busbar harnesses soldered at fixed intervals along one conductor
Appliance and automotive leads that need half-stripped ends for clean crimp feeding

Suited for: single-jacket wire from 1 to 30 mm² needing end strips, half strips or programmed mid-span insulation windows — up to 32 segments per piece. Not suited for: core-by-core processing of sheathed multi-core cable or wire above 30 mm² — for sheath-plus-core work, pick the WM-168HT multi-core cut and strip machine, which strips jacket and cores in one pass; heavier wire runs on the WM-1450 thick cable machine up to 150 mm².

Need more windows or more throughput? The WM-190 middle stripping machine programs 50 segments instead of 32, covers 0.75–30 mm² through a Φ18 mm pass and runs 3,500 pcs/hour — at the cost of a shorter half-strip, 1,500 mm on side A against the 9,999 mm this machine reaches.

Unusual insulations can be verified before purchase: send 2–3 meters of your actual wire and we run it on this machine on video before you commit.

Engineering knowledge

Choose and troubleshoot this process

Automatic vs Semi-Automatic Wire Processing EquipmentCompare automatic lines and semi-automatic wire-processing cells using batch size, changeover, process integration, inspection and labor content.
How to Choose a Wire Cutting and Stripping MachineSelect a wire cutting and stripping machine by conductor size, cable construction, strip geometry, length tolerance, batch size and downstream process.
Wire Stripping Defects: Causes and Corrective ActionsDiagnose conductor nicks, incomplete strips, pulled strands, insulation stretch, length variation and feed marks in wire stripping operations.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-174Z — common questions

What is middle stripping actually used for?

Any joint that lands in the middle of a run instead of at the ends — solder taps on LED strings, ground bonds, spliced branch circuits, resistance-welded shunts. The WM-174Z opens each window to programmed position and length, so downstream stations stop hand-scoring insulation with a knife.

What is the difference between full stripping and half stripping here?

Full stripping pulls the insulation slug completely off, leaving bare copper — up to 190 mm at the head and 80 mm at the tail. Half stripping cuts the insulation but leaves the slug sitting on the strands, protecting them from fraying in transit; the operator twists it off at assembly. Half strips program up to 9,999 mm on both ends.

Does it strip the inner cores of sheathed multi-core cable?

No — its blades work one insulation layer at a time, so on sheathed cable it opens the outer jacket only. Jacket-plus-core processing in one pass belongs to the multi-core machines in the wire cutting and stripping category.
