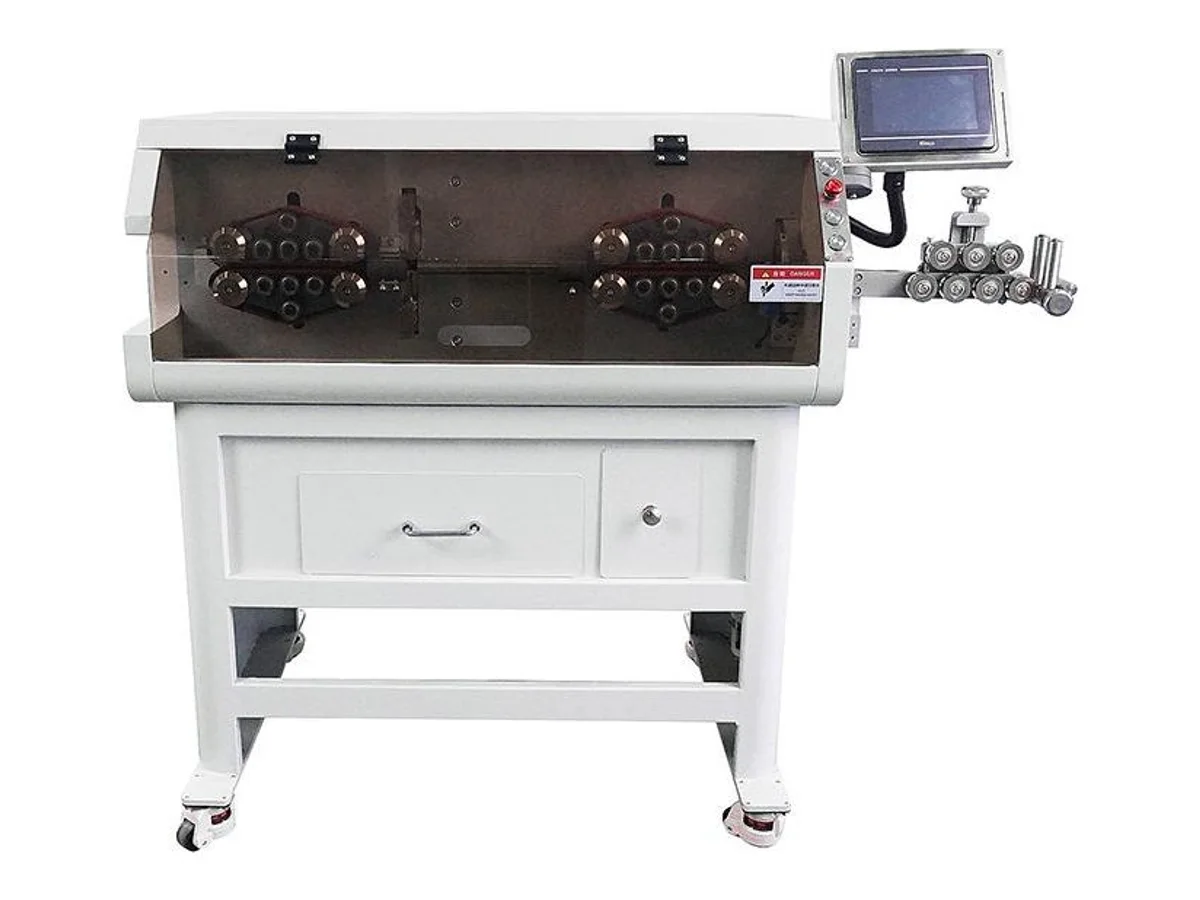

Thick Cable Cutting and Stripping Machine for 10–150 mm² Power Cable WM-1450

Name: Thick Cable Cutting and Stripping Machine for 10–150 mm² Power Cable WM-1450
Brand: Wiromac
SKU: WM-1450

CE Certified HS Code 8463.90 10–150 mm² 1,800 pcs/h

The WM-1450 cuts and strips thick power cable from 10 to 150 mm² — the class of wire used in EV charging guns, battery packs and energy-storage harnesses. Thirty-two belt-drive wheels feed cable up to Φ30 mm without marking the jacket, cut to any length from 1 to 99,999.99 mm at ±0.2% (0.002×L), and strip up to 500 mm at the head and 300 mm at the tail. Full-servo drive delivers up to 1,800 pieces per hour, programmed on a 7-inch touchscreen.

Specifications

Function	Cable cutting and stripping
Conductor cross-section	10 – 150 mm²
Cutting length	1 – 99,999.99 mm
Cutting tolerance	≤ 0.002 × L (L = cutting length)
Stripping length	Head 1 – 500 mm, tail 1 – 300 mm
Max. conduit diameter	Φ30 mm
Production rate	1,800 pcs/h (based on wire size)
Drive method	32 wheels drive, full servo
Wire feed method	Belt feeding — no indentation on cable jacket
Display	7-inch touchscreen
Power supply	110/220 VAC, 50/60 Hz, 2,500 W (full-load 12 A)
Air pressure	0.5 – 0.8 MPa (clean air source)
Dimensions	147 × 76 × 134 cm
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Built for hard-to-strip thick cable — new-energy charging gun cable, battery cable and welding-class jackets
32-wheel belt feeding grips heavy cable firmly with no indentation marks on the jacket
Full-servo drive with axial blade positioning keeps ±0.2% length tolerance on cable up to 150 mm²
Extendable into a line — material holding clamp, feeding robot and wire collecting holder available as options

What it processes

EV charging gun cable and high-voltage battery harness prefabrication (10–150 mm²)
Energy storage systems, switchgear and industrial power distribution assemblies
Cable factories cutting thick flexible cable to length with fully stripped ends

Suited for: thick, hard-to-strip power cable — EV charging gun cable, battery and energy-storage harness wire, welding-class flexible cable from 10 to 150 mm² (up to Φ30 mm OD). Not suited for: thin hookup wire below 10 mm² — for that, pick the WM-167 benchtop cut and strip machine, which covers 0.1–10 mm² at higher piece rates. Also not the machine if the cable is thicker than Φ30 mm, or if you only need it severed and not stripped — a plain cut-off station is cheaper and takes bigger cable, see the WM-1221 pneumatic thick cable cutting machine (under 160 mm², up to Φ40 mm, cutting only). And if the job is mostly cut-to-length across mixed material — wire, flat cable, soft copper busbar, sheath tube and PVC hose — with only the leading end stripped, the WM-1222 automatic cable cutting machine covers 1–150 mm² up to Φ33 mm with front stripping to 800 mm.

Special cables can be customized against your sample: send 2–3 meters of your actual cable and we run it on this machine on video before you commit. See how this machine fits an EV wire harness line.

Engineering knowledge

Choose and troubleshoot this process

Automatic vs Semi-Automatic Wire Processing EquipmentCompare automatic lines and semi-automatic wire-processing cells using batch size, changeover, process integration, inspection and labor content.
How to Choose a Wire Cutting and Stripping MachineSelect a wire cutting and stripping machine by conductor size, cable construction, strip geometry, length tolerance, batch size and downstream process.
Wire Stripping Defects: Causes and Corrective ActionsDiagnose conductor nicks, incomplete strips, pulled strands, insulation stretch, length variation and feed marks in wire stripping operations.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-1450 — common questions

What is the largest cable the WM-1450 can process?

Conductor cross-sections from 10 to 150 mm² with outer diameter up to Φ30 mm. Head stripping reaches 500 mm and tail stripping 300 mm — long enough for busbar lugs and charging-gun terminations.

Will the feed wheels mark soft silicone or TPU jackets?

Feeding is by flat belts across 32 drive wheels instead of pinch rollers, so the clamping force spreads over a long contact area and leaves no indentation — this matters on soft new-energy cable jackets. For unusual jackets, send us a 2–3 meter sample and we run it on camera before you order.

What utilities does it need?

110/220 VAC (2,500 W, 12 A full load) plus clean compressed air at 0.5–0.8 MPa. It is a floor-standing machine at 147 × 76 × 134 cm — plan roughly 2 × 1.5 m of floor space with feeding clearance.
