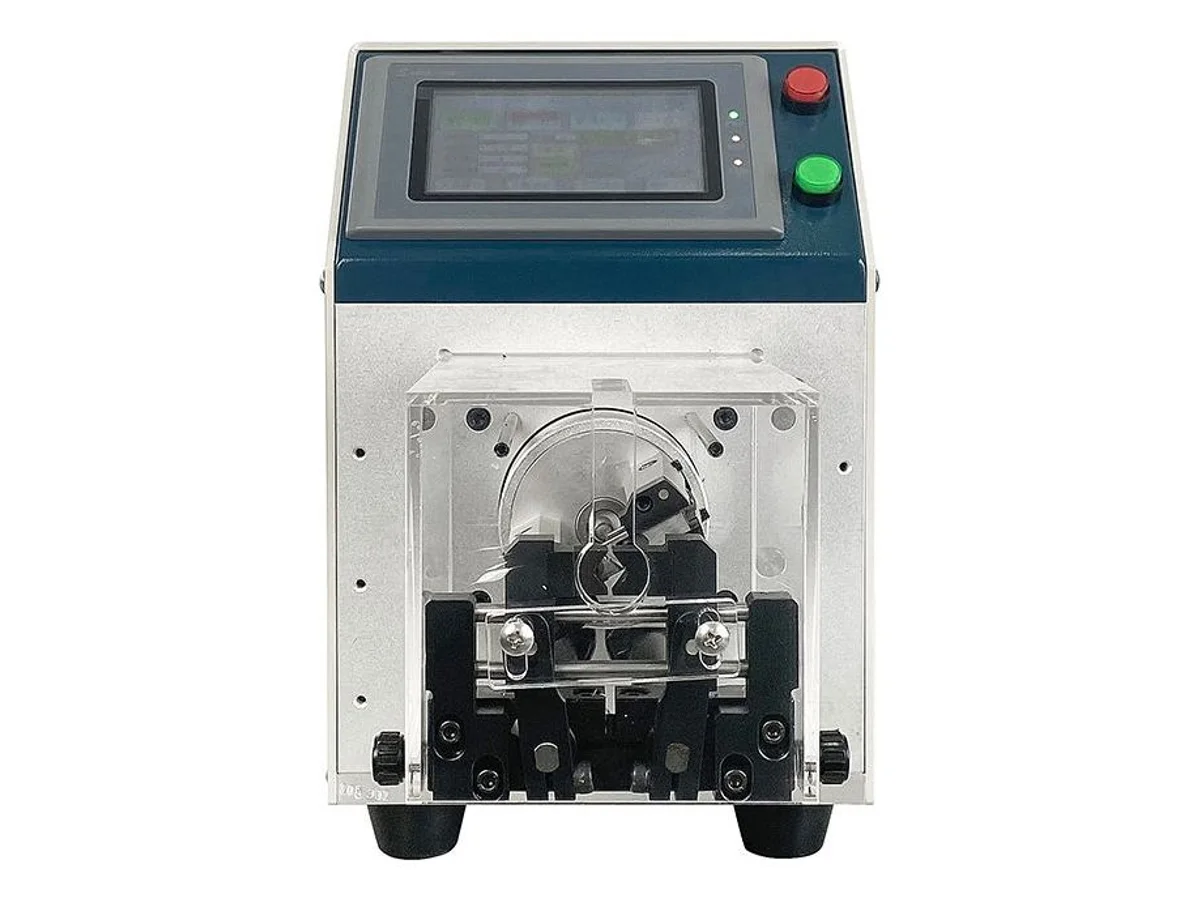

Semi-Automatic Multi-Layer Coaxial Cable Stripping Machine for 0.81–7 mm Cable WM-2106A

Name: Semi-Automatic Multi-Layer Coaxial Cable Stripping Machine for 0.81–7 mm Cable WM-2106A
Brand: Wiromac
SKU: WM-2106A

CE Certified HS Code 8463.90 Ø0.81–7 mm coax

The WM-2106A strips coaxial cable from 0.81 to 7 mm outer diameter in up to 9 programmable layers — jacket, braid, foil and dielectric each get their own cutting depth, set in 0.01 mm steps, so the end comes off the machine as a stepped, connector-ready termination. Maximum stripping length is 47 mm, and the 24 kg benchtop body runs on 110 V or 220 V. Typical work: RG174, RG178 and RG316 jumpers, 1.13/1.37 mm micro-coax pigtails and RG58 assemblies.

Specifications

Function	Semi-automatic multi-layer coaxial cable end stripping
Cable diameter	0.81 – 7 mm
Max. stripping length	47 mm
Cutting depth setting unit	0.01 mm
Max. stripping layers	9 layers
Power supply	110 V / 220 V, 50 Hz
Weight	24 kg
Dimensions	600 × 185 × 280 mm
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Up to 9 layers per end — each layer has its own cutting depth and length, so jacket, shield braid, foil and dielectric come off in one stepped cycle instead of four manual passes
Rotary blade head circles the cable rather than dragging along it, and the 0.01 mm depth steps let you open the jacket without nicking the braid underneath
Foot-pedal start keeps both hands free to present short pigtails; pedal, power cord and tool kit ship in the box
24 kg body on a 600 × 185 × 280 mm footprint, 110/220 V — it drops onto any RF assembly bench next to the crimp press

What it processes

RG174, RG178, RG316 and RG58 braided coax prepared for SMA, MCX, BNC and IPEX terminations
Micro-coax pigtails and antenna jumpers down to 0.81 mm outer diameter
RF, telecom and automotive-radar cable assembly benches running many short jumpers per shift

Suited for: fine braided coax from Ø0.81 to Ø7 mm — micro-coax pigtails, RG174/RG178/RG316 jumpers and RG58 assemblies — where the connector needs a clean stepped end: core, dielectric and braid each exposed to its own length, up to 47 mm total. Not suited for: cable above Ø7 mm, strip lengths beyond 47 mm, or cutting cable to length — it strips prepared ends only. For larger diameters move up to the WM-2208 rotary blade stripping machine (Ø1.5–18 mm, 90 mm strip); the rest of the lineup is under coaxial cable processing.

Send us 2–3 meters of your coax with the connector drawing — we program the layer steps, strip your cable on camera and send you the video before you order.

Engineering knowledge

Choose and troubleshoot this process

Coaxial Cable Stripping Defects: Causes and Corrective ActionsTroubleshoot cut braid strands, torn foil, marked dielectric, nicked centre conductors, incomplete pull-off and inconsistent strip length.
How to Choose a Coaxial Cable Stripping MachineChoose a coaxial cable stripping machine by layer construction, cable diameter, strip sequence, cut-depth control, end geometry and production architecture.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-2106A — common questions

How many layers can the WM-2106A strip in one cycle?

Up to 9. Each layer is programmed with its own cutting depth (0.01 mm steps) and strip length, so a typical coax program exposes the center conductor, dielectric and braid as a stepped end in a single semi-automatic cycle. The stepped brown RG-cable ends in the photo gallery came straight off this machine.

Is the touch screen in English?

Yes — the machine we ship runs the English interface shown in the gallery photo, with start/stop, layer count and piece counter on one screen. Program numbers are recalled the same way regardless of language.

What if my cable is thicker than 7 mm or needs a longer strip?

Then this is the wrong machine — its limits are 7 mm diameter and 47 mm strip length. Its bigger brother, the WM-2208, takes 1.5–18 mm cable with strip lengths up to 90 mm and stores 99 programs. Tell us your cable OD and connector, and we will point you at the right model.
