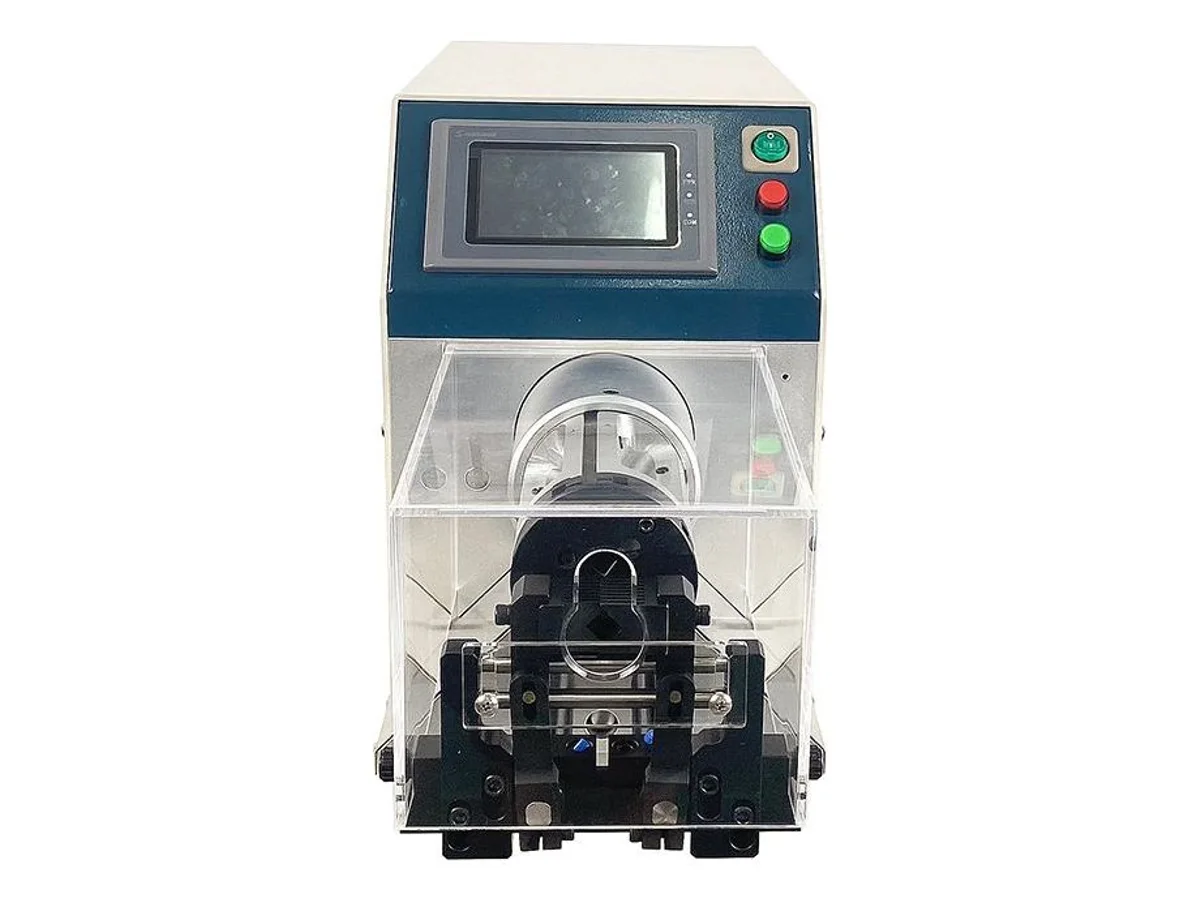

Rotary Blade Coaxial Cable Stripping Machine for 1.5–18 mm Cable with Touch Screen WM-2208

Name: Rotary Blade Coaxial Cable Stripping Machine for 1.5–18 mm Cable with Touch Screen WM-2208
Brand: Wiromac
SKU: WM-2208

CE Certified HS Code 8463.90 Ø1.5–18 mm 400–800 pcs/h

The WM-2208 strips coaxial, corrugated-pipe and new-energy cable from 1.5 to 18 mm diameter in up to 9 programmable layers, with stripping lengths from 0 to 90 mm set in 0.01 mm steps on the touch screen. A 4-piece tungsten-steel rotary blade driven by motor and ball screw does the cutting, the controller stores 99 cable programs, and throughput runs 400–800 pieces per hour depending on the cable.

Specifications

Function	Rotary-blade (spiral) coaxial cable stripping
Applicable cable	Coaxial cable, corrugated pipe cable, new energy cable
Cable diameter range	1.5 – 18 mm
Max. stripping length	0 – 90 mm
Stripping length setting unit	0.01 mm
Cutting depth setting unit	0.01 mm
Max. stripping layers	9 layers
Stripping method	4-piece rotary blade
Blade material	Imported tungsten steel
Drive	Motor and ball screw
Display	Touch screen, Chinese-English interface
Program storage	99 parameter sets
Capacity	400 – 800 pcs/hour (depends on cable type)
Power supply	AC 220 V / 110 V, 50/60 Hz
Power	600 W
Working environment	-5 to 45 °C, dry and vibration-free bench
Weight	42 kg
Dimensions	720 × 230 × 350 mm
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

99 stored programs — switching from RG58 jumpers to a corrugated-jacket run means recalling a program number on the touch screen, not re-adjusting the machine
4-piece tungsten-steel rotary blade closes around the cable and spirals through the layer, which is what lets it open corrugated pipe jackets cleanly
Motor and ball-screw drive positions every cut in 0.01 mm length and depth increments — braid stays intact under the jacket cut
One machine covers RF coax, corrugated-pipe cable and shielded new-energy cable up to 18 mm, so it earns its bench space in mixed-cable shops

What it processes

Braided coax from RG58/RG59/RG6 up to RG213 and LMR-class trunk within Ø1.5–18 mm
Corrugated-pipe jacketed cable and shielded new-energy (EV) cable ends
Antenna, telecom and EV wiring shops running batch lots at 400–800 ends per hour

Suited for: batch stripping of braided coax, corrugated-pipe cable and shielded new-energy cable from Ø1.5 to Ø18 mm — up to 9 layers per end, strip lengths to 90 mm, with 99 programs so mixed-cable shops change over in seconds. Not suited for: micro-coax below Ø1.5 mm — that is the WM-2106A multi-layer stripper (Ø0.81–7 mm) — and it does not cut cable to length. Thicker than Ø18 mm? The WM-2320 carries the same rotary-blade principle up to Ø23 mm.

The blue stepped-end samples in the gallery show its strip quality. Send 2–3 meters of your own cable and we run it on this machine on camera — you see your cable stripped before you pay for the machine.

Engineering knowledge

Choose and troubleshoot this process

Coaxial Cable Stripping Defects: Causes and Corrective ActionsTroubleshoot cut braid strands, torn foil, marked dielectric, nicked centre conductors, incomplete pull-off and inconsistent strip length.
How to Choose a Coaxial Cable Stripping MachineChoose a coaxial cable stripping machine by layer construction, cable diameter, strip sequence, cut-depth control, end geometry and production architecture.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-2208 — common questions

How long does changing to a different cable type take?

If the cable has run before, changeover is recalling one of the 99 stored programs on the touch screen and stripping a trial piece to confirm — there is no blade cassette to swap anywhere in the 1.5–18 mm range. A brand-new cable takes longer the first time, because you set each layer's depth in 0.01 mm steps and verify under magnification; after that it is stored as a program like the rest.

Can it strip corrugated pipe cable?

Yes — corrugated pipe cable is in its specified cable list alongside coax and new-energy cable. The rotary blade spirals through the corrugated jacket instead of making a single ring cut, which is what keeps the cut edge clean on a ribbed surface.

Is the interface available in English?

Yes. The display is specified as a Chinese-English touch screen — you switch the language in the settings, and the gallery photo shows the English screen with start/stop, program number and piece counter.
