Fully Automatic Short Coaxial Cable Cutting and Stripping Machine for Ø1–6 mm Cable WM-2506D

Name: Fully Automatic Short Coaxial Cable Cutting and Stripping Machine for Ø1–6 mm Cable WM-2506D
Brand: Wiromac
SKU: WM-2506D

CE Certified HS Code 8463.90 Ø1–6 mm coaxial cable 600–700 pcs/h

The WM-2506D automatically cuts and multi-layer strips short flexible and semi-rigid coaxial cable from Ø1–6 mm. It handles 15–250 mm cut lengths, stores 40 programs and processes about 600–700 pieces per hour, with up to six stripping layers and 0.01 mm depth increments.

Specifications

Function	Automatic short coaxial cable cutting and multi-layer stripping
Cable type	Flexible and semi-rigid coaxial cable
Cable diameter	1.0–6.0 mm
Cutting length	15–250 mm
Left stripping length	Max. 30 mm
Right stripping length	Max. 50 mm
Cutting length accuracy	±2‰
Stripping accuracy	±0.15 mm
Depth increment	0.01 mm
Stripping layers	Up to 6
Program storage	40
Productivity	600–700 pcs/h
Power supply	AC 220 V or 110 V, 50/60 Hz
Power	800 W
Machine weight	Approx. 110 kg
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Measures, cuts and strips short coaxial pieces in one automatic sequence
Programs up to six jacket, braid, dielectric and conductor exposure steps with 0.01 mm depth increments
Stores 40 cable recipes for repeat orders and frequent product changeovers
Supports different left- and right-end strip lengths within the stated limits
Combines the cutting unit, feed rollers and output handling in a continuous short-piece line

What it processes

Short antenna and RF jumper preparation before connector assembly
Flexible coaxial leads for consumer electronics and communication modules
Semi-rigid coaxial pieces requiring repeatable multi-layer exposure
Batch production where the same short cable recipe is reordered regularly

Suited for: automatic production of 15–250 mm flexible or semi-rigid coaxial pieces that need cutting and up to six programmed stripping layers. Not suited for: operator-fed end stripping of cable that is already cut — use the WM-2106A multi-layer coaxial stripper for Ø0.81–7 mm cable or the WM-2208 rotary-blade stripper for cable up to Ø18 mm.

The production advantage is not just a faster strip cycle. One recipe controls piece length, the two end treatments and as many as six material layers, so repeat orders can return to a stored setup rather than rebuilding the process at each station. Separate 30 mm and 50 mm end limits also allow asymmetric finished leads.

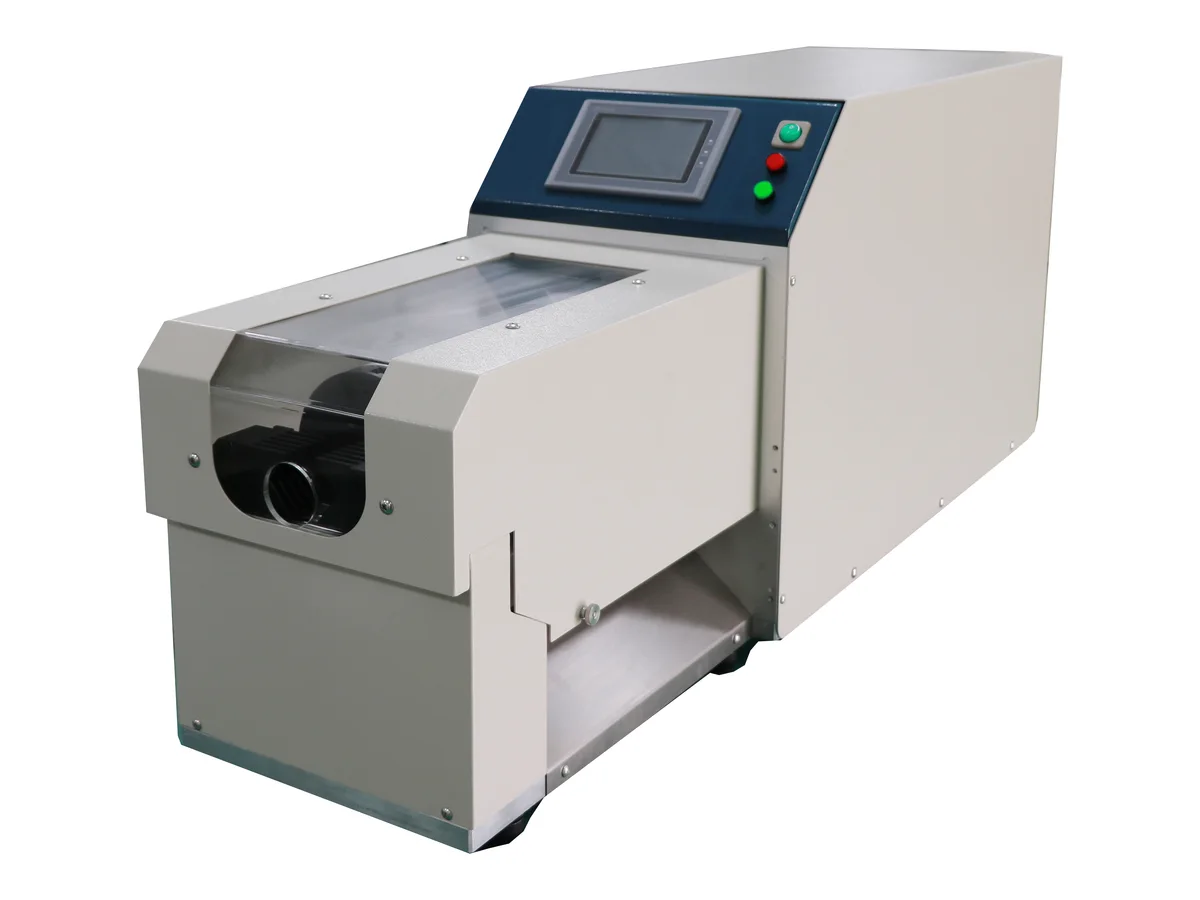

Cable construction remains the deciding factor. For diameters above this machine’s range, the WM-2320 covers cable up to Ø23 mm and the WM-2420 heavy-duty stripper covers Ø6–40 mm EV and shielded cable. Send samples and the finished-end drawing so we can confirm blade access, braid quality and conductor protection before the configuration is finalized.

Engineering knowledge

Choose and troubleshoot this process

Automatic vs Semi-Automatic Wire Processing EquipmentCompare automatic lines and semi-automatic wire-processing cells using batch size, changeover, process integration, inspection and labor content.
How to Choose a Wire Cutting and Stripping MachineSelect a wire cutting and stripping machine by conductor size, cable construction, strip geometry, length tolerance, batch size and downstream process.
Coaxial Cable Stripping Defects: Causes and Corrective ActionsTroubleshoot cut braid strands, torn foil, marked dielectric, nicked centre conductors, incomplete pull-off and inconsistent strip length.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-2506D — common questions

What cable can the WM-2506D process?

It is specified for flexible and semi-rigid coaxial cable from 1.0 to 6.0 mm in diameter. Send the exact cable construction because braid density, dielectric material and jacket hardness affect the blade recipe even when two cables have the same outside diameter.

How short can it cut and how many layers can it strip?

The stated cutting range is 15–250 mm. A recipe can contain up to six stripping layers, with a maximum 30 mm strip on the left end and 50 mm on the right end.

When should I choose a semi-automatic coaxial stripper instead?

Choose a semi-automatic model when the operator only needs to strip the end of a pre-cut cable. The WM-2106A covers Ø0.81–7 mm cable, while the WM-2208 covers Ø1.5–18 mm cable and longer end stripping.

What do you need for a sample test?

Send 2–3 meters of cable, the finished-end drawing, the required cut length and tolerance, each strip length and depth, and your target hourly volume. We set the recipe, record the trial and return representative stripped samples for approval.
