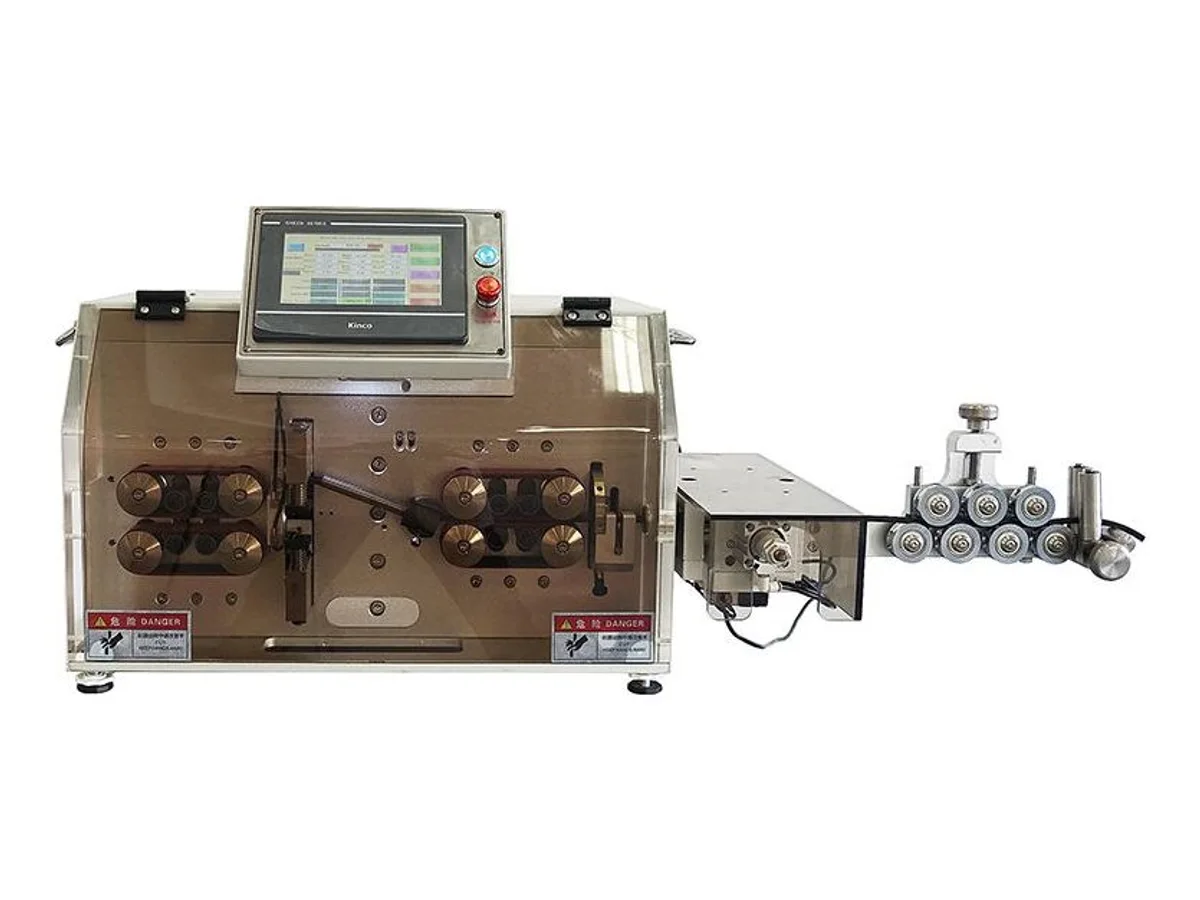

Automatic Multi-Core Cable Cut and Strip Machine with Middle Stripping WM-1130HZ

Name: Automatic Multi-Core Cable Cut and Strip Machine with Middle Stripping WM-1130HZ
Brand: Wiromac
SKU: WM-1130HZ

CE Certified HS Code 8463.90 6–30 mm² sheathed 2,300 pcs/h

The WM-1130HZ cuts and strips multi-core sheathed cable with jacket sizes from 6 to 30 mm², processing up to 2,300 pcs/hour. It full-strips or half-strips both ends (head up to 120 mm, tail up to 240 mm) and performs middle stripping — opening insulation windows anywhere along the cable — with cutting lengths from 1 to 99,999.9 mm at ±0.2% (0.002×L) accuracy, programmed on a 7-inch color touch screen.

Specifications

Function	Cutting and stripping, including middle stripping
Wire type	Sheathed cables, PVC cables, multi-core cables
Stripping range	6 – 30 mm²
Head stripping	Max. 120 mm
Tail stripping	Max. 240 mm
Cutting length	1 – 99,999.9 mm
Cutting tolerance	Within 0.002 × L (L = cutting length)
Guide tube diameter	Max. Φ16 mm
Blade material	High-speed steel (HSS)
Capacity	Up to 2,300 pcs/hour
Display	7-inch color touchscreen
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Middle stripping — opens insulation windows at any programmed position along the cable, not just the ends
Servo-fed straightener and roller guides keep multi-core cable aligned through the blades
HSS blades handle sheathed and PVC jackets; blade sets stocked as spare parts
Free sample test — send your cable, we run it on this machine and send you the video before you order

What it processes

Multi-core sheathed cable and PVC round cable, jacket 6–30 mm²
Wire harness prefabrication where mid-span jacket windows are required (grounding taps, breakouts)
Cable assemblies for appliances, control cabinets and automotive wiring

Suited for: multi-core sheathed and PVC round cables (6–30 mm² jacket, up to Φ16 mm OD), especially jobs that need mid-span insulation windows. Not suited for: fine single-core hookup wire below 6 mm² or micro-coax — for hookup wire, pick the WM-167 benchtop cut and strip machine covering 0.1–10 mm²; micro-coax belongs with the coaxial cable processing machines.

An inline inkjet marking unit and a 2-meter coiler/take-up stand are available as options for this platform — mention them in your inquiry if your line needs printed cable or coiled output.

Engineering knowledge

Choose and troubleshoot this process

Automatic vs Semi-Automatic Wire Processing EquipmentCompare automatic lines and semi-automatic wire-processing cells using batch size, changeover, process integration, inspection and labor content.
How to Choose a Wire Cutting and Stripping MachineSelect a wire cutting and stripping machine by conductor size, cable construction, strip geometry, length tolerance, batch size and downstream process.
Wire Stripping Defects: Causes and Corrective ActionsDiagnose conductor nicks, incomplete strips, pulled strands, insulation stretch, length variation and feed marks in wire stripping operations.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-1130HZ — common questions

What does "middle stripping" mean on the WM-1130HZ?

Besides stripping both cable ends, the machine can remove a programmed window of outer jacket at any position along the cable — used for grounding taps, breakout points and mid-span connections. Window positions and lengths are set on the touch screen per recipe.

Can it process my special cable?

The machine can be customized for special cables. Send us a 2–3 meter sample — we run it on the actual machine, adjust tooling if needed, and send you the trial-run video before you commit to the order.

What is the maximum cable outer diameter?

The guide tube accepts cable up to Φ16 mm outer diameter, with jacket cross-sections from 6 to 30 mm². For thinner single-core wire (0.1–10 mm²) a benchtop model from the same category is the better match — tell us your wire spec and we will recommend the right machine.
