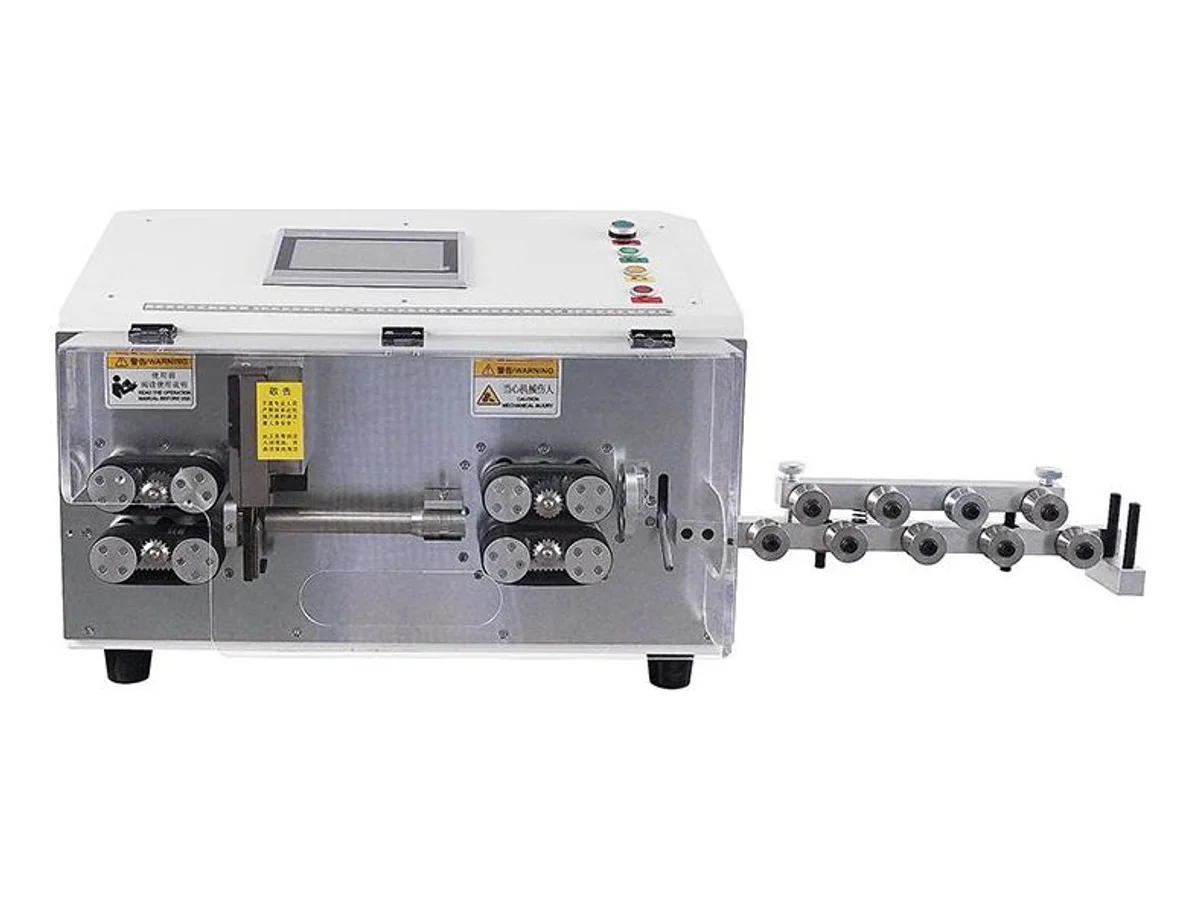

Benchtop Large Cable Cutting and Stripping Machine for 6–70 mm² Power Cable WM-179

Name: Benchtop Large Cable Cutting and Stripping Machine for 6–70 mm² Power Cable WM-179
Brand: Wiromac
SKU: WM-179

CE Certified HS Code 8463.90 6–70 mm² 1,500–2,500 pcs/h

The WM-179 cuts and strips multi-strand power cable from 6.0 to 70 mm² — welding cable, battery leads and new-energy harness wire — from an 80 kg benchtop frame instead of a floor machine. A 12-wheel drive feeds cable up to Φ20 mm, cutting lengths to 100 meters at ±0.2% (0.002×L) and stripping 400 mm at the head and 150 mm at the tail; an optional cutting jig extends head strips beyond 400 mm. It processes 1,500 to 2,500 pieces per hour, stores 100 programs on a 7-inch PLC touchscreen, and runs on 220 V at 800 W.

Specifications

Applicable core area	6.0 – 70 mm²
Wire types	Multi-strand copper wire, coaxial cable, sheathed cable, etc.
Cutting length	0 – 100 meters
Cutting tolerance	± 0.002 × L (L = cutting length)
Stripping length	Head 0 – 400 mm, tail 0 – 150 mm; head strips beyond 400 mm with optional cutting jig
Minimum length of left insulation	50 mm
Stripping speed	1,500 – 2,500 pcs/h
Drive mode	12-wheel drive
Maximum guiding pipe diameter	Φ20 mm
Blade material	Imported high-speed steel
Display mode	PLC 7-inch color touch screen
Memory function	Up to 100 groups of programs can be stored
Working voltage	220 V / 50 Hz
Rated power	800 W
Weight	80 kg
Dimensions	700 × 640 × 480 mm
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Heavy-cable stripping from a bench footprint — 70 mm² welding and battery cable without giving up floor space to a cabinet machine
12-wheel drive keeps thick, stiff jackets moving straight so 100-meter cut programs hold ±0.2% length accuracy
100 stored programs switch the machine between battery lead, grounding strap and welding whip recipes in seconds
800 W on a standard 220 V socket — no three-phase supply and no compressed air to plumb before it earns its keep

What it processes

Welding cable whips and grounding straps cut and stripped in batch
Battery, energy-storage and EV service leads from 6.0 to 70 mm² multi-strand cable
Electrical contractors and panel shops prefabricating large-gauge tails to length

Suited for: multi-strand power cable from 6.0 to 70 mm² (up to Φ20 mm OD) — welding cable, battery and energy-storage leads — where a bench machine has to do a floor machine’s job. Not suited for: cable above 70 mm² or thin hookup wire below 6 mm² — above, step up to the WM-1450 thick cable cutting and stripping machine (10–150 mm²); below, the WM-167 benchtop machine covers hookup wire from 0.1 to 10 mm². Inside this same 6–70 mm² band, batch volume and mid-span windows belong on the WM-197 high-speed big wire cutting and stripping machine — 5,000–6,000 pcs/h with 16 middle-strip sections, traded against end strips that stop at 150 mm instead of 400 mm.

Jacket compounds behave differently under the blade: send 2–3 meters of your actual cable and we run it on this machine on video before you commit. See where large-gauge cut-and-strip fits an EV wire harness line.

Engineering knowledge

Choose and troubleshoot this process

Automatic vs Semi-Automatic Wire Processing EquipmentCompare automatic lines and semi-automatic wire-processing cells using batch size, changeover, process integration, inspection and labor content.
How to Choose a Wire Cutting and Stripping MachineSelect a wire cutting and stripping machine by conductor size, cable construction, strip geometry, length tolerance, batch size and downstream process.
Wire Stripping Defects: Causes and Corrective ActionsDiagnose conductor nicks, incomplete strips, pulled strands, insulation stretch, length variation and feed marks in wire stripping operations.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-179 — common questions

How long can the stripped end be for lugs and busbar terminations?

The head end strips from 0 to 400 mm and the tail from 0 to 150 mm in the standard cycle. When a job needs a bare conductor longer than 400 mm, the optional cutting jig lets the center be cut without limit, so extra-long exposures are still one machine cycle.

Does soft welding-cable jacket get marked by the feed?

Feeding is spread across a 12-wheel drive rather than a single pinch point, which is what lets stiff 70 mm² cable feed straight while soft EPDM and rubber jackets pass without visible wheel marks. Send a sample and judge the finish on your own cable.

What if my cable is bigger than 70 mm²?

70 mm² through a Φ20 mm guide is this machine's ceiling. Above that, the thick-cable machines in the wire cutting and stripping category carry the range to 150 mm² with 32-wheel belt drives.
