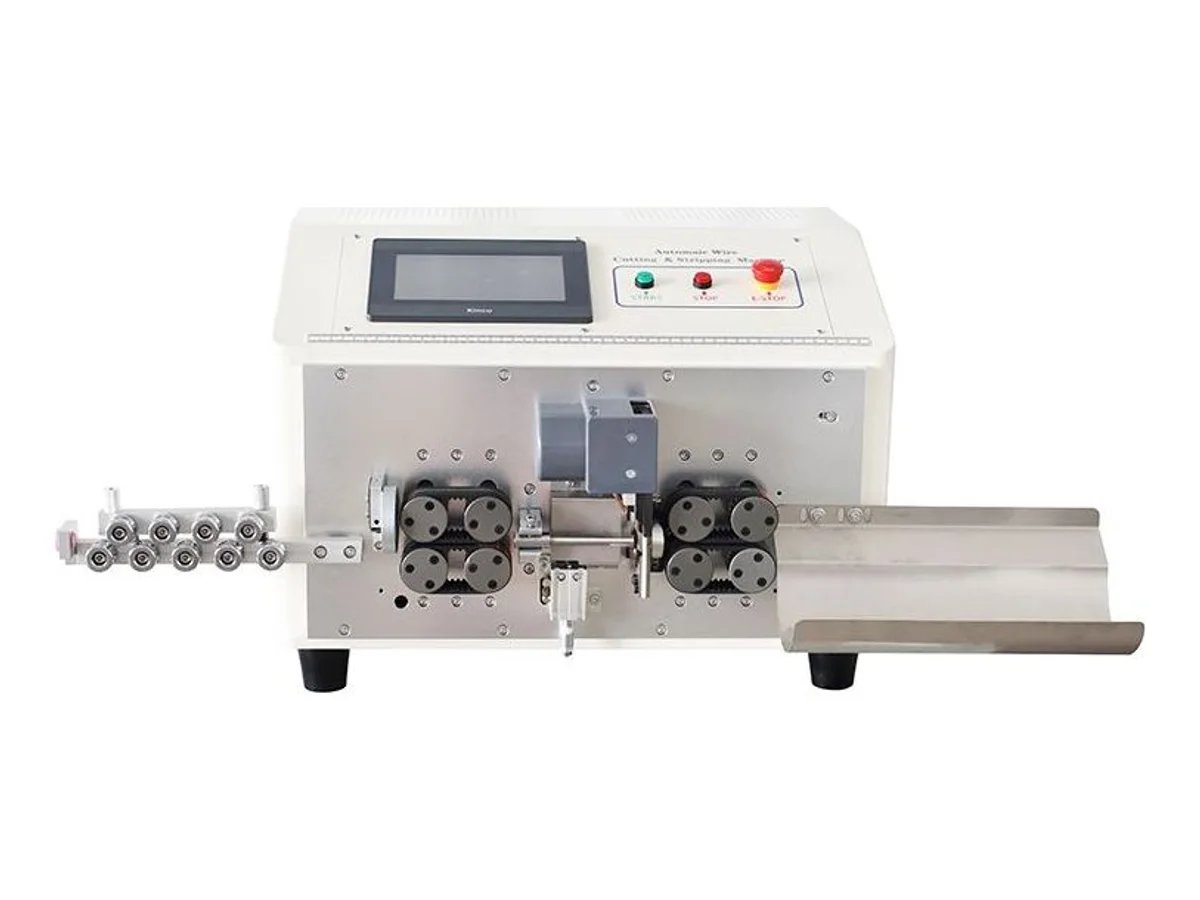

Automatic Multi-Core Sheathed Cable Cutting and Stripping Machine, Φ2–10 mm and 2–8 Cores WM-1223

›

The WM-1223 is a 53 kg benchtop machine that cuts round sheathed cable from Φ2 to Φ10 mm with 2 to 8 inner cores, then strips both layers at both ends in one cycle — outer jacket 0.01–200 mm at the head and 0.01–70 mm at the tail, every inner core 0.01–20 mm at either end. An 8-wheel crawler feeder pulls cable to any length from 0.01 mm to 999,999.99 mm, blade landing repeats within 0.01 mm on a silent hybrid stepping drive, and output runs roughly 600–1,000 pieces per hour. Up to 1,000 jobs store as programs 00–999 on the full-touch 7-inch colour screen.

Specifications

Key features

• Jacket and cores finished in the same cycle — cable leaves the chute with the sheath opened and every inner core stripped to bare copper, so nothing queues at a hand stripper afterwards
• Core strip reaches 20 mm at both ends, enough lead for insulation-displacement blocks, screw terminals and pre-tinning without a second pass
• 570 × 550 × 410 mm and 53 kg — it sits on a bench beside the crimping station instead of taking floor space
• 1,000 program slots (00–999) recall a complete parameter set by number, so a repeat order restarts without re-teaching jacket and core depths
• Wire breakage detection stops the cycle when the reel runs out or a core snaps, keeping batch counts honest
• Free sample test — send 2–3 m of your cable, we run it on this machine and send you the video before you order

What it processes

• Power cord and appliance lead assembly from 2- and 3-core round mains cable
• Signal, sensor and control cordage with 4 to 8 cores, prepared to kitted lengths
• Small-batch harness shops that need jacket plus core stripping without a floor-standing machine

Suited for: round sheathed cordage from Φ2 to Φ10 mm with 2–8 cores, on a bench — mains leads, appliance pigtails and multi-core signal cable that need the jacket and every core stripped in one automatic pass, with up to 20 mm of bare core at each end.

Not suited for: cable thicker than Φ10 mm, braided or foil-shielded constructions, jacket windows longer than 200 mm, or insulation windows part-way along the cable. For thicker round sheathed cable, pick the WM-189 round sheathed cable cutting and stripping machine, which covers Φ3–13 mm with up to 4 cores. If you need a 250 mm jacket window or a higher rate, the WM-168HT multi-core sheathed cable machine strips up to 250 mm on side A at 1,100 pcs/h over the same 2–8 core range. Braided and shielded jackets belong on the WM-184X rotary blade cutting and stripping machine (0.75–30 mm², up to Φ18 mm), and mid-span insulation windows on the WM-190 middle stripping machine, which opens up to 50 segments along the run.

The crawler feeder grips the sheath across eight wheels rather than pinching it between two, so soft PVC and rubber jackets arrive at the blades round and unmarked. Guide bushes for your cable diameter are stocked as spares — tell us the OD range you run and we include the matching set.
