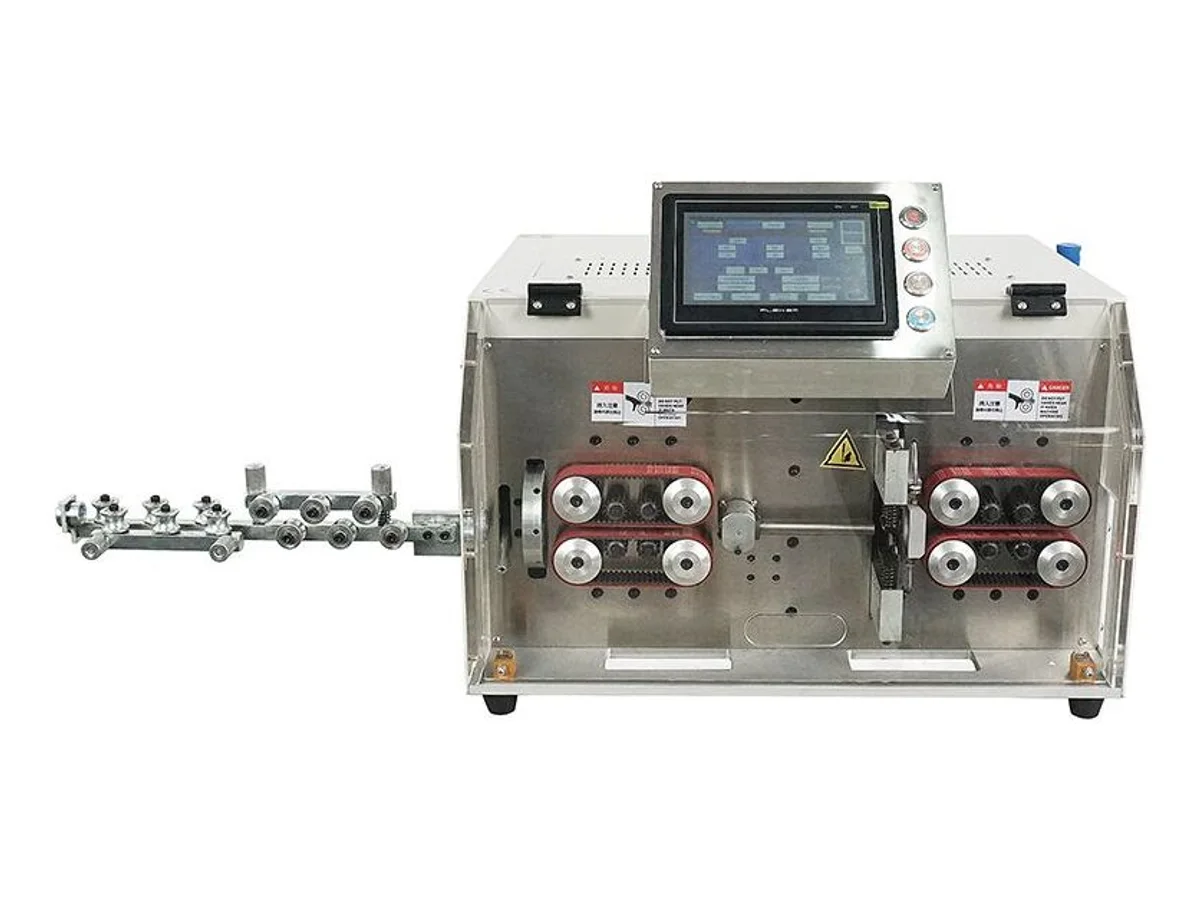

Round Sheathed Cable Cutting and Stripping Machine for Φ3–13 mm Multi-Core Cable WM-189

›

The WM-189 processes round sheathed cable from Φ3 to 13 mm with up to 4 cores in a single pass — it cuts to length at ±0.2 mm, strips the outer jacket over a 20–150 mm window, then strips each inner core 3–10 mm at the head and 3–30 mm at the tail. Four imported high-speed-steel blades do the jacket and core work, belt-drive units feed the cable through a roller straightener, and output reaches 650 pieces per hour at 200 mm. Programming is on a 7-inch touchscreen switchable between English and Chinese.

Specifications

Key features

• Jacket and cores finished in one pass — the machine cuts the cable, opens a 20–150 mm sheath window and strips every inner core, so no second bench operation for the cores
• Four imported high-speed-steel blades take separate jacket and core passes, stripping insulation without nicking the copper strands underneath
• Twin belt-drive feed units grip the round sheath over a long flat contact instead of pinching it, holding ±0.2 mm cutting tolerance through the straightener
• 650 pieces per hour at 200 mm length with programs stored on a 7-inch touchscreen — English interface available for any shift

What it processes

• Power cord blanks — 2- and 3-core round cable with jacket and cores fully stripped for plug and terminal work
• Appliance and HVAC internal harnesses using Φ3–13 mm sheathed multi-core cable
• Control and sensor cable assemblies where every core needs a clean, even strip

Suited for: round sheathed multi-core cable from Φ3 to 13 mm with up to 4 cores — power cords, appliance pigtails and control cable where the jacket and every core need stripping in one operation. Not suited for: single hookup wire, flat ribbon or unsheathed twisted pairs — for plain hookup wire, pick the WM-167 benchtop cut and strip machine, 0.1–10 mm²; the wire cutting and stripping range keeps dedicated flat-cable and paired-wire models for the rest. Cable with 5 to 8 cores is also outside its range — for those, use the WM-1223 multi-core sheathed cable cutting and stripping machine, which takes 2–8 cores in Φ2–10 mm cable. And if only the outer jacket has to come off — the cores being stripped at a separate station — the WM-1228 round sheathed cable cut and strip machine does jacket work alone at 3,000–6,000 pieces per hour instead of 650, strips 150 mm at both ends and cuts up to 100,000 mm.

Cable constructions vary, so we verify against your sample: send 2–3 meters of your actual cable and we run it on this machine on video before you commit.
