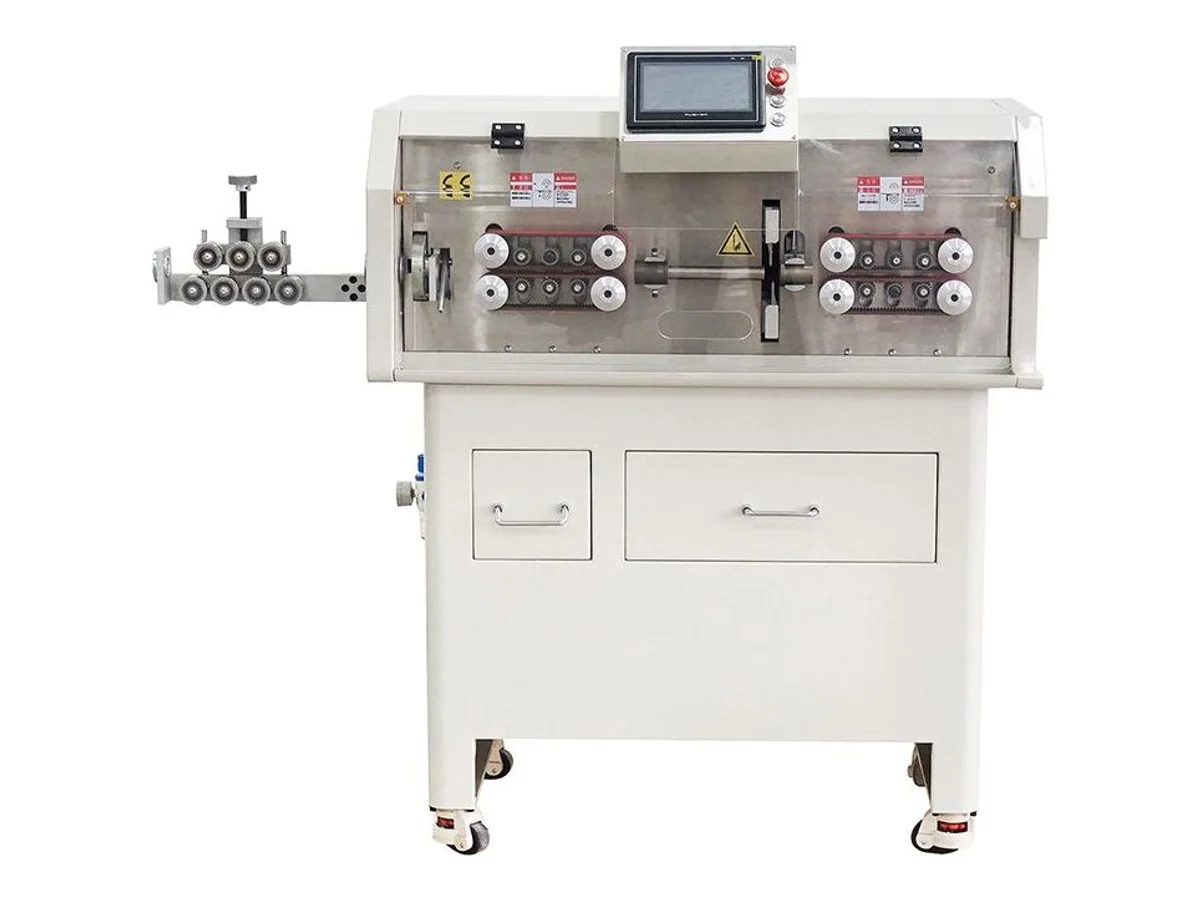

Round Power Cable Cutting and Stripping Machine for Cross-Sections up to 150 mm² WM-165

Name: Round Power Cable Cutting and Stripping Machine for Cross-Sections up to 150 mm² WM-165
Brand: Wiromac
SKU: WM-165

CE Certified HS Code 8463.90 ≤150 mm² (5–23 mm OD) 900 pcs/h

The WM-165 cuts and strips round power cable up to 150 mm² cross-section and 23 mm outer diameter — battery cable, welding leads, PV and grounding wire that hand knives score slowly and inconsistently. Eight belt-drive wheels on a motor ball screw feed the cable, strip to ±0.2 mm accuracy, and pull head strips as long as 800 mm. Cut length is programmable up to 400 m, output reaches 900 pieces per hour at 1,000 mm, and jobs run from a 7-inch touchscreen with an English interface. The 230 kg unit draws 2,300 W.

Specifications

Function	Round cable cutting and stripping
Maximum cross-section	150 mm²
Outer diameter of round cable	5 – 23 mm
Cutting length	Up to 400 m
Stripping length (round cable)	Head 1 – 800 mm, tail 1 – 150 mm
Stripping length (at 150 mm²)	Head 1 – 100 mm, tail 1 – 100 mm
Stripping accuracy	±0.2 mm
Max. guide tube diameter	φ25
Stripping speed	900 pieces/hour (length = 1,000 mm)
Drive mode	8-wheel drive, motor ball screw drive
Blade material	Imported high-speed steel
Display	7-inch touchscreen, Chinese and English interface
Air pressure	0.8 MPa
Power	2,300 W
Power supply	220 V / 110 V, 50/60 Hz
Dimensions	1060 × 640 × 1240 mm (L × W × H)
Weight	230 kg
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Takes the cable classes that stall a harness shop — battery, welding, PV and earth cable up to 150 mm² — off the utility knife and onto a programmed cycle
Head strips up to 800 mm long on round cable, so lug crimping, busbar prep and long terminations get bare conductor in one pass instead of repeated manual scoring
8-wheel belt drive on a motor ball screw holds ±0.2 mm stripping accuracy, cycle after cycle, independent of operator skill
Cut length programmable to 400 m — the same machine cuts coil stock to transportable lengths and strips piece work

What it processes

EV, battery-pack and energy-storage builders stripping large-gauge power cable for lugs
Switchgear and panel shops preparing grounding and distribution cable
Welding equipment and cable assembly plants cutting leads to length with clean ends

Suited for: round single-core power cable up to 150 mm² and 23 mm OD — battery, welding, PV, grounding and distribution cable cut to length with precisely stripped ends. Not suited for: multi-core sheathed cable or thin hookup wire — for sheathed multi-core, pick the WM-164 cut and strip machine, which strips jacket and cores on 0.75–30 mm² cable; for thin hookup wire, the WM-167 benchtop machine runs 0.1–10 mm² at far higher piece rates.

Jacket compounds vary widely on large cable: send 2–3 meters of your actual cable and we run it on this machine on video before you commit.

Engineering knowledge

Choose and troubleshoot this process

Automatic vs Semi-Automatic Wire Processing EquipmentCompare automatic lines and semi-automatic wire-processing cells using batch size, changeover, process integration, inspection and labor content.
How to Choose a Wire Cutting and Stripping MachineSelect a wire cutting and stripping machine by conductor size, cable construction, strip geometry, length tolerance, batch size and downstream process.
Wire Stripping Defects: Causes and Corrective ActionsDiagnose conductor nicks, incomplete strips, pulled strands, insulation stretch, length variation and feed marks in wire stripping operations.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-165 — common questions

What is the largest cable the WM-165 accepts?

Round cable up to 150 mm² cross-section with outer diameter from 5 to 23 mm, passing through a φ25 guide tube. At the full 150 mm² it strips up to 100 mm at head and tail; on smaller round cable the head strip extends to 800 mm.

Why does stripping accuracy of ±0.2 mm matter on thick cable?

Lug and ferrule crimps on large conductors specify a bare-wire window — too short and the insulation enters the barrel, too long and copper is exposed outside it. The ball-screw driven blades land within ±0.2 mm every cycle, so crimp inspections stop turning up rework.

Can it slit and strip multi-core sheathed cable down to the inner cores?

No — the WM-165 is built for single-core round cable. Sheathed multi-core cable that needs jacket plus core stripping belongs on the dedicated machines in the wire cutting and stripping category.
