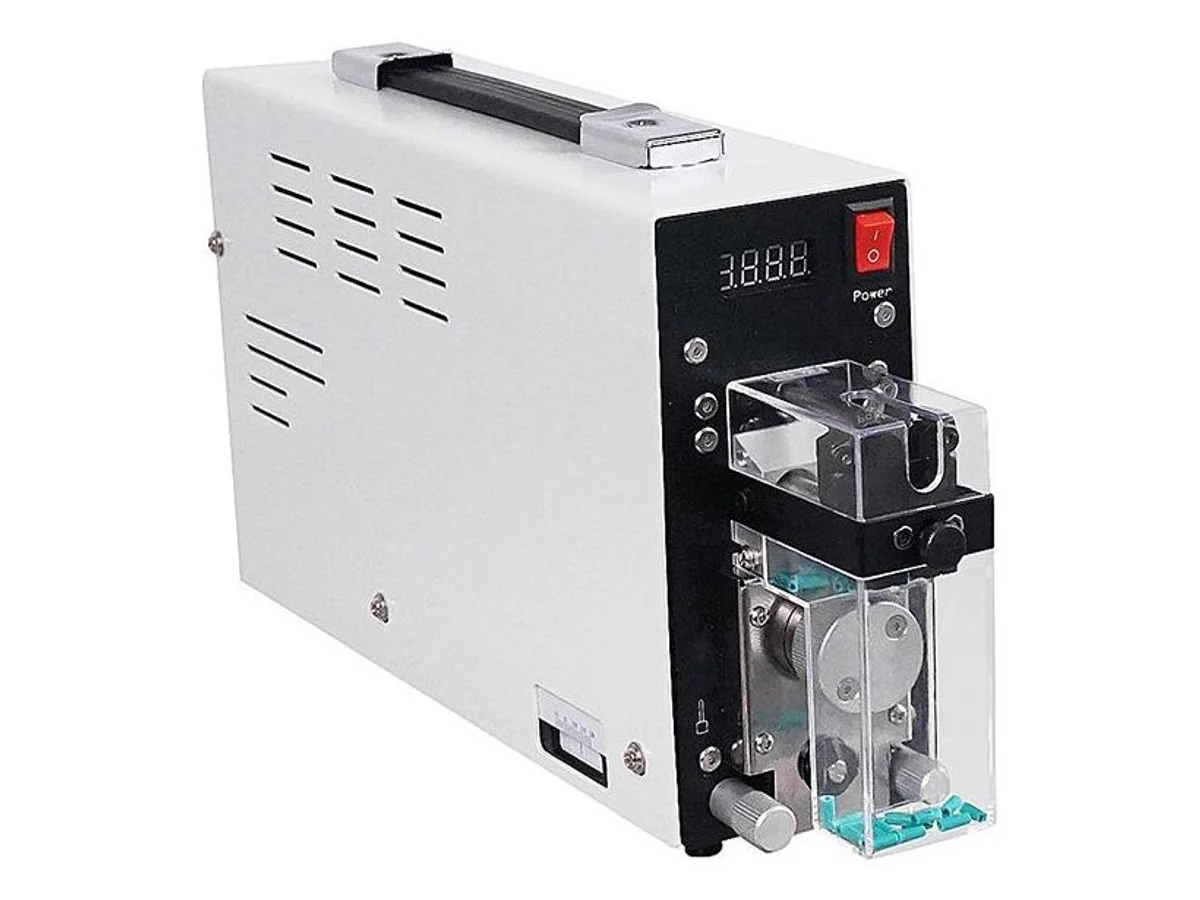

Electric Wire Stripping Machine for 0.03–4 mm² Wires, No Air Supply Needed WM-1215D

Name: Electric Wire Stripping Machine for 0.03–4 mm² Wires, No Air Supply Needed WM-1215D
Brand: Wiromac
SKU: WM-1215D

CE Certified HS Code 8463.90 0.03–4 mm² 0.5 s/strip

The WM-1215D is an all-electric benchtop stripper for fine wires from 0.03 to 4 mm² (max cable OD 4.2 mm) — it runs from a power outlet, so no air compressor or air line is needed. Blade diameter is set in 0.01 mm steps, stripping lengths reach 20 mm with both full and partial strips, and one cycle takes 0.5 s. At 4.5 kg and only 85 mm wide, it fits — and moves — anywhere on the bench.

Specifications

Function	Wire end stripping (semi-automatic, electric)
Applicable wires	Discrete, solid and stranded wires; single-core and multi-core cables; rubber, PUR, PVC and Teflon insulation
Available wire size	0.03 – 4 mm²
Max. cable OD	4.2 mm
Full strip	0.5 mm
Partial strip	6 mm
Max. stripping length	20 mm
Setting accuracy	0.01 mm (0.001")
Processing time	0.5 s
Net weight	4.5 kg
Dimensions (L × W × H)	380 × 85 × 188 mm
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

All-electric drive — plug the power adapter into a bench outlet and strip; no compressor, no air piping, no pneumatic upkeep
Blade diameter set in 0.01 mm (0.001") increments keeps the edge off the copper on wires as fine as 0.03 mm²
One blade set covers the whole 0.03–4 mm² range — no blade changes between jobs
Full strip and partial strip on the same machine, with stripping lengths up to 20 mm and support for very short pieces
4.5 kg body only 85 mm wide — the slimmest station on the bench, easy to carry between work cells

What it processes

Electronics labs, R&D benches, rework and repair stations that have no compressed-air supply
Discrete, solid and stranded wires with rubber, PUR, PVC or Teflon insulation
Small multi-conductor cables up to 4.2 mm OD in control-panel and appliance wiring
Mobile or shared workstations where a 4.5 kg machine moves to the job instead of the other way around

Suited for: benches with no compressed-air line that still need machine-quality stripping — discrete, solid and stranded wires from 0.03 to 4 mm², cables up to 4.2 mm OD, full or partial strips with lengths up to 20 mm. Not suited for: cutting wire to length (see the automatic cut and strip machines) or conductors above 4 mm² — heavy wires up to 25 mm² belong on the pneumatic WM-1216C. If you want to stay all-electric but need more machine, the WM-1219 inductive stripper takes the same idea up to 20 mm² and 40 mm strip lengths, with wire-sensing start and 30 stored recipes for shift-long production.

Ship us a sample of your wire and we set this machine up for it, strip it on camera, and send you the footage together with the settings we used.

Engineering knowledge

Choose and troubleshoot this process

Automatic vs Semi-Automatic Wire Processing EquipmentCompare automatic lines and semi-automatic wire-processing cells using batch size, changeover, process integration, inspection and labor content.
How to Choose a Wire Cutting and Stripping MachineSelect a wire cutting and stripping machine by conductor size, cable construction, strip geometry, length tolerance, batch size and downstream process.
Wire Stripping Defects: Causes and Corrective ActionsDiagnose conductor nicks, incomplete strips, pulled strands, insulation stretch, length variation and feed marks in wire stripping operations.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-1215D — common questions

Do I need an air compressor for the WM-1215D?

No — that is the machine's whole point. It is fully electric and runs from a bench power outlet through its power adapter, so there is nothing pneumatic to install, pipe or maintain. If your workshop already runs shop air and you prefer an air-driven unit, look at its pneumatic twin, the WM-1215C.

Which insulation materials can it strip?

Rubber, PUR, PVC and Teflon insulated wires are all within its range, on solid, stranded and discrete conductors as well as single-core and multi-core cables — up to 4 mm² cross-section and 4.2 mm outer diameter.

How precise is the blade setting on very fine wire?

The stripping diameter is adjusted in 0.01 mm (0.001") increments, so on a 0.03 mm² conductor you can position the blades just clear of the copper — and return to exactly that setting the next time the job comes around.
