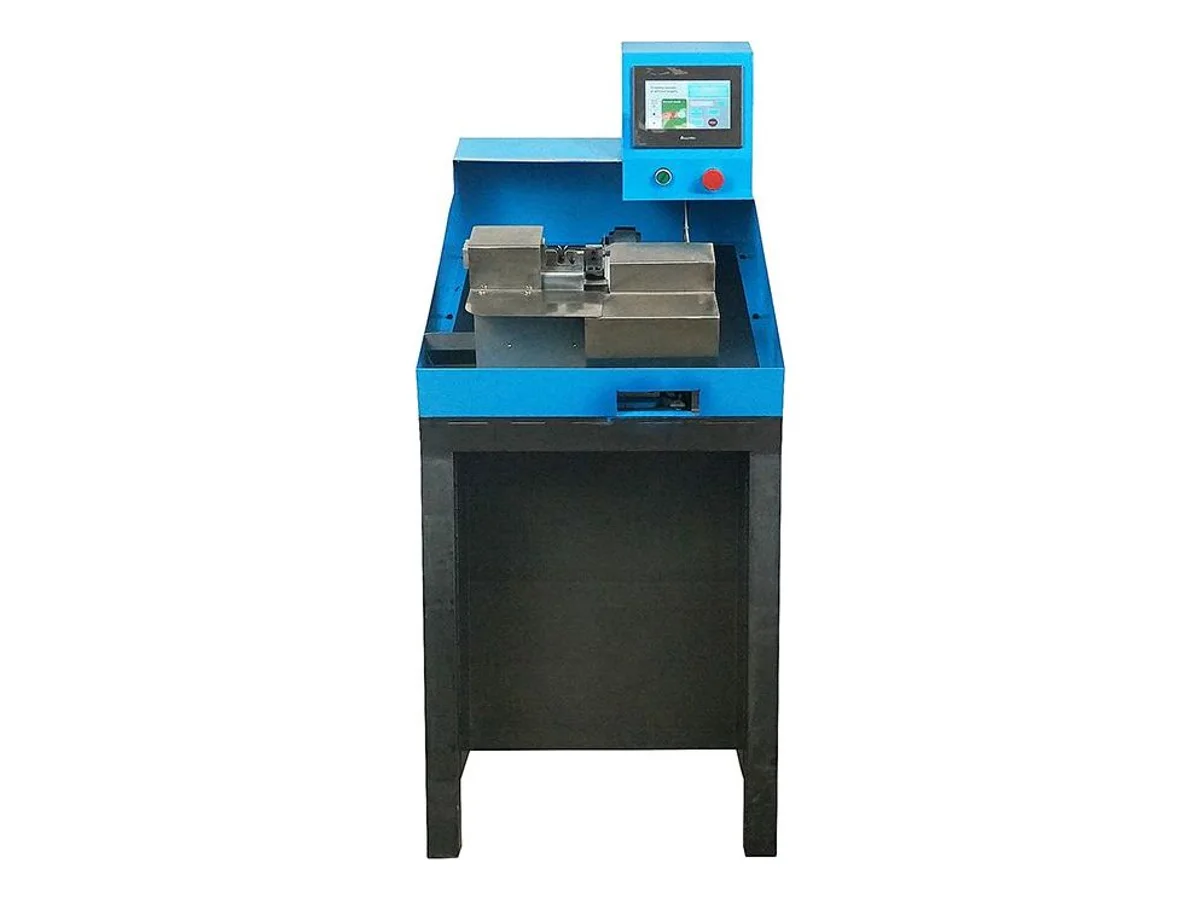

Multicore Cable Different Length Stripping Machine for Staggered Core Ends WM-198

Name: Multicore Cable Different Length Stripping Machine for Staggered Core Ends WM-198
Brand: Wiromac
SKU: WM-198

HS Code 8463.90 0.5–3.0 mm² cores 1,000–1,200 pcs/h

The WM-198 strips every core of a sheathed multicore cable to its own length in one cycle, so the finished lead comes off the machine with staggered conductor ends instead of a flush bundle. It handles core wires from 0.5 to 3.0 mm² with strip lengths from 20 to 290 mm at 1,000–1,200 pcs/hour, driven by a servo axis on a precision linear module and programmed core-by-core on a colour touch screen with an English interface.

Specifications

Function	Cutting and stripping multicore cable cores to different lengths
Core wire size	0.5 – 3.0 mm²
Stripping length	20 – 290 mm
Working speed	1,000 – 1,200 pcs/hour
Power supply	AC 220 V ±10%, 50 Hz
Maximum power	500 W
Air pressure	0.3 – 0.6 MPa
Core channels	3 independently programmed positions (1#, 2#, 3#), each switchable on or off
Per-core settings	Length, peeling length, half-strip length and wire diameter, entered separately for each core
Processing modes	Full strip, half strip, insulation-retained and cut
Drive	Servo system with precision linear module
Control system	Industrial PLC with colour touch screen — parameter entry, mode selection, alarm prompt and fault diagnosis
Pneumatics	AirTAC solenoid valves and cylinders; dry air supply recommended
Frame	High-strength steel, multi-coat sprayed finish, waste collection box inside the chassis
Blades	Blade change required when the stripping mode or the core diameter changes
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	On request

Key features

Each core gets its own strip length — set 1#, 2# and 3# separately on the screen and the conductors come out staggered, ready to drop into a stepped terminal block or connector
Cores can be switched off individually, so the same fixture runs a 2-core and a 3-core cable without retooling
Half-strip and insulation-retained modes on the same recipe, so the insulation can stay on the conductor where the next station needs it
Servo drive on a precision linear module sets the strip position, not a mechanical stop — changeover is a number on the screen
Pedestal cabinet with an internal waste box collects the insulation offcuts instead of scattering them over the bench
Free sample test — send us your cable, we run it on this machine and send you the video before you order

What it processes

Sheathed multicore cable with cores 0.5–3.0 mm², strip lengths 20–290 mm
Power cords and appliance leads where live, neutral and earth must reach different depths in a terminal block
Control and signal harnesses terminated into stepped or tiered connectors
Pre-processing before soldering, tinning or hand crimping of individual conductors

Suited for: sheathed multicore cable whose conductors must end at different lengths — cores 0.5 to 3.0 mm², strip lengths 20 to 290 mm, up to three independently programmed core positions.

Not suited for: jobs where the staggered cores also need terminals crimped on in the same pass — that is a WM-399 staggered core stripping and crimping line, which strips each conductor to its own length and crimps every core at 1,200–1,500 pcs/h. Cable that still needs its outer jacket removed on a full cut-to-length cycle belongs on the WM-168HT multi-core sheathed cable cut and strip machine (Φ3–10 mm, 2–8 cores, jacket and core stripping in one pass). Loose single-core hookup wire rather than a sheathed bundle runs faster on the WM-167 benchtop cut and strip machine at 0.1–10 mm².

Machine dimensions and weight are not published for this model — ask us in your inquiry and we will confirm the crate size and shipping weight before the quotation goes out.

Engineering knowledge

Choose and troubleshoot this process

Automatic vs Semi-Automatic Wire Processing EquipmentCompare automatic lines and semi-automatic wire-processing cells using batch size, changeover, process integration, inspection and labor content.
How to Choose a Wire Cutting and Stripping MachineSelect a wire cutting and stripping machine by conductor size, cable construction, strip geometry, length tolerance, batch size and downstream process.
Wire Stripping Defects: Causes and Corrective ActionsDiagnose conductor nicks, incomplete strips, pulled strands, insulation stretch, length variation and feed marks in wire stripping operations.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-198 — common questions

What does "different lengths" actually mean on the WM-198?

The cores inside one sheathed cable are stripped to different lengths in the same cycle. The screen holds a separate parameter set for core 1#, 2# and 3# — length, peeling length, half-strip length and wire diameter — so one conductor can end 35 mm out and the next 45 mm out. The result is a staggered end that seats directly into a stepped terminal block, without an operator trimming conductors by hand.

How many cores can it handle at once?

The control screen carries three independent core channels, and any of them can be closed if the cable has fewer conductors. Cores must fall in the 0.5–3.0 mm² range. Send us your cable drawing with the core count and the target length for each conductor and we will confirm the fit before quoting.

Does it also cut the cable to length and remove the outer jacket?

This machine is built around the core-stripping step and works on strip lengths of 20 to 290 mm. If you need the outer sheath removed and both ends processed on a full cut-to-length cycle, the WM-168HT covers Φ3–10 mm cable with 2 to 8 cores and strips the jacket and the cores in one pass — tell us where your cable starts and we will point you to the right machine.

What has to change when I switch cable types?

Parameters are typed on the screen, so a length or strip-depth change takes seconds. A blade change is needed when the stripping mode or the core diameter changes — blade sets are stocked as spare parts and we ship a spare set with the machine on request.

What air supply does it need?

0.3 to 0.6 MPa of clean, dry compressed air. The pneumatic clamps use AirTAC valves and cylinders, and wet air is the single biggest cause of short cylinder life — an air dryer or at minimum a water separator ahead of the machine is worth the money.
