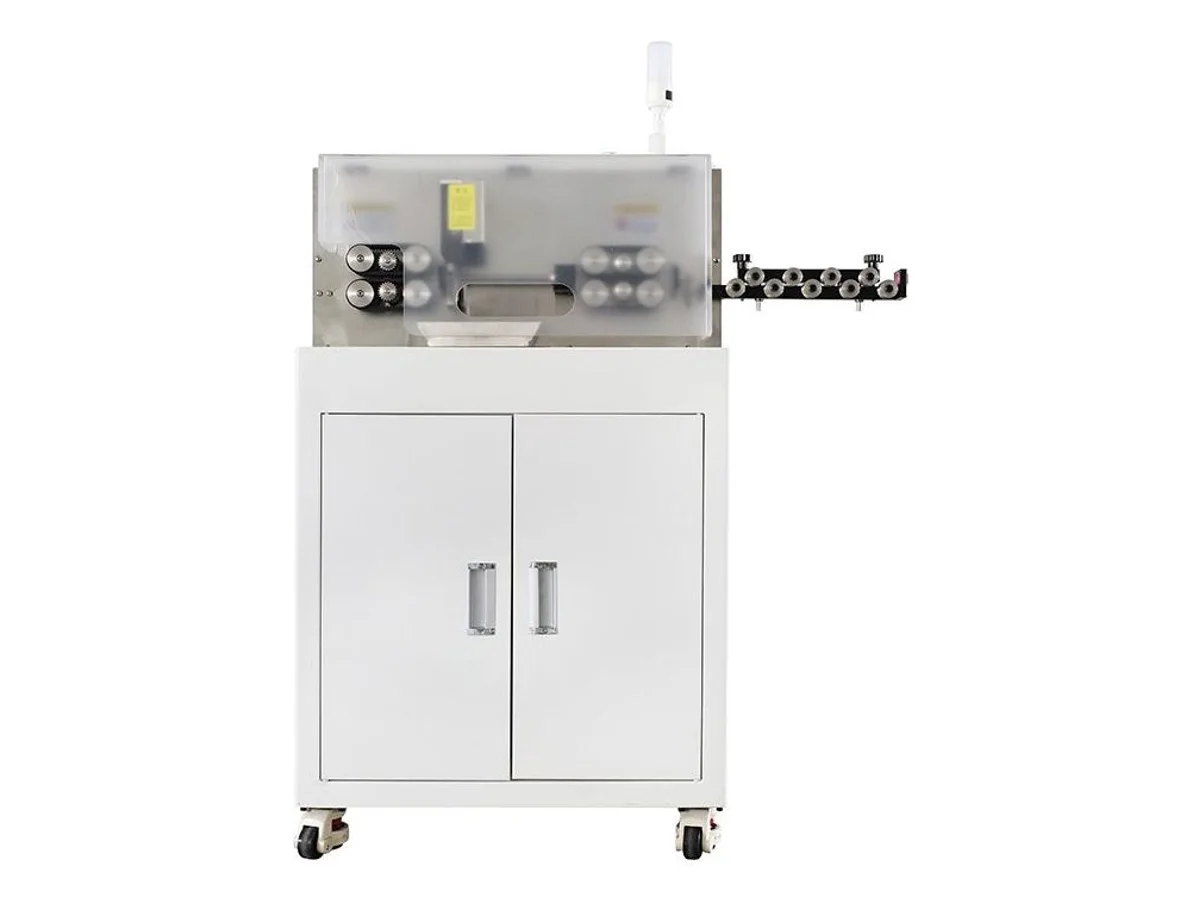

Vertical Cable Cutting and Stripping Machine for 1.5–50 mm² New-Energy Cable WM-163

Name: Vertical Cable Cutting and Stripping Machine for 1.5–50 mm² New-Energy Cable WM-163
Brand: Wiromac
SKU: WM-163

CE Certified HS Code 8463.90 1.5–50 mm² 1,500–2,500 pcs/h

The WM-163 cuts and strips multi-strand copper cable from 1.5 to 50 mm² — battery leads, energy-storage harness wire, sheathed and coaxial cable up to Φ17 mm. Its upright cabinet takes only 650 × 550 mm of floor space, while a 12-wheel drive feeds cable to any length up to 1,000 m at ±0.2% (0.002×L). It strips 250 mm at the head and 150 mm at the tail, runs 1,500–2,500 pieces per hour, and stores 200 programs on a 7-inch color touchscreen. A powered pay-off stand for heavy reels is shown in the gallery.

Specifications

Conductor cross-section	1.5 – 50 mm²
Applicable wire types	Multi-strand copper wire, coaxial cable, sheathed cable, etc.
Drive method	12-wheel drive
Max. guide pipe diameter	Φ17 mm
Cutting length	0 – 1,000 m
Cutting tolerance	± 0.002 × L (L = cutting length)
Stripping length	Head 0 – 250 mm, tail 0 – 150 mm
Min. remaining insulation	50 mm
Production rate	1,500 – 2,500 pcs/h
Display	PLC with 7-inch color touchscreen
Program memory	Up to 200 program groups
Blade material	Imported high-speed steel
Power supply	220 VAC, 50 Hz, 800 W
Weight	105 kg
Dimensions	650 × 550 × 1,100 mm
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Upright cabinet needs only 0.65 × 0.55 m of floor — 50 mm² cable capacity without a large-machine footprint
12-wheel drive pushes stiff multi-strand cable through the Φ17 mm guide pipe without slipping on the jacket
Strips heads to 250 mm and tails to 150 mm in one pass while holding ±0.2% length tolerance
Powered pay-off stand (pictured) uncoils heavy reels so the feed wheels never fight reel inertia

What it processes

New-energy vehicle and energy-storage harnesses using 1.5–50 mm² multi-strand cable
Sheathed and shielded cable prefabrication in wire harness plants
Panel builders and cable shops cutting battery and grounding leads to length

Suited for: stiff multi-strand power cable from 1.5 to 50 mm² — battery and energy-storage leads, welding-class flexible cable, sheathed and shielded cable up to Φ17 mm OD, fed from heavy reels on the pictured pay-off stand. Not suited for: fine hookup wire below 1.5 mm² — for that, pick the WM-167 benchtop cut and strip machine, which covers 0.1–10 mm² — or jobs that need the individual cores of a multicore cable stripped, where the WM-168HT multi-core machine strips sheath and cores in one program.

Special cables can be verified against your sample: send 2–3 meters of your actual cable and we run it on this machine on video before you commit. See how vertical cut-and-strip fits an EV wire harness line.

Engineering knowledge

Choose and troubleshoot this process

Automatic vs Semi-Automatic Wire Processing EquipmentCompare automatic lines and semi-automatic wire-processing cells using batch size, changeover, process integration, inspection and labor content.
How to Choose a Wire Cutting and Stripping MachineSelect a wire cutting and stripping machine by conductor size, cable construction, strip geometry, length tolerance, batch size and downstream process.
Wire Stripping Defects: Causes and Corrective ActionsDiagnose conductor nicks, incomplete strips, pulled strands, insulation stretch, length variation and feed marks in wire stripping operations.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-163 — common questions

What cable sizes can the WM-163 handle?

Multi-strand copper conductor from 1.5 to 50 mm² with outer diameter up to Φ17 mm. Head stripping reaches 250 mm and tail stripping 150 mm, and at least 50 mm of insulation must remain between strip windows.

How are heavy cable reels fed into the machine?

Through the powered pay-off stand shown in the gallery. It uncoils the reel ahead of the 12-wheel drive, so feeding stays smooth at 1,500–2,500 pieces per hour instead of stalling against reel inertia. Tell us your reel weight and flange size and we match the setup before shipping.

Is the WM-163 the right machine for thin hookup wire?

No — below 1.5 mm² a compact benchtop unit is faster and cheaper to run. The other automatic cut and strip machines in this category cover fine wire at higher piece rates; the WM-163 earns its place on stiff multi-strand cable from 1.5 to 50 mm².
