Rotary Blade Cable Cutting and Stripping Machine for 6–120 mm² Multi-Core Cable WM-170X

Name: Rotary Blade Cable Cutting and Stripping Machine for 6–120 mm² Multi-Core Cable WM-170X
Brand: Wiromac
SKU: WM-170X

CE Certified HS Code 8463.90 6–120 mm² 800–1,000 pcs/h

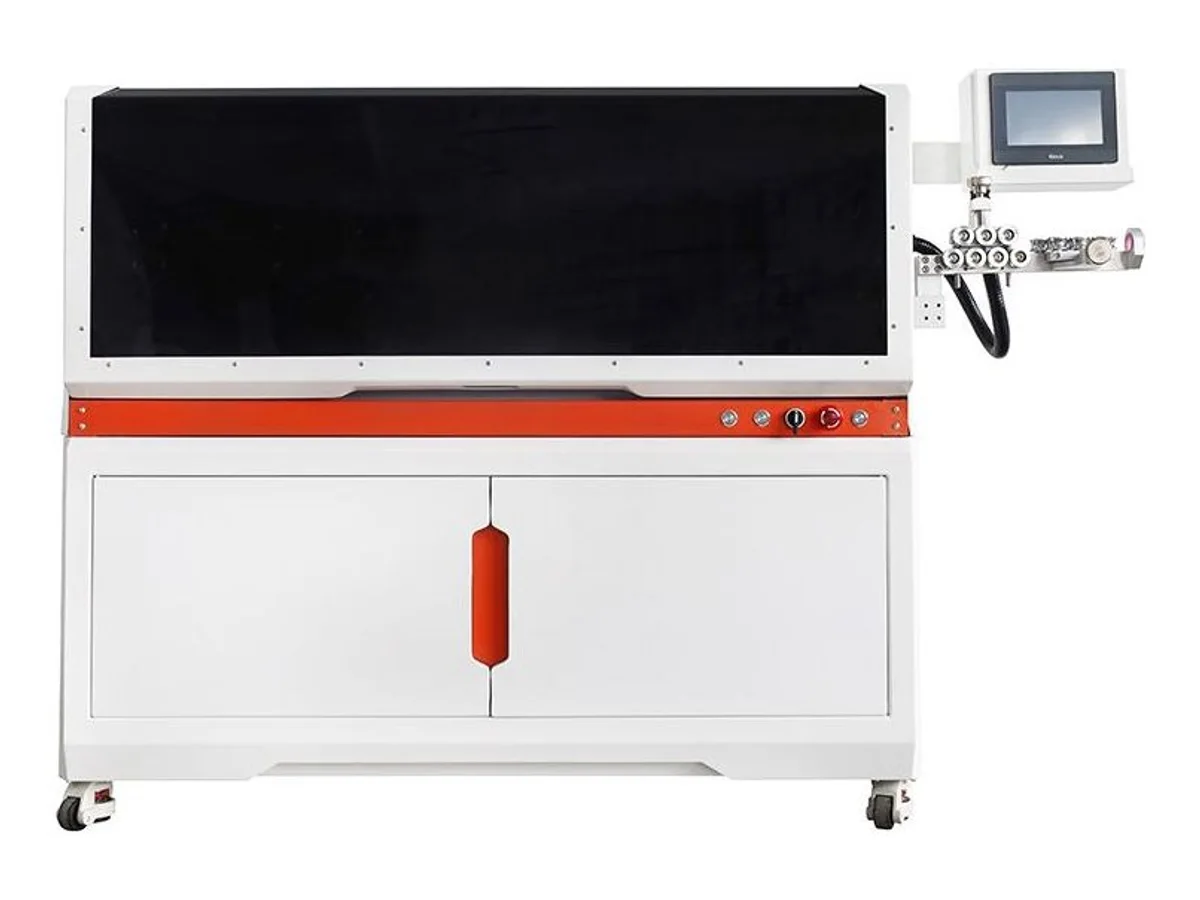

The WM-170X cuts multi-core cable from 6 to 120 mm² and strips both the outer jacket and the insulation of every inner core in one program, using a rotary blade that circles the cable for a clean cut on thick, tough jackets. Twenty-four belt-drive wheels feed cable up to Φ24 mm without embossing, cutting 1 to 999,999.99 mm at ±0.2% (0.002×L). Full stripping reaches 300 mm and half stripping 1,000 mm on the head end, at 800 to 1,000 pieces per hour. A floor-standing 1,400 × 720 × 1,460 mm frame carries a 7-inch touchscreen on a swing arm.

Specifications

Function	Cutting and stripping both outer jacket and inner core insulation of multi-core cables
Processing range	6 – 120 mm²
Cutting length	1 – 999,999.99 mm
Cutting tolerance	≤ 0.002 × L (L = cutting length)
Stripping length	Side A full strip 1 – 300 mm, half strip 1 – 1,000 mm; side B full strip 1 – 150 mm, half strip 1 – 500 mm
Max. diameter of guiding pipe	Φ24 mm
Productivity	800 – 1,000 pcs/h (depending on cable length and size)
Drive mode	24-wheel drive (feeding stepper motor, tool holder servo motor); servo feeding optional
Wire delivery method	Belt feeding — no embossing or scratches on the cable (with peeling and pressing function)
Wheel lifting method	Stepper motor lifting wheel
Lifting operation mode	Digitally adjustable pressure wheel height
Tool material	High quality imported high speed steel
Display method	7-inch human-machine interface
Power supply	AC 220 V 50/60 Hz; 110 V 50/60 Hz optional
Air source	0.5 – 0.8 MPa clean air source
Dimensions	1,400 × 720 × 1,460 mm (L×W×H)
Net weight	300 kg
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Rotary blade circles the cable instead of biting from two sides — round, scoreless jacket cuts even on tough rubber and double-insulated constructions
Jacket window plus per-core stripping in one program means a 4-core 95 mm² cable leaves the machine ready for lugs, not for a second station
24-wheel belt feed with digitally set pressure protects soft jackets while still pulling heavy cable through 999,999.99 mm programs
Six programmable layers cover jacket and core recipes per cable type, recalled from the touchscreen between batches

What it processes

EV, energy-storage and industrial power harnesses built from 6–120 mm² multi-core cable
Switchgear and machine-builder cables where every core needs its own strip length
Cable shops upgrading from hand knives on thick sheathed cable to programmed rotary cutting

Suited for: multi-core sheathed cable from 6 to 120 mm² (up to Φ24 mm OD) where the jacket and every core need programmed stripping — EV, energy-storage and switchgear harnesses. Not suited for: thin single-core wire below 6 mm² — for that, pick the WM-167 benchtop cut and strip machine, which runs 0.1–10 mm² single-core wire at several times this machine’s piece rate.

Multi-core constructions vary — send 2–3 meters of your actual cable and we run it on this machine on video before you commit. See how rotary cut-and-strip fits an EV wire harness line.

If your cable is single-run large gauge rather than multi-core — mixed sizes from 10 to 120 mm², thick or shielded jackets, no need to strip individual inner cores — the WM-193 rotary knife large gauge stripping machine is the heavier 32-wheel full-servo platform with a Φ7–30 mm guide range and a head that re-sizes itself between cable specs.

Engineering knowledge

Choose and troubleshoot this process

Automatic vs Semi-Automatic Wire Processing EquipmentCompare automatic lines and semi-automatic wire-processing cells using batch size, changeover, process integration, inspection and labor content.
How to Choose a Wire Cutting and Stripping MachineSelect a wire cutting and stripping machine by conductor size, cable construction, strip geometry, length tolerance, batch size and downstream process.
Wire Stripping Defects: Causes and Corrective ActionsDiagnose conductor nicks, incomplete strips, pulled strands, insulation stretch, length variation and feed marks in wire stripping operations.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-170X — common questions

Why a rotary blade instead of V-blades on thick multi-core cable?

A rotary blade orbits the jacket and scores it evenly all the way round, so thick or elastic sheaths come off without flattening the cable or nicking the cores underneath. V-blades close from two sides and struggle to keep depth uniform on large round cable.

Can each inner core get a different strip length?

Yes — the program treats the jacket and the cores as separate layers. Side A strips fully to 300 mm or half-strips to 1,000 mm, side B to 150 mm full and 500 mm half, so staggered terminations for distribution blocks come straight off the machine.

Is it the right machine for thin control wire below 6 mm²?

No — the feed and rotary head are sized for 6–120 mm² cable up to Φ24 mm. For 0.1–30 mm² wire at several thousand pieces per hour, the benchtop cut and strip machines in this category are the economical fit.
