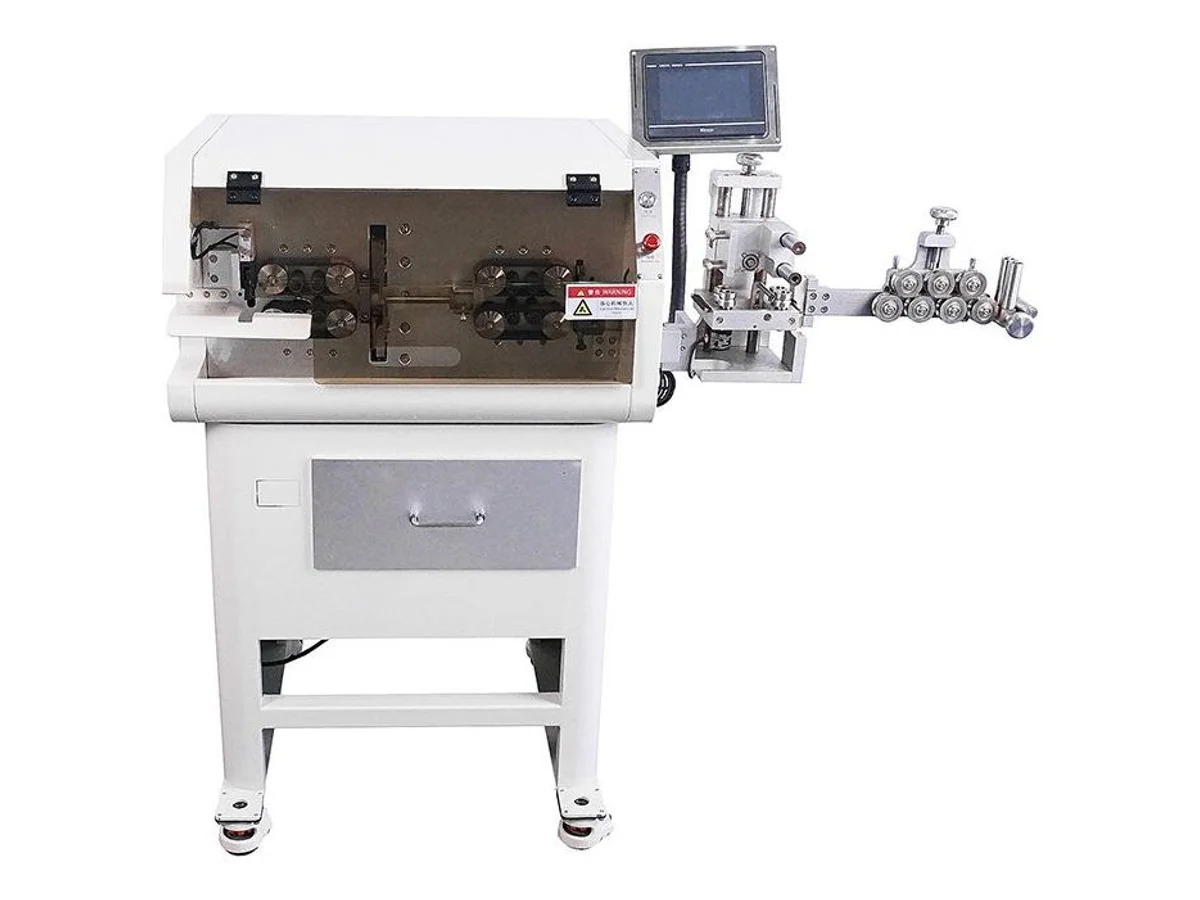

High-Speed Cable Cutting and Jacket Stripping Machine for 6–30 mm² Sheathed Cable WM-169Y

Name: High-Speed Cable Cutting and Jacket Stripping Machine for 6–30 mm² Sheathed Cable WM-169Y
Brand: Wiromac
SKU: WM-169Y

CE Certified HS Code 8463.90 6–30 mm² 2,300 pcs/h

The WM-169Y cuts sheathed and PVC cable from 6 to 30 mm² to length and strips the outer jacket in the same cycle, at up to 2,300 pieces per hour. It accepts cable up to Φ16 mm, cuts from 1 mm to 99,999.9 mm within 0.002×L, and strips up to 120 mm at the head and 240 mm at the tail. Belt-driven feeding and an inline roller straightener keep coiled cable running straight, and jobs are programmed on a 7-inch color touchscreen with an English interface.

Specifications

Function	Cutting and stripping
Stripping range	6 – 30 mm²
Wire type	Sheathed cables, PVC cables, etc.
Max. guide tube diameter	Φ16 mm
Cutting length	1 – 99,999.9 mm
Cutting tolerance	Within 0.002 × L (L = cutting length)
Head stripping	Max. 120 mm
Tail stripping	Max. 240 mm
Blade material	High-quality imported high-speed steel
Display	7-inch true color touchscreen
Production rate	2,300 pcs/h
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Cuts and jacket-strips 6–30 mm² sheathed cable at up to 2,300 pieces per hour on one machine
Flat-belt feeding spreads grip over a long contact patch, so soft PVC jackets come through unmarked
Inline roller straightener takes the set out of coiled cable for straight, consistent pieces
English-interface touchscreen tracks set quantity, finished count and batch size for unattended runs

What it processes

Multi-core sheathed power cords and rubber-jacketed flexible cable from 6 to 30 mm²
Shielded sheathed cable where the jacket comes off ahead of braid processing
Cable assembly shops batch-cutting jacketed cable to exact length

Suited for: sheathed and PVC-jacketed cable from 6 to 30 mm² (up to Φ16 mm OD) that needs cutting to length and outer-jacket stripping at high piece rates — power cords, shielded sheathed cable before braid work, and flexible multi-core cable. Not suited for: stripping the inner cores of multicore cable or thick cable above 30 mm² — for jacket-plus-core stripping on Φ3–10 mm multicore, pick the WM-168HT multi-core machine; above 30 mm², the WM-1450 thick cable machine carries the same cut-and-strip work to 150 mm².

Jacket compounds behave differently under the blade: send 2–3 meters of your actual cable and we run it on this machine on video before you commit.

Engineering knowledge

Choose and troubleshoot this process

Automatic vs Semi-Automatic Wire Processing EquipmentCompare automatic lines and semi-automatic wire-processing cells using batch size, changeover, process integration, inspection and labor content.
How to Choose a Wire Cutting and Stripping MachineSelect a wire cutting and stripping machine by conductor size, cable construction, strip geometry, length tolerance, batch size and downstream process.
Wire Stripping Defects: Causes and Corrective ActionsDiagnose conductor nicks, incomplete strips, pulled strands, insulation stretch, length variation and feed marks in wire stripping operations.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-169Y — common questions

What cable does the WM-169Y accept?

Sheathed and PVC cable with conductors from 6 to 30 mm² and outer diameter up to Φ16 mm. It strips the outer jacket up to 120 mm at the head and 240 mm at the tail while cutting any length from 1 mm to 99,999.9 mm.

Will the feed system mark soft jackets?

Feeding is by flat belts rather than pinch rollers, so clamping force spreads along the cable instead of concentrating on one point — this matters on soft PVC and rubber sheaths. For unusual jackets, send a 2–3 meter sample and we run it on camera before you order.

Does it strip the individual cores inside the jacket?

No — the WM-169Y removes the outer jacket only. If you also need the inner cores stripped, look at the multi-core cut and strip machines in this category and pair the two stations.
