Parallel Twin Cable Splitting and Stripping Machine for 2–12 Pin Flat Cable WM-1227

›

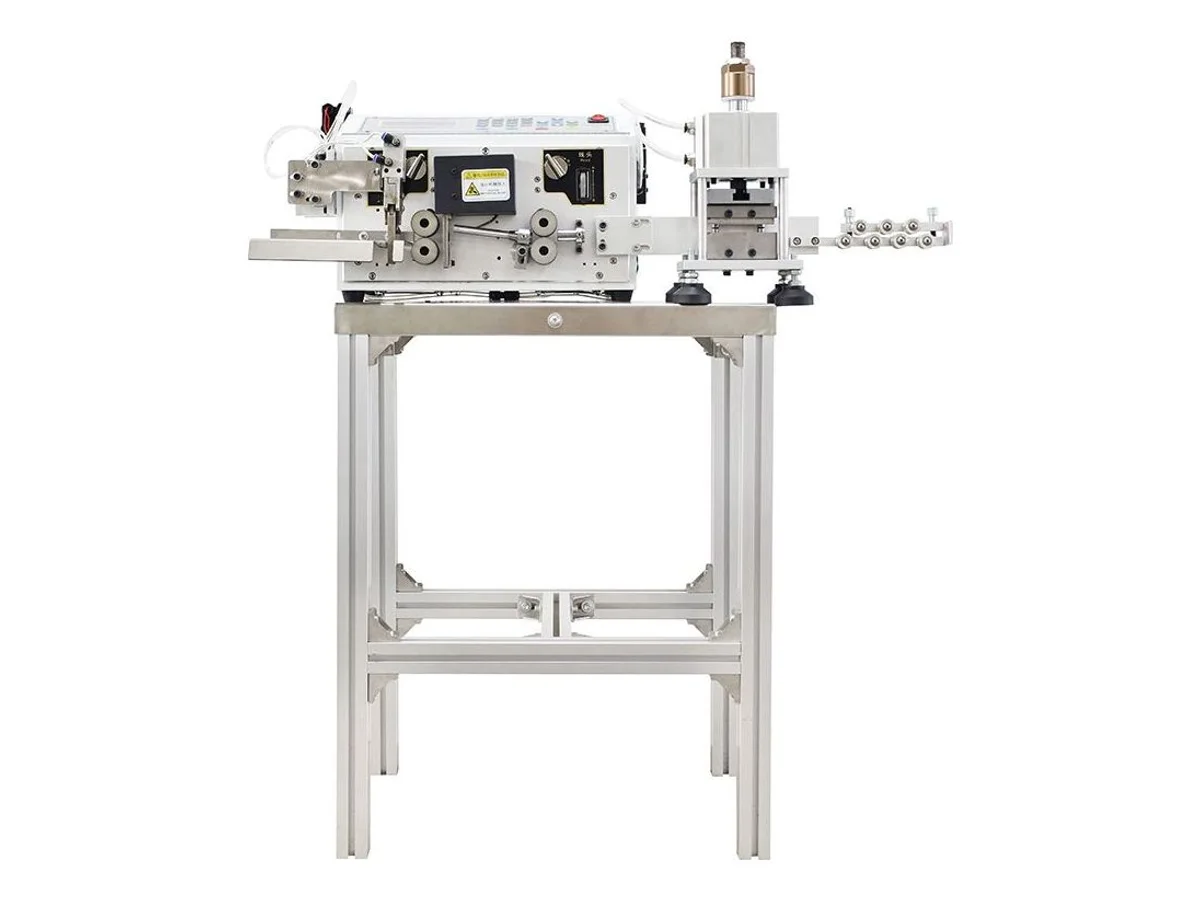

The WM-1227 takes parallel twin cable — the bonded two-conductor cord used for speakers, LED feeds and appliance leads — and multi-pin flat cable up to 12 pins, and cuts, splits and strips it in one automatic cycle. Conductors run 0.1 to 10 mm² each, cutting length 1 to 99,999.9 mm at a 0.002 × L tolerance, and the split runs 0.1 to 150 mm back from the end. Head stripping reaches 25 mm and tail stripping 80 mm, with up to 15 middle-strip sections per piece, at 3,000 to 8,000 pieces per hour from a 400 × 300 × 330 mm, 40 kg head.

Specifications

Key features

• Splitting run of 0.1 to 150 mm — the web between conductors is opened far enough back that each tail is free to route to its own terminal, not just nicked at the tip
• Long strip windows for this class of machine — 25 mm at the head and 80 mm at the tail, so lug, screw and IDC terminations all fall inside the range
• Up to 15 middle-strip sections per piece for mid-span taps and breakouts, programmed by position along the cable
• 4-wheel drive feed with adjustable cable pressure — soft parallel jackets pass without crushing while the stepper feed holds 0.002 × L on length
• Automatic feeding with output count and timing start, so a batch runs unattended once the piece count is entered
• Free sample test — send 2–3 meters of your actual cable, we run it on this machine and send you the video before you order

What it processes

• Speaker wire, LED strip feed cord and audio zip cord cut, split and stripped for terminals
• Two-core appliance and lamp leads prefabricated to length with both ends opened
• Multi-pin flat cable up to 12 conductors for instruments, motors and toy wiring
• Harness shops replacing hand knife splitting of parallel-bonded cable

Suited for: parallel twin cable and multi-pin flat cable up to 12 pins that fits a 3 × 20 mm conduit, with conductors of 0.1–10 mm², where the job needs a long split (0.1–150 mm) and long strip windows — 25 mm at the head, 80 mm at the tail — plus middle-strip sections along the run.

Not suited for: flat cable thicker or wider than the 3 × 20 mm conduit, heavy flat power cable, round sheathed cable, or work that ends with a terminal on every conductor. For wider signal ribbon, the WM-1220 flat ribbon cable cutting and stripping machine passes 2–12 pin cable through a 100 × 22 × 2.8 mm channel, though its strip windows stop at 15 mm. For 2-pin zip cord alone, with no middle stripping needed, the WM-182 flat cable cutting, stripping and splitting machine strips 0.1–30 mm at 1,000–2,000 pieces per hour. For flat power cable, the WM-161PX flat cable cutting, slitting and stripping machine covers 10–120 mm² conductors through a Φ30 mm guide. If the two conductors arrive as two separate loose wires rather than bonded side by side, the WM-186 two-wire cut and strip machine runs both leads in parallel up to 6 mm². If every conductor also needs a crimped terminal, the WM-3215 flat ribbon cable double-end crimping machine splits, strips and crimps 3–20 pin cable.
