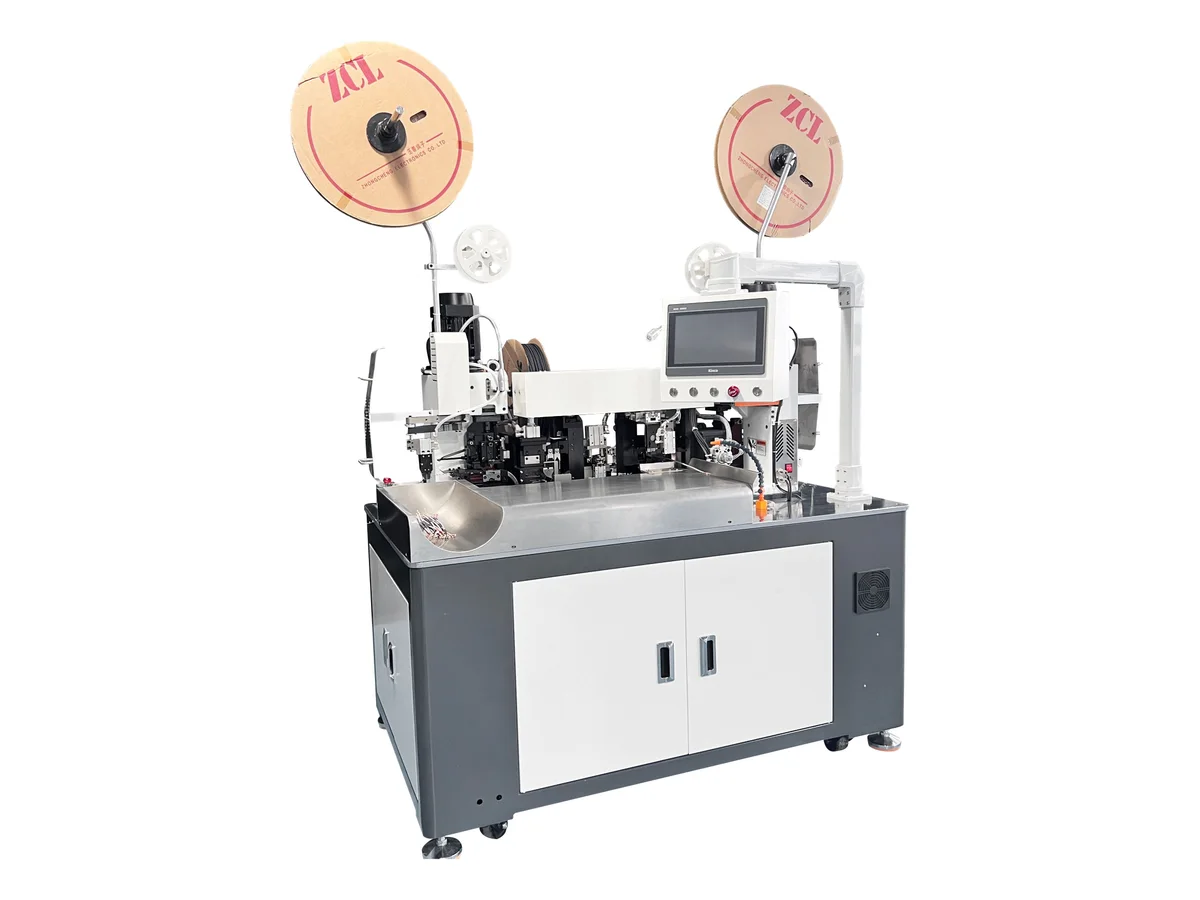

Automatic Sheathed Cable Crimping and Heat Shrink Tube Inserting Machine WM-394

Name: Automatic Sheathed Cable Crimping and Heat Shrink Tube Inserting Machine WM-394
Brand: Wiromac
SKU: WM-394

HS Code 8463.90

The WM-394 turns multi-core sheathed cable into sleeved, crimped leads in one automatic cell — jacket and core stripping, terminal crimping at two reel-fed stations, then heat-shrink tubing drawn from a continuous spool, threaded over the joint and shrunk in place. Jobs are set on a Kinco color touchscreen and finished leads drop into a stainless collection tray. Wire-range and cycle-rate figures are confirmed against your actual cable: send a 2–3 meter sample and we return a trial-run video before you order.

Specifications

Function	Sheathed cable stripping (jacket and cores), terminal crimping, heat-shrink tube inserting and shrinking — fully automatic
Wire type	Multi-core sheathed cable
Terminal feed	Reel-fed terminals, two crimping stations
Heat-shrink tube feed	Continuous tubing fed from spool
Display	Kinco color touchscreen with hardware emergency stop
Output	Stainless steel collection tray
Base	Enclosed cabinet on casters with leveling feet
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	On request

Key features

One pass from raw sheathed cable to finished lead — strip, crimp and sleeve without operators threading tube between stations
Two crimping stations fed straight from terminal reels, so both crimp points stay loaded during production
Heat-shrink tubing pulled from a continuous spool rather than pre-cut sleeves — one bulk consumable instead of bagged sleeve batches
Job settings entered on a Kinco color touchscreen; emergency stop and status buttons sit on the same panel at eye level
Free sample test — send 2–3 meters of your cable, we run it on this machine and send you the trial video before you order

What it processes

Multi-core sheathed cable leads that need crimped terminals protected by heat-shrink sleeves
Appliance, power-tool and equipment leads where the crimp joint must leave the line already insulated
Harness shops replacing manual tube threading and separate shrink ovens with a single inline step

Suited for: multi-core sheathed cable that must leave the machine stripped, crimped and already sleeved — the heat-shrink tube is threaded and shrunk inline, so no downstream oven or manual tube handling. Not suited for: loose discrete wires — for single-wire crimping with heat-shrink sleeves (plus inline laser marking), pick the WM-389 crimping and shrink tube inserting machine covering 0.3–5 mm²; and if your sheathed cable needs a twisted, tinned end instead of a sleeved crimp, the WM-391 sheathed cable crimping and tinning machine handles OD 2.0–6.5 mm cable with 2–10 cores. Where no sleeve is required at all and the cores simply have to be stripped to staggered lengths and crimped, the WM-399 staggered core stripping and crimping machine does that on 2-core and 3-core cable at 1,200–1,500 pcs/h.

Sheathed cable is the least forgiving input in crimping automation — jacket hardness, core lay and sleeve position all shift from one cable construction to the next. That is why we publish tooling-dependent figures only after proving them on your material: send 2–3 meters of your actual cable, and we run it on this machine on camera — stripping, both crimps and the shrunk sleeve all in one take — before you commit.
