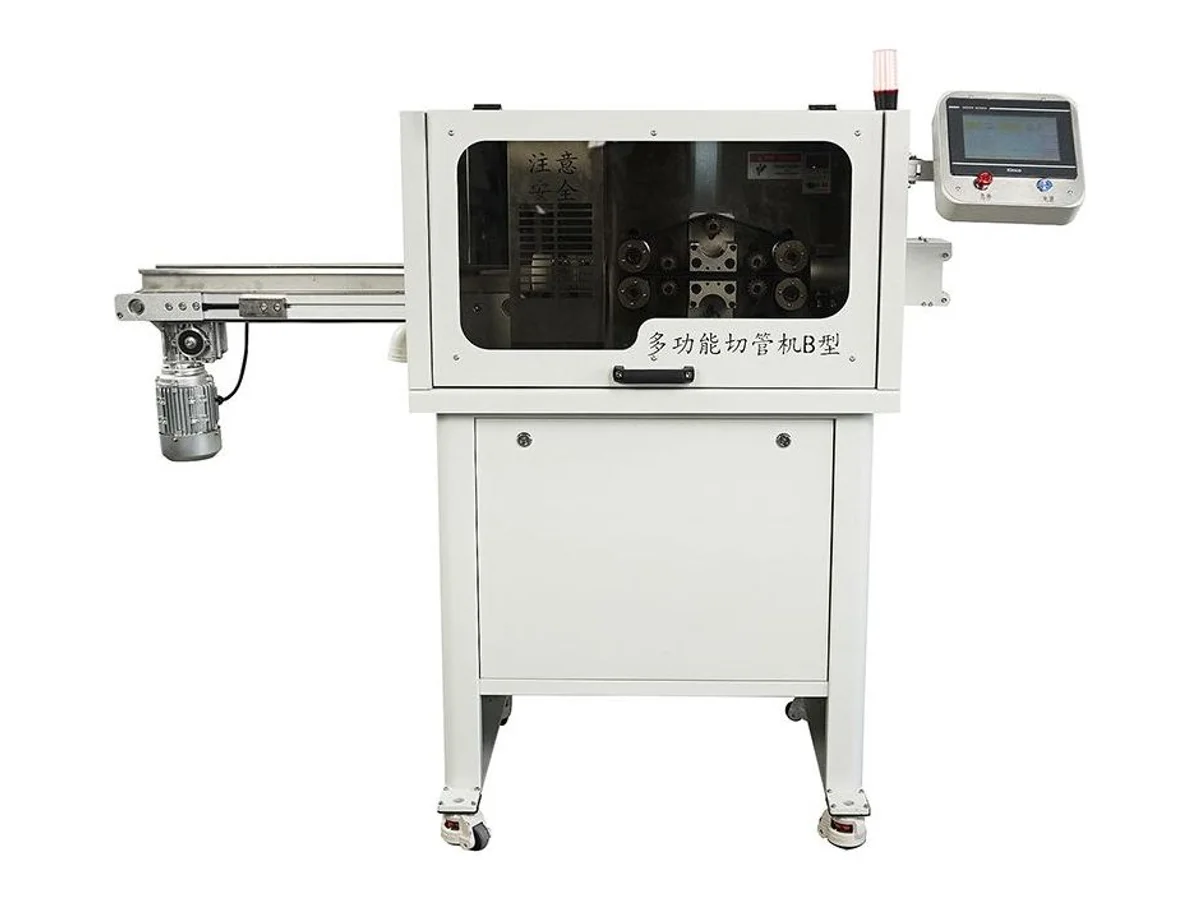

Automatic Tube Cut-to-Length Machine for Hose, Conduit and Pipe up to Φ40 mm WM-582

›

The WM-582 is a floor-standing cut-to-length machine for tube and hose from Φ1 to Φ40 mm — corrugated conduit, PVC-coated flexible metal conduit, plastic and PVC pipe, silicone hose and similar profiles. A servo crawler feed pulls the tube through a roller guide, a 1 kW motor-driven rotating round blade cuts it square, and finished pieces leave on a conveyor belt, so a coil of tube becomes counted, bagged-ready lengths without an operator handling each cut. Length error is ±0.5 mm and output runs 20 to 40 pieces per minute depending on cut length. Batches are set on an English touchscreen. The machine measures 1,020 × 530 × 1,300 mm, weighs about 270 kg and runs on 220 V with 0.5–0.7 MPa shop air.

Specifications

Key features

• One machine covers a whole shelf of tube — soft silicone hose, rigid PVC pipe and PVC-coated flexible conduit all run on the same frame, with the cutting tool exchanged for the material instead of buying a second machine
• Motor-driven rotating blade shears through the wall rather than pinching it flat, so thick-wall hose and steel-cored flexible conduit leave the machine with a square, open bore
• Servo crawler feed grips over a long belt contact area — the tube is carried, not squeezed by two pinch wheels, which keeps printed and glossy jackets unmarked
• Conveyor belt outfeed drops counted pieces clear of the cutting zone, so one operator can load a coil and walk away instead of catching every piece by hand
• Free sample test — send us 2–3 m of your tube, we run it on this machine and send you the cut samples and the trial video before you order

What it processes

• Cutting corrugated loom and PVC-coated flexible metal conduit to counted kit lengths for electrical panels and wire harness lines
• Silicone, PVC and rubber hose cut-to-length for appliance, automotive and fluid-line assembly
• Plastic and PVC pipe prep in cable accessory, appliance and machine-building plants
• Contract packers supplying bagged, pre-cut tube sets to assembly customers

Suited for: mixed tube and hose cut-to-length work from Φ1 to Φ40 mm — corrugated conduit, PVC-coated flexible metal conduit, plastic and PVC pipe, silicone hose — where the shop runs several materials on one machine and wants counted pieces off a conveyor at ±0.5 mm.

Not suited for: bare copper, aluminum, stainless or armored metal tube, which needs the saw-type tooling of the WM-183 metal tube cutting machine (Φ1–30 mm). Heat shrink tube and soft sleeving cut faster and tighter on the WM-565N heat shrink tube cutting machine (up to Φ38 mm at ±0.1 mm, 60–210 pcs/min). High-volume corrugated loom in the 4–32 mm range belongs on the WM-177FY high-speed corrugated tube cutting machine with its enclosed pay-off. If the job is a continuous helical cut down a plastic pipe rather than cross cuts, that is the WM-571 spiral cutting machine; and braided sleeve or webbing that must leave the blade with heat-sealed, fray-free ends goes to the WM-576 computerized hot knife cut-to-length machine.

Cutting tools are exchangeable on this frame, so tell us the tube material, wall thickness and outer diameter in your inquiry — we quote the machine with the blade and guide set matched to your part, not a generic configuration.
