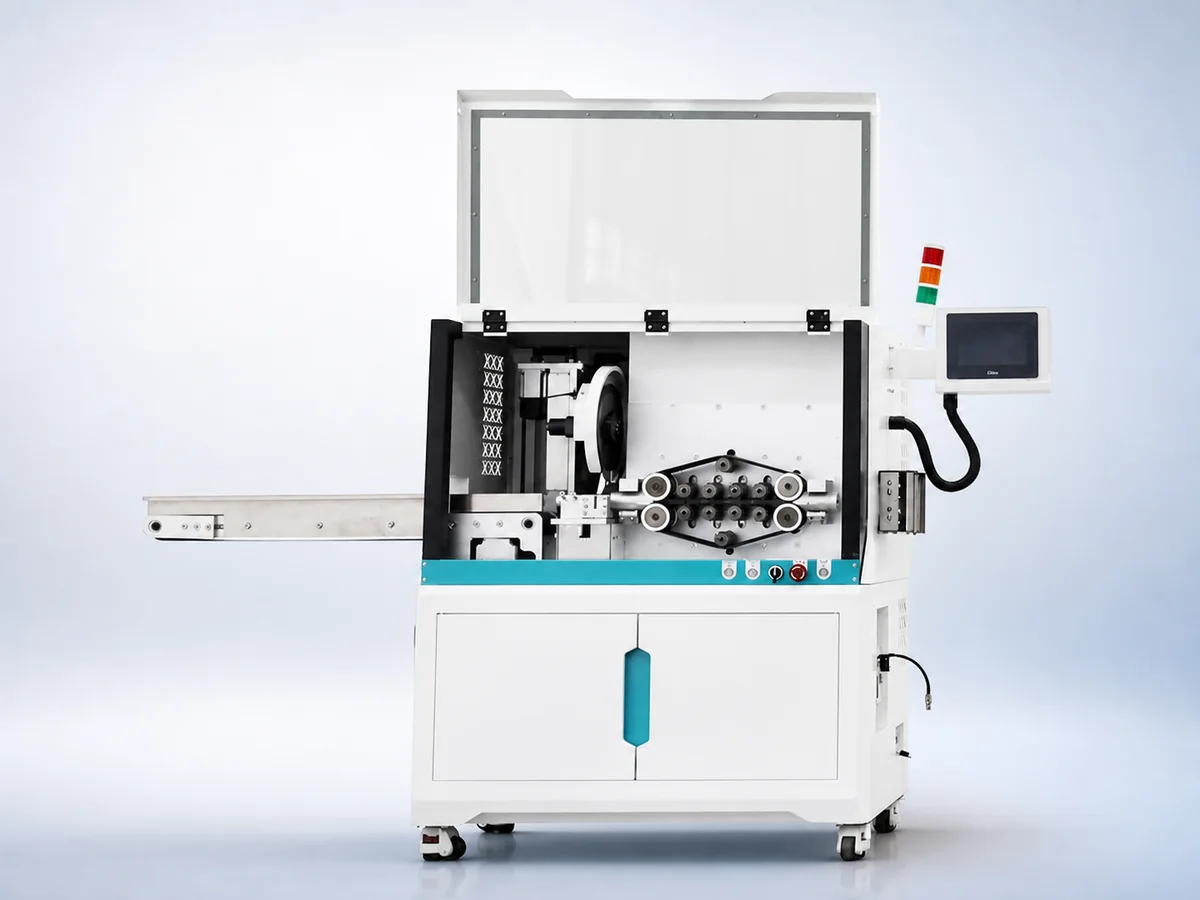

Automatic Metal Tube Cutting Machine for Copper, Aluminum and Armored Pipe WM-183

Name: Automatic Metal Tube Cutting Machine for Copper, Aluminum and Armored Pipe WM-183
Brand: Wiromac
SKU: WM-183

CE Certified HS Code 8461.50 Φ1–30 mm tube 20–100 pcs/min

The WM-183 cuts metal tubing to length with a rotating circular blade — armored pipe, copper, aluminum and stainless steel tube from Φ1 to Φ30 mm. Crawler feeding under digital servo control advances the tube in 150 mm strokes and holds length error to 0.005 × L, while the 1 kW blade motor (expandable to 2 kW) takes toothless, toothed or grinding-wheel blades to match the material. Output runs 20–100 pieces per minute onto a conveyor belt, and a pay-off rack plus bulk feeder keep it running from coiled stock.

Specifications

Function	Automatic metal tube cutting to length
Cutting diameter	Φ1 – Φ30 mm
Applicable materials	Armored pipe, copper pipe, aluminum pipe, stainless steel pipe and other tubing
Cutting method	Rotating circular knife — toothless saw blade, toothed saw blade or grinding-wheel blade
Length error	0.005 × L (L = cut length)
Speed	20 – 100 pieces/min (depending on length)
Feeding method	Crawler feeding, digital-control servo motor
Feed stroke	150 mm
Cutter motor	Servo motor, 1 kW (expandable to 2 kW)
Discharging method	Conveyor belt output
Control system	Motion control panel + human-machine interface
Power supply	220 V, 50 – 60 Hz, 1,900 W
Air pressure	0.5 – 0.7 MPa
Dimensions	1,020 × 530 × 1,300 mm (excluding protrusions)
Weight	About 270 kg
HS Code	8461.50 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

One machine spans Φ1 to Φ30 mm metal tube — swap between toothless, toothed and grinding-wheel blades to match armored, copper, aluminum or stainless material
Crawler-belt feeding driven by a digital-control servo grips the tube over a long contact area, so thin-wall copper feeds without crushing and length error stays within 0.005 × L
20–100 cuts per minute discharged onto a conveyor — pair it with the pay-off rack and bulk feeder and it runs from coiled stock without an operator standing by
Enclosed cutting zone with safety cover and alarm tower keeps swarf and blade exposure away from the operator

What it processes

Flexible armored conduit and shielding tube cut to length for wire harness protection
Copper and aluminum tube blanks for HVAC, refrigeration and heat-exchanger assembly
Stainless steel tube sections for appliance, furniture and automotive production

Suited for: cutting metal tube to length — flexible armored conduit, copper and aluminum tube, stainless steel pipe from Φ1 to Φ30 mm, fed from coils or straight lengths. Not suited for: soft braided sleeving, ribbon or corrugated plastic conduit — for braided sleeve and foam tube, pick the WM-570S hot knife cutting machine, which cuts them with heat-sealed ends; ribbon and conduit run on the other tube and pipe cutting machines with ultrasonic and cut-split tooling. Wound spring stock — bare spring guard or PVC-sheathed spring pipe, where the coil has to stay open at the cut — runs on the WM-588 spring pipe cutting machine instead, which covers the same Ø1–30 mm range with belt feeding. And if chips are the problem rather than the speed — fluid lines where swarf left in the bore is unacceptable, or pipe above Φ30 mm — the WM-593 rotary chipless pipe cutting machine separates 10–100 mm pipe with a rolling cutter wheel, producing no chips and no burr.

Unusual tube materials can be verified against your sample: send 2–3 meters of your actual tube and we run it on this machine on video before you commit.

Engineering knowledge

Choose and troubleshoot this process

How to Choose a Tube and Pipe Cutting MachineChoose tube and pipe cutting equipment by material, diameter, wall thickness, rigidity, cut mechanism, tolerance, end quality and chip-control requirements.
Tube Cutting Defects: Causes and Corrective ActionsTroubleshoot angled cuts, crushed tube, burrs, stringing, length drift, corrugated-tube splitting errors and feed slippage.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-183 — common questions

Which tube materials and diameters can the WM-183 handle?

Metal tubing from Φ1 to Φ30 mm — armored pipe, copper, aluminum, stainless steel and similar. The rotating circular knife accepts toothless saw blades, toothed saw blades or grinding-wheel blades, so you match the blade to the wall material instead of forcing one blade to do everything.

How does it keep length consistent when cutting from a coil?

A servo-driven crawler belt feeds in controlled 150 mm strokes and holds length error to 0.005 × L — 1.5 mm on a 300 mm cut. Coiled stock runs through the optional pay-off rack and bulk feeder, which unwind material ahead of the crawler so feed tension stays constant.

Can it also strip insulation or cut electrical cable?

No — it is a dedicated metal tube cutter with no stripping blades. For insulated wire and cable that needs cutting plus stripping, use the wire cutting and stripping machines instead.
