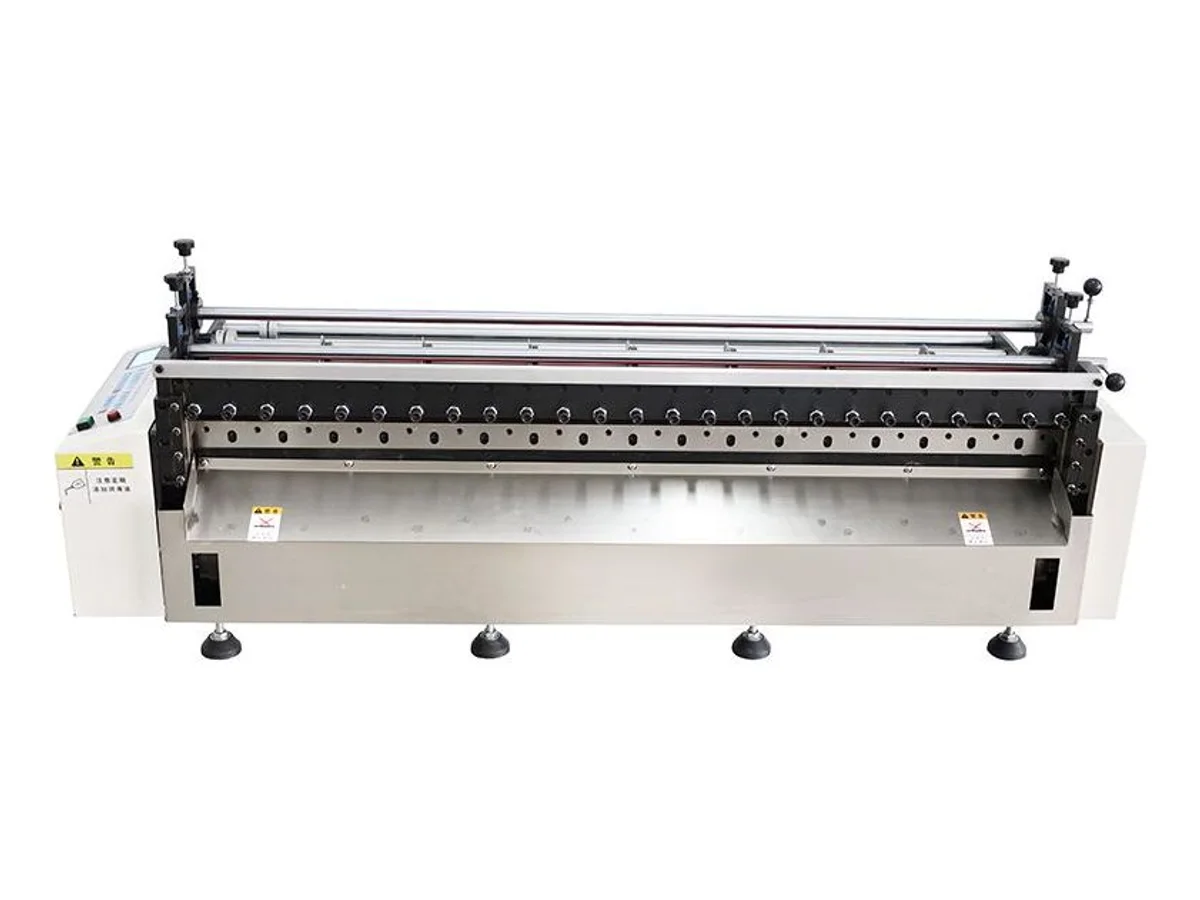

Roll to Sheet Cutting and Slitting Machine for 1220 mm Film, Foil and Foam WM-575S

Name: Roll to Sheet Cutting and Slitting Machine for 1220 mm Film, Foil and Foam WM-575S
Brand: Wiromac
SKU: WM-575S

CE Certified HS Code 8461.50 30–120 pcs/min

The WM-575S converts roll stock into finished sheets and strips in one pass — a cross-cut blade chops the web to length while rotary slitters divide it lengthwise, on material up to 1,220 mm wide. A closed-loop feed motor with optical tracking holds cutting accuracy to 0.1 mm over lengths from 0.1 to 99,999.9 mm, at 30–120 sheets per minute. It converts insulation paper, PVC and PET film, EVA foam, non-woven cloth, and copper or aluminum foil. The 2,500 × 1,550 × 1,220 mm frame runs on 220 V, 50/60 Hz.

Specifications

Function	Roll-to-sheet cross cutting and lengthwise slitting
Cutting width	1 – 1,220 mm, adjustable
Cutting length	0.1 – 99,999.9 mm
Cutting accuracy	0.1 mm
Cutting speed	30 – 120 pcs/min
Feeding motor	High-precision closed-loop motor
Cutter material	SKD-11 high speed steel
Cutter motor	High-power AC motor
Power	220 V, 50/60 Hz
Dimensions	2,500 × 1,550 × 1,220 mm
HS Code	8461.50 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Cross cutting and slitting run together — one roll goes in, sheets cut to length and strips slit to width come out, with no second pass through another machine
Closed-loop feed motor and electric optical tracking hold 0.1 mm cutting accuracy across the full 1,220 mm width
One machine converts film, paper, foam, cloth and metal foil — swap recipes on the English micro-computer panel instead of changing machines
SKD-11 blades driven by a high-power AC motor stay sharp through copper and aluminum foil, not just soft film

What it processes

Insulation paper and barrier film sheets for transformer, battery and electronics assembly
PVC, PET and automotive film, bubble film, pearl cotton and EVA foam blanks for packaging converters
Copper and aluminum foil sheets for shielding, gasketing and laminating work

Suited for: converting flexible roll stock up to 1,220 mm wide into sheets and strips — insulation paper, PVC/PET film, bubble film, EVA foam, non-woven and polyester cloth, copper and aluminum foil. Not suited for: rigid board, round tube or profile stock — for conduit, pipe and sleeve work, pick the matching machine from the dedicated tube and pipe cutting range — nor any wire or cable processing.

Films, foams and foils each feed and shear differently, so we prove it first: send a short roll of your actual material and we convert it on this machine on video — sheet size checked on camera — before you commit.

Engineering knowledge

Choose and troubleshoot this process

How to Choose a Tube and Pipe Cutting MachineChoose tube and pipe cutting equipment by material, diameter, wall thickness, rigidity, cut mechanism, tolerance, end quality and chip-control requirements.
Tube Cutting Defects: Causes and Corrective ActionsTroubleshoot angled cuts, crushed tube, burrs, stringing, length drift, corrugated-tube splitting errors and feed slippage.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-575S — common questions

Can the WM-575S cut sheets and strips at the same time?

Yes — that is the point of the machine. Rotary slitter blades and score-cut knife holders position anywhere across the shaft to set strip widths, while the cross-cut beam chops the web to programmed length. A roll becomes finished blanks in a single pass.

Which materials will it convert?

Insulation paper, kraft paper, PVC film, PET film, automotive film, bubble film, pearl cotton, EVA foam, non-woven cloth, polyester cloth, plus copper and aluminum foil. Width adjusts from 1 to 1,220 mm and length from 0.1 to 99,999.9 mm, with 0.1 mm accuracy held by the optical tracking system.

What is the WM-575S not built for?

It converts flexible web from rolls — it is not for rigid board, round tube or profile stock. Corrugated conduit, PVC pipe and heat shrink sleeve run on the dedicated cutters in the tube and pipe cutting category, and wire or cable cutting is outside its scope entirely.
