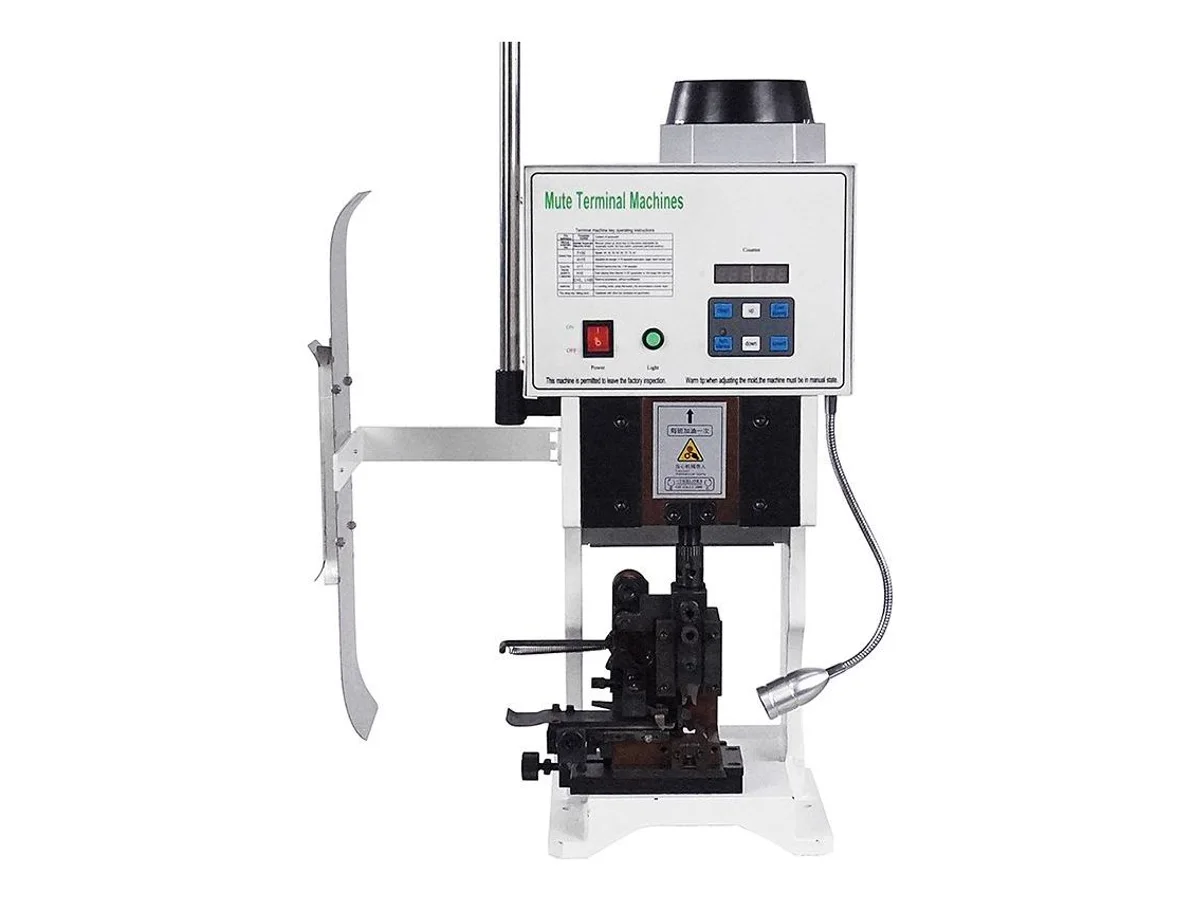

2 Ton Low-Noise Terminal Crimping Machine with Interchangeable Applicators WM-3102T

›

The WM-3102T is a 2.0-ton semi-automatic press for crimping computer, DC, AC, single-piece and joint terminals with interchangeable applicators. Its 750 W motor, 30 mm stroke and English counter controls fit compact bench production, while the 240 × 270 × 650 mm machine weighs 55 kg. The stroke can be customized to 40 mm, and power is available as 220 V / 50 Hz or 110 V / 60 Hz.

Specifications

Key features

• 2.0 tons of crimping output in a compact 240 × 270 mm bench footprint
• Interchangeable OTP transverse, OTP positive, OTP reverse and 2000# applicators for production changeovers
• Counter controls set 1–20 operations and let the operator adjust the interval between operations
• 30 mm standard stroke with a 40 mm customized stroke available for taller tooling
• Available for 220 V / 50 Hz or 110 V / 60 Hz electrical service

What it processes

• Operator-fed crimping of reel or chained terminals on computer, DC and AC wire assemblies
• Single-piece and joint terminal crimping with the matching applicator installed
• Mixed small-batch harness production where applicator changes are part of daily work

Suited for: compact, semi-automatic crimping of operator-fed reel, chained, single-piece and joint terminals where a 2.0-ton press and interchangeable applicators cover the job. Not suited for: stripping the wire end at the same station — use the WM-3120BT strip-and-crimp machine for AWG 32–20 wire — or for automatic cut-strip-crimp production, where the WM-3202 double-end line turns spooled wire into finished leads.

This is the small bench press in the range: 2.0 tons of output, a 30 mm stroke and a 55 kg frame. Daily changeover is primarily an applicator decision. OTP transverse, OTP positive, OTP reverse and 2000# molds are listed for the platform, but the terminal strip and crimp profile must be matched before tooling is selected. The counter can run 1–20 operations with an adjustable interval when a repeated cycle is useful.

A same-force alternative exists if the frame matters more to you than the electrical options — the WM-3229 cast iron frame terminal crimping machine is rated at the same 2,000 kg and 750 W but is built as a one-piece casting, 280 × 320 × 650 mm and 50 kg, published for 220 V / 50 Hz only and without a published stroke figure. The WM-3102T stays the choice when you need 110 V / 60 Hz, the stated 30 mm stroke, or a different force step in the 1.5–10 T family.

For higher-force precision terminals, step up to the WM-3130T servo press family in 8–30 ton versions. For large cable lugs, the WM-3135T 35-ton press covers terminals up to 120 mm².

Send 2–3 meters of your wire and a strip of terminals. We confirm applicator fit, run a sample crimp on camera and return the crimped samples for your approval before the machine configuration is finalized.
