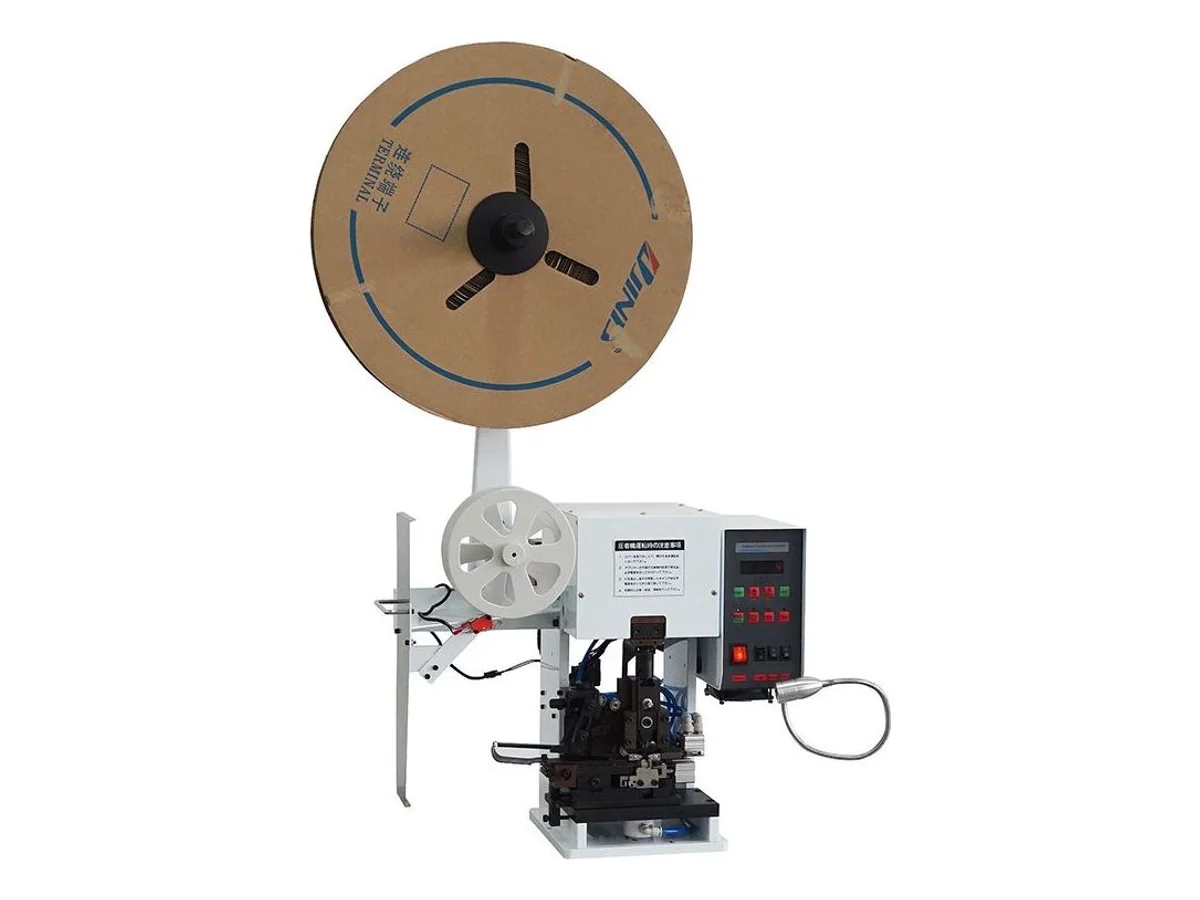

Quiet Wire Stripping and Crimping Machine, High-Speed Strip and Crimp for AWG 32–20 Wire WM-3120BT

›

The WM-3120BT strips the wire end and crimps a reel-fed terminal in one continuous cycle, covering AWG 32# to AWG 20# wire with a 1.0–6.0 mm strip length and 0.05–0.1 mm position tolerance. Its frequency-controlled variable-speed drive is built for low noise and low power draw, so it can sit on an open assembly bench beside seated operators instead of in a walled-off press corner. Crimp capacity is 2.0 T with a 30 mm stroke, and the whole unit is 450 × 420 × 700 mm at 70 kg, running on 200–240 V power and 0.3–0.4 MPa shop air.

Specifications

Key features

• Strip and crimp happen in one machine cycle — present the wire once, take away a finished terminated end
• Frequency-controlled variable-speed drive keeps running noise low, so the machine can live on the assembly bench and operators can still talk
• Strip-to-crimp position held within 0.05–0.1 mm, which is what keeps fine strands straight and fully inside the crimp barrel on AWG 32# wire
• Tuned for very thin wire and multi-core shielded cable — the jobs that are slowest and most error-prone to terminate by hand
• 2.0 T crimp capacity through a 30 mm stroke for reel-fed small-terminal applicators

What it processes

• Small-gauge automotive, appliance and electronics harness ends on reel-fed chained terminals
• Multi-core shielded signal and data cable where each fine core is stripped and terminated in turn
• Quiet production cells — labs, mixed assembly floors and small workshops where a clutch press would dominate the room

Suited for: one-cycle strip-and-crimp of reel-fed terminals on fine wire, AWG 32# – 20#, in rooms where machine noise matters — open assembly benches, mixed cells, small workshops. Not suited for: cutting wire to length — pair it upstream with a cut and strip machine — or loose tubular ferrules; for those, pick the WM-3103 loose ferrule crimper, which strips, feeds and crimps 0.35–4 mm² tube terminals in one 2.5-second cycle.

Send 2–3 meters of your wire and a strip of your terminals — we set the machine up, crimp your samples on camera with a sound meter running, and send the video plus the crimped ends back before you order.
