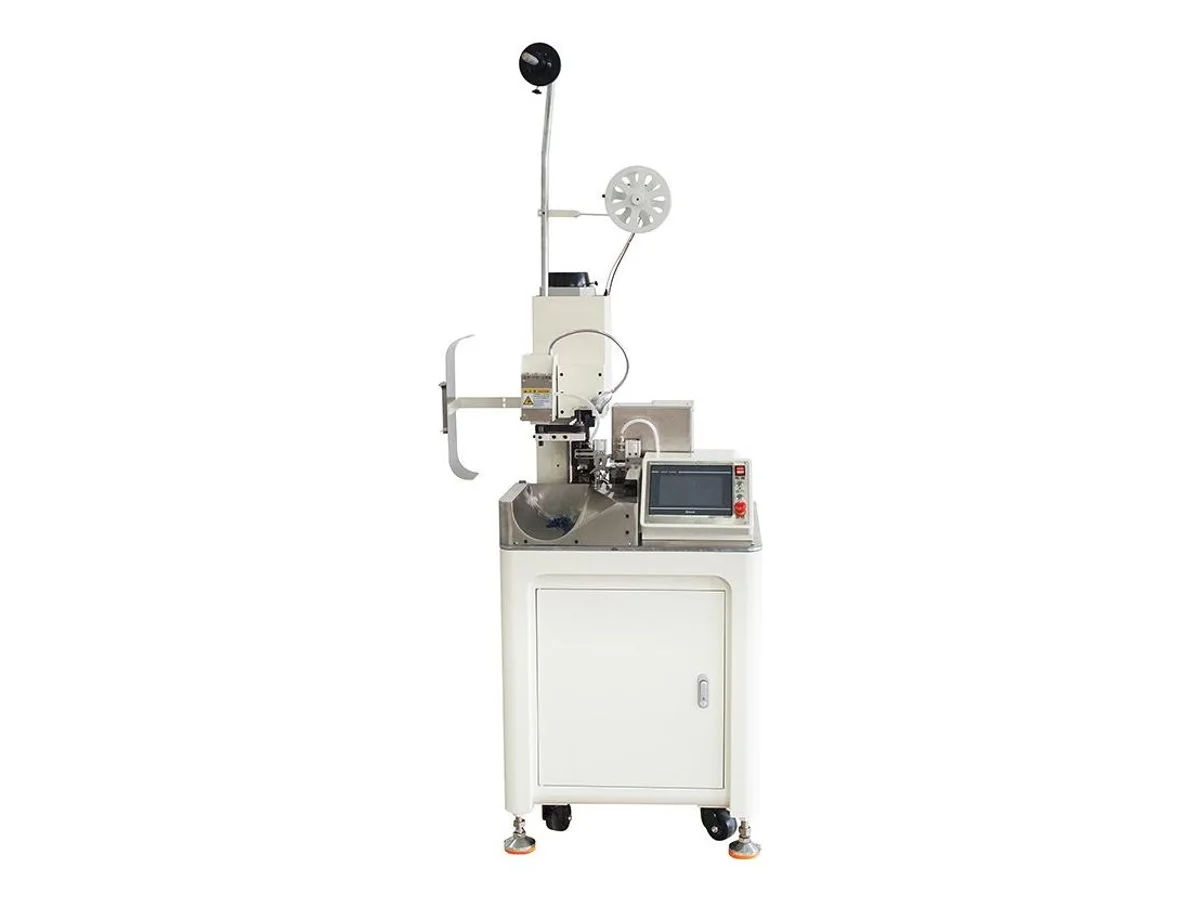

Automatic Wire Cutting, Stripping, Twisting and Single-End Crimping Machine, AWG 14–28 WM-378

Name: Automatic Wire Cutting, Stripping, Twisting and Single-End Crimping Machine, AWG 14–28 WM-378
Brand: Wiromac
SKU: WM-378

CE Certified HS Code 8463.90 AWG 14–28 2,000–3,000 pcs/h

The WM-378 turns bulk wire into finished single-end leads in one cycle — it cuts to length, strips, twists the bare strands tight and crimps a terminal on the other end under a 2-ton press. It handles AWG 14–28 wire below 4 mm², cut lengths from 45 to 9,999 mm at 1 mm + 0.2% accuracy, and delivers 2,000–3,000 pieces per hour on leads within 300 mm. Wire presence, terminal presence, wire blocking and air pressure detection stop bad pieces before they reach the bin.

Specifications

Function	Wire cutting, single-end stripping and twisting, single-end terminal crimping
Processing wire range	AWG 14 – AWG 28 (below 4 mm²)
Cutting length	45 mm – 9,999 mm (special length can be customized)
Cutting accuracy	1 mm + cutting length × 0.2% or less
Stripping length	1.5 mm – 10 mm
Crimping force	2 T
Capacity	2,000 – 3,000 pcs/h (length within 300 mm)
Detection device	Wire presence, terminal presence, wire blocking and air pressure detection
Power supply	AC 220 V, 50/60 Hz, single phase
Air pressure	4 – 6 kgf (clean, dry air required)
Dimensions	650 (W) × 700 (L) × 1,500 (H) mm
Weight	About 308 kg
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Replaces three benches in one footprint — cutting, stripping, strand twisting and terminal crimping happen in a single automated cycle
Twisted tails leave the machine ready for soldering or screw-terminal blocks, so nobody hand-rolls loose strands downstream
Four in-line detections (wire, terminal, blocking, air pressure) halt the cycle on faults instead of filling the tray with scrap
Compact 0.65 × 0.7 m cabinet on casters rolls into small harness shops and holds 1 mm + 0.2% length accuracy up to 9,999 mm

What it processes

Appliance and control-cabinet jumper leads with one crimped end and one solder-ready twisted end (AWG 14–28)
Lighting, small-motor and PCB pigtails produced in batches of hundreds to thousands
Harness shops replacing a manual strip-twist-crimp line with one operator loading reels

Suited for: batch production of single-end crimped leads whose other end must arrive twisted and solder-ready — appliance, lighting and control-panel wiring in AWG 14–28, cut anywhere from 45 to 9,999 mm. Not suited for: leads that need terminals, seals or housings on both ends — for double-end crimping, pick the WM-382 servo dual-end crimping machine, the double-end twin of this station over the same AWG 14–28 range; seal and housing versions live with the other terminal crimping machines. Woven jackets — cloth-braided and fibre-covered lead wire — also fall outside this machine’s blade stripping: they belong on the WM-3217 hot stripping and single-end crimping machine, which melts the braid open over AWG 18–28 instead of cutting it.

Send 2–3 meters of your actual wire with your terminal reel and we run your exact lead on this machine on video — length, twist quality and crimp — before you commit.

Engineering knowledge

Choose and troubleshoot this process

How to Choose a Terminal Crimping MachineChoose a terminal crimping machine by terminal presentation, wire range, applicator standard, required process steps, inspection method and production mix.
Terminal Crimp Defects: Causes, Inspection and Corrective ActionsTroubleshoot low pull force, incorrect crimp height, strand loss, bellmouth defects, insulation support problems and inconsistent terminal feeding.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-378 — common questions

What happens to the end that is not crimped?

It is stripped 1.5–10 mm and the bare strands are twisted tight in the same cycle. The lead drops out with one terminated end and one compact twisted tail that goes straight into a solder pot or screw terminal without hand prep.

Which wires and terminals does it accept?

Single-conductor wire from AWG 14 to AWG 28 (below 4 mm²) fed from a reel, and side-feed chain terminals crimped under a 2-ton press. Cut length is programmable from 45 to 9,999 mm on the touchscreen, with longer specials available on request.

Can it crimp terminals on both ends of the wire?

No — this is a single-end crimping layout with the second end stripped and twisted. If you need terminals on both ends, or seal and housing insertion, the double-end models in our terminal crimping machines category cover those jobs.
