Hot Stripping and Single-End Crimping Machine for Braided Cloth Wire, AWG 18–28 WM-3217

Name: Hot Stripping and Single-End Crimping Machine for Braided Cloth Wire, AWG 18–28 WM-3217
Brand: Wiromac
SKU: WM-3217

HS Code 8463.90 AWG 18–28 cloth braided 3,800–7,600 pcs/h

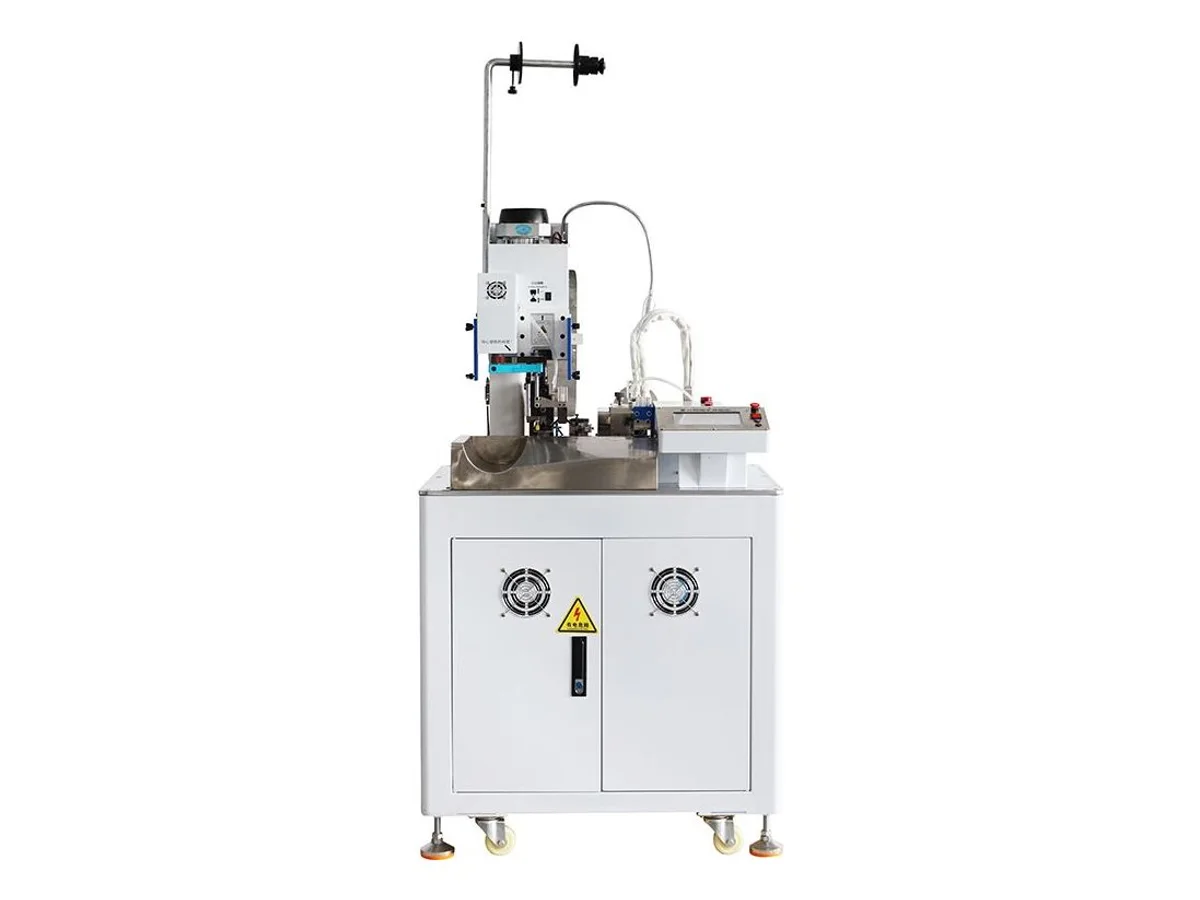

The WM-3217 processes cloth-braided and fibre-covered wire that ordinary blade strippers tear: a heated tool melts the braid open instead of cutting it, then the same cycle cuts the wire to length and crimps a terminal on one end. It runs AWG 18–28 wire at 3,800–7,600 pieces per hour, with cut lengths of 45–999 mm and strip lengths of 0–10 mm, set from an English touch screen on a 700 × 600 mm cabinet.

Specifications

Function	Cloth-covered wire cutting, hot semi-stripping and single-end terminal crimping
Machine capacity	3,800 – 7,600 pcs/hour
Wire cutting length	45 – 999 mm
Wire stripping length	0 – 10 mm
Wire size	AWG 18 – 28
Tool material	Imported tungsten steel / high-speed steel
Pneumatic accessories	Standard AirTAC
Air pressure	0.5 – 0.7 MPa
Power	AC 220 V
Dimensions	700 (L) × 600 (W) × 1,500 (H) mm (not including packing)
Weight	About 240 kg
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	On request

Key features

Heated stripping tool opens the woven jacket by melting it, so the braid does not catch on a blade and the copper strands underneath are never nicked
Hot semi-stripping — the machine can open a short window in the braid and leave the covering attached, which keeps the fibres from unravelling down the lead
Cut, strip and crimp in one automated cycle at 3,800–7,600 pcs/h, replacing a bench where cloth wire is stripped by hand before crimping
English touch screen holds cut length, head strip and semi-strip values per recipe, with heating, crimp detection, knot detection and air-pressure checks switchable on screen
Free sample test — send your cloth wire and terminal reel, we run your lead on this machine and send you the video before you order

What it processes

Cloth-braided and fibre-covered lead wire, AWG 18–28, in appliance and heater harnesses
Vintage-style and reproduction wiring for lighting, fans and audio equipment
Iron, toaster, kettle and small-appliance leads where a woven jacket replaces plain PVC
Any covering that frays or drags under a mechanical blade and needs a thermal cut instead

Suited for: woven-jacket lead wire — cloth-braided, fibre-covered and similar coverings in AWG 18–28 — cut from 45 to 999 mm and terminated on one end, where a mechanical blade would fray the weave or nick the strands. Not suited for: plain PVC hookup wire, where a blade strips faster and cheaper — for that, the WM-378 cut, strip, twist and single-end crimping machine covers AWG 14–28 with mechanical stripping and a twisted second end. Leads needing a terminal on both ends belong on the WM-3202 automatic double-end crimping machine (AWG 18–28, 3,800+ pcs/h). Metal-braid shielded cable is a different job again — the shield has to be brushed and twisted, which is what the WM-367 shielded cable processing and crimping machine does for Φ2–10 mm cable.

Send 2–3 meters of your cloth wire with your terminal reel and we run your exact lead on this machine on video — braid cut quality, semi-strip window and crimp — before you commit.

Engineering knowledge

Choose and troubleshoot this process

How to Choose a Terminal Crimping MachineChoose a terminal crimping machine by terminal presentation, wire range, applicator standard, required process steps, inspection method and production mix.
Terminal Crimp Defects: Causes, Inspection and Corrective ActionsTroubleshoot low pull force, incorrect crimp height, strand loss, bellmouth defects, insulation support problems and inconsistent terminal feeding.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-3217 — common questions

Why does braided cloth wire need hot stripping instead of a blade?

A blade has to sever every fibre of the weave at once. On cloth, glass-fibre and similar woven coverings it snags, pulls the jacket into a bird's nest and often bites into the copper before the covering lets go. The WM-3217 uses a heated tool that melts through the covering, so the braid parts cleanly at the set position and the strands underneath stay intact.

What is "hot semi-stripping" on the WM-3217?

Semi-strip means the covering is cut through and pushed back to expose the conductor without being removed from the wire. The screen takes a head strip value and a separate semi-strip value, so the loose end of woven jacket stays attached to the lead instead of shedding fibres onto the shop floor. Strip length is adjustable from 0 to 10 mm.

Does it crimp both ends of the wire?

No — this is a single-end layout. One end gets the terminal, the other end leaves the machine cut and hot-stripped. If you need terminals on both ends over the same AWG 18–28 range, use the WM-3202 fully automatic double-end crimping machine instead.

How long can the leads be?

Cut length is programmable from 45 to 999 mm. For longer cloth leads, tell us the finished length in your inquiry and we will confirm what the feed and take-away can hold before quoting.

What does it need to run?

AC 220 V single-phase power and clean, dry compressed air at 0.5–0.7 MPa. The machine is 700 × 600 × 1,500 mm and weighs about 240 kg, so it stands on a normal shop floor with no foundation work.
