Multifunctional Shielded Cable Processing Machine with Braid Twisting and Terminal Crimping WM-367

Name: Multifunctional Shielded Cable Processing Machine with Braid Twisting and Terminal Crimping WM-367
Brand: Wiromac
SKU: WM-367

CE Certified HS Code 8463.90 Φ2–10 mm shielded cable 2,000–2,200 pcs/h

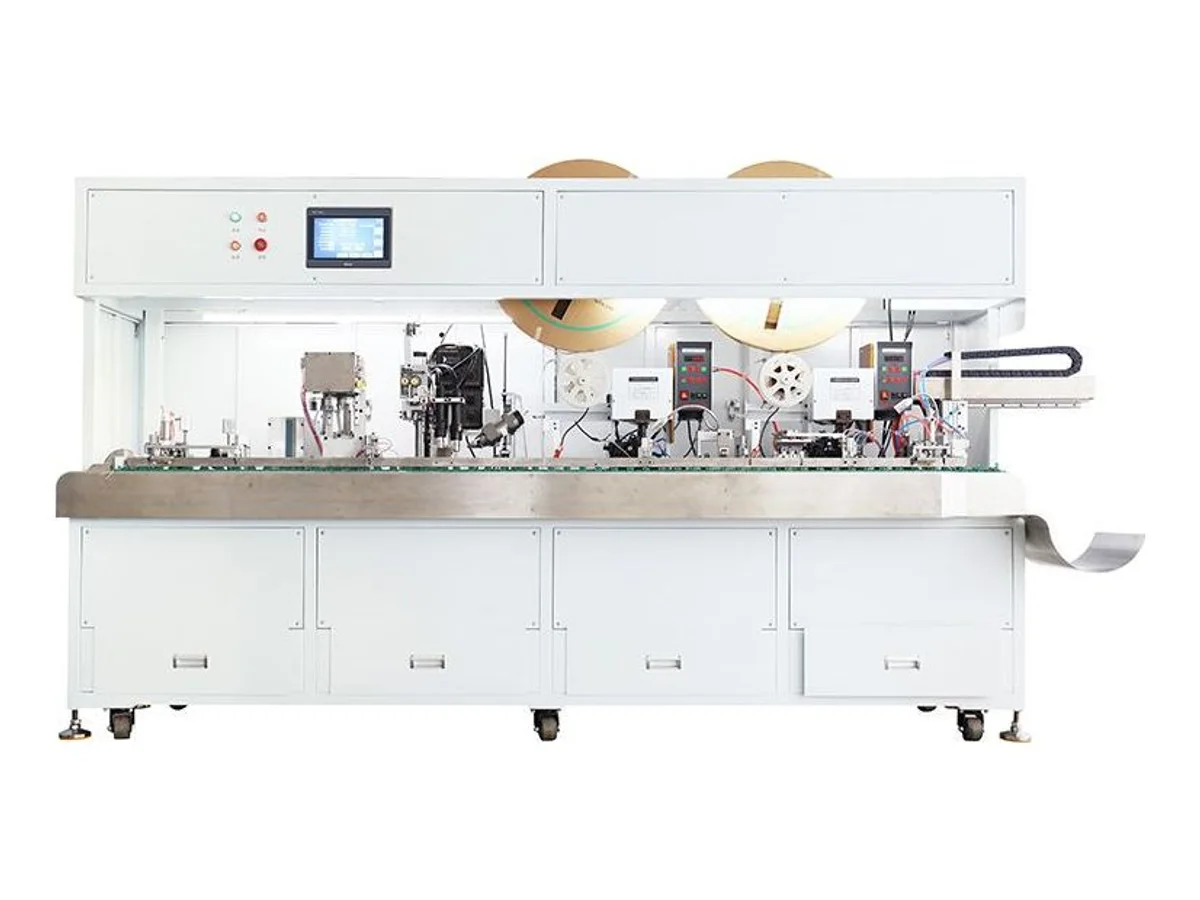

The WM-367 automates five shielded-cable end operations in one pass — outer jacket stripping, shield splitting, braid twisting into a pigtail, inner core stripping with strand twisting, and terminal crimping — on cable diameters from 2 to 10 mm. Strip lengths run 10–40 mm and rated output is 2,000–2,200 pieces per hour as transfer clamps index every cable end through the stations. Programs are set on an English touchscreen. The inline machine measures 2,160 × 730 × 1,250 mm, weighs 280 kg and runs on single-phase 220 V or 110 V.

Specifications

Function	Jacket stripping, shield splitting, braid twisting, inner core stripping and twisting, terminal crimping
Applicable cable size	Dia. 2 – 10 mm
Stripping length	10 – 40 mm
Productivity	2,000 – 2,200 pcs/h
Drive mode	Linkable
Customization	Available
Voltage	Single-phase 220 V 50 Hz / 110 V 60 Hz
Power	1 kW
Dimensions	2,160 × 730 × 1,250 mm
Weight	280 kg
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Replaces five manual stations — jacket strip, shield split, braid twist, core strip-and-twist and terminal crimp run in one clamp-to-clamp pass
Motor-driven brush wheels comb the braid open and a rotary head twists it into a clean pigtail for grounding terminations
2,000–2,200 cable ends per hour with transfer clamps giving every piece identical station timing
English touchscreen turns each cycle on or off per product — shield spread, twisting, crimping and shrink-tube baking

What it processes

Shielded sensor and camera cable assemblies from 2 to 10 mm diameter
Audio, data and RF pigtails where the braid is twisted back into a ground lead
Harness plants automating manual shield combing, twisting and crimping benches

Suited for: shielded and jacketed cable from Φ2 to Φ10 mm whose ends need the full sequence — jacket off, braid split and twisted into a pigtail, cores stripped, twisted and crimped — at production rates. Not suited for: unshielded single wires — those run on the wire cutting and stripping machines — or plain shield stripping without termination; for that, pick the benchtop WM-2208 rotary blade stripper, which opens Ø1.5–18 mm shielded ends layer by layer.

Send 2–3 meters of your actual shielded cable and your terminal samples, and we run them on this machine on camera — braid pigtail, core strip and crimp sections verified on video before you order.

Engineering knowledge

Choose and troubleshoot this process

How to Choose a Terminal Crimping MachineChoose a terminal crimping machine by terminal presentation, wire range, applicator standard, required process steps, inspection method and production mix.
Terminal Crimp Defects: Causes, Inspection and Corrective ActionsTroubleshoot low pull force, incorrect crimp height, strand loss, bellmouth defects, insulation support problems and inconsistent terminal feeding.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-367 — common questions

Which operations does one pass cover?

Outer jacket stripping, shield splitting, braid twisting into a pigtail, inner core stripping with strand twisting, and terminal crimping — on shielded cable from 2 to 10 mm diameter with strip lengths of 10 to 40 mm. Rated output is 2,000–2,200 pieces per hour.

How is the braid handled without damaging it?

Rotating brush wheels comb the braid open after the jacket window is cut, then a rotary head twists the freed strands into a tight pigtail. The program also includes a shrink-tube baking cycle, so the split point can leave the machine already finished under heat shrink.

What should stay off this machine?

Unshielded hookup wire, and simple shield stripping jobs that need no crimping — those run cheaper on dedicated machines. See the benchtop coaxial cable strippers for shield-only work, or the wire cutting and stripping machines for plain wire.
