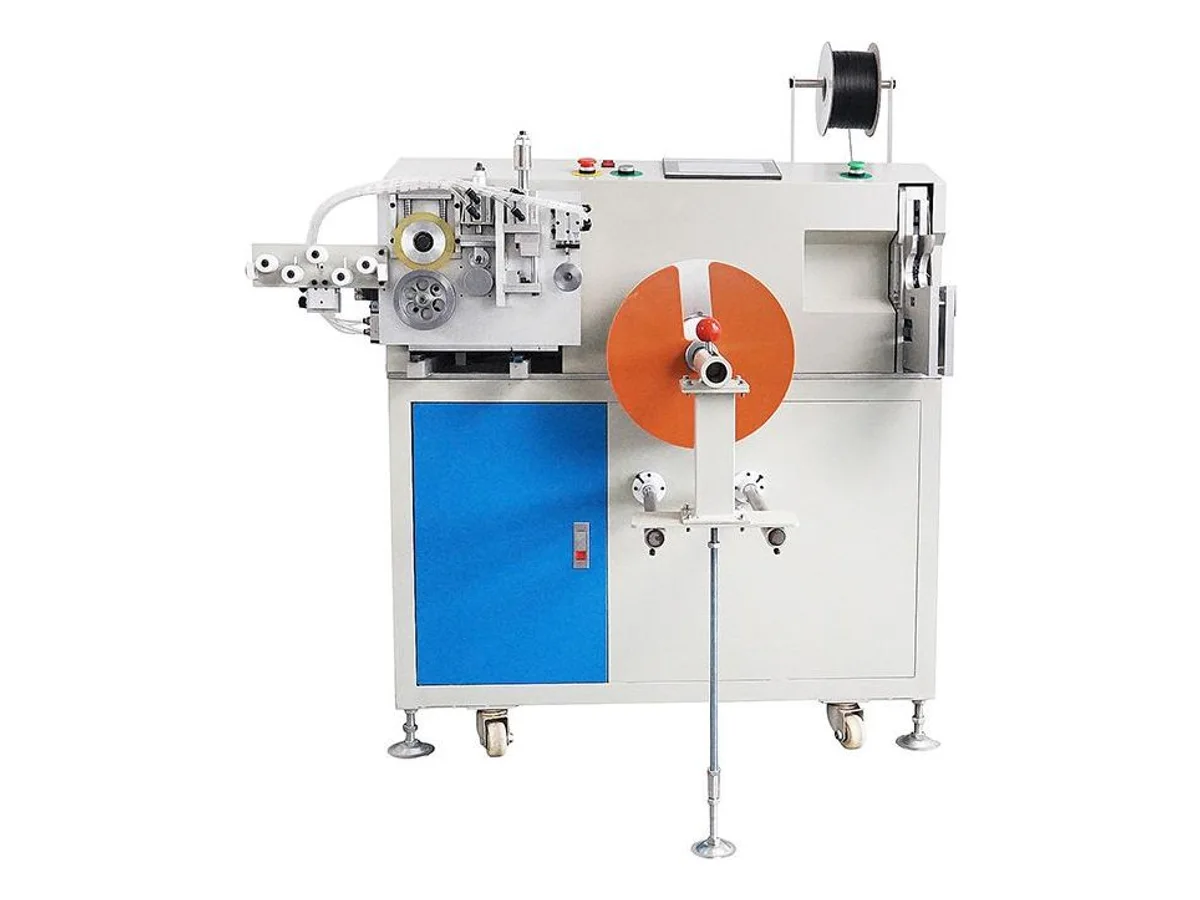

Automatic Meter Counting Coil Winding and Tying Machine WM-4813

›

The WM-4813 measures, winds and ties in one cycle. Wire, cable or soft tube from 1 to 8 mm runs through the counting wheel, winds into a coil with a 50–280 mm inner diameter and a 350 mm outer diameter, and comes off tied at a bundle diameter of 18 to 65 mm — up to 2.5 kg per coil. Four stepping motors and a PLC touch screen set the metered length, the number of turns and the winding speed, which is adjustable from 1 to 13 cycles per second.

Specifications

Key features

• Counting, winding and tying happen in one uninterrupted cycle — nobody carries a loose coil to a second station
• Four stepping motors drive feeding, traverse, winding and tying separately, so each stage keeps its own set speed
• Metered length, turn count and winding speed are typed on the PLC touch screen (English interface) and recalled per wire type
• Tie material feeds from a spool above the frame through its own roller drive; the C-shaped jaw wraps it round the coil and twists it closed
• Single hand knob releases the winding flange, so the tied coil lifts off without losing its shape
• Free sample test — send your wire or cable, we run your coil size and tie position on this machine and send you the video before you order

What it processes

• Repacking bulk drums into measured, tied retail coils of 1–8 mm wire and cable
• Power cord, extension cord and rubber-jacketed flexible cable coiled to length and tied for shipping
• Soft tube, trimmer line and rope-like filament inside the 1–8 mm range
• Cable shops and warehouses selling cut-to-length coils that have to arrive already bundled

Suited for: wire, cable, soft tube and filament from 1 to 8 mm that has to be counted, coiled and tied in one pass — coil inner diameter 50–280 mm, outer diameter 350 mm, up to 2.5 kg per coil, bundled at 18–65 mm. Not suited for: material outside 1–8 mm or coils that only need measuring and winding — use the WM-4810 automatic wire coiling machine with meter counter (0.5–16 mm wire, 30–350 mm coil inner diameter, no tying head). Bundles under 18 mm belong on the WM-4807 semi-automatic winding and twist tie machine (bundle Ø 5–35 mm). If the cable also has to be cut off the drum in the same cycle, the WM-4808 cutting, figure-8 coiling and tying machine handles 3–12 mm cable in 3–10 m lengths.

Three machines’ worth of work sits inside one frame here. Wire enters through the roller guide bank, passes the counting wheel that drives the length reading on screen, and is laid onto the winding flange while the traverse spreads the turns. When the set length or turn count is reached, the tie head takes over: coated tie wire comes down from the spool through its own roller drive, the C-shaped jaw closes around the coil and twists the tie shut. Release the flange knob and the finished coil comes off bundled.

That single-pass sequence is the whole point of the 2,500 W, 230 kg build — it is a heavier and more powerful machine than a plain meter-counting coiler because the tying head, the tie feed and four separate stepping motors all live in the same cabinet. Send us 20–30 meters of your cable plus the coil and tie dimensions you sell, and we run it before you commit.
