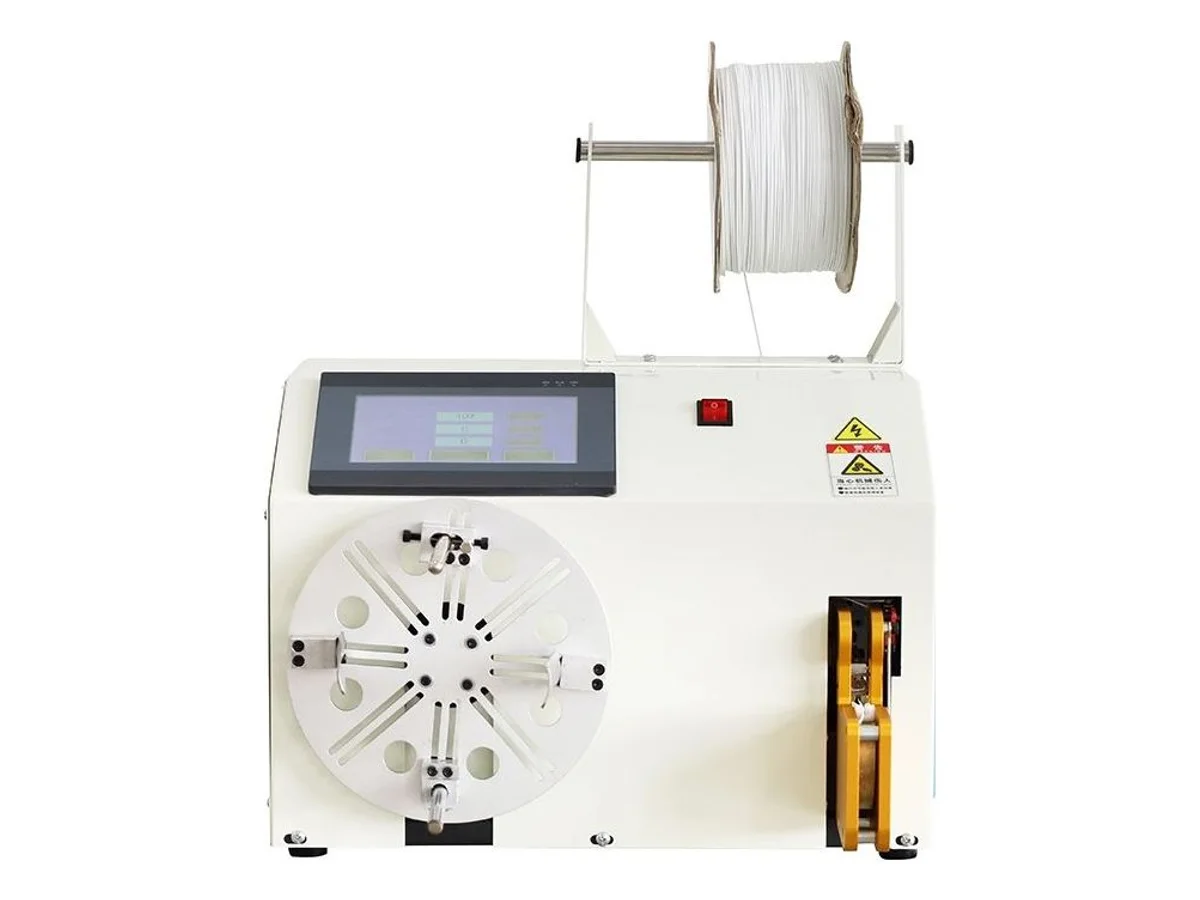

Semi-Automatic Wire Winding and Twist Tie Machine WM-4807

›

The WM-4807 puts winding and tying side by side on one 25 kg benchtop frame: lay the wire on the winding port, step on the pedal once, and the stepper-driven disc winds the programmed turn count — up to 999 — then brakes at a fixed unload point. Present the wound coil to the tying port and the machine wraps, twists and cuts the tie by itself, 0.6 seconds per tie, with tie lengths of 65–150 mm on bundles from 5 to 35 mm in diameter.

Specifications

Key features

• One pedal press per coil — the stepper motor winds the set turn count on its own while the operator reaches for the next piece
• Brake-controlled disc stops at a fixed point every cycle, so the finished coil always unloads from the same position
• Winding disc with radially adjustable posts sets the coil diameter without changing tooling
• Turn count (0–999), number of ties and tie length (65–150 mm) are all stored as on-screen parameters
• Tying port runs the wrap-twist-cut cycle automatically at 0.6 seconds per tie, fed from the reel on the top bracket
• 25 kg, 400 × 470 × 320 mm body at 300 W — a benchtop station, not a floor line

What it processes

• Winding and tying USB, HDMI, audio/video and network patch cables before bagging
• Coiling AC/DC power cords and adapter leads at electronics packing benches
• Headphone and telephone cable packaging where coil count and tie length change per SKU

Suited for: operator-paced winding plus twist tying of consumer and data cables — USB, HDMI, power cords, network and AV leads — bundle diameter 5–35 mm, tie length 65–150 mm. Not suited for: hands-free coiling and tying at line rates — use the WM-4800 automatic coiling and double-tie machine (wire or tube up to Ø10 mm, up to 1,200 pcs/h); nor measuring and cutting raw cable off a reel before coiling — that is the WM-4808 automatic cutting, figure-8 coiling and tying machine (cable Ø3–12 mm).

What the pedal buys you is consistency. Hand-wound coils vary with whoever wound them; here the turn count is a number on the screen, the disc brakes at the same point every cycle, and the tie is applied by the machine rather than by feel — so coil after coil comes off the bench looking the same in the retail bag. The adjustable posts on the winding disc set the coil diameter, which means a SKU change is a parameter edit and a post adjustment, not a tooling swap.

Send 2–3 of your actual cables with the inquiry rather than only a datasheet. Jacket stiffness and cable memory decide how a given turn count settles into a coil, so we run your pieces on the machine, tie them, and send you the video before you commit.
