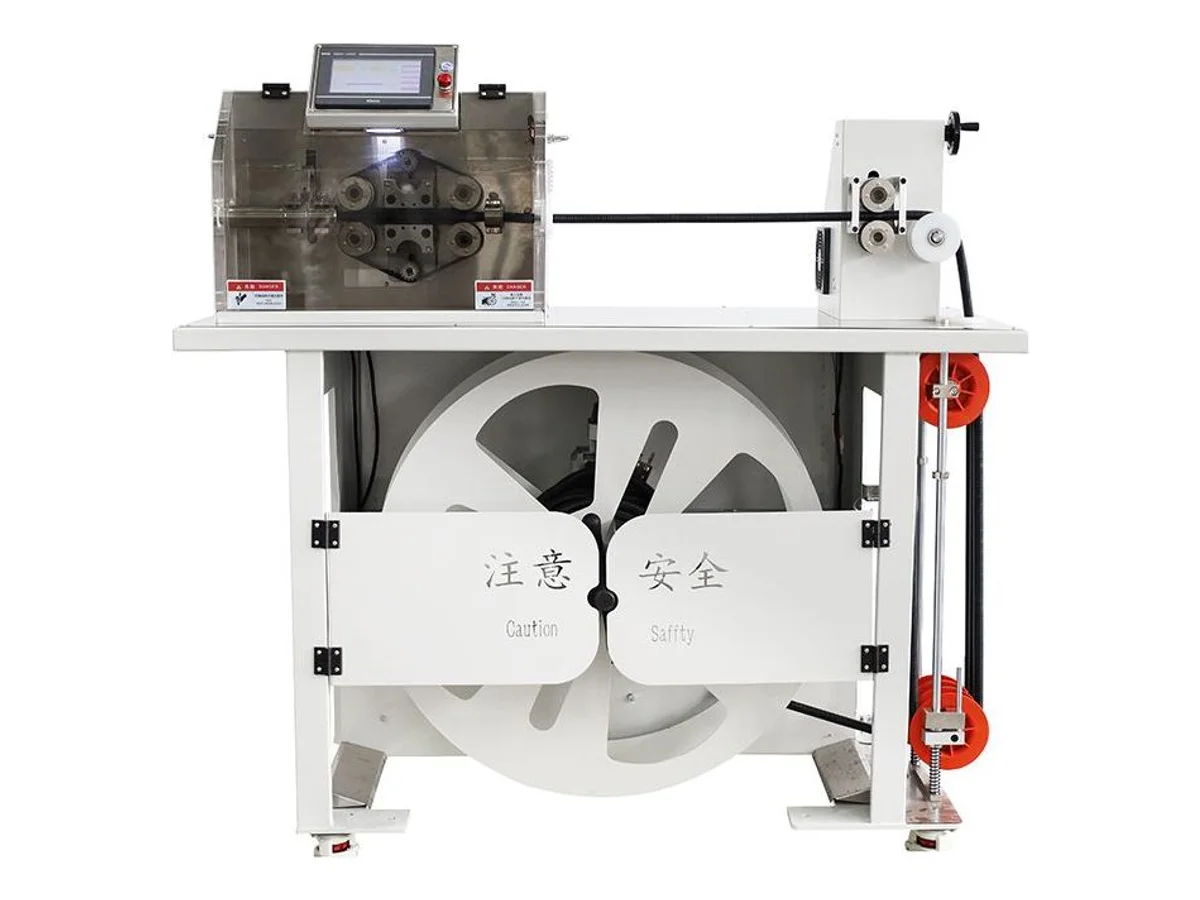

Corrugated Tube Cutting Machine with Built-In 30 kg Pay-Off Reel WM-162

›

The WM-162 turns a full coil of corrugated conduit into counted, cut-to-length pieces without a separate pay-off stand. Its built-in reel carries coils up to 30 kg, and guide pulleys with a buffer arm pay the tube off smoothly while belt feeding pulls it through the cutting head. It processes convoluted tube from 3 to 32 mm at any length from 10 to 9,999 mm, programmed with batch counts on an English touchscreen. The 100 kg unit draws 1.5 kW on 220/110 V, 50/60 Hz and ships at 1450 × 700 × 1500 mm.

Specifications

Key features

• Coil-to-pieces in one footprint — the pay-off reel is part of the machine, so a 30 kg coil loads once and runs out without floor tangles or an extra stand
• Buffer pulleys smooth out the jerky pull of a heavy coil, so the feed sees steady tube and the last meters cut as consistently as the first
• Belt feeding grips the corrugation profile across a wide contact area instead of pinching it, keeping thin-wall loom round and rib-intact
• Batch counting on the touchscreen delivers counted, identical pieces per bin — set length and quantity, press start, empty the tray

What it processes

• Automotive and EV wire harness plants pre-cutting wire loom to kitted lengths
• Panel builders and machine shops stocking cut conduit for cable dressing
• Tube converters selling counted, cut-to-length corrugated conduit packs

Suited for: corrugated wire-loom conduit from 3 to 32 mm, cut to counted lengths straight from a coil of up to 30 kg on the built-in reel. Not suited for: lengthwise splitting, solid pipe or cable — for cut plus lengthwise split in one pass, pick the WM-176 corrugated tube cutting and splitting machine, the same conduit format with a splitting blade; for wire itself, pick from the wire cutting and stripping machines.

Loom sizes and wall stock vary by supplier: send 2–3 meters of your actual tube and we run it on this machine on video before you commit.
