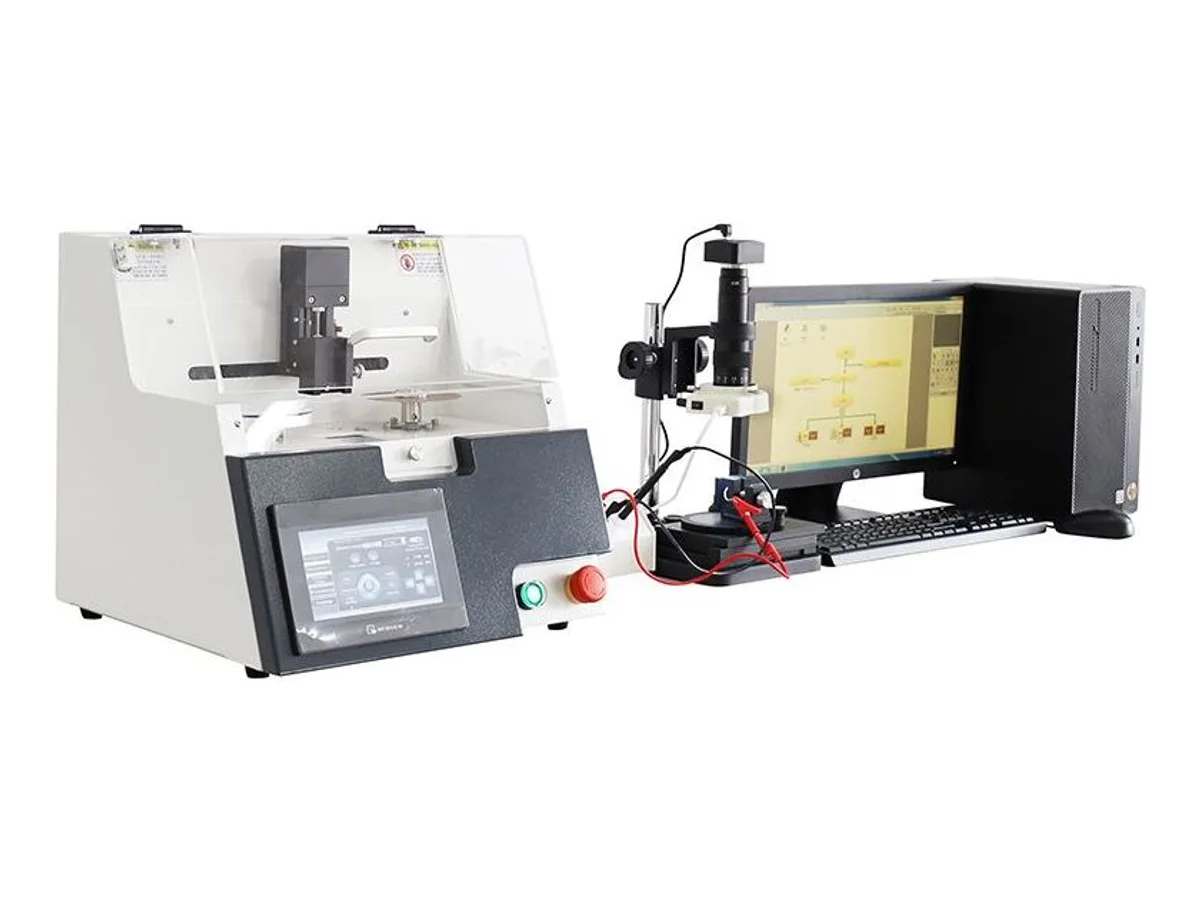

Crimp Cross-Section Analysis System with 30–312X Zoom for Terminal Quality Audits WM-813

Name: Crimp Cross-Section Analysis System with 30–312X Zoom for Terminal Quality Audits WM-813
Brand: Wiromac
SKU: WM-813

CE Certified HS Code 9031.80 0.01–30 mm² (opt. 150 mm²) ~3 min per terminal

The WM-813 turns a crimped terminal into a measured cross-section report in about 3 minutes. An integrated bench cuts and grinds the sample in one pass, a 5-second liquid etch reveals the conductor boundaries, and a Japan-made 5-million-pixel HD camera behind 30–312X segmentless zoom optics captures the section for on-screen measurement against nominal values and tolerances. It covers 0.01–30 mm² wire (optional fixtures up to 150 mm²), runs on 100–240 VAC and fits on a 500 mm wide bench — the evidence tool for automotive and EV harness crimp audits.

Specifications

Function	Crimp cross-section cutting, grinding, etching and measurement
Optical system	Japan-imported segmentless zoom optical system
Total video magnification	30 – 312X
Applicable wire range	0.01 – 30 mm² (optional up to 150 mm²)
Imaging system	Japan-made industrial HD video system, 5-million-pixel
Blade specification	Dia. 110 × 0.5 mm, Germany-imported
Abrasive sandpaper	1200#
Standard fixture	0.01 – 50 mm²
Calibration ruler	Special-grade high-precision reference ruler 0.01/10 mm
Terminal etching	Liquid cleaning, completed in 5 s
Lighting source	All-white adjustable LED lighting device
Power supply	100 – 240 VAC, 50/60 Hz
Dimensions	W500 × D350 × H350 mm
HS Code	9031.80 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Cutting and grinding happen in one integrated pass, so the section comes out flat and ready for the optics without hand rework
30–312X segmentless zoom with a 5-million-pixel Japan-made camera resolves individual strands, voids and burrs clearly
5-second liquid etch makes the conductor-to-terminal boundary readable, so measurements stop depending on operator eyesight
Complete audit chain on one bench — cut, grind, etch, image and measure a terminal in about 3 minutes

What it processes

Incoming and in-process crimp quality audits in automotive and EV harness plants
Crimp tool setup validation after applicator or terminal changes
Failure analysis and customer-complaint evidence reports for terminated leads

Suited for: quality labs and production QC benches that must document crimp compression, voids and burrs on terminated leads from 0.01 to 30 mm² (optional fixtures up to 150 mm²). Not suited for: non-destructive 100% inline inspection — sectioning consumes the sample; for 100% electrical coverage, run finished harnesses through the WM-814 conduction tester and keep this system for batch audits, applicator setup validation and failure analysis.

Send 10–20 of your actual terminated samples and we section, etch and measure them on this system on video, sharing the full report before you commit. See how crimp audits anchor an EV wire harness line.

Engineering knowledge

Choose and troubleshoot this process

How to Choose a Terminal Crimping MachineChoose a terminal crimping machine by terminal presentation, wire range, applicator standard, required process steps, inspection method and production mix.
Terminal Crimp Defects: Causes, Inspection and Corrective ActionsTroubleshoot low pull force, incorrect crimp height, strand loss, bellmouth defects, insulation support problems and inconsistent terminal feeding.
Wire Harness Electrical Test Failures: Causes and Corrective ActionsDiagnose open circuits, shorts, high resistance, insulation failures, intermittent contacts, wrong cavity insertion and unstable harness test fixtures.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-813 — common questions

What sample sizes can the WM-813 section and measure?

The standard fixture holds 0.01–50 mm² samples and the measurement range is specified for 0.01–30 mm² wire, with optional fixtures extending coverage up to 150 mm² — enough for signal leads through EV power cable terminations.

Do I need separate cutting, polishing and etching stations?

No. The bench integrates cutting and grinding in one pass, the polishing media and liquid etching kit sit beside the sample stage, and the zoom camera with measurement software completes the chain — one operator processes a terminal in about 3 minutes.

What does this system not do?

It is a destructive lab instrument for sectioned terminals — it does not pull-test crimps and it does not check finished harness wiring. For pull-off force and wire-sequence checks, see the other wire harness testing machines.
