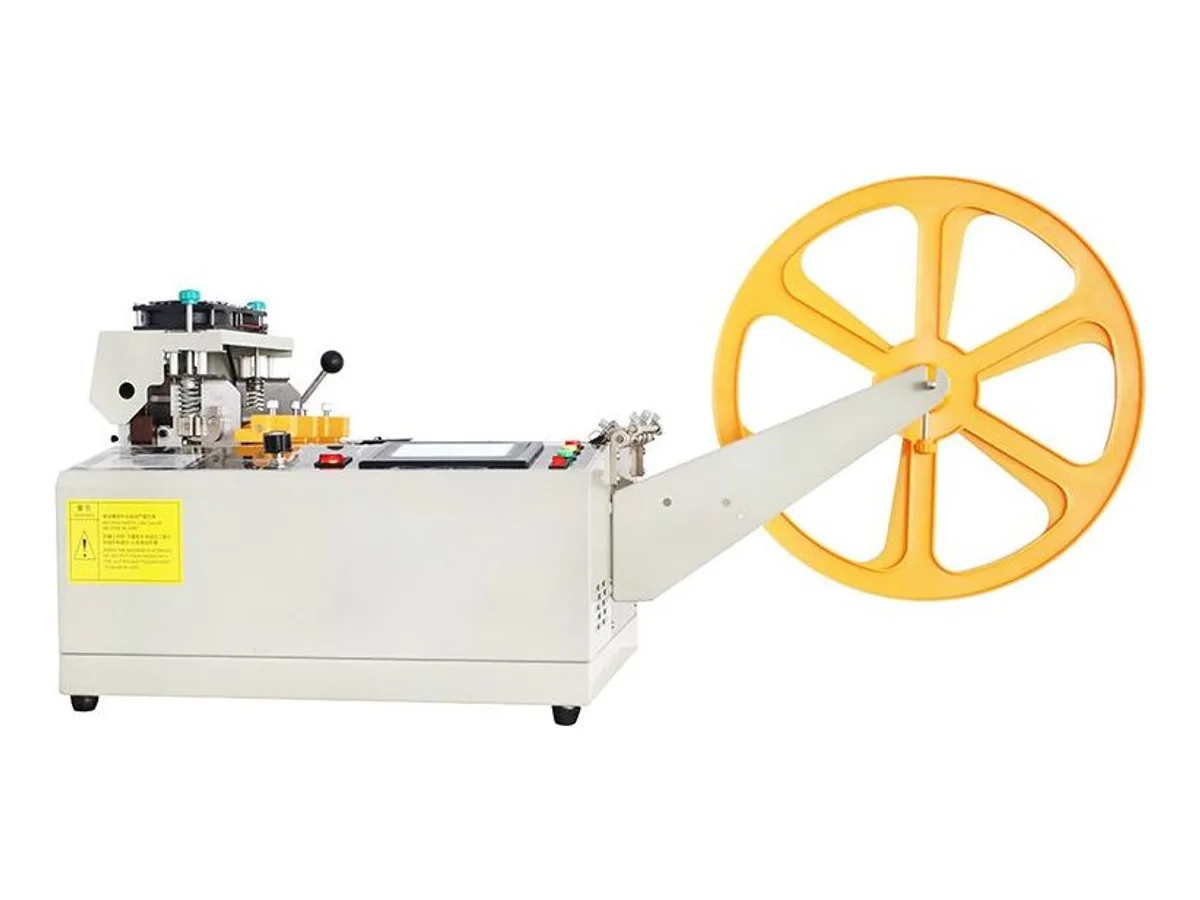

Automatic Hot and Cold Webbing Cutting Machine for Strip and Sheet Materials up to 160 mm WM-577

›

The WM-577 cuts flat strip and sheet materials from 1 to 160 mm wide with one blade that runs heated up to 350 °C or stone cold — hot for webbing, woven labels and battery sleeve that need fused edges, cold for nickel strip, copper strip, aluminum foil and insulating paper that must stay burr-free. An ARM controller with a large LED screen programs lengths from 0.1 mm up to 999.99 m at 0.1 mm accuracy and turns out 120–150 cuts per minute on 50 mm pieces. The 33 kg bench unit draws 500 W on 220 V.

Specifications

Key features

• Two cutting modes in one head — run the SKD-11 blade heated up to 350 °C to seal synthetic webbing and sleeve edges, or unheated for metal strip, foil and paper where any melted or discolored edge is scrap
• Crosses the textile–metal divide — the same bench machine blanks nickel and copper strip for battery packs and cuts woven labels, fiber sleeve and insulating paper, so one operator covers both jobs
• ARM controller with a large LED screen supports batch pause, length compensation and one-key reset; cutting speed adjusts across 99 levels to match the material
• Adjustable guide clamps and a pay-off reel keep narrow strip tracking straight into the blade, holding 0.1 mm accuracy from 0.1 mm micro-cuts to 999.99 m runs
• Free sample test — send 2–3 meters of your strip, webbing or sleeve and we cut it on this machine on video before you order

What it processes

• Battery pack materials — nickel strip, battery sleeve and insulating paper cut to length for cell and pack assembly
• Wire harness shops — woven labels, fiberglass sleeve and wax tube blanked with sealed, fray-free ends
• Electronics and electrical work — copper strip, aluminum foil, enameled wire and steel strip cut square and burr-free

Suited for: flat strip and sheet stock from 1 to 160 mm wide, cut straight and square — nickel strip, copper strip, steel strip, aluminum foil and enameled wire cut cold; webbing, woven labels, battery sleeve, fiber tube and wax tube cut hot with sealed ends. Not suited for: material wider than 160 mm — pick the WM-572A hot knife webbing cutting machine up to 220 mm, or the WM-575S roll-to-sheet cutting and slitting machine up to 1,220 mm. Round rope with sealed ends runs on the WM-561 hot rope cutting machine (up to Φ20 mm), heat shrink tube on the WM-565N heat shrink tube cutting machine (up to Φ38 mm), and rigid copper, aluminum or armored pipe on the WM-183 metal tube cutting machine.

Every material seals — or refuses to seal — a little differently, so we prove it first: send 2–3 meters of your actual strip, sleeve or webbing and we run it on this machine, hot and cold, and send you the video before you commit to the order.
