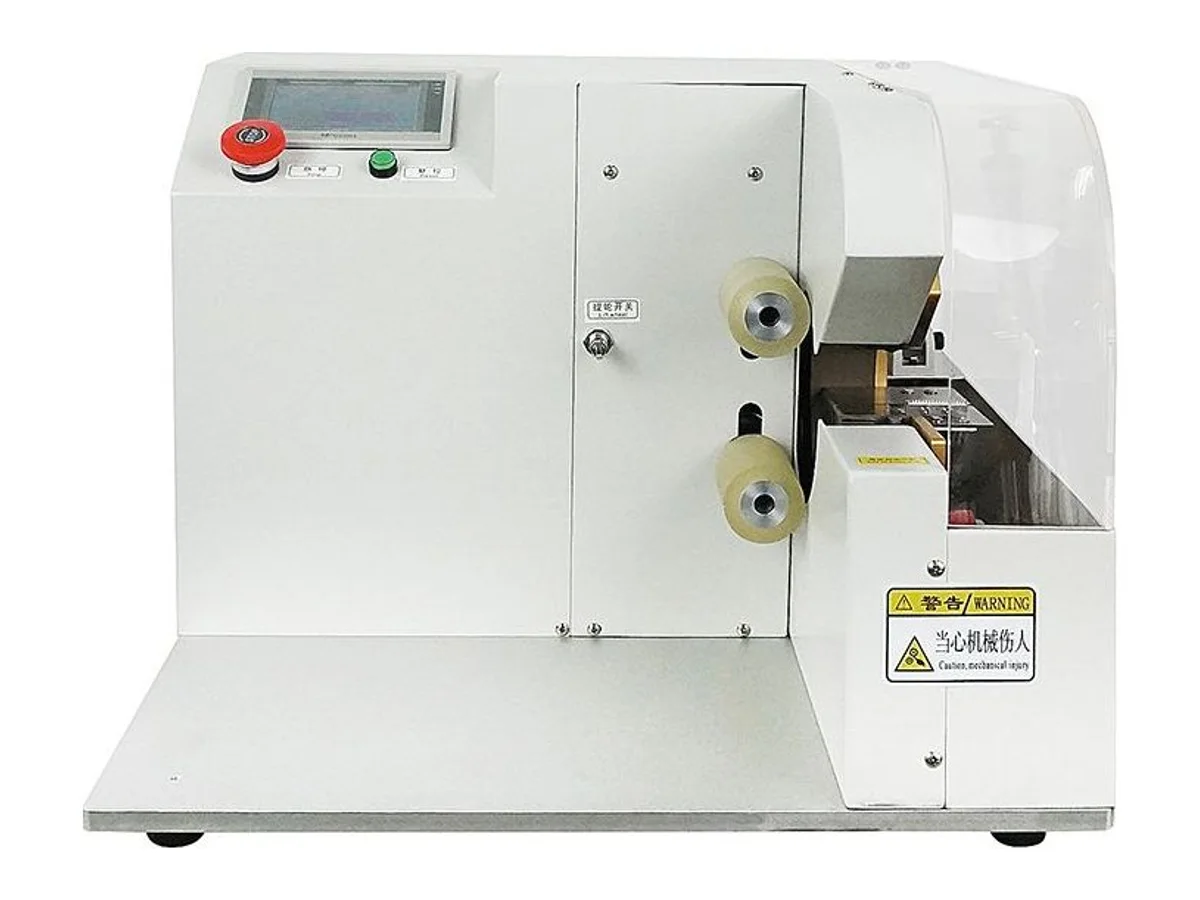

Extended-Height Wire Harness Tape Wrapping Machine for Large Bundles WM-4136

›

The WM-4136 spiral-wraps wire harness bundles from Φ3 to 40 mm with tape 2 to 30 mm wide, with no limit on wrapping length — the extended-height head gives large bundles and bulky branch take-outs the clearance that standard-height taping machines lack. Continuous, point and multi-segment wrapping programs are selected on the color touchscreen, and the 72 kg bench machine runs on 110/220 VAC with no compressed air required.

Specifications

Key features

• Extended-height wrap head — extra clearance between ring and deck lets Φ40 mm bundles and bulky branch take-outs rotate through without fouling
• Continuous, point and multi-segment wrapping programs on the touchscreen, with tape width, wire diameter, turns and speed entered per job
• No wrapping length limit — the run is guided across the open deck, so main runs are wrapped end to end in one pass
• Plugs into 110/220 VAC at 50/60 Hz — no compressed air line to install
• Free sample test — send a length of your harness, we wrap it on this machine and send you the video before you order

What it processes

• Automotive, motorcycle and appliance harness main runs from Φ3 to 40 mm
• Insulation, bundling and abrasion-protection wrapping over unlimited run lengths
• Harness shops replacing hand spiral taping on bundles too thick for standard-height machines

Suited for: continuous spiral taping of harness main runs and long branches from Φ3 to 40 mm — unlimited wrap length, consistent overlap, and enough head clearance for padded sections and branch take-outs. The white spiral-wrapped harness in the gallery, with its even half-lap and clean finish at the breakout, is this machine’s own output. Not suited for: carrying to an installed harness — for repair and on-vehicle work see the handheld WM-4110 or the battery-powered WM-4111 — and if your work is repeated fixed-position bands rather than runs, the spot taping machines in this category do that faster.

Bundle bigger than Φ40 mm, or an unusual tape? The build can be customized — send us a 2–3 meter sample harness, we wrap it and send you the video before you order.
