Handheld Tape Wrapping Machine for Harness Repair and Small Batches WM-4110

Name: Handheld Tape Wrapping Machine for Harness Repair and Small Batches WM-4110
Brand: Wiromac
SKU: WM-4110

CE Certified HS Code 8479.89 Φ8–35 mm bundles

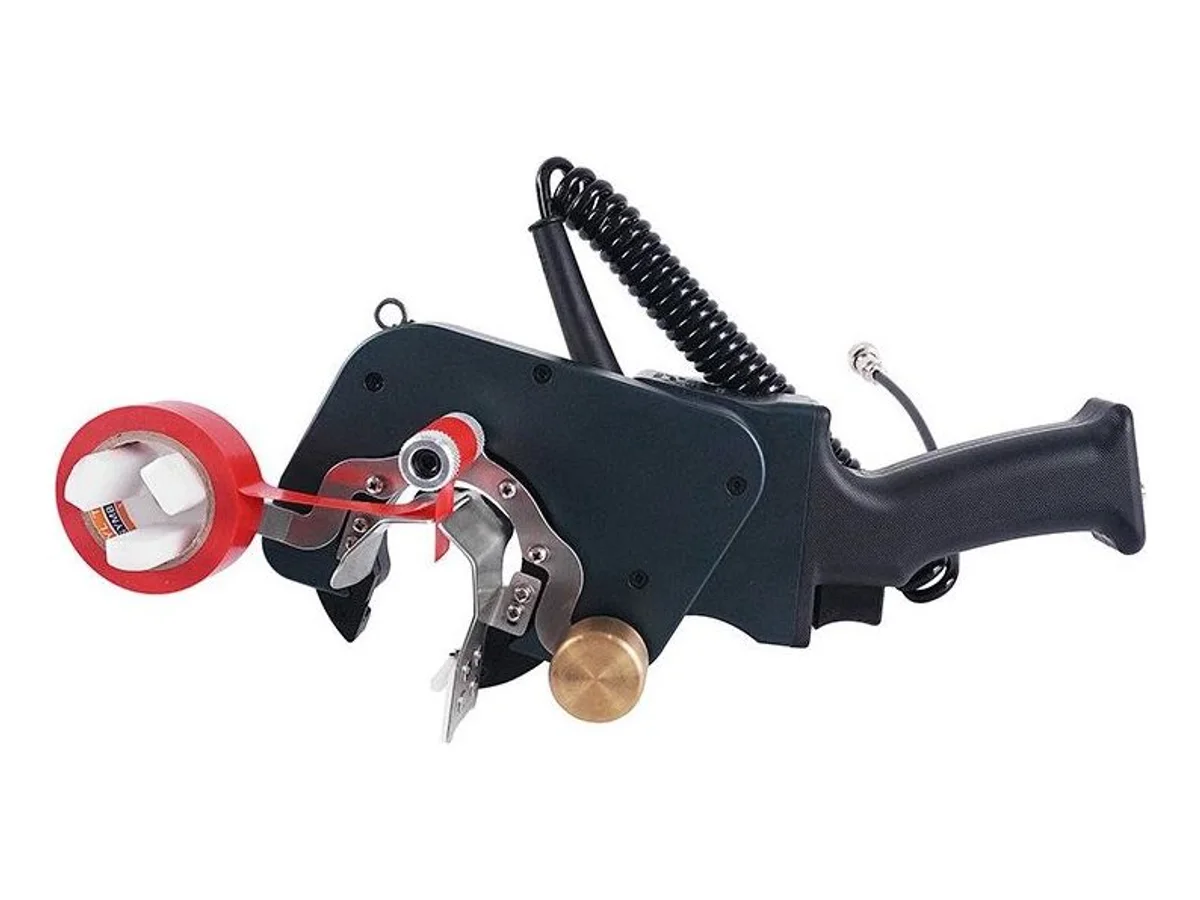

The WM-4110 is a 4 kg handheld tape wrapping gun for harness sections from Φ8 to 35 mm — its open jaw hooks over the bundle mid-span, and the operator walks the wrap along the run at manually controlled speed, using tape 10 to 20 mm wide on rolls up to Φ90 mm. It brings machine-even spiral wraps to the jobs a bench machine cannot reach, from installed-harness repairs to small batches, and a Φ5–55 mm version can be built to order.

Specifications

Function	Handheld tape wrapping for wire harnesses
Taping diameter	8 – 35 mm (5 – 55 mm can be customized)
Tape width	10 – 20 mm
Max. tape outer diameter	90 mm
Speed	Manually controlled
Power	220/110 (V)
Weight	4 kg
Dimension	330 x 180 x 150 mm
HS Code	8479.89 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Open-jaw wrap head hooks over the middle of a run — no threading the harness end through a ring, so it works on closed loops and installed bundles
Wrap speed is manually controlled, letting the operator set the pitch from tight half-lap to open barber-pole spiral by feel
4 kg pistol-grip build stays usable through a full shift, at the bench or leaning into a cabinet
Φ8–35 mm capacity as standard, with a Φ5–55 mm build available on request
Free sample test — send 2–3 meters of your harness, we wrap it with this gun and send you the video before you order

What it processes

Repair and rework taping on harnesses already installed in vehicles, cabinets and machinery
Small-batch and prototype harness runs that do not justify a bench taping machine
Service kits — gun, power adapter and spare tape reels pack into one small case

Suited for: spiral taping where the harness cannot come to a machine — repairs on installed bundles, mid-span sections of closed looms, and small batches, Φ8 to 35 mm. The red half-lap wrap on the tube in the gallery was laid down with this gun. Not suited for: programmed spot bands or high-volume bench work — the WM-4105 spot taping workstation and the WM-4136 continuous wrapping machine cover those — and sites without mains power, where the battery-powered WM-4111 takes over. Full lineup in the tape wrapping category.

Not sure a hand-guided wrap will look consistent enough for your inspector? Send 2–3 meters of your harness — we wrap it and send you the video before you order.

Engineering knowledge

Choose and troubleshoot this process

Automatic vs Semi-Automatic Wire Processing EquipmentCompare automatic lines and semi-automatic wire-processing cells using batch size, changeover, process integration, inspection and labor content.
How to Choose a Wire Harness Taping MachineChoose harness taping equipment by harness geometry, tape material, overlap, branch handling, wrap length, tension control and production mix.
Wire Harness Taping Defects: Causes and Corrective ActionsTroubleshoot tape gaps, excessive overlap, wrinkles, lifted edges, bundle deformation, tension variation and unstable start or finish positions.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-4110 — common questions

What tape fits the WM-4110?

Tape 10 to 20 mm wide on rolls up to Φ90 mm outer diameter — the common PVC harness tape format. The reel sits on an open holder beside the jaw, so a tape change takes seconds without tools.

What can it not do?

It wraps — it does not cut wire, strip insulation or place bands at programmed positions, and the pitch depends on the operator's hand. Bundles outside Φ8–35 mm need the customized Φ5–55 mm build, and for fixed-position spot bands at a bench see the spot taping machines at /products/tape-wrapping/.

Does it need mains power?

Yes — it runs from a 110/220 V adapter on a coiled cord, so it follows the operator around the bench or vehicle. If the job site has no socket at all, the WM-4111 does the same work from a lithium battery worn on the belt.
