Heat Shrink Tube Inserting, Marking and Shrinking Machine with 2.5-Second Cycle WM-669

Name: Heat Shrink Tube Inserting, Marking and Shrinking Machine with 2.5-Second Cycle WM-669
Brand: Wiromac
SKU: WM-669

CE Certified HS Code 8419.89 Tube Φ2.0/Φ6.0 mm 2.5 s/cycle

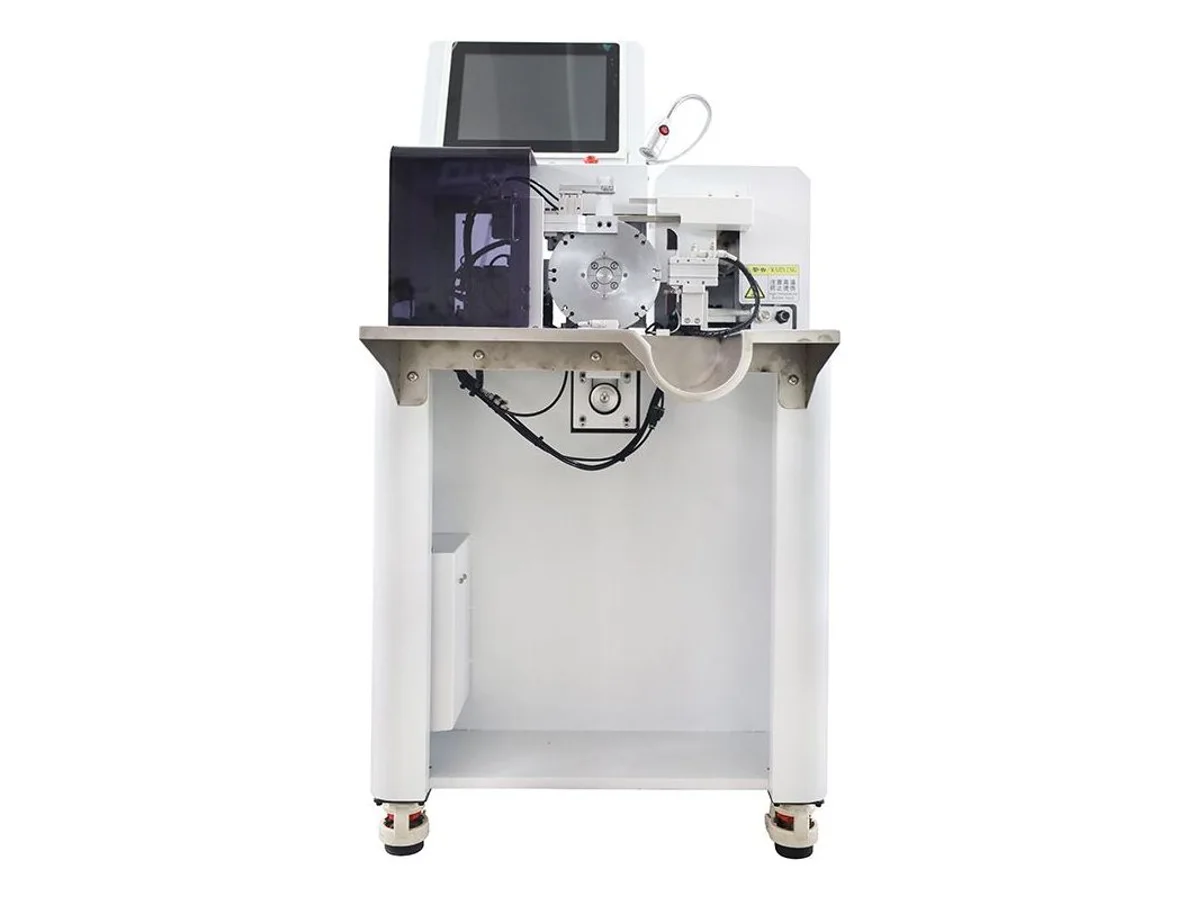

The WM-669 slides a cut shrink tube onto the wire, prints the legend on it and shrinks it in place — inserting, marking and heating combined into a 2.5-second cycle. It takes tube of Φ2.0 mm/Φ6.0 mm diameter, heats a 6 – 35 mm zone selected by fixture, and holds any shrink temperature from 0 to 380 °C under thermostat control. A built-in printing unit marks the sleeve before it shrinks, the 12-inch multi-point capacitive screen runs an English-language interface, and PLC plus IPC control sequence the cell with forced air cooling for continuous duty.

Specifications

Model	WM-669
Tube diameter	Φ2.0 mm/Φ6.0 mm
Heating length	6 – 35 mm (optional fixture)
Heating temperature	0 – 380 °C (adjusted by thermostat)
Operating cycle	2.5 seconds
Display	12-inch multi-point capacitive screen
System control method	PLC and IPC
Input voltage	220 V AC
Frequency	50/60 Hz
Rated power	1,450 W
Air pressure	5.5/6.5 KPa
Cooling method	Forced air cooling
Operating temperature	0 – 50 °C
Storage temperature	-20 – 60 °C
Operating humidity	10% – 90% RH (non-condensing)
Anti-interference ability	Interference voltage 1500 Vp-p, pulse period 1 us
Duration	1 minute
Dimensions	740 × 640 × 1,270 mm (L × W × H)
Weight	82 kg
HS Code	8419.89 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Inserting, marking and shrinking collapse three hand operations into one 2.5-second machine cycle
The legend prints before the tube shrinks, so markings like 220V-AC come out crisp, sized to the sleeve and permanent
Thermostat control from 0 to 380 °C lets you dial heat to the tube material instead of guessing at a fixed nozzle
12-inch multi-point capacitive screen with an English-language interface keeps counts, cycle data and settings at the front panel

What it processes

Voltage and circuit identification sleeves on appliance and power-supply leads
Wire ends that need an insulated, labeled shrink joint straight off the cutting line
Panel and switchgear wiring where every conductor carries a printed sleeve marker

Suited for: printed identification sleeves shrunk onto wire ends — tube in the Φ2.0/Φ6.0 mm class, 6–35 mm shrink zones, one marked and shrunk piece every 2.5 seconds. Not suited for: tube above the Φ6.0 mm class — for that, pick the WM-663 heat shrink tube inserting and heating machine, which inserts and heats sleeves from Φ2.0 to Φ8.0 mm at 800–2,500 pcs/h. For shrinking whole harness sections rather than wire ends, the WM-664 infrared harness heat shrink oven takes sections up to Ø100 mm.

Marking layout, sleeve length and shrink finish are easiest to judge on your own parts: send 2–3 meters of your wire with your tube size and legend text, and we run the job on this machine on video before you commit.

Engineering knowledge

Choose and troubleshoot this process

Heat Shrink Defects: Causes and Corrective ActionsTroubleshoot incomplete recovery, wrinkles, splits, scorching, sleeve movement, trapped air, uneven adhesive flow and heat damage.
How to Choose Heat Shrink Processing EquipmentChoose heat shrink equipment by sleeve material, recovered dimensions, adhesive requirement, harness geometry, heating method, takt time and validation plan.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-669 — common questions

Which tube sizes and shrink zones does the WM-669 cover?

The maker specifies tube diameter as Φ2.0 mm/Φ6.0 mm, with a heated zone of 6 – 35 mm chosen through optional fixtures. If your sleeve sits at the edge of that window, send samples and we confirm fit on the actual machine.

How fast is it in production?

The operating cycle is 2.5 seconds per piece — insertion, printing and shrinking included — with forced air cooling keeping the head stable through continuous runs, and PLC plus IPC control sequencing each station.

What can it not do?

It is built for marked sleeves on wire ends — it does not shrink tube above the specified Φ6.0 mm class, and it is not an oven for whole harness bundles or long continuous sleeves. Those jobs live elsewhere in our heat shrink processing range.
