Heat Shrink Tube Inserting and Heating Machine for Wire Ends and Terminals WM-663

Name: Heat Shrink Tube Inserting and Heating Machine for Wire Ends and Terminals WM-663
Brand: Wiromac
SKU: WM-663

CE Certified HS Code 8419.89 Sleeve OD Φ2.0–Φ8.0 800–2,500 pcs/h

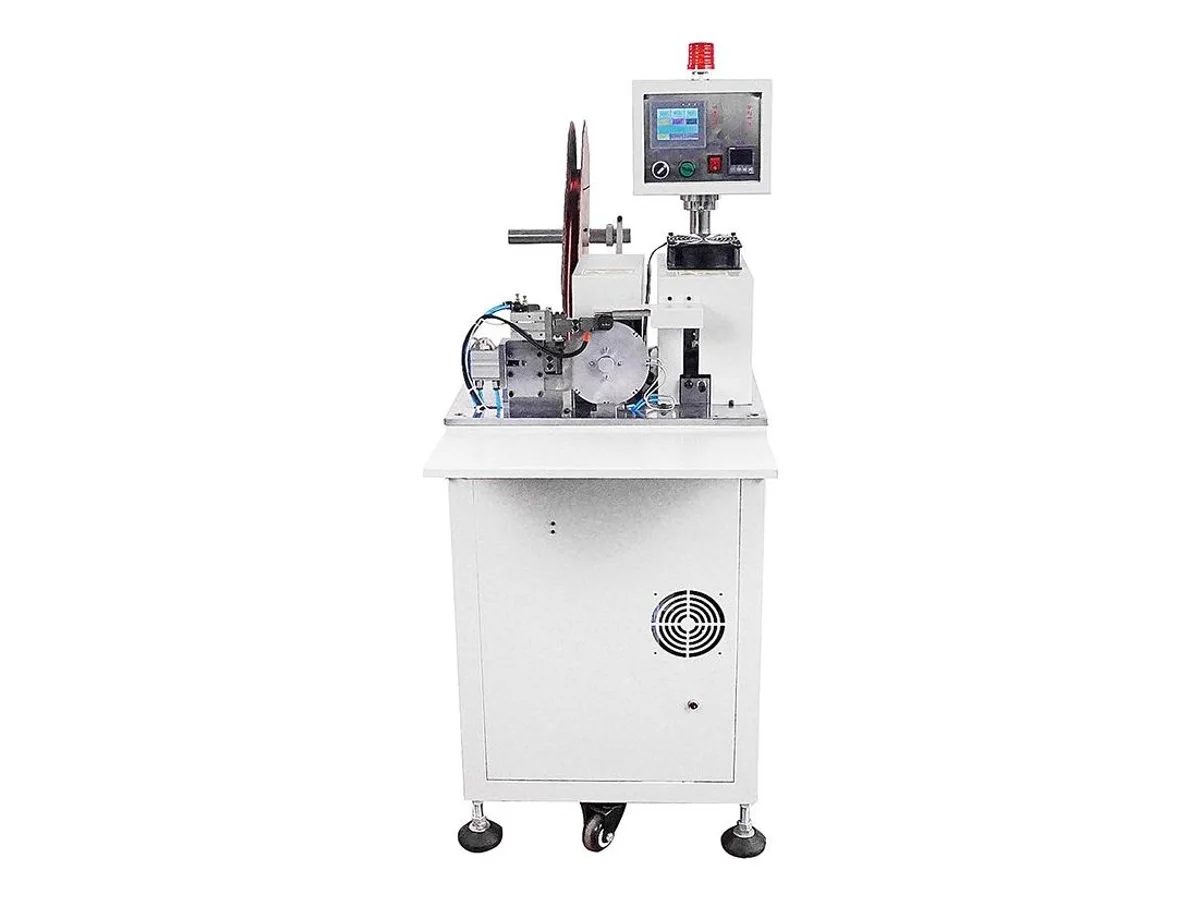

The WM-663 cuts heat shrink tube to length from the reel, slips it over a wire end and shrinks it in place — one station, one foot-press per wire. It takes sleeve from Φ2.0 to Φ8.0 with a size-matched fixture, melts at 200–380 °C and completes a cycle in 2.5 seconds, for 800–2,500 pieces per hour. PLC control with a 4.3-inch color TFT sets tube length, position and temperature per recipe, and forced-air cooling sets the sleeve before the clamp opens. The 75 kg floor unit measures 500 × 640 × 1,300 mm and runs on 220 V with clean compressed air.

Specifications

Function	Cuts, inserts and heat-shrinks sleeve onto wire ends and terminals
Applicable sleeve OD	Φ2.0 / Φ8.0 (size-matched fixture)
Production efficiency	800 – 2,500 pcs/h
Operation cycle	2.5 seconds
Melting temperature	200 – 380 °C
Cooling method	Forced air cooling
System control	PLC with touchscreen
Display	4.3-inch color TFT
Power	850 W
Power supply	AC 220 V, 50/60 Hz
Air pressure	6.5/7.0 kPa (clean, dry, oil-free air)
Weight	75 kg
Dimensions (L × W × H)	500 × 640 × 1,300 mm
HS Code	8419.89 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

One foot-press does three jobs — sleeve cut to length from the reel, positioned over the wire end, shrunk tight — replacing the scissors-and-heat-gun handwork station
2.5-second cycle delivers 800 to 2,500 finished ends per hour from a single seated operator
Tube length, position and shrink temperature are stored as recipes on the PLC touchscreen, so marker positions repeat batch after batch
Adjustable 200–380 °C melt range covers thin-wall insulation sleeve and printed marker tube alike, with forced-air cooling setting the sleeve before the clamp opens

What it processes

End insulation and strain-relief sleeves on AC and DC power cable ends and terminals
Printed identification markers shrunk at set positions on harness wires
Solder-joint and terminal barrel covering on electronic wire assemblies

Suited for: repetitive end-of-wire sleeve work — insulation and marker sleeves from Φ2.0 to Φ8.0 cut, placed and shrunk at the same spot on every wire, AC/DC leads and terminal barrels included. Not suited for: shrinking long sections, mid-span splices or finished bundles — for splice and bundle work, pick the WM-664 infrared harness heat shrink oven, which takes harness sections up to Ø100 mm; for longer runs browse the heat shrink processing category — and it does not cut or strip the wire itself.

Sleeve walls and shrink ratios vary by brand, so we prove it first: send 2–3 meters of your wire plus a length of your actual sleeve and we run them on this machine on video before you commit.

Engineering knowledge

Choose and troubleshoot this process

Heat Shrink Defects: Causes and Corrective ActionsTroubleshoot incomplete recovery, wrinkles, splits, scorching, sleeve movement, trapped air, uneven adhesive flow and heat damage.
How to Choose Heat Shrink Processing EquipmentChoose heat shrink equipment by sleeve material, recovered dimensions, adhesive requirement, harness geometry, heating method, takt time and validation plan.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-663 — common questions

How does a cycle actually run?

The operator pushes the stripped wire end into the guide hole and steps on the foot switch. The machine cuts the programmed sleeve length from the reel, carries it over the wire end, shrinks it at the set temperature and cools it with forced air — about 2.5 seconds in total. Throughput lands between 800 and 2,500 pieces per hour depending on sleeve size and length.

Which sleeve sizes fit, and how do I change over?

Sleeve outer diameters from Φ2.0 to Φ8.0 run with a size-matched fixture. Changing size means swapping the corresponding fixture and recalling the recipe on the 4.3-inch touchscreen — tube length, position and temperature all come back with the program.

What is the WM-663 not designed to do?

It shrinks one short sleeve at the end of a wire — it is not a tunnel oven for shrinking long sections, mid-span splices or whole bundles, which is work for the ovens in the heat shrink processing category. It also does not cut or strip the wire itself.
