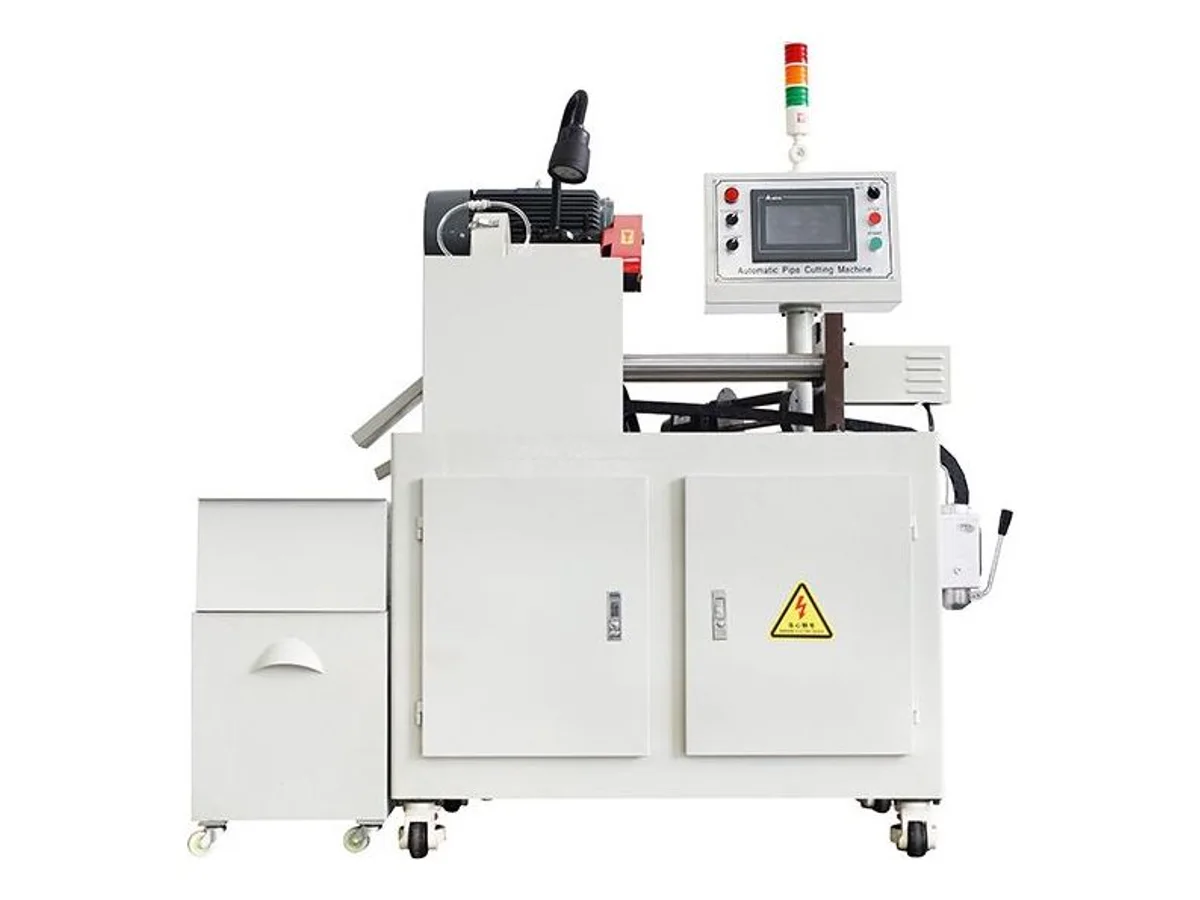

CNC Brass Tube and Aluminum Rod Cutting Machine, Ø0.6–48 mm WM-562CNC

Name: CNC Brass Tube and Aluminum Rod Cutting Machine, Ø0.6–48 mm WM-562CNC
Brand: Wiromac
SKU: WM-562CNC

CE Certified HS Code 8461.50 1–15 pcs per cut

The WM-562CNC saw-cuts brass and aluminum tube or rod from Ø0.6 to 48 mm into pieces from 1 to 2,000 mm long, holding cutting accuracy of ±0.03 mm and squareness within ±0.01 mm — faces come off smooth and burr-free. Up to 15 pieces clamp and cut in one batch from stock of about 6 meters, driven by a 3.0 kW Siemens main motor with 0.001 mm servo positioning over 480 mm of travel. A Delta PLC with touchscreen runs the cycle, and a die change takes 0.3–1 minute.

Specifications

Control form	Delta PLC + touch screen (Delta)
Main motor	Siemens four-stage motor
Main motor power	3.0 kW
Servo accuracy	0.001 mm
Travel range	480 mm
Cutting material	Copper (aluminum) material
Material size	About 6,000 mm
Diameter range	0.6 – 48 mm
Cutting accuracy	±0.03 mm
Product verticality	±0.01 mm (adjustable verticality)
Cutting surface	Smooth without burrs
Cutting size range	1 – 2,000 mm
Cutting quantity range	1 – 15 pieces
Die change time	0.3 – 1 minutes
Tungsten steel saw blade	Ø180 mm × 1.0 mm × 100T / Ø150 × 0.8 mm × 120T
Cutting width	1.0 mm / 0.8 mm
HS Code	8461.50 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Batch-clamps up to 15 rods or tubes and cuts the whole layer in one stroke, so throughput scales without giving up accuracy
±0.03 mm length with ±0.01 mm squareness and burr-free faces sends parts straight to the next operation, skipping the deburring bench
0.001 mm servo positioning under Delta PLC control repeats lengths consistently across a full 6-meter bar
Tungsten-carbide blades swap in 0.3–1 minute, and the 0.8 mm thin-kerf option saves material on every cut of expensive brass

What it processes

Brass bushings, spacers and fittings cut from tube for plumbing and HVAC hardware
Copper and aluminum rod blanks for machining, terminals and busbar stock
Connector shells and sleeve blanks where cut faces must be square and burr-free

Suited for: precision cut-to-length of non-ferrous stock — brass tube, copper and aluminum rod from Ø0.6 to 48 mm, clamped up to 15 pieces per cut, for bushings, fittings, machining blanks and connector hardware. Not suited for: steel stock or soft tubing — corrugated tube runs on the WM-162 corrugated tube cutting machine and heat-shrink tube on the WM-565N, the soft-material benches beside this metal-cutting station — and it does not process steel, wire or cable.

Blade and clamp tooling are matched to your stock, so acceptance happens on your parts: send 2–3 meters of your tube or rod, and we run a full batch cut on this machine on video — with measurements on camera — before you commit.

Engineering knowledge

Choose and troubleshoot this process

How to Choose a Tube and Pipe Cutting MachineChoose tube and pipe cutting equipment by material, diameter, wall thickness, rigidity, cut mechanism, tolerance, end quality and chip-control requirements.
Tube Cutting Defects: Causes and Corrective ActionsTroubleshoot angled cuts, crushed tube, burrs, stringing, length drift, corrugated-tube splitting errors and feed slippage.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-562CNC — common questions

What accuracy can I expect on production runs?

Length holds within ±0.03 mm and squareness within ±0.01 mm, positioned by a 0.001 mm-resolution servo across the 480 mm travel. Faces leave the tungsten-carbide blade smooth and burr-free, so most parts skip deburring entirely.

How does batch cutting work?

Between 1 and 15 pieces of rod or tube clamp side by side and the saw cuts through the whole layer in one stroke — up to 15 finished pieces per cycle from bars of about 6 meters. Diameters from 0.6 to 48 mm and lengths from 1 to 2,000 mm are programmed on the Delta touchscreen, which also runs in English.

What is the WM-562CNC not designed to cut?

It is built for non-ferrous metal — brass, copper and aluminum — not steel, and not soft materials like corrugated or heat-shrink tubing, which run on the other tube and pipe cutting machines. Wire and cable cutting is a different machine class altogether.
