Toroidal Coil Tape Banding Machine for Wound Coils and Ring Cores WM-468

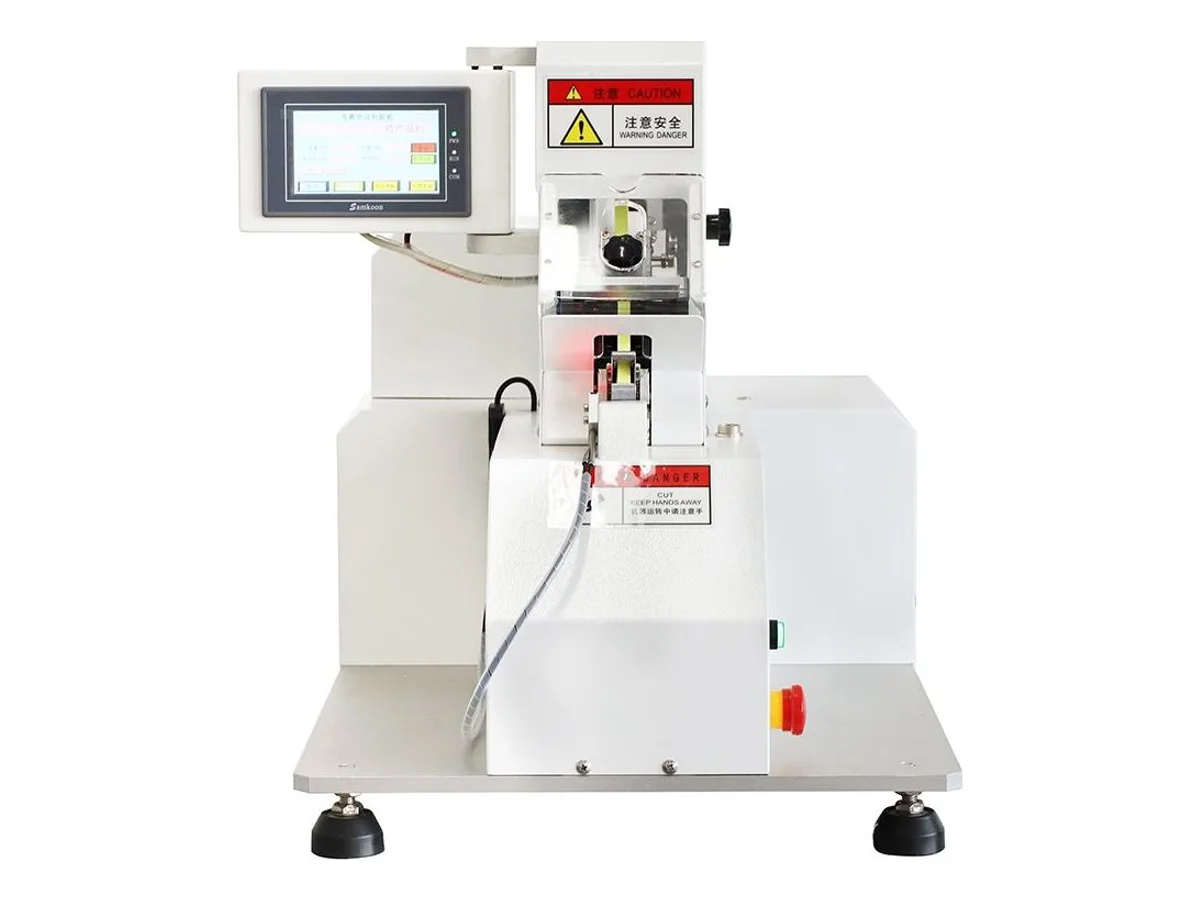

The WM-468 wraps adhesive tape bands around wound coils and ring-type workpieces — place the coil against the wrap point and the pneumatic taping head pulls, wraps and cuts the tape in a cycle within 1.5 seconds. It runs 10–15 mm tape (customizable width) with cutting lengths of 45–75 mm, set from a color touchscreen with an English interface, auto/manual modes and an output counter.

Specifications

Key features

• Wrap-around taping head passes the tape through the coil aperture and bands the ring cross-section in one 1.5-second cycle
• Color touchscreen (English/Chinese switchable) with auto and manual modes, output counter and tape-pull parameters per recipe
• Photoelectric tape monitoring along the feed path; reel change is quick — the new tape is joined end-to-end to the old one, no rethreading
• Wrap tightness is tooling-based — for non-standard coil shapes the wrapping reel is matched to your product size, so send a coil sample with your inquiry

What it processes

• Banding flat-wire and round-wire wound coils to keep windings compressed and terminated
• Insulation tape bands on inductor, choke and transformer coils and ring-type cores
• Securing tape wraps at intervals around racetrack and toroidal coil bodies before assembly or potting

Suited for: wrap-around tape banding on wound coils and ring-type workpieces — the tape passes through the coil opening and bands the cross-section, one band per 1.5-second cycle. For other jobs and machine options: continuous spiral taping along wire harness bundles — that is the job of the WM-467 automatic wire harness taping machine for Φ3–30 mm bundles; for spot taping at programmed points on coils and long bundles, use the WM-464 two-station spot taping machine. Small transformer bobbins and magnetic core coils that need the winding covered rather than banded are the job of the WM-470 transformer coil tape winding machine, which orbits the tape around the coil at 46 pcs/min.

Tape width outside 10–15 mm can be accommodated on request, and non-standard coil shapes are handled with a customized wrapping reel — include your coil dimensions and tape spec in the inquiry so we can confirm tooling before quoting. Start your WM-468 quote with the tape width and the size or a photo of the part to wrap. We’ll use those to check the wrapping setup.
