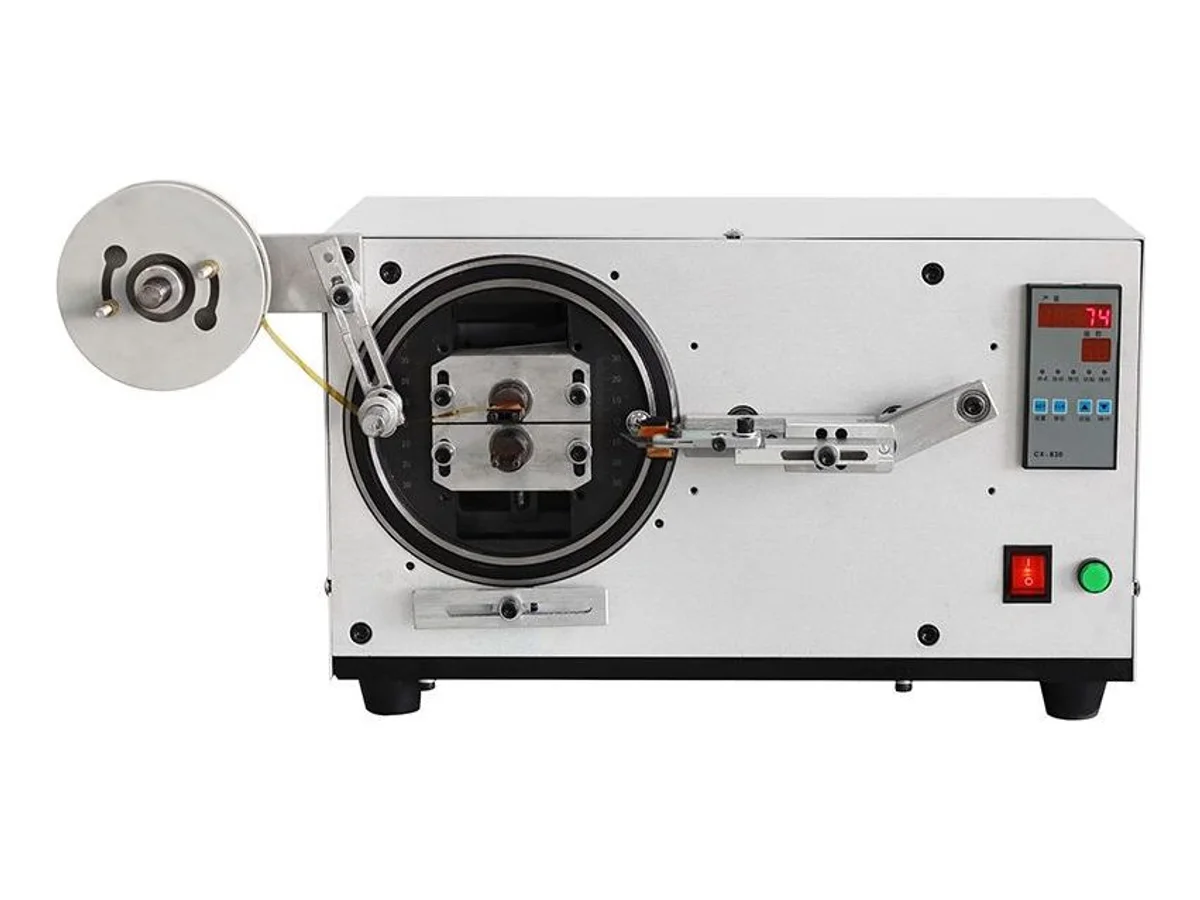

Semi-Automatic Transformer Coil Tape Winding Machine for Bobbin and Magnetic Core Coils WM-470

›

The WM-470 winds adhesive tape around a wound coil clamped inside a rotating ring — the tape arm travels a full circle around the coil body, so each turn closes on itself without threading the reel through by hand. It runs at 46 pcs/min with a ±0.2 mm tolerance range, takes tape reels with a 34 mm or 77 mm core, and the tape axis spacing adjusts from 25 to 85 mm. Benchtop format: 250 × 550 × 300 mm, 30 kg, on a 220 V AC 50 Hz 60 W supply.

Specifications

Key features

• Ring-type taping head — the coil is clamped on a spindle inside the open ring and the tape arm orbits it, laying a closed wrap around the winding instead of a short band across it
• Two-axis tape wrapping with the tape axis distance adjustable from 25 to 85 mm, set against the graduated scales on the ring face
• Tape position is fine-adjustable and the reel tensioner is adjustable, so wrap placement and tightness are dialled in rather than fixed by the tooling alone
• Fixtures are interchangeable — a different coil or bobbin runs on its own clamp set, changed at the spindle without touching the taping head
• Digital output counter with turn setting on the front panel; auto and manual (setup) operation

What it processes

• Insulation tape on transformer bobbin windings before assembly, potting or varnishing
• Magnetic core coils, resistance coils and relay coils that need a full-coverage tape layer over the winding
• Small inductor and choke coils built on pin-terminal bobbins, taped one at a time from a fixture

Suited for: full-coverage tape winding on small wound coils — transformer bobbins, magnetic core, resistance and relay coils — loaded one at a time into a fixture, 46 pcs/min at ±0.2 mm. Not suited for: short tape bands placed at intervals around large wound coils and ring cores — that is the WM-468 toroidal coil tape wrapping machine, which lays one band per 1.5-second cycle with 10–15 mm tape. For continuous spiral taping along a wire harness bundle, use the WM-467 automatic wire harness taping machine for Φ3–30 mm bundles; for spot taping at programmed points, the WM-464 two-station spot taping machine.

Coil taping is fixture work: the taping head is standard, the clamp that holds your coil is not. Include the coil dimensions, the pin or lead arrangement and your tape spec in the inquiry so the fixture and the tape axis setting are confirmed before the machine is quoted.
