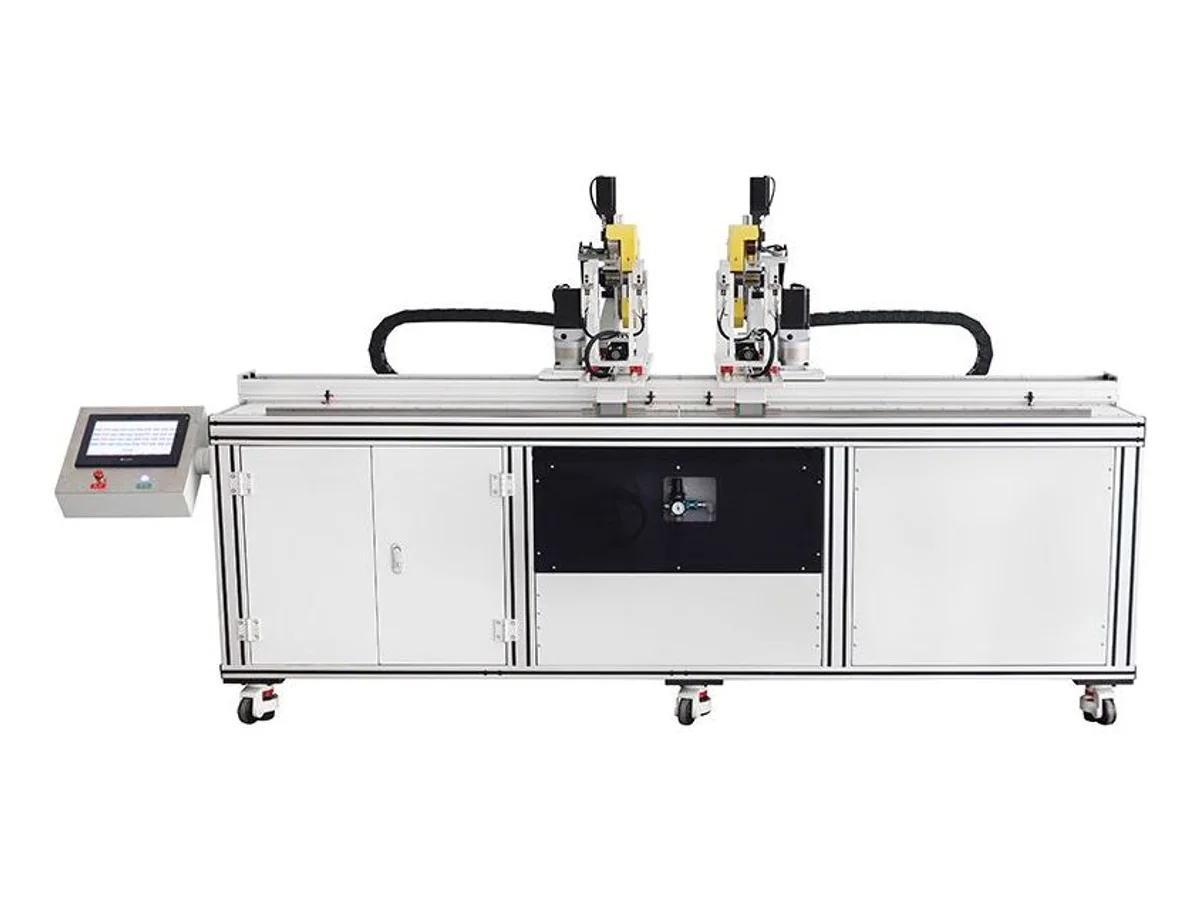

Two-Station Spot Taping Machine for Wire Coils and Long Bundles WM-464

Name: Two-Station Spot Taping Machine for Wire Coils and Long Bundles WM-464
Brand: Wiromac
SKU: WM-464

CE Certified HS Code 8479.89 10 s per wrap point (per side)

The WM-464 tape-wraps wire coils and long bundles at fixed points on two independent stations — while one station winds, the operator loads the other, so the 10-second single-side wrap time is never idle time. It clamps coils from 500 to 2,500 mm total length with wrap-point center distances of 300 to 2,200 mm and up to 1,800 mm between taping points, carrying work up to 30 kg. Ring-style taping heads run tape up to 40 mm wide on standard 38 mm mandrel cores, banding motor coils, transformer windings and harness bundles without hand-wrapping fatigue.

Specifications

Function	Two-station point (spot) tape wrapping of coils and bundles
Total coil length range	500 – 2,500 mm
Coil center distance	300 – 2,200 mm
Coil cross-section width	5 – 25 mm
Coil cross-section height	10 – 65 mm
Bobbin diameter	R90 – R150
Max. coil weight	30 kg
Tape width	≤ 40 mm
Tape mandrel size	38 mm
Single-side winding time	10 s
Max. distance between wrapping points	1,800 mm
HS Code	8479.89 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Two stations overlap loading and wrapping — the machine is winding on one side while the operator stages the next coil on the other, so output is set by the 10 s wrap, not by handling
Takes serious work — coils to 2,500 mm length and 30 kg that are tiring and inconsistent to band by hand
Wrap points up to 1,800 mm apart are taped in one clamping, keeping long bundles straight instead of re-fixturing mid-part
Ring taping heads accept standard 38 mm core rolls up to 40 mm wide, so tape is an off-the-shelf consumable, not a special order

What it processes

Banding motor and transformer coils after winding
Point-taping long harness bundles and cable looms at set intervals
Coil sets and bobbin assemblies up to 30 kg in electrical equipment plants

Suited for: point-taping formed coils and long bundles — motor and transformer coils, bobbin assemblies and harness looms from 500 to 2,500 mm and up to 30 kg, banded at set positions on two alternating stations. Not suited for: continuous spiral wrapping — for that, pick the WM-4136 tape wrapping machine, the dedicated spiral station with no length limit — while loose short leads spot-tape on the WM-4105 bench taping machine.

Send 3–5 of your actual coils or bundles with the tape you use, and we clamp, wrap and film them at production pace before you commit — check the wrap tightness and point positions yourself.

Engineering knowledge

Choose and troubleshoot this process

How to Choose a Wire Harness Taping MachineChoose harness taping equipment by harness geometry, tape material, overlap, branch handling, wrap length, tension control and production mix.
Wire Harness Taping Defects: Causes and Corrective ActionsTroubleshoot tape gaps, excessive overlap, wrinkles, lifted edges, bundle deformation, tension variation and unstable start or finish positions.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-464 — common questions

What work envelope does the WM-464 cover?

Coils or bundles with a total length of 500 to 2,500 mm, wrap-point center distances from 300 to 2,200 mm and up to 1,800 mm between taping points, cross-sections of roughly 5 – 25 mm by 10 – 65 mm, bobbin diameters R90 – R150 and workpieces up to 30 kg.

Which tape does it run?

Standard rolls on 38 mm mandrel cores, any common taping material up to 40 mm wide — PVC, cloth and acetate harness tapes included. Each wrap point takes about 10 seconds per side at a set overlap.

What is it not meant for?

Continuous spiral wrapping along a full harness length, or taping loose short leads — it wraps discrete points on formed coils and bundles. For continuous and small-bundle taping, see the other machines in our tape wrapping category.
