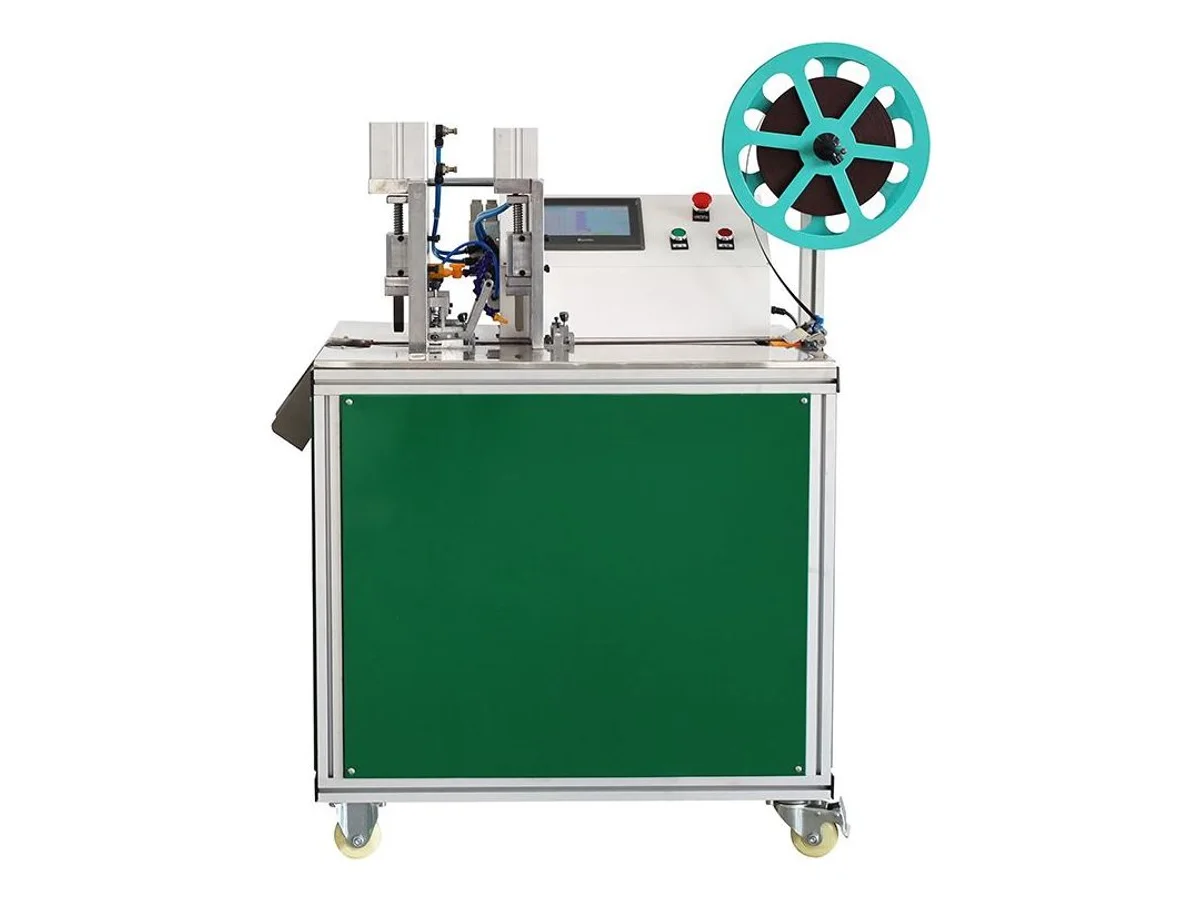

Ultrasonic Webbing Punching and Cutting Machine for Nylon Straps and Tapes WM-564

Name: Ultrasonic Webbing Punching and Cutting Machine for Nylon Straps and Tapes WM-564
Brand: Wiromac
SKU: WM-564

CE Certified HS Code 8515.80

The WM-564 cuts synthetic webbing to length and punches holes in the same automated cycle, using an ultrasonic horn that fuses every cut edge and hole rim so nylon and polyester straps come off the machine fray-free. Cut lengths, hole positions and piece counters are programmed on an English-language touchscreen, and material feeds from a reel through an adjustable guide. The 2.0 kW rated system runs on 220 V ±15%, 50/60 Hz. The floor-standing frame measures 950 × 600 × 1250 mm and weighs 165 kg.

Specifications

Function	Ultrasonic webbing cutting and hole punching
Working power	220 V ±15%, 50/60 Hz
Rated power	2.0 kW
Weight	165 kg
Dimensions	950 × 600 × 1250 mm
HS Code	8515.80 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Cuts and punches in one pass — a strap leaves the machine cut to length with all holes placed, no second operation and no manual jig
Ultrasonic horn fuses edges and hole rims as it severs the weave, so straps do not fray, unravel or need flame sealing afterwards
English touchscreen stores segment lengths, punching parameters, production speed and piece counters, so repeat strap patterns are recalled in minutes
Reel feed with an adjustable width guide keeps the webbing tracking straight, holding hole positions consistent across the whole roll

What it processes

Punched hook-and-loop and nylon straps for wire harness bundling and cable management
Luggage, safety-harness and outdoor-gear webbing cut to length with fixing holes
Polyester and PP tapes prepared for riveted, bolted or snap fastening points

Suited for: synthetic webbing, hook-and-loop strap, polyester ribbon and PP tape fed from a reel — jobs where every piece needs a sealed cut and cleanly punched holes in one automated pass. Not suited for: wire, cable or rigid tube — conductor processing belongs with the wire cutting and stripping machines, and braided sleeve or foam tube goes to the WM-570S hot knife cutting machine, the dedicated cutter for exactly those two materials. It also does not suit hand-placed work — cut leather panels, woven labels, stacked flannel or pieces that are already cut to length and only need holes; those go on the open table of the WM-598 ultrasonic hole punching machine, a foot-pedal press with interchangeable molds for round and shaped holes.

Send us 10–20 meters of your webbing with a sketch of hole positions and lengths — we set the machine up, run your material on camera and mail you the punched straps, so you judge the sealed edges and hole quality on your own product before you order.

Engineering knowledge

Choose and troubleshoot this process

How to Choose a Tube and Pipe Cutting MachineChoose tube and pipe cutting equipment by material, diameter, wall thickness, rigidity, cut mechanism, tolerance, end quality and chip-control requirements.
Tube Cutting Defects: Causes and Corrective ActionsTroubleshoot angled cuts, crushed tube, burrs, stringing, length drift, corrugated-tube splitting errors and feed slippage.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-564 — common questions

How do the punched holes and cut edges stay fray-free?

The punch and cutter work with an ultrasonic system, so the synthetic fibres are fused exactly where they are severed. Hole rims and strap ends come out sealed in the same stroke that forms them — no flame treatment, no stiffening glue, no loose threads inside the hole.

What can I program from the touchscreen?

The interface is in English and holds the working parameters for a job — segment lengths, punching settings, production speed and piece counters — so an operator stores a strap pattern once and recalls it for repeat orders instead of setting up measuring jigs.

What is this machine not suitable for?

It processes flat woven synthetic webbing, tape and ribbon — not wire or cable, which belong with the wire cutting and stripping machines. Round materials such as braided sleeve and foam tube are covered by the hot-knife cutters in the tube and pipe cutting category.
