How to Choose an Ultrasonic Wire Welding Machine

Select an ultrasonic wire welder from the joint that must pass inspection, not from nominal generator power. A technically suitable system must contain the real conductor bundle, transfer vibration consistently and record a repeatable process window without cutting strands or damaging nearby insulation.

Define the splice before comparing machines

Input	Why it changes machine selection	What to document
Conductor material and plating	Copper, tinned copper and aluminium transmit and bond differently	Material, plating and supplier construction
Total gathered cross-section	Determines joint volume and the practical equipment range	Every branch size and total mm²
Strand construction	Fine strands compact differently from coarse strands	Strand count and strand diameter
Splice geometry	Inline, end splice and stacked layouts require different containment	Drawing, orientation and finished dimensions
Required test	Pull, peel, resistance or cross-section requirements define approval	Test method, fixture and limits
Production mix	Recipe and tooling changes affect usable output	Splice families, batch sizes and change frequency

Do not combine dissimilar conductor materials unless the joint specification and machine supplier explicitly support the combination. Oxide condition, oil, handling contamination and storage also influence the achievable process window.

Compare equipment by the real operating window

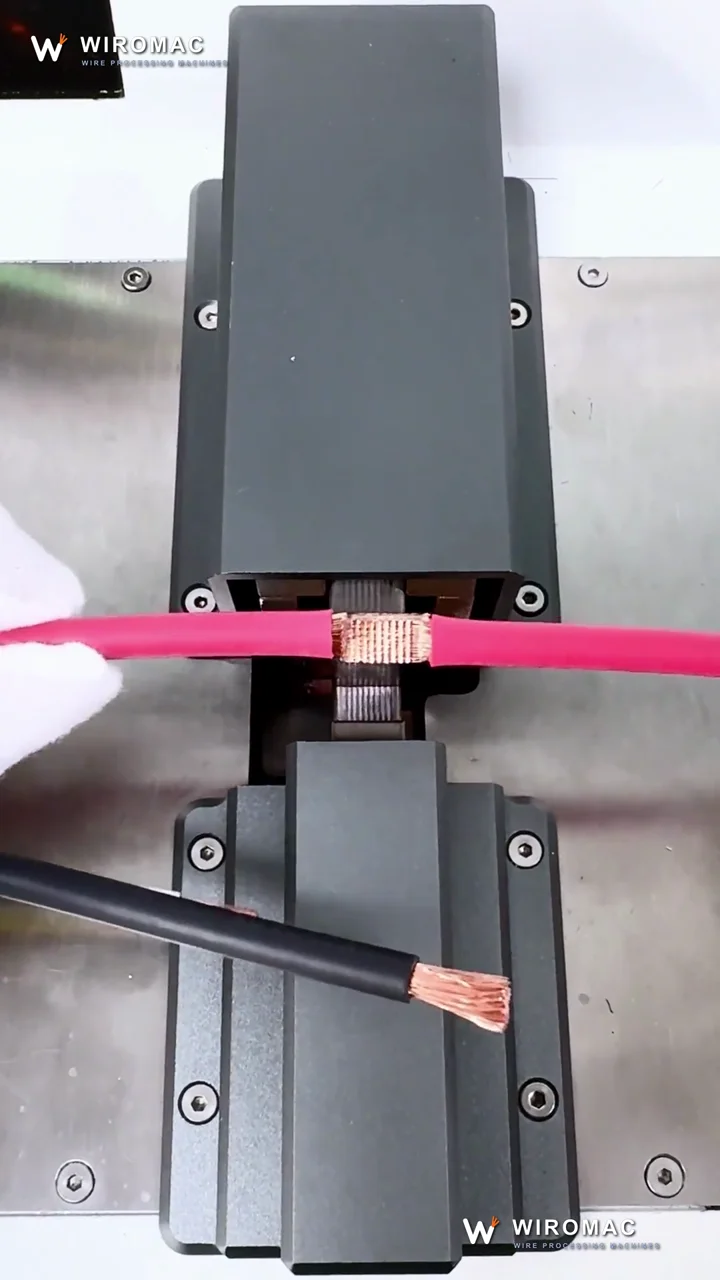

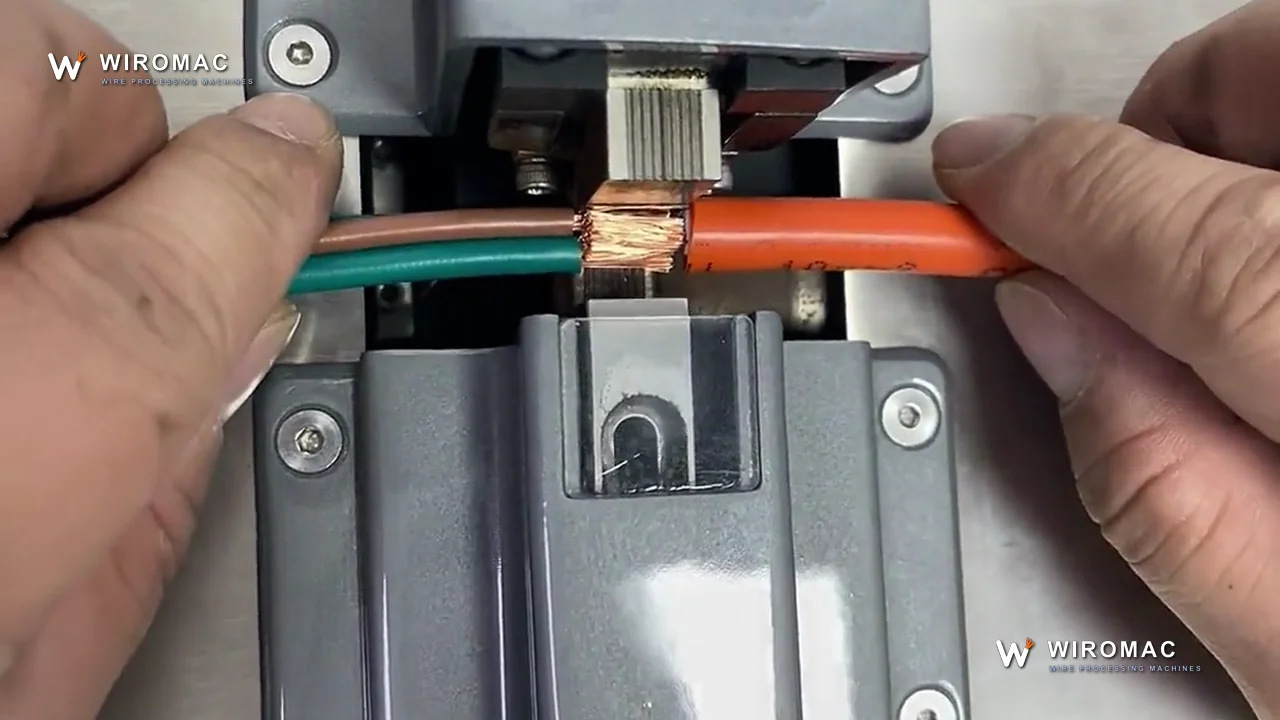

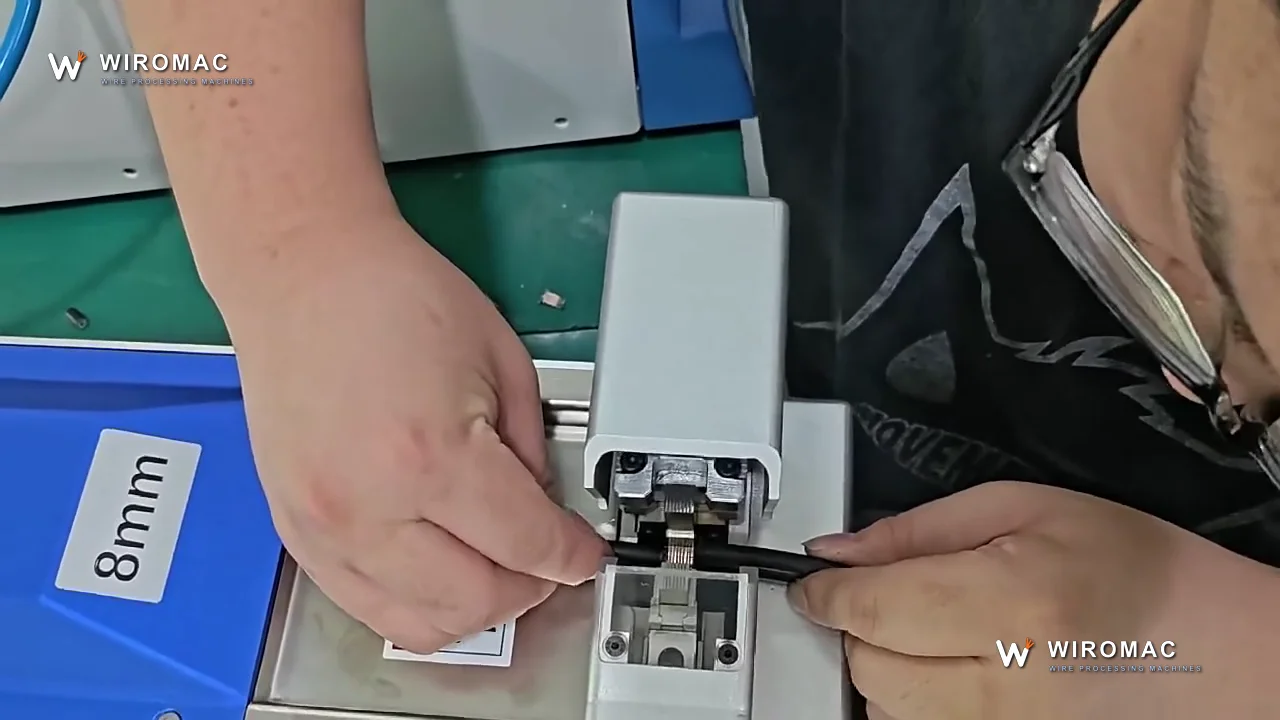

The WM-711 ultrasonic wire welding machine publishes a 0.75–20 mm² copper-splice range. The WM-717S ultrasonic splice station publishes 0.7–30 mm², while the WM-718 high-power ultrasonic wire splicer extends the published range up to 50 mm². These are equipment ranges, not guarantees for every material combination near a boundary.

Evaluate:

• sonotrode and anvil geometry for the required splice width;
• fixture access and repeatable wire placement;
• force, amplitude, energy, time and height monitoring available to the recipe;
• parameter access control and recipe identification;
• tool-life counters, maintenance access and replacement tooling;
• exportable weld records if the customer requires traceability.

Approve the process, not one attractive sample

A useful trial includes consecutive welds produced with the intended operator loading method. Record the wire lot, tooling identity, recipe, weld signature and finished dimensions. Then apply the agreed visual, mechanical and electrical tests. Cross-section analysis or environmental tests may be required by the customer specification.

The EV wire harness application and battery pack assembly application show where low-resistance conductor joints enter a wider process. Review documented examples in the case library, or send the splice drawing, wire samples and acceptance standard for a machine and tooling recommendation.
