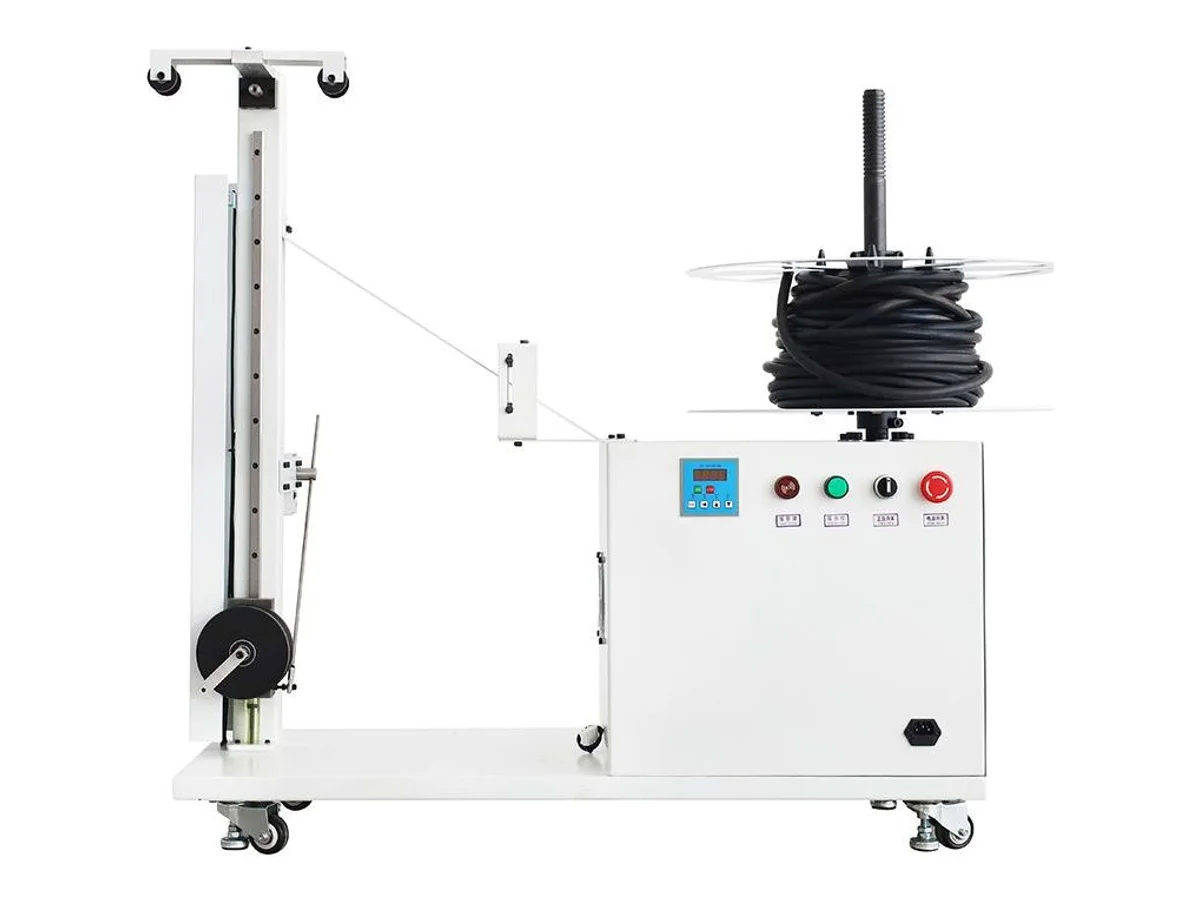

Automatic Variable-Speed Wire Pay-Off Machine with 50 kg Reel Capacity WM-9150

Name: Automatic Variable-Speed Wire Pay-Off Machine with 50 kg Reel Capacity WM-9150
Brand: Wiromac
SKU: WM-9150

CE Certified HS Code 8479.89 General wire and cable Up to 4 m/s; 50 kg reel

The WM-9150 is an automatic variable-speed pay-off for general wire and cable reels up to 50 kg. Induction control starts and stops the feed with the downstream machine, while braking and continuously variable speed support line rates up to 4 m/s.

Specifications

Function	Automatic variable-speed wire pay-off
Maximum speed	4 m/s
Reel load	50 kg
Control	Automatic induction start/stop with brake
Speed control	Continuously variable
Power supply	220 V
Power	750 W
Dimensions	1,000 × 600 × 1,000 mm
HS Code	8479.89 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

Carries general wire and cable reels up to 50 kg
Uses induction control to start and stop material supply with the downstream process
Adjusts pay-off speed continuously up to 4 m/s
Applies braking to control reel overrun during a stop
Provides a mobile floor-standing supply unit for automatic production cells

What it processes

Feeding general hook-up wire or cable into cutting and stripping machines
Supplying long-piece production where a free-spinning reel would overrun at stops
Supporting heavier 50 kg reels in harness and cable preparation cells
Variable-speed pay-off for lines that run several product recipes

Suited for: automatic pay-off of general wire and cable from reels up to 50 kg, with variable speed, demand sensing and braking. Not suited for: a small tension-sensitive coaxial process — use the WM-9105C tension-free coax prefeeder — or corrugated tube and hose, which are covered by the WM-9120T. Reels heavier than 50 kg are also out of range: for mill spools of Φ600–1,250 mm carrying up to 1.5 t of heavy cable (Φ3–45 mm power, EV, charging pile, PV and BV cable), step up to the WM-9151 heavy-duty large cable prefeeder, which trades top speed (100 m/min) for load capacity. In the other direction, wire that arrives on a Ø20–30 cm flanged spool cannot spin on this machine’s flat turntable at all — mount it upright on the WM-9332 compact wire pre-feeder and dereeler stand, rated ≥15 kg, which also grips bare coils between its two flanges.

The brake is as important as the drive. When a downstream cutter stops, an uncontrolled reel can continue turning and create loose loops, tangles or inconsistent restart tension. The induction control and continuously variable drive are set together so the material buffer remains stable at the required production speed.

Pair the pay-off with a model from the wire cutting and stripping range only after the reel and line geometry are checked. A 50 kg load rating does not by itself confirm hub fit, outside diameter or safe deceleration; those values are verified using the buyer’s reel drawing or a representative loaded reel.

Engineering knowledge

Choose and troubleshoot this process

How to Choose a Wire Prefeeder and Pay-Off SystemChoose a wire prefeeder or pay-off system by reel mass, line speed, acceleration, allowable tension, accumulation, dereeling control and downstream interface.
Wire Feeding Problems: Causes and Corrective ActionsTroubleshoot cable tension spikes, reel overrun, loops, jerking, twist, feed slip, encoder mismatch and downstream cut-length variation.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-9150 — common questions

What reel load and speed can the WM-9150 handle?

The stated limits are a 50 kg reel load and a maximum line speed of 4 m/s. Reel outside diameter, width, hub bore and rotational inertia still need approval because equal-weight reels can behave differently during acceleration and braking.

How does it synchronize with the downstream machine?

An induction signal detects material demand and controls pay-off, while the brake limits overrun when the receiving process stops. The sensor position and buffer path are set during line integration.

Is this the right prefeeder for small coaxial cable?

It can supply general cable, but the WM-9105C is specifically designed for Ø0.6–5 mm coaxial cable with a dancer-controlled tension-free loop. Choose according to cable sensitivity, reel load and downstream cycle.

What information is required for a line proposal?

Provide reel weight and all reel dimensions, material OD and bend behavior, maximum and normal line speed, start-stop frequency, downstream machine layout, feed direction and available floor space. A loaded-line test confirms brake and sensor settings.
