Pneumatic Shield Brushing and Wire Twisting Machine WM-822

Name: Pneumatic Shield Brushing and Wire Twisting Machine WM-822
Brand: Wiromac
SKU: WM-822

HS Code 8479.89 0.1–2 mm²

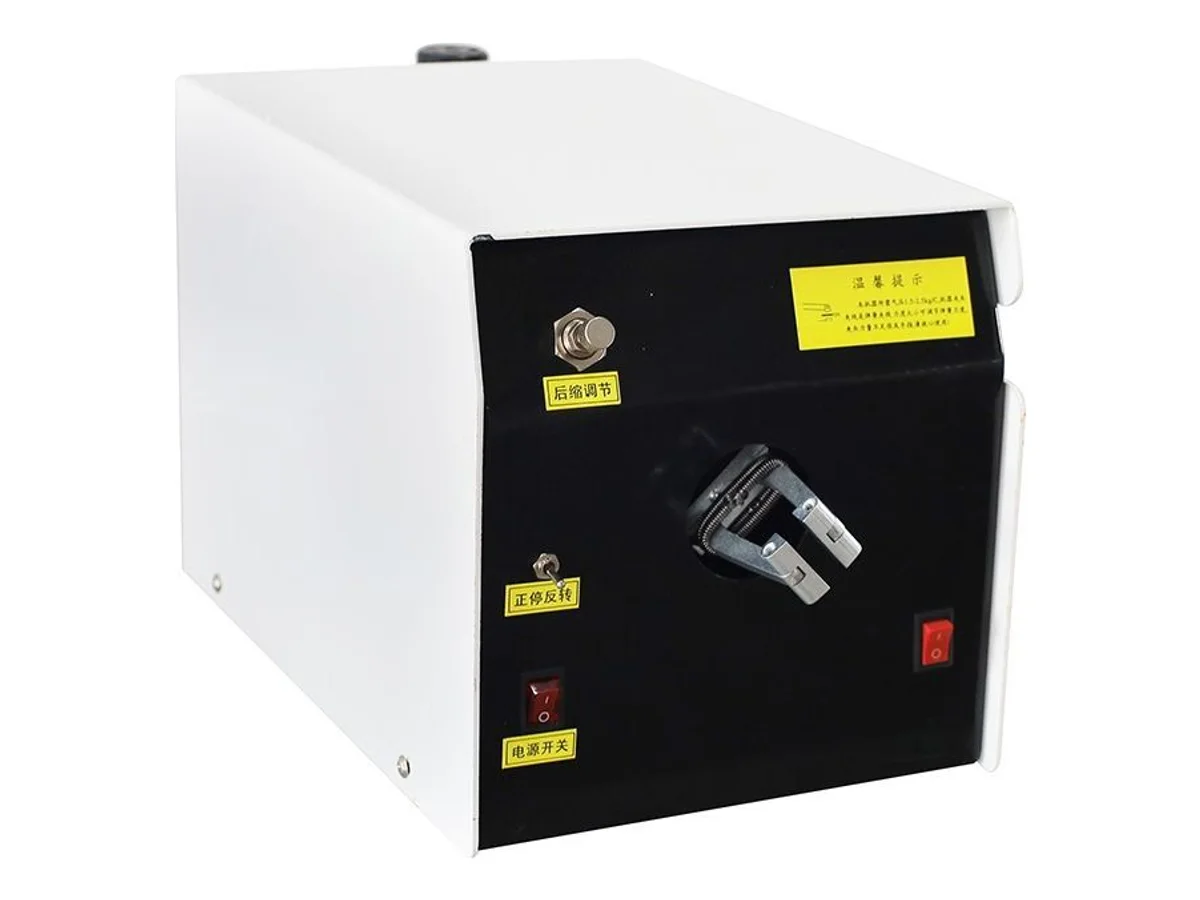

The WM-822 brushes open the shield of screened wire and twists the loose strands into a tight pigtail in one operation, covering conductors from 0.1 to 2 mm² with twisting lengths of 5–80 mm (customizable to 150 mm). A pneumatic clamping plate running on 1.5–2.5 kg/cm² shop air opens automatically — the operator holds the wire in place and taps the foot switch to complete the twist. The 10 W drive spins the head at 1,400 rpm, and the 12 kg unit plugs into 220 V AC at any bench.

Specifications

Function	Wire twisting — ground wire, braided wire and isolation wire
Twisting range	0.1 – 2 mm²
Twisting length	5 – 80 mm (can be customized to 150 mm)
Wire clamping	Pneumatic clamping plate, foot-switch operated
Air pressure	1.5 – 2.5 kg/cm²
Motor power	10 W, spindle speed 1,400 rpm
Power supply	220 V AC, 50 Hz
Dimensions	340 × 190 × 170 mm (L × W × H)
Weight	12 kg
HS Code	8479.89 (common reference — final classification confirmed by your customs broker)
Certification	On request

Key features

Pneumatic clamping plate opens automatically once shop air is connected — hold the wire in, tap the foot switch, and the twisting cycle runs with fingers clear of the head
Exposed clamping plate design makes scattered copper strands easy to lay in — brushed-open shield braid, drain wires and loose conductor strands all locate quickly
Automatic wire drawing device pulls the wire through the cycle, so new operators produce consistent pigtails after minimal training
Adjustable chuck — opening size is set at the chuck spindle screw, clamping force is tuned by fitting up to 5–6 springs, and the chuck center can be grooved to stop thick wire slipping outward during the twist
Forward, stop and reverse selector plus a retraction adjuster on the front panel match the twist direction and pull-back to each wire construction

What it processes

Twisting brushed-open shield braid and drain wires into neat pigtails on screened signal and control cable
Ground wires and stranded conductors from 0.1 to 2 mm² prepared for soldering, crimping or tinning
Braided wire and isolation wire in appliance, automotive and industrial harness assembly

Suited for: brushing open and twisting shields, ground wires, braided wire and isolation wire from 0.1 to 2 mm², with twisting lengths of 5–80 mm — extendable to 150 mm as a factory option — at a pneumatic bench station. Not suited for: brushing-only preparation at benches without compressed air — the WM-821 benchtop cable shield brushing machine combs shields open up to 50 mm on mains power alone. Heavy shielded cable is also out of scope — for brushing lengths of 10–200 mm on cable up to 100 mm², EV high-voltage cable included, pick the WM-819 shielded cable braid brushing machine. And it does not cut or strip the wire first — for inline cutting, stripping and end-twisting of AWG 22–28 single wires, see the WM-185S wire cutting, stripping and twisting machine. If your wire is unshielded and the bench has no air line at all, plain strand twisting on mains power alone is covered by the WM-4720 benchtop electric wire strand twisting machine — 1–3 mm wire, twist within 20 mm, 3,000 pcs/h, no compressed air.

Send 2–3 meters of your shielded wire and we twist your actual shield on video before you commit to the order.
