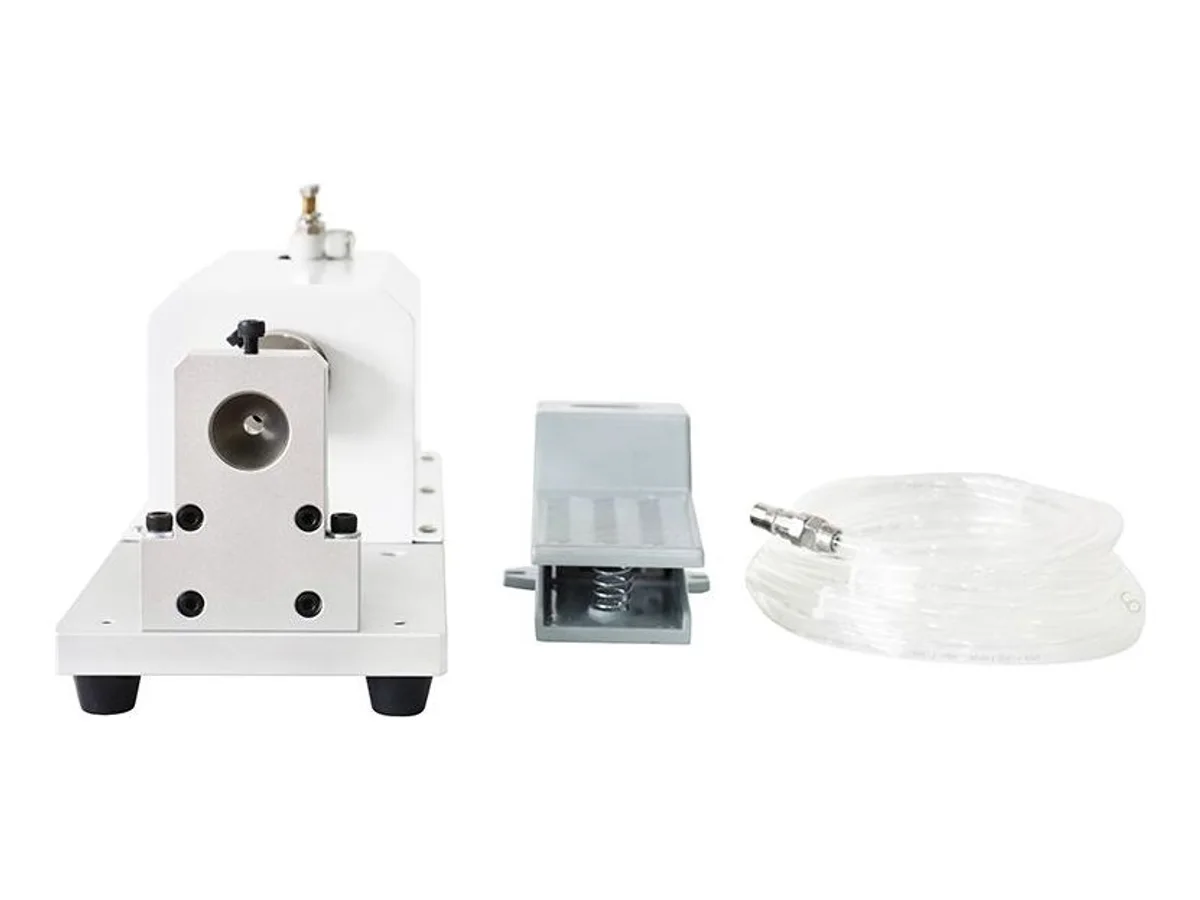

Pneumatic Shielding Layer Cutting Machine for Braided Cable, Shield OD 3–16 mm WM-192

Name: Pneumatic Shielding Layer Cutting Machine for Braided Cable, Shield OD 3–16 mm WM-192
Brand: Wiromac
SKU: WM-192

CE Certified HS Code 8463.90 Shield OD 3–16 mm

The WM-192 trims the braided shielding layer off prepared cable ends in one foot-pedal stroke. It accepts shielding layers from 3 to 16 mm outer diameter and cuts the braid to a set length — 2 to 70 mm where a fold-back reserve is kept, 2 to 110 mm where the braid comes off clean, both customizable. Purely pneumatic, benchtop and about 5 kg, it drops into a hand-prep station with nothing but an air line, and the pedal fires the cut while the operator keeps both hands on the cable.

Specifications

Model	WM-192
Cable	4 – 70 mm (shielding layer outer diameter 3 – 16 mm)
Shielding net cut-off length	2 – 70 mm with reserved length, 2 – 110 mm without reserved length (can be customized)
Air control method	Pneumatic control
Operation mode	Foot operation
Dimensions	410 × 145 × 155 mm (L × W × H)
Weight	About 5 kg
HS Code	8463.90 (common reference — final classification confirmed by your customs broker)
Certification	CE (certificate provided with shipment)

Key features

One pedal stroke leaves a square, even braid edge — no scissor fatigue, no ragged strands poking through the termination
Set-length cutting keeps the reserved braid consistent piece after piece, which is what fold-back and 360-degree shield terminations live on
About 5 kg and purely pneumatic — clamps onto any bench and needs only a compressed-air line, no electrical hookup
Foot operation leaves both hands free to hold and rotate the cable against the die

What it processes

Shielded cable end prep before EMC gland, ferrule or backshell termination
Fold-back shield terminations where a fixed braid reserve must survive hundreds of pieces
Rework and small-batch benches that cannot justify a fully automatic shield station

Suited for: manual and small-batch shield trimming — braided layers of 3–16 mm OD cut square to a repeatable length, with or without a fold-back reserve. Not suited for: automatic shield brushing, cutting and fold-back at production volume — for that, pick the WM-181 shield braid brushing, cutting and fold-back machine, which automates the whole operation on OD 3–9 mm shielded cable at 700–1,000 pcs/h. It also does not cut cable to length or strip the outer jacket — upstream of this station, the WM-184X rotary blade cutting and stripping machine handles braided and shielded cable up to 30 mm².

Not sure your braid construction cuts clean? Send 2–3 meters of your actual cable and we run it on this machine on video before you commit — you see the cut edge on your own material, not a demo cable.

Engineering knowledge

Choose and troubleshoot this process

Automatic vs Semi-Automatic Wire Processing EquipmentCompare automatic lines and semi-automatic wire-processing cells using batch size, changeover, process integration, inspection and labor content.
How to Choose a Wire Cutting and Stripping MachineSelect a wire cutting and stripping machine by conductor size, cable construction, strip geometry, length tolerance, batch size and downstream process.
Wire Stripping Defects: Causes and Corrective ActionsDiagnose conductor nicks, incomplete strips, pulled strands, insulation stretch, length variation and feed marks in wire stripping operations.

Neither machine quite fits? New configurations reach our application engineers before they reach the catalog. Tell us your material and process; we will confirm what we manufacture and support, then recommend the right configuration. Get a tailored recommendation →

WM-192 — common questions

What shield sizes does the WM-192 handle?

Shielding layers from 3 to 16 mm outer diameter, with the braid cut to a set length of 2 – 70 mm when you keep a fold-back reserve or 2 – 110 mm when the braid comes off entirely. Both windows can be customized.

What does it need to run?

Compressed air and a foot pedal — the control is purely pneumatic, so there is no electrical cabinet, no programming and nothing to configure. At roughly 5 kg and 410 × 145 × 155 mm it sits on a corner of an existing prep bench.

What can it not do?

It only cuts the shielding layer — it does not cut cable to length, strip the outer jacket or remove inner insulation, and each piece is loaded by hand. Those steps live with other machines in our wire cutting and stripping range.
