Troubleshooting guide
Wire Soldering Defects: Causes and Corrective Actions
Troubleshoot non-wetting, excessive solder wicking, bridging, burnt insulation, unstable tinning depth, residue and contaminated wire solder joints.
Engineering review: 2026-08-28
Stable wire soldering requires compatible surfaces, controlled flux, repeatable heat input and defined joint geometry. Increasing temperature is not a universal correction: it can hide a surface problem while creating wicking, burnt insulation and brittle transition zones.
Symptom and cause map
| Symptom | Likely causes | First checks |
|---|---|---|
| Non-wetting or exposed strands | Oxide, oil, weak flux, low heat transfer | Conductor surface, flux activity and actual temperature |
| Excessive solder wicking | High heat, long dwell, too much flux or deep immersion | Tinned length and stiffness under insulation |
| Solder bridge or oversized end | Excess feed, poor positioning or insufficient drainage | Feed amount, joint angle and withdrawal |
| Burnt or receded insulation | Excess temperature, dwell or contact with hot tooling | Strip length and heat exposure |
| Tinning depth varies | Wire position, bath level, feed timing or strand flare | Fixture datum and consecutive cycles |
| Heavy residue or corrosion risk | Excess or unsuitable flux, incomplete cleaning | Flux specification and cleaning process |
| Cold-looking or cracked joint | Inadequate heat, movement during solidification, contamination | Thermal profile and fixture stability |
Separate material, heat and motion variables
- Preserve failed and accepted parts with the wire, terminal and solder lots.
- Verify strip quality, conductor cleanliness and terminal plating.
- Confirm flux type, age, concentration and application quantity.
- Measure the process temperature at the working point instead of relying only on a controller display.
- Check wire position, solder-feed amount, dwell and withdrawal sequence.
- Change one approved variable, then inspect consecutive parts.
- Re-run dimensional, mechanical and electrical acceptance tests.

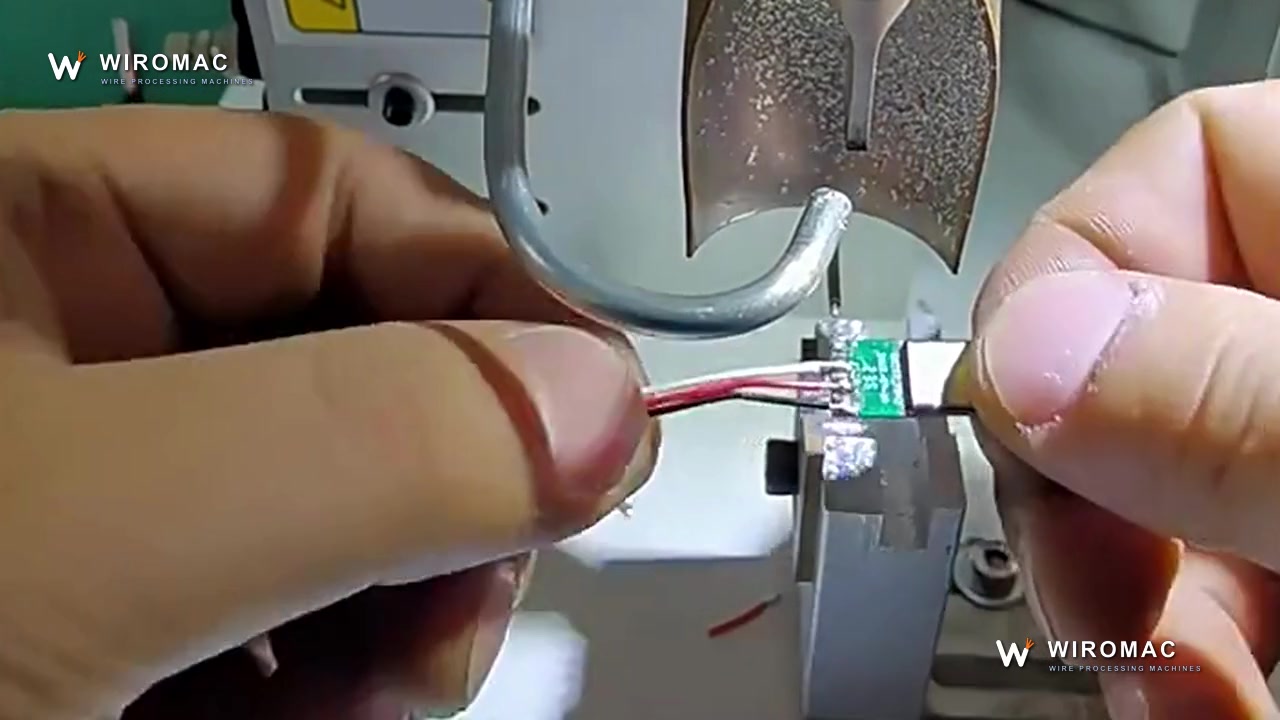

The WM-722 automatic solder-feed machine, WM-721 hot-bar pulse soldering machine and WM-712 semi-automatic USB soldering machine use different heating and product-handling architectures. Diagnose the actual process rather than transferring a recipe between them.
The power-cord manufacturing application and control-panel wiring application show where soldering may or may not be the specified termination. Compare published trial evidence in the case library, or send failed parts, material specifications and the acceptance drawing for process review.
Questions engineers ask
What usually causes solder not to wet stranded copper wire?
Common causes are oxidized or contaminated strands, unsuitable or inactive flux, incorrect solder temperature, inadequate dwell, poor heat transfer or an alloy and surface combination outside the approved process.
Why does solder travel too far under the insulation?
Excess temperature, dwell, flux quantity or immersion depth can increase capillary wicking. Strand construction and conductor orientation also matter, so correct one controlled variable at a time.
Can a visual inspection alone approve a soldered wire end?
No. Visual criteria are necessary but may not reveal poor internal wetting or excessive stiffness. Use the drawing and applicable standard to define dimensions, pull or peel performance, electrical checks and sectioning when required.
